ABAT100-C Battery Online Monitoring System

Product Description

UART port, support MODBUS protocol
One S-module monitors one battery
Relative humidity: 5%~95%

WhatsApp contact us

Detailed description
Parameters
Certificate
Download

OverviewAcrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.

Dimension

Network
Product Module

Model Function Description

ABAT100-HS DC24V input, one to manage a group of batteries, up to 120 batteries in a group.

ABAT100-S-02 Monitor one 2V battery, monitor battery voltage, internal resistance and negative terminal temperature.

ABAT100-S-06 Monitor one 6V battery, monitor battery voltage, internal resistance and negative terminal temperature.

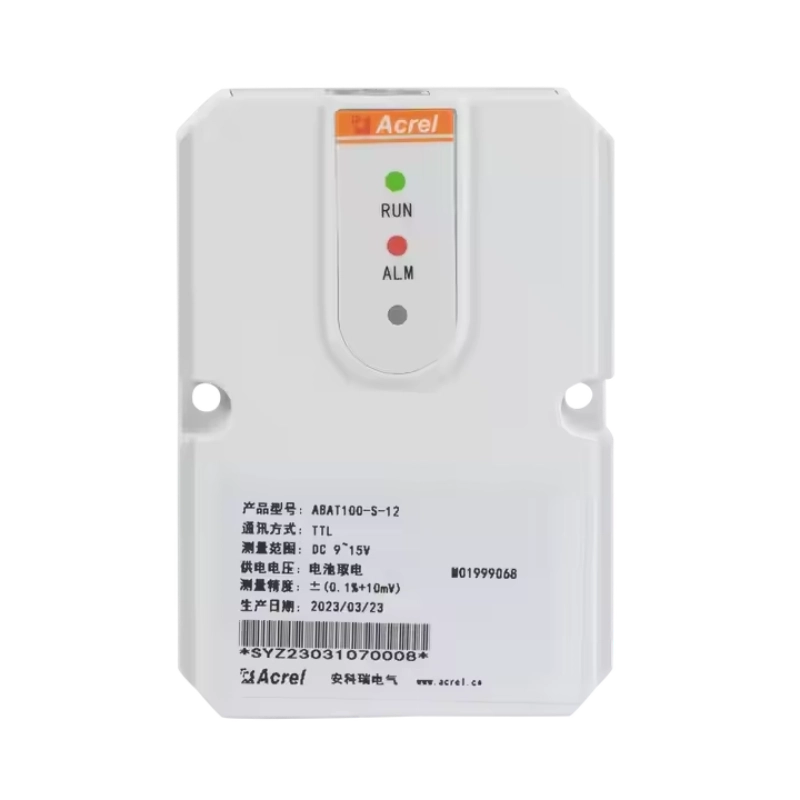

ABAT100-S-12 Monitor one 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature.

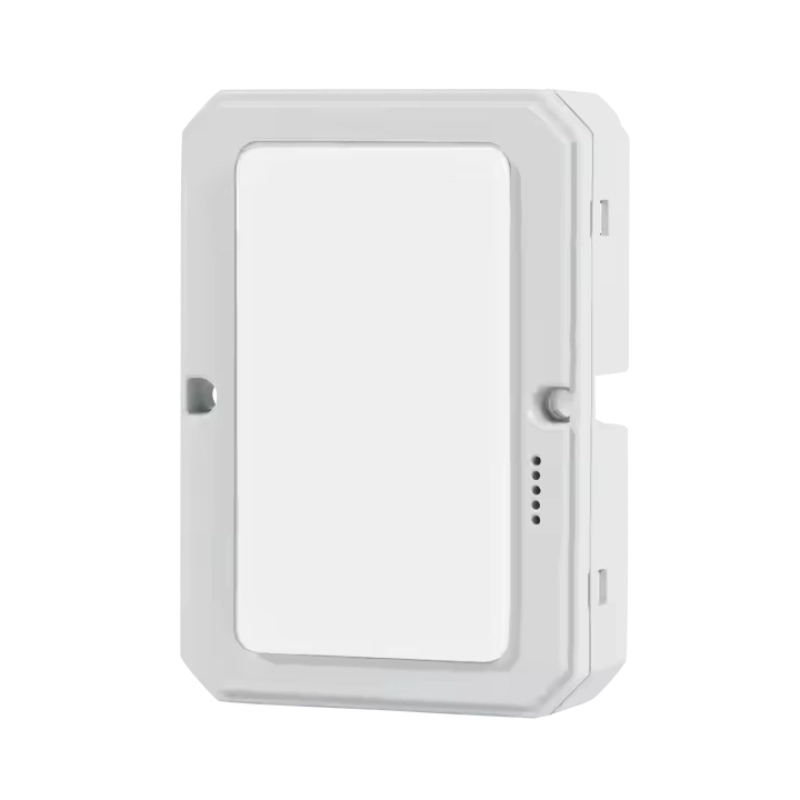

ABAT100-C Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A.

Technical parameter

Function Description

Display Real-time data display, graphs, histogram display

Historical Data Query and export of equipment operation history, charging and discharging records and monitoring events

Parameter Configuration Provide basic information management functions

Communication protocol MODBUS-RTU

Alarm mode Local audible and visual alarm, indicator alarm, SMS alarm, etc.

Capacity estimation Group batteries SOC, SOH estimation; single battery SOC, SOH estimation

Regular inspection Intelligent judgment of the current state and automatic issuance of test commands

Indicator light Red and green LED lights, green light as the power light, red light as the indicator light
