Acrel ADL10-E din rail energy meter adopts DIN35mm din rail installation with LCD display, it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.

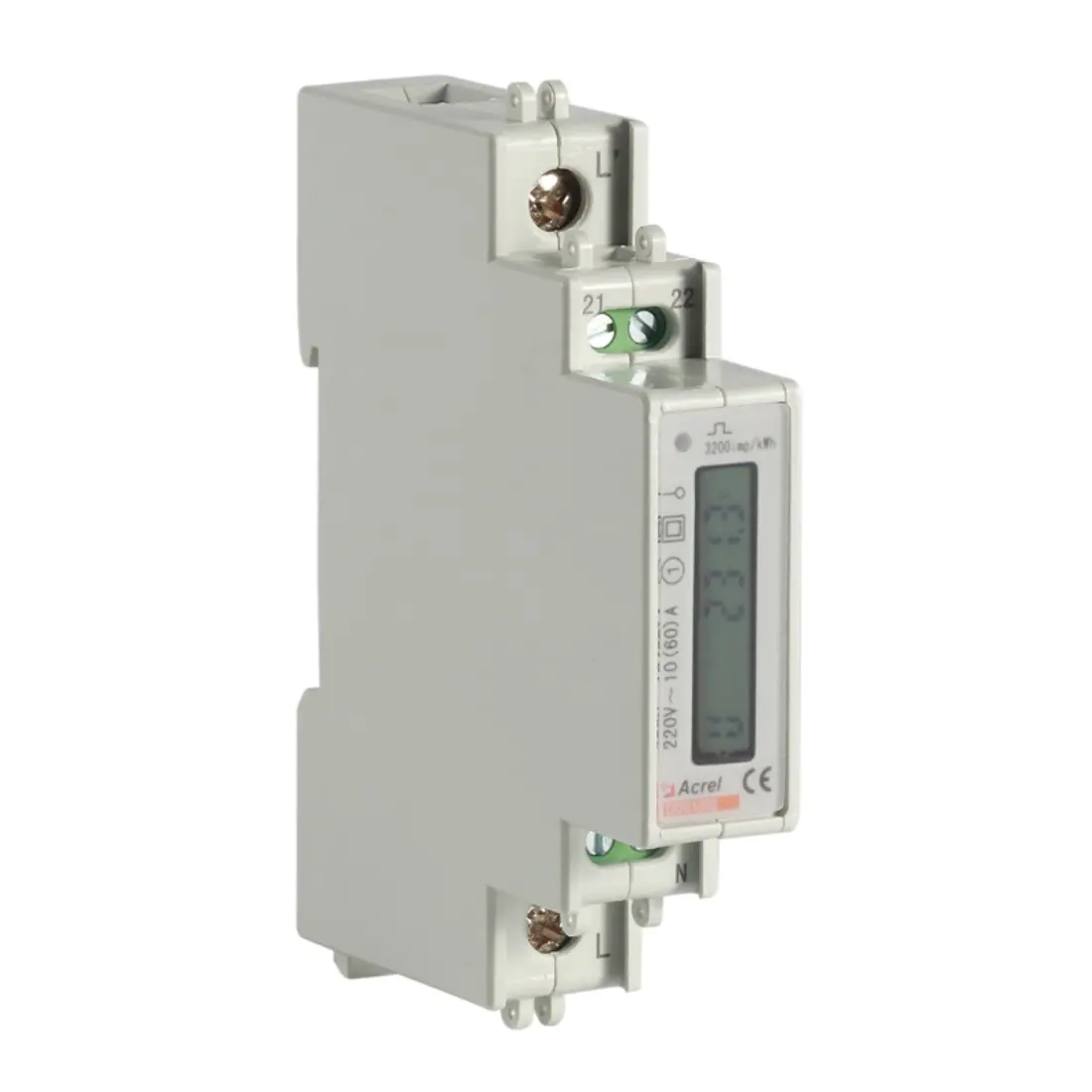

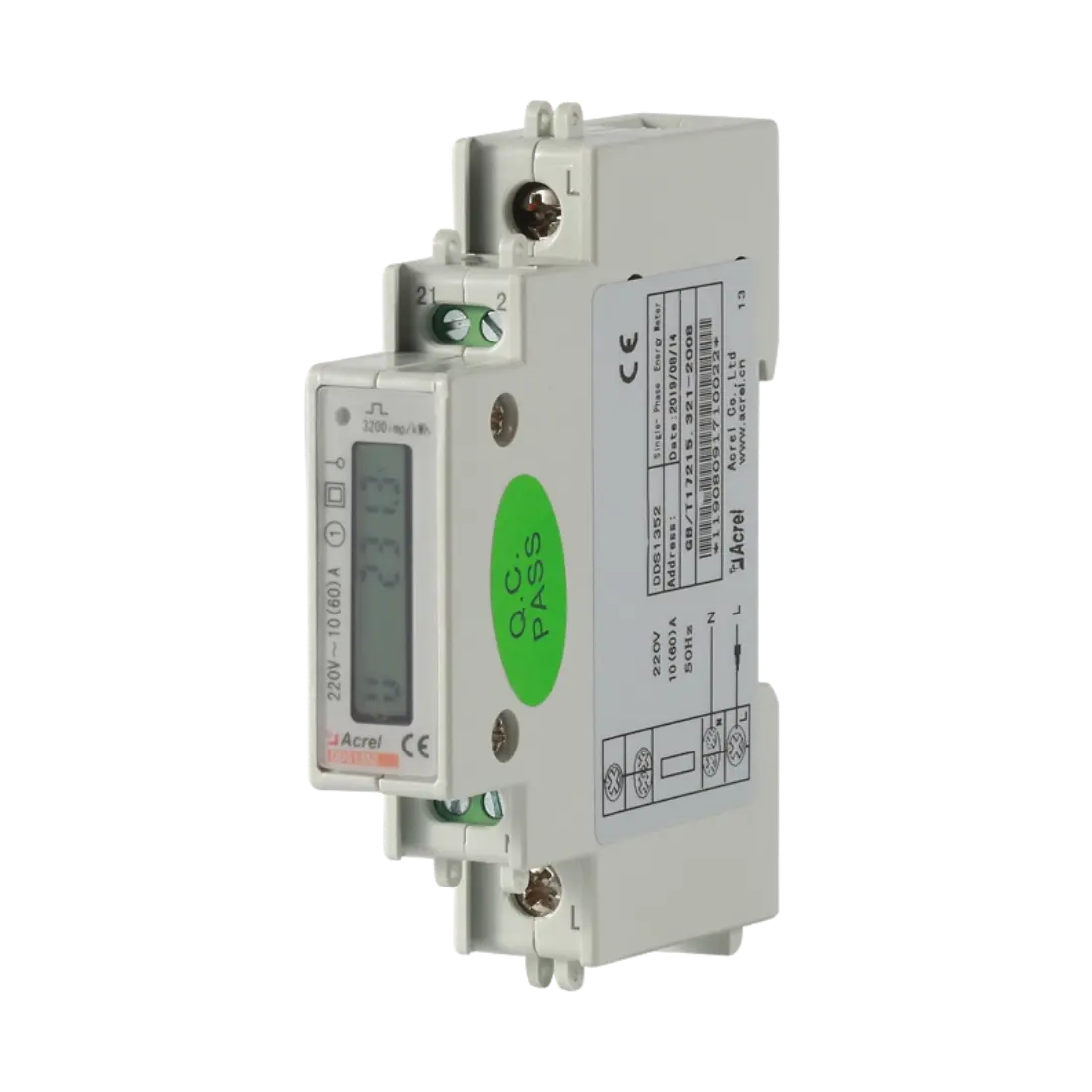

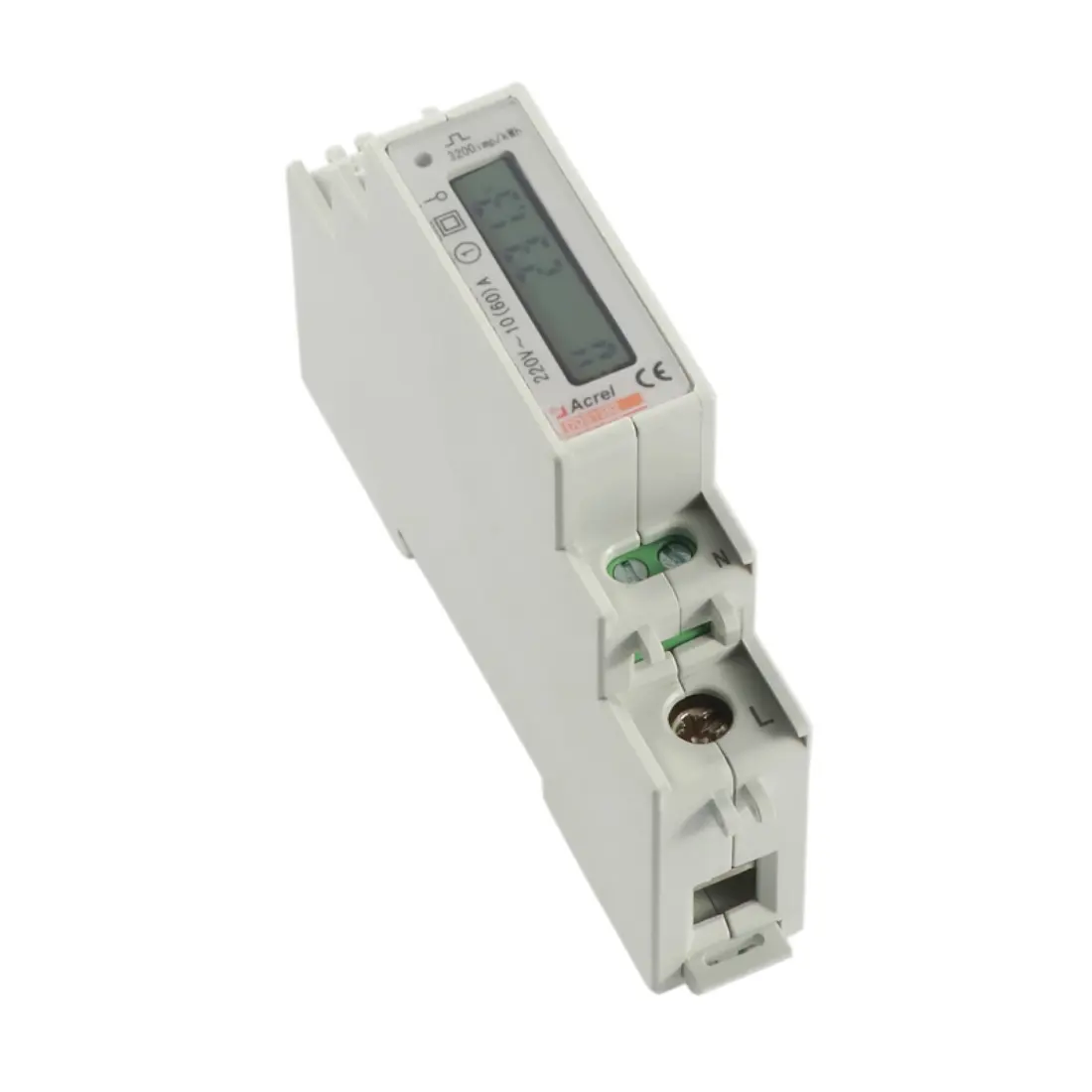

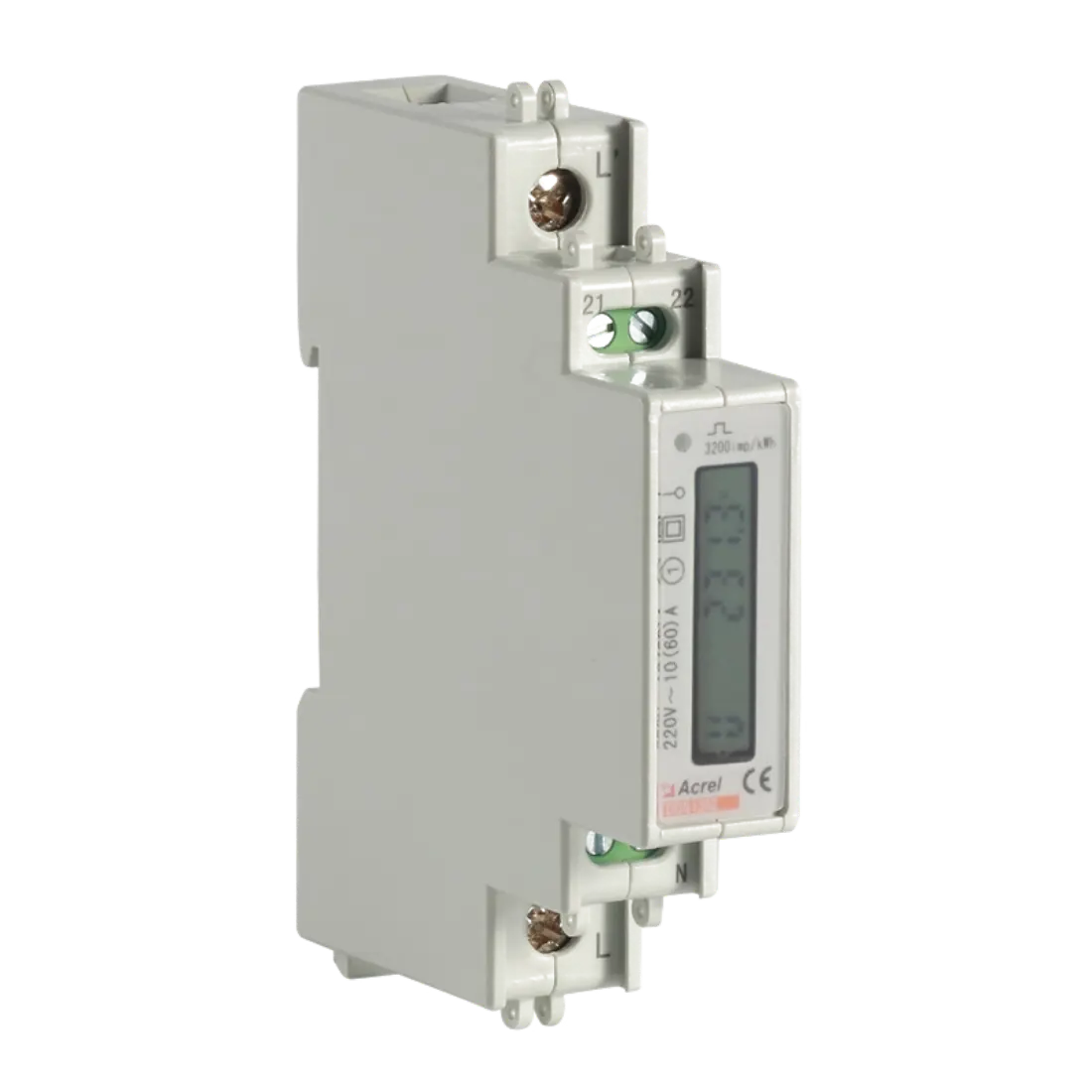

ADL10-E Single Phase Din Rail Energy Meter
Product Description
-

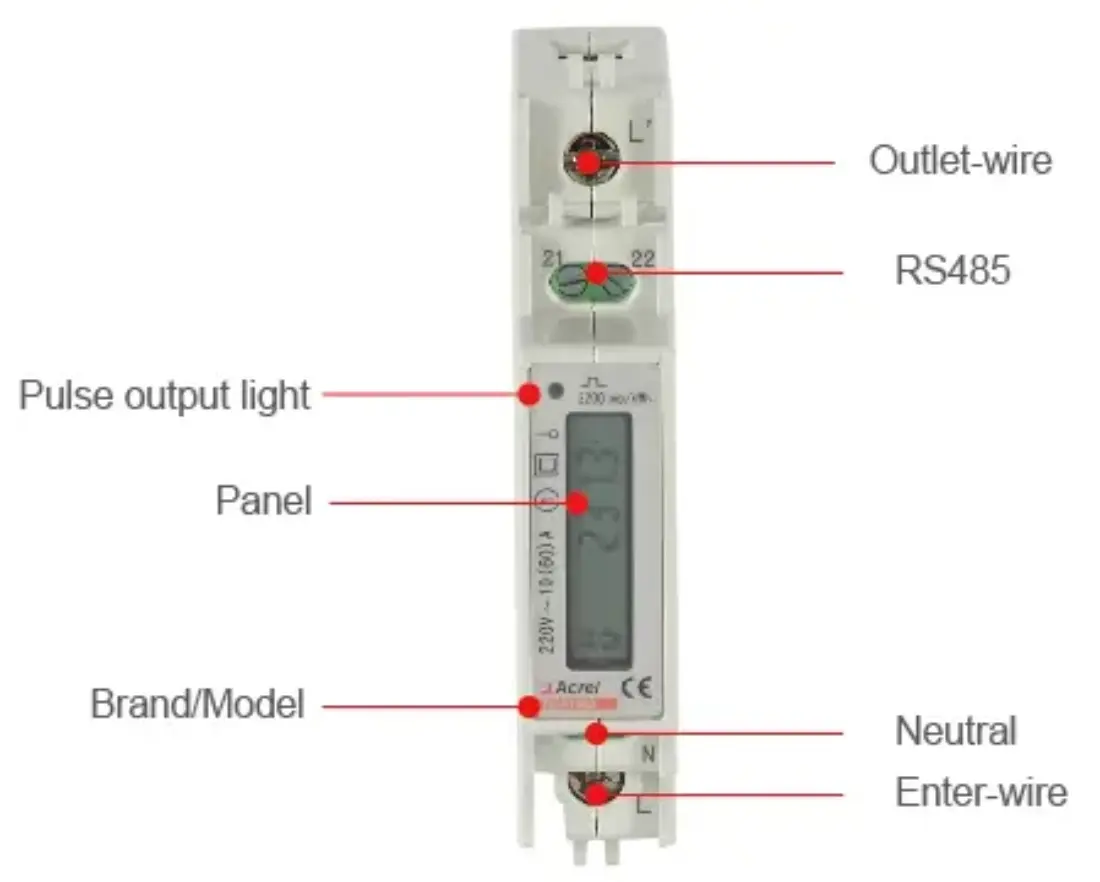

Detailed description
-
Parameters
-
Certificate
-
Download
-
- AC 220V
- 10（60）A
- RS485，MODBUS-RTU
- LCD display
- kWh Class 1，Kvarh Class 2
- U、I、P、Q、S、PF、kWh、kvarh

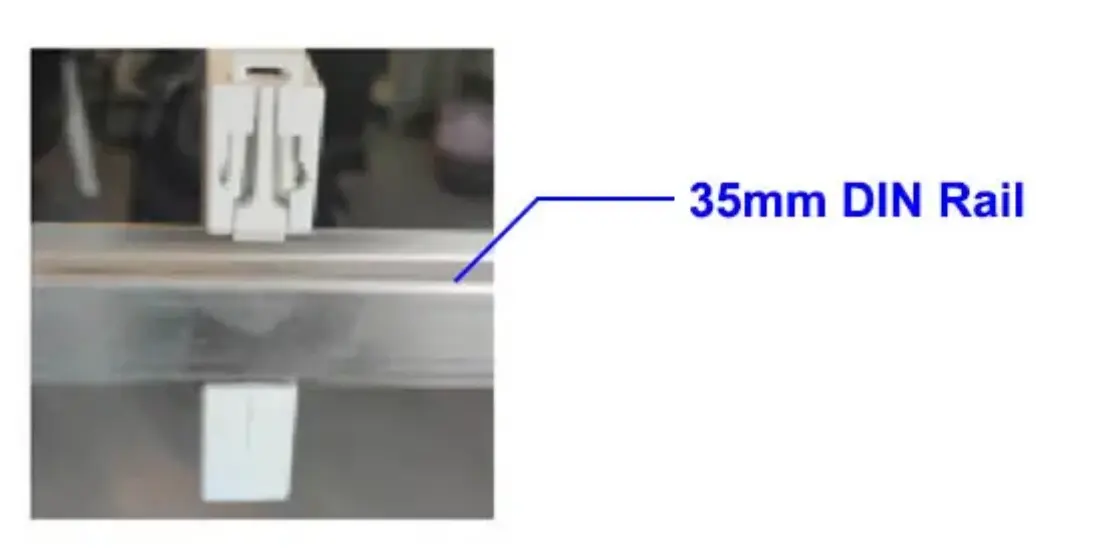

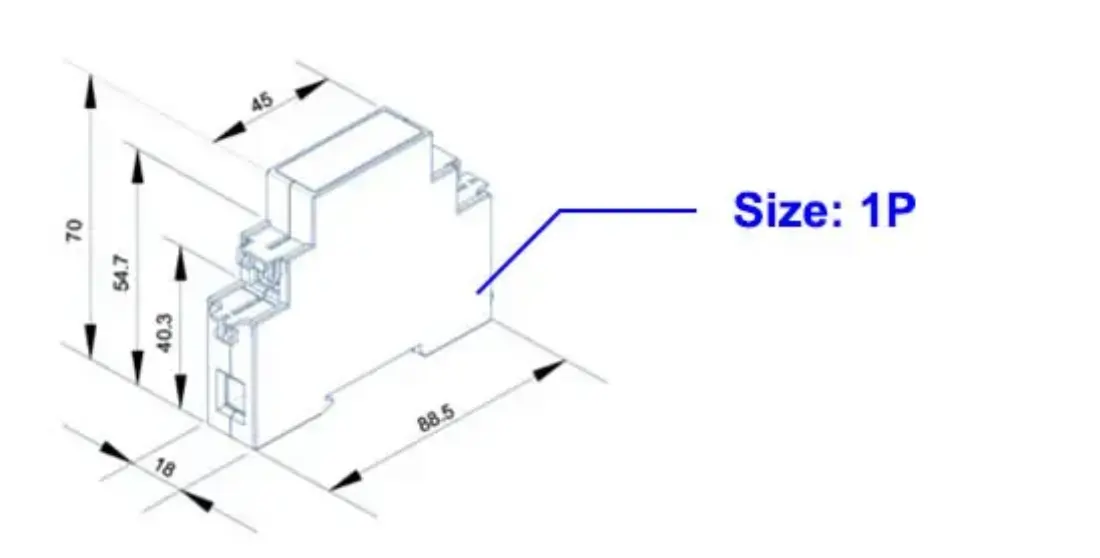

- DIN 35mm
-
Function
Function description
Function provide
Measurement of kWh
Single-phase active kWh (positive and negative)
■
Measurement of
electrical parameters
Four-quadrant energy
■

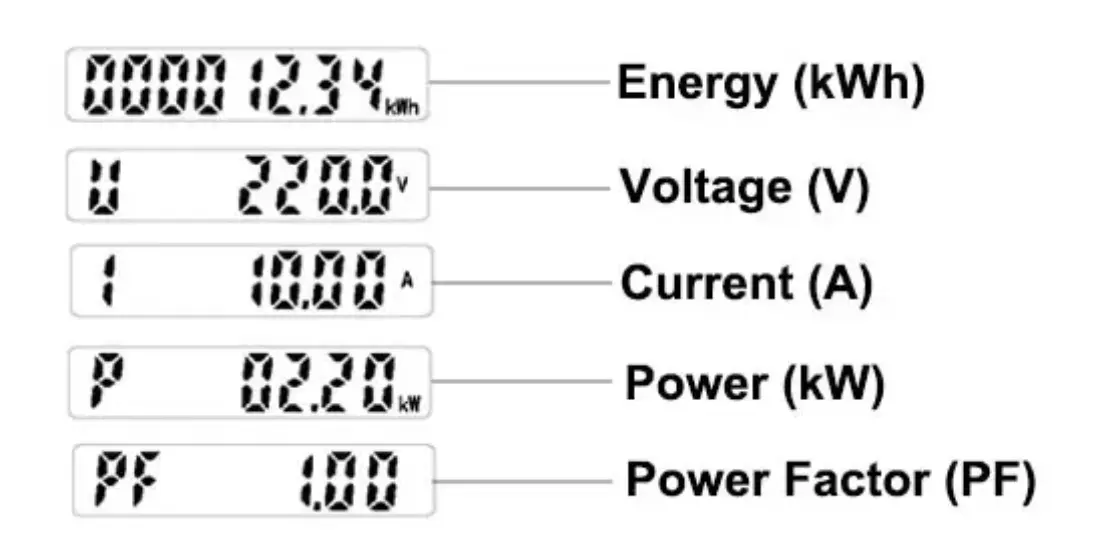

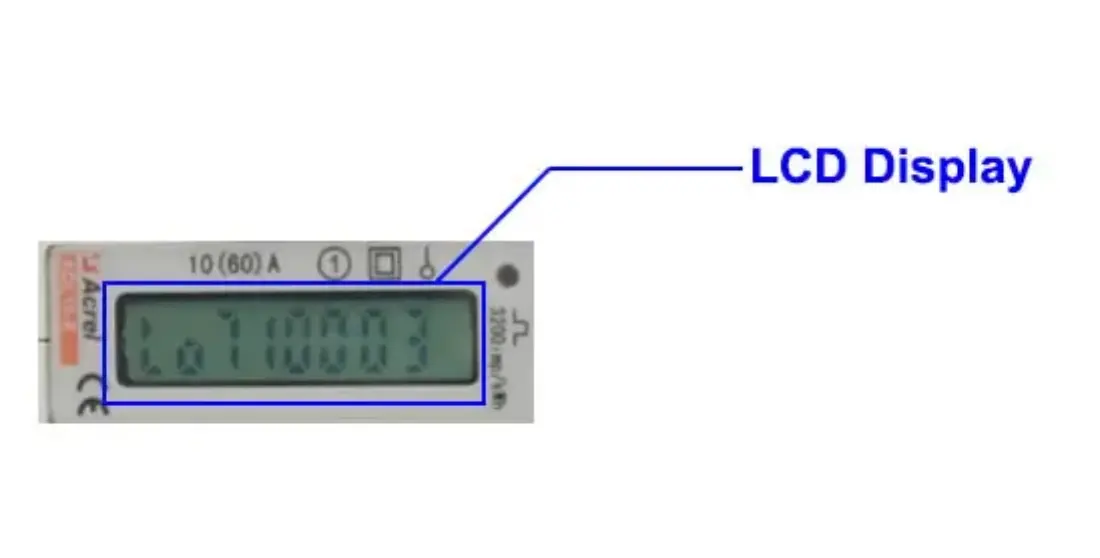

LCD display
8 bits section LCD display
■

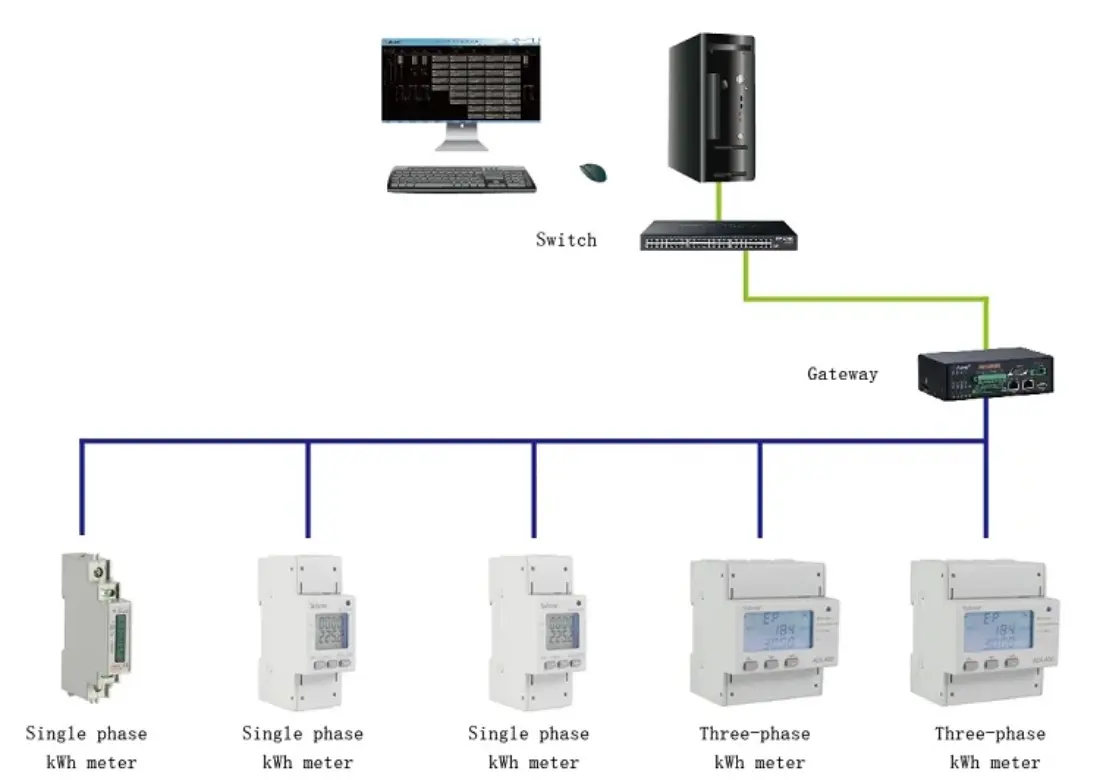

Communication
Communication interface: RS485, Communication
protocol: MODBUS-RTU
□C
Input voltage
Rated voltage
AC220V
Frequency
50Hz
Power consumption
<10VA
Maximum current
60A
Starting current
0.004Ib
Consumption
<4VA
Measurement performance
Accuracy
Class 1
Measuring range
000000.00~999999.99kWh
Communication
Interface
RS485
Protocol
MOD BUS- RTU
-
