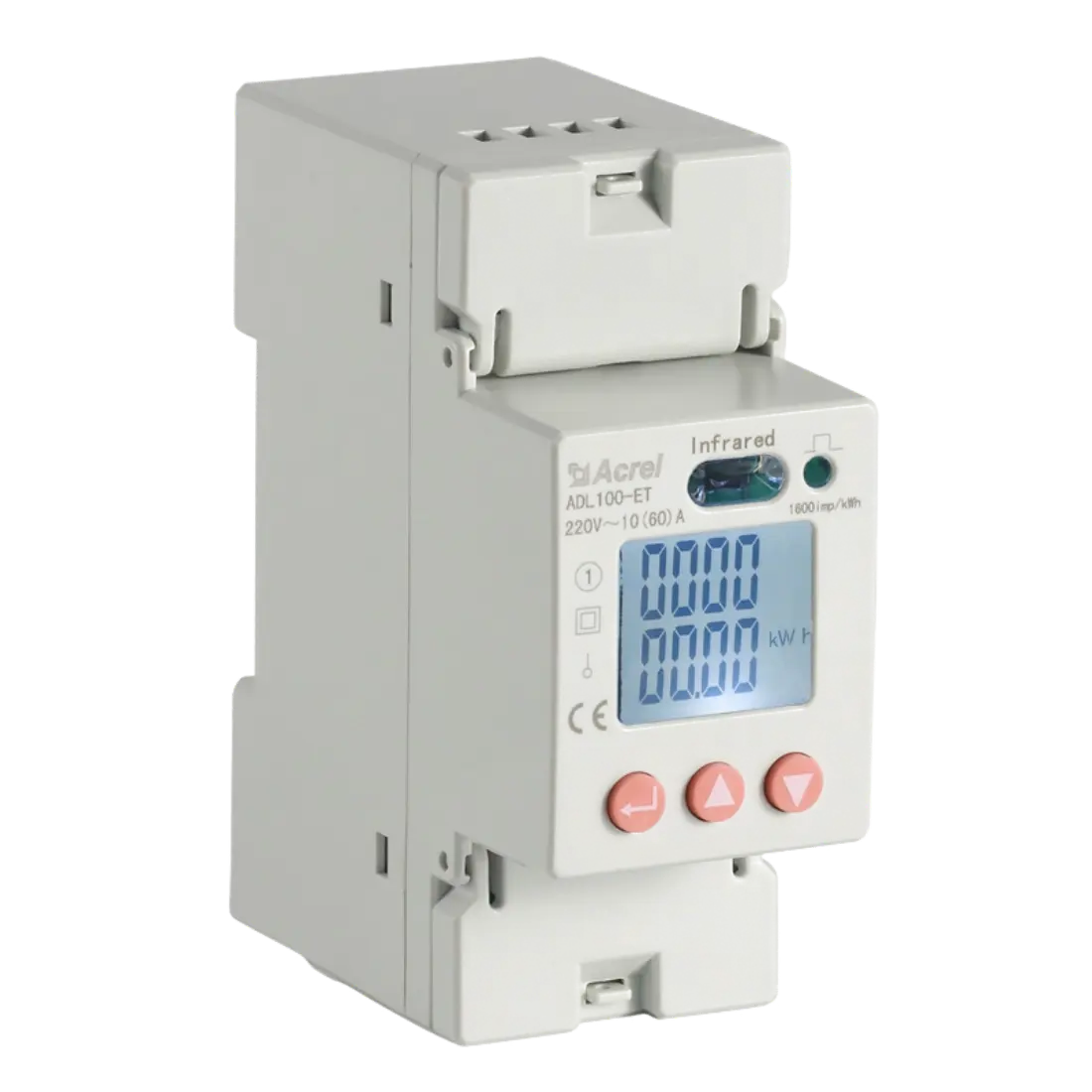

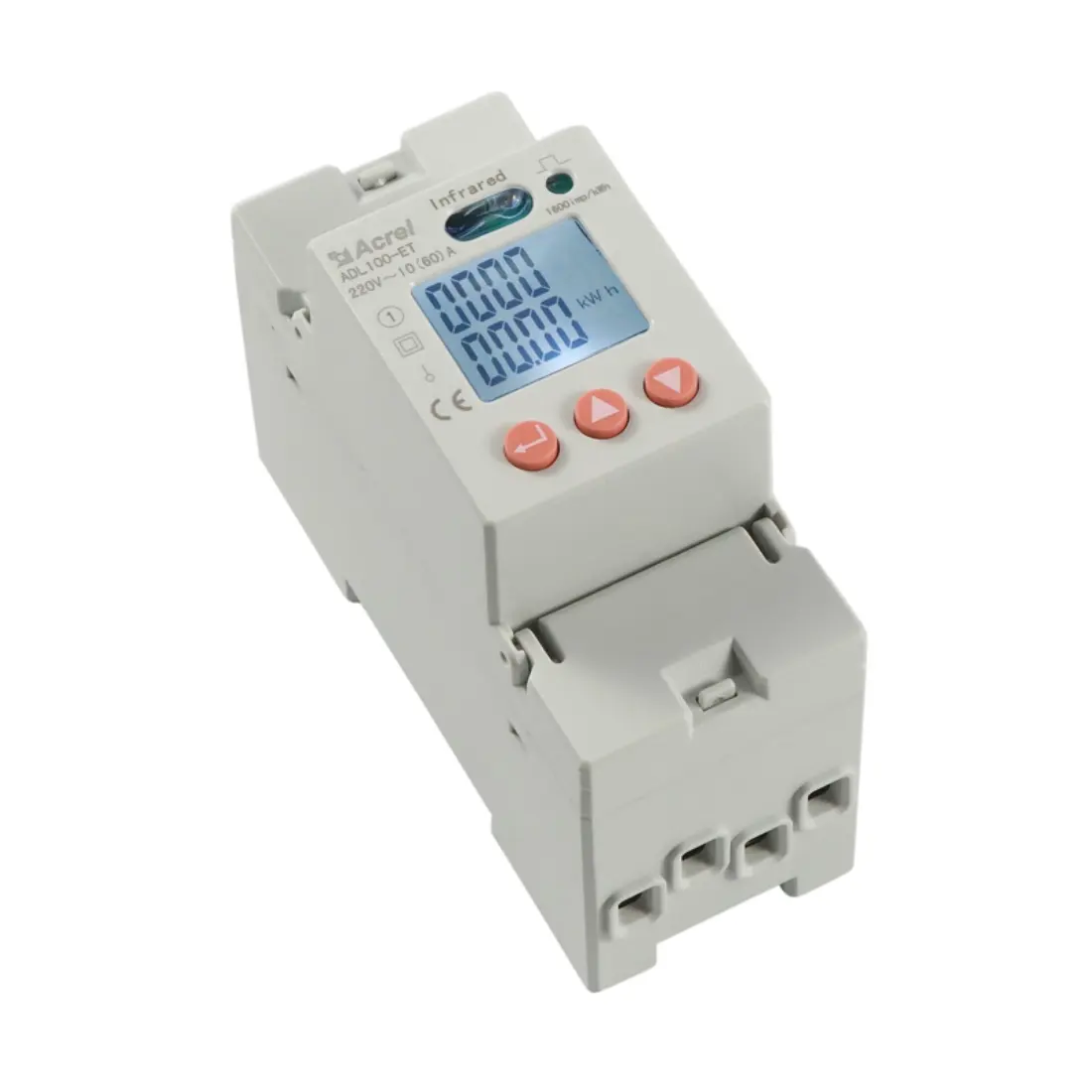

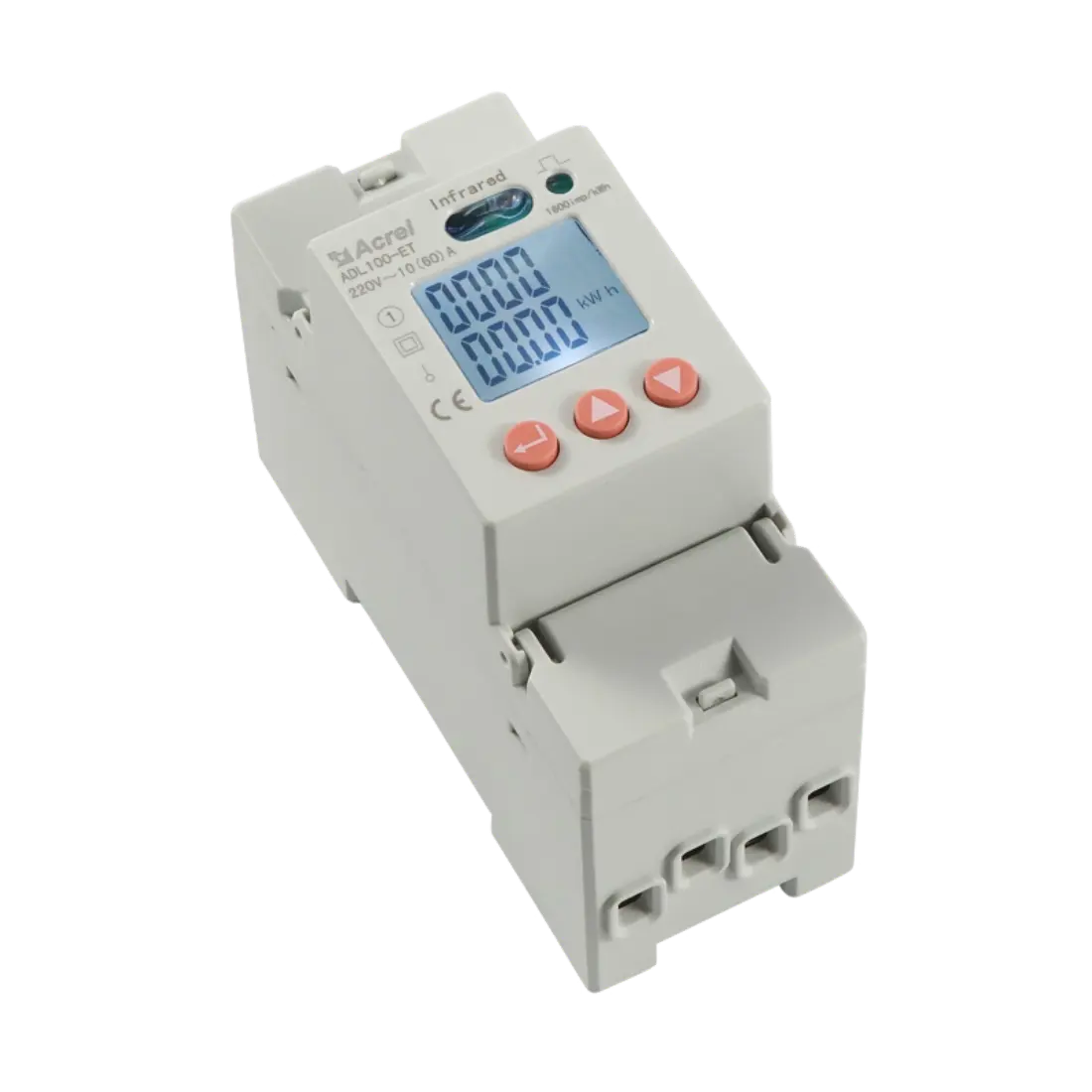

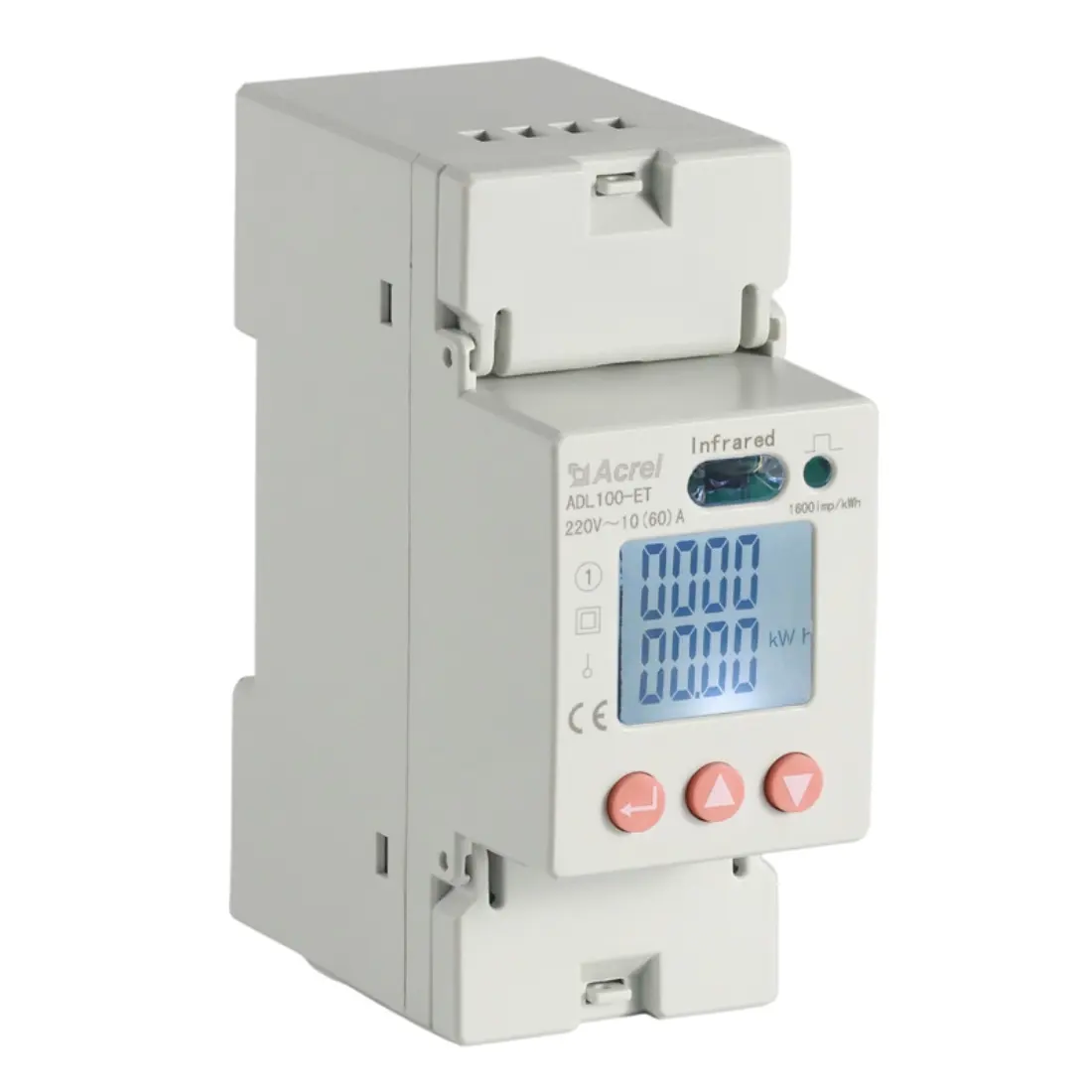

ADL100-ET Din Rail Energy Meter with CT

Product Description

ADL100 single phase electric meter is designed for single phase active energy measurement

on low voltage system, in the same time it can measure the electrical parameters like voltage, current, power and so on. There is also RS485 can be chosen. This power meter has advantages of

smaller volume, high precision, good EMC, easily installing etc, All meters meet the related

technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.

WhatsApp contact us

Detailed description
Parameters
Certificate
Download

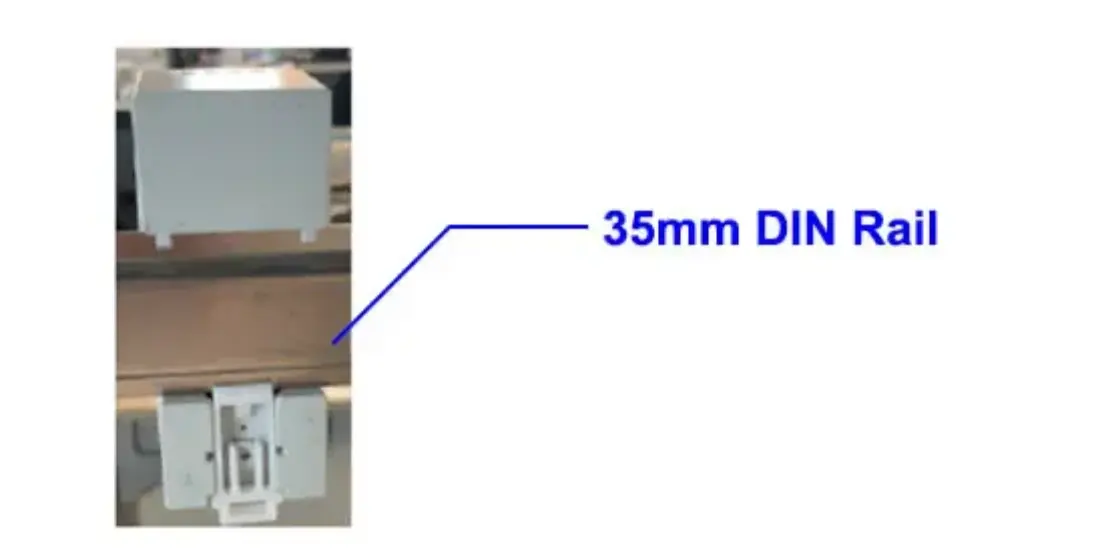

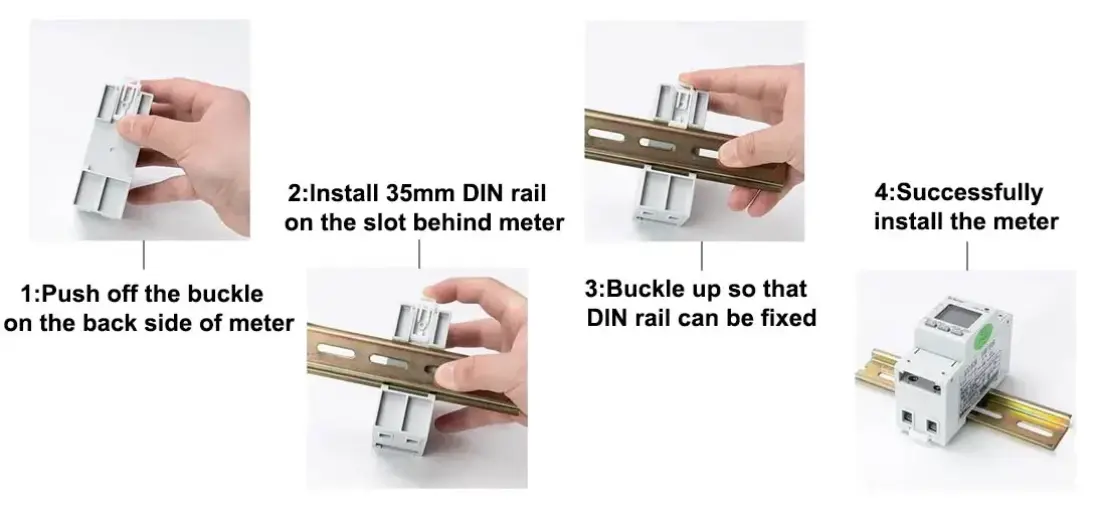

AC 220V，10（60）A RS485，MODBUS-RTU LCD display kWh Class 1，Kvarh Class 2 U、I、P、Q、S、PF、kWh、kvarh DIN 35mm
Function Function description Function provide Measurement of kWh Single-phase active kWh (positive and negative) ■ Measurement of electrical parameters Four-quadrant energy ■ LCD display 8 bits section LCD display ■ Communication Communication interface: RS485, Communication protocol: MODBUS-RTU □C Input voltage Rated voltage AC220V Frequency 50Hz Power consumption <10VA Input current Basic current 10A,20A(External transformer) Maximum current 60A,100A(External transformer) Starting current 4‰Ib Consumption <4VA (Maximum current) Measurement performance Accuracy of measuring Class 1

Download

Current Language

Change Language

ADL100-ET Din Rail Energy Meter with CT

Get in touch with us

RelatedProducts

Frequently asked questions

Function	Function description	Function provide
Measurement of kWh	Single-phase active kWh (positive and negative)	■
Measurement of electrical parameters	Four-quadrant energy	■

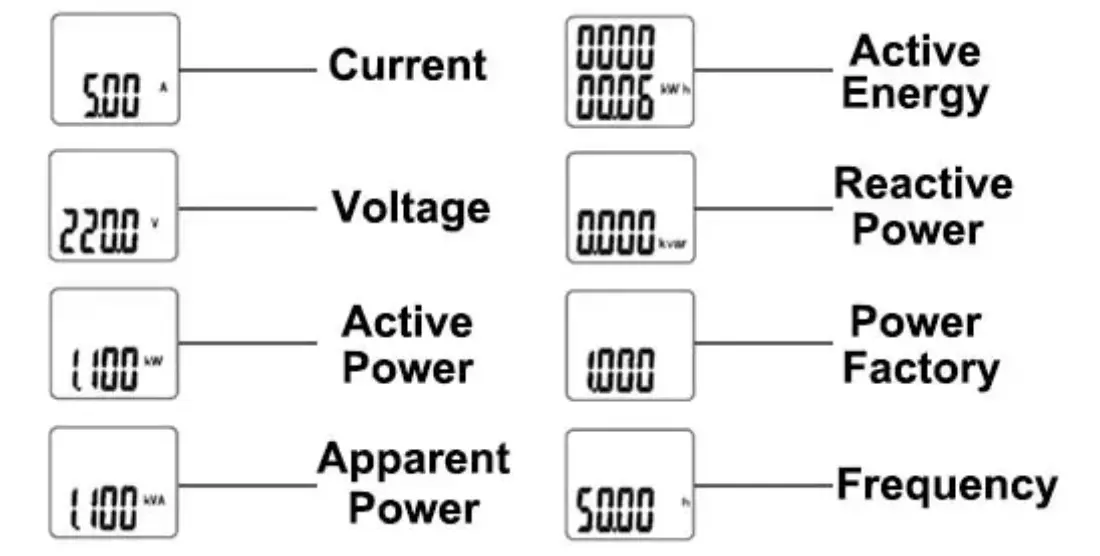

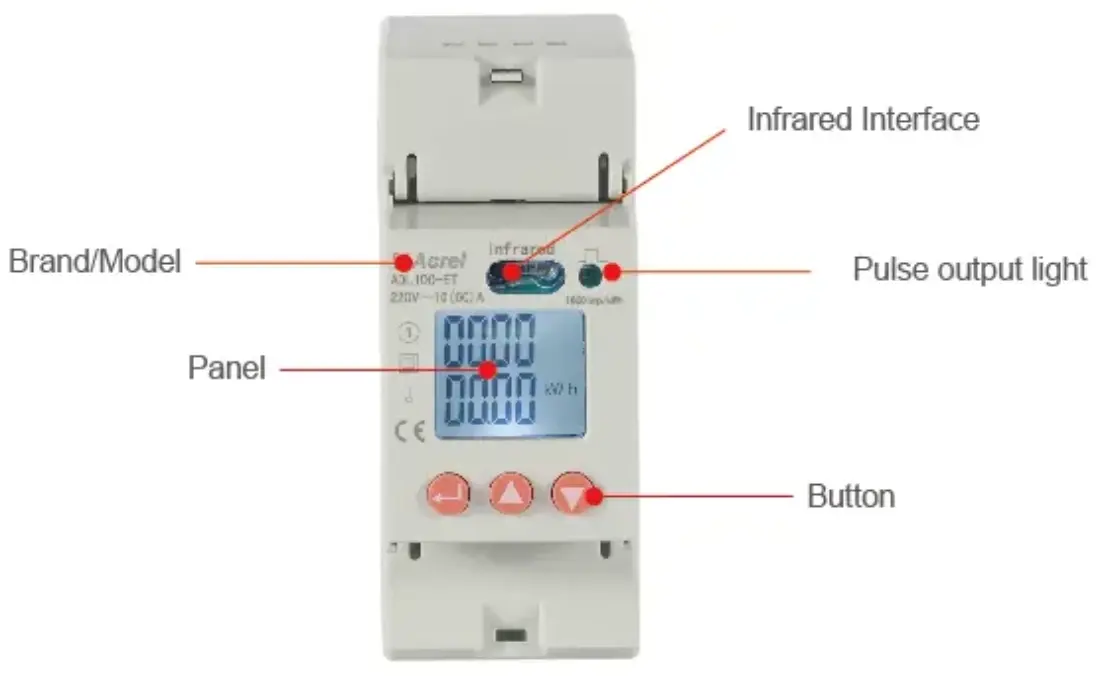

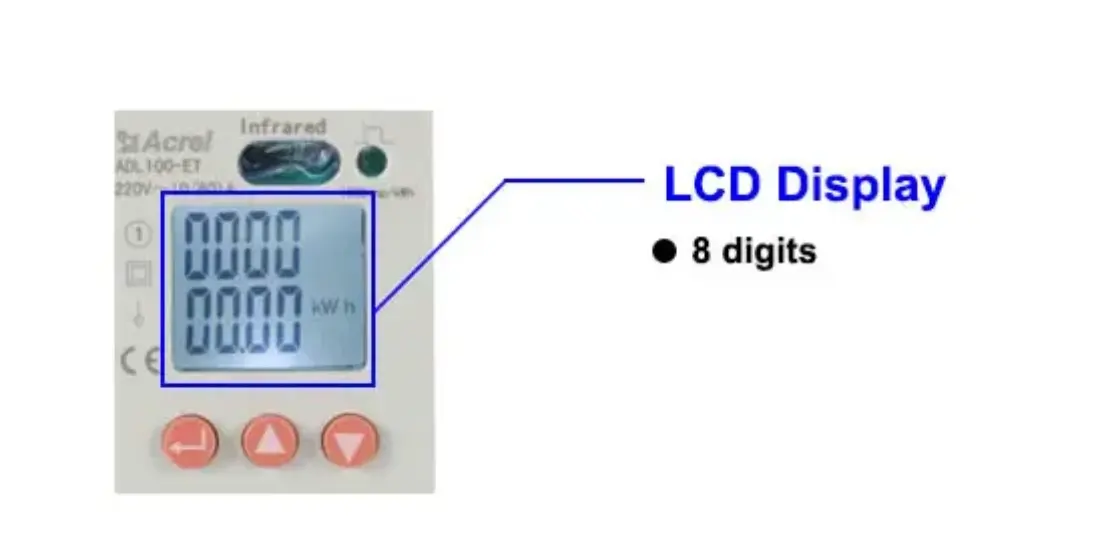

LCD display	8 bits section LCD display	■

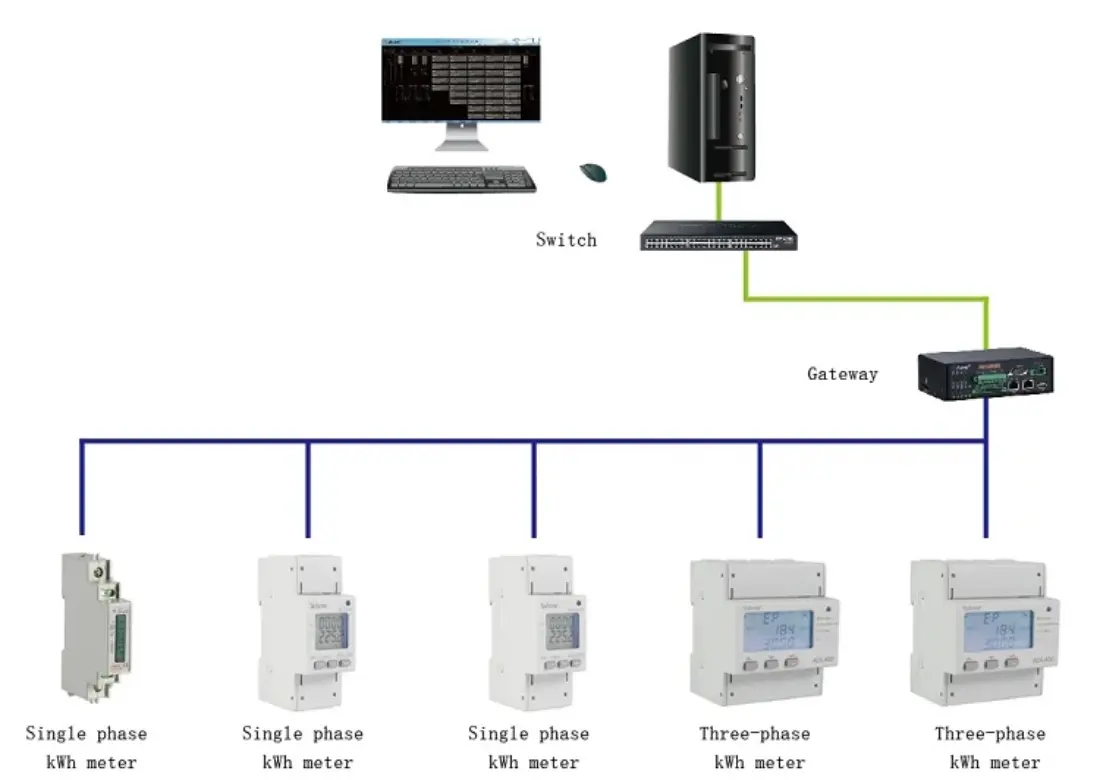

Communication	Communication interface: RS485, Communication protocol: MODBUS-RTU	□C

Input voltage	Rated voltage	AC220V
	Frequency	50Hz
	Power consumption	<10VA

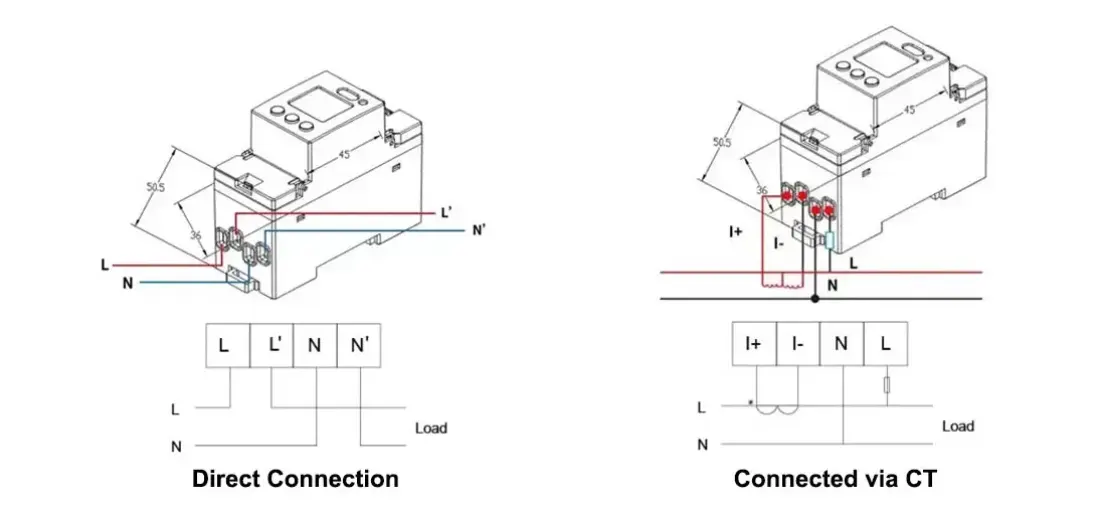

Input current	Basic current	10A,20A(External transformer)
	Maximum current	60A,100A(External transformer)
	Starting current	4‰Ib
	Consumption	<4VA (Maximum current)
Measurement performance	Accuracy of measuring	Class 1
