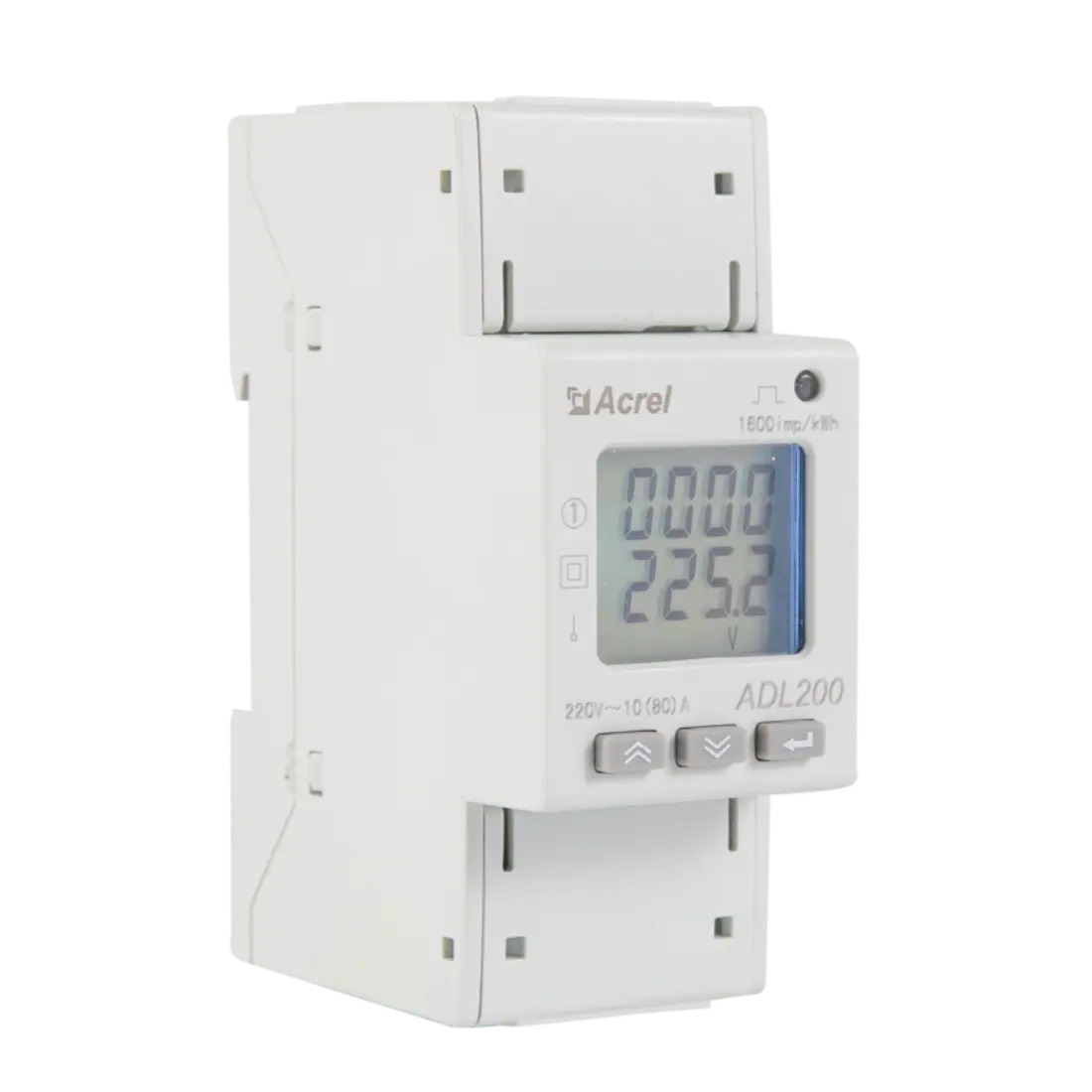

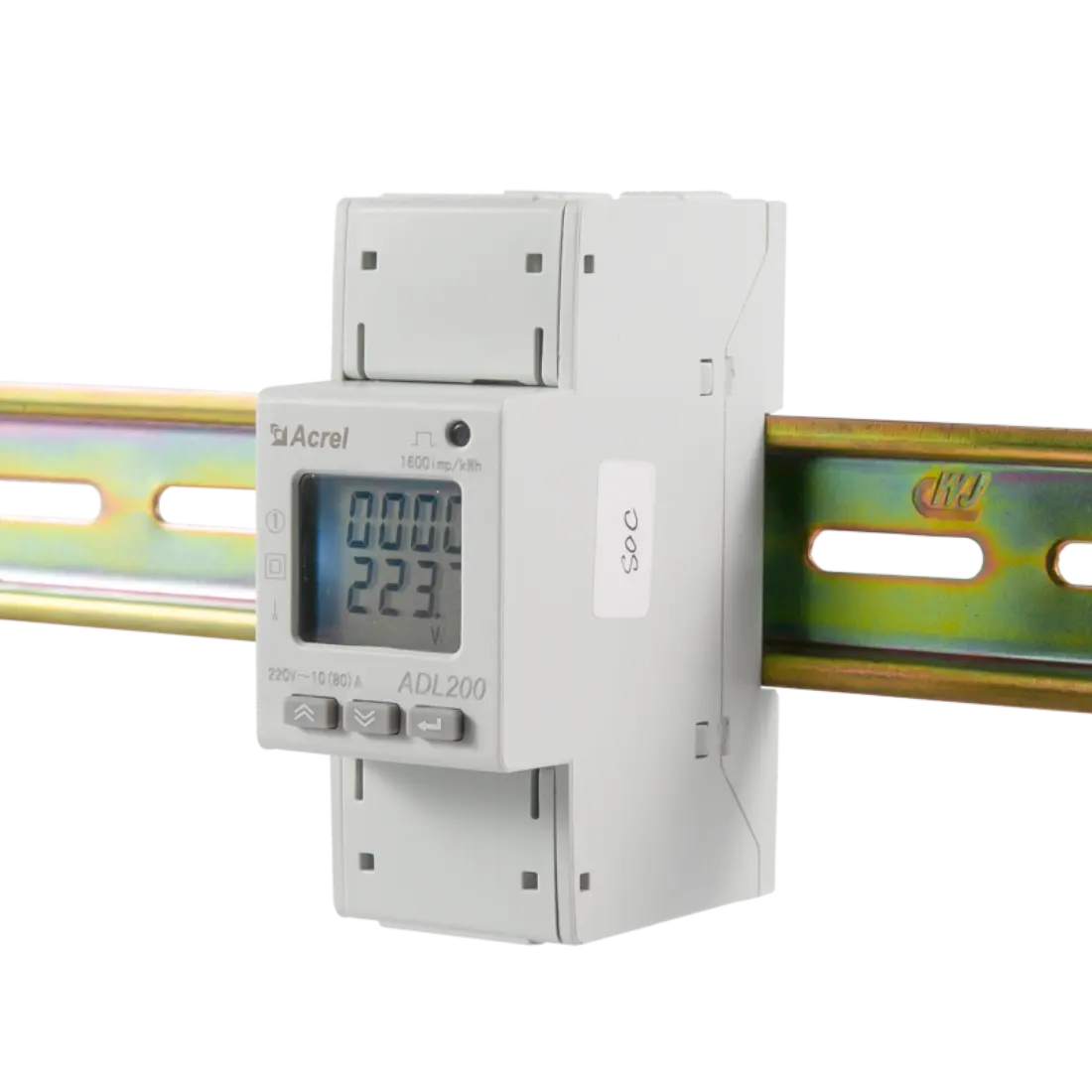

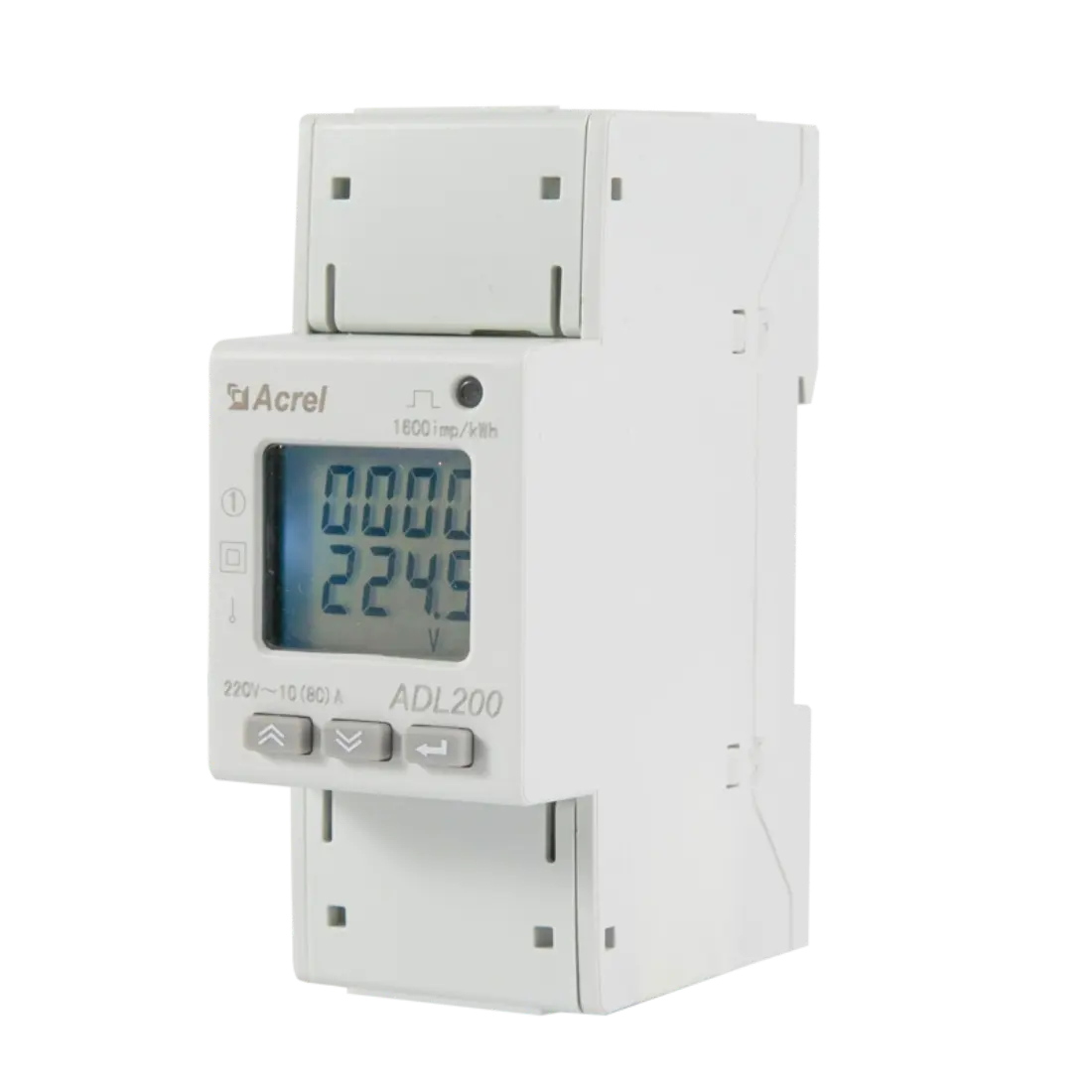

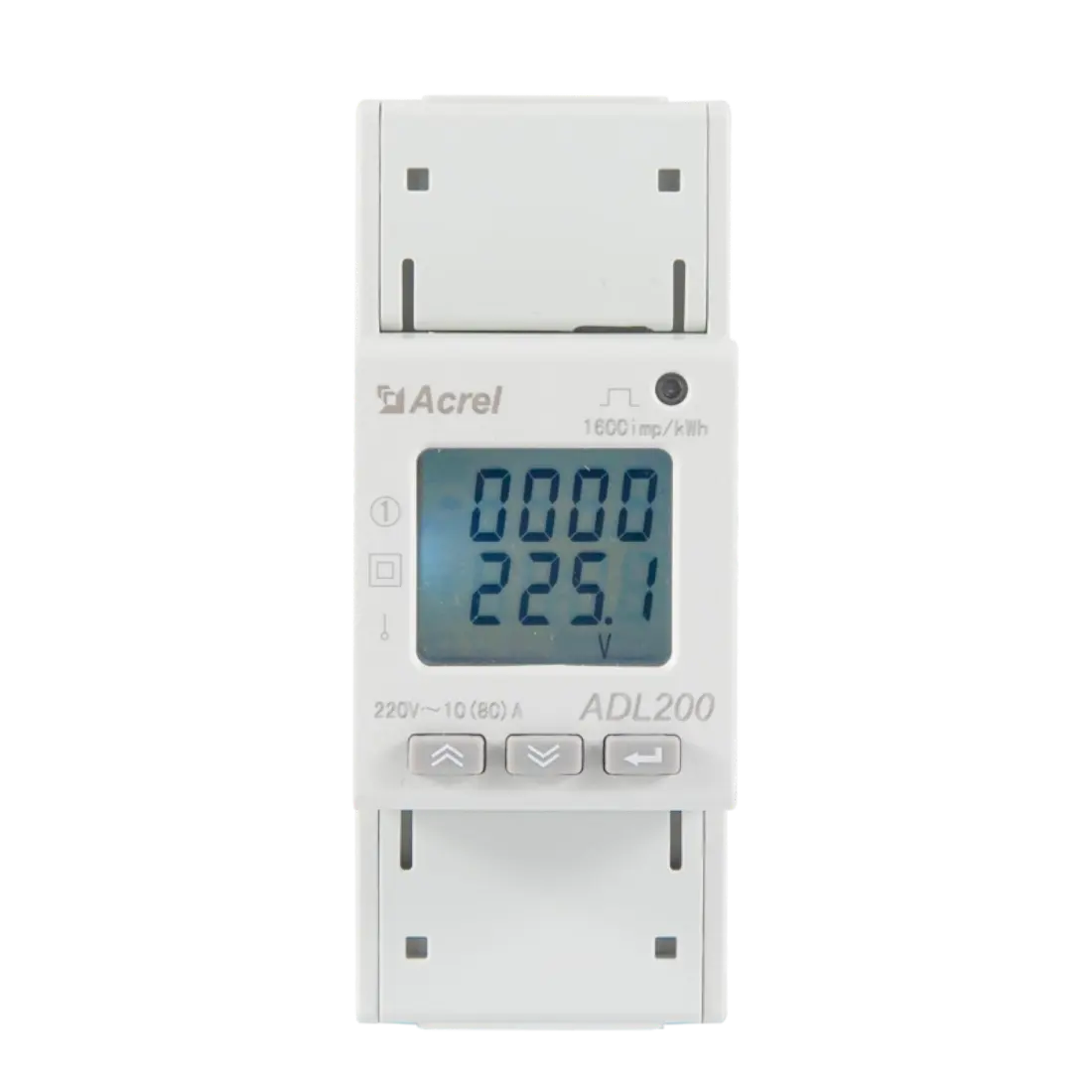

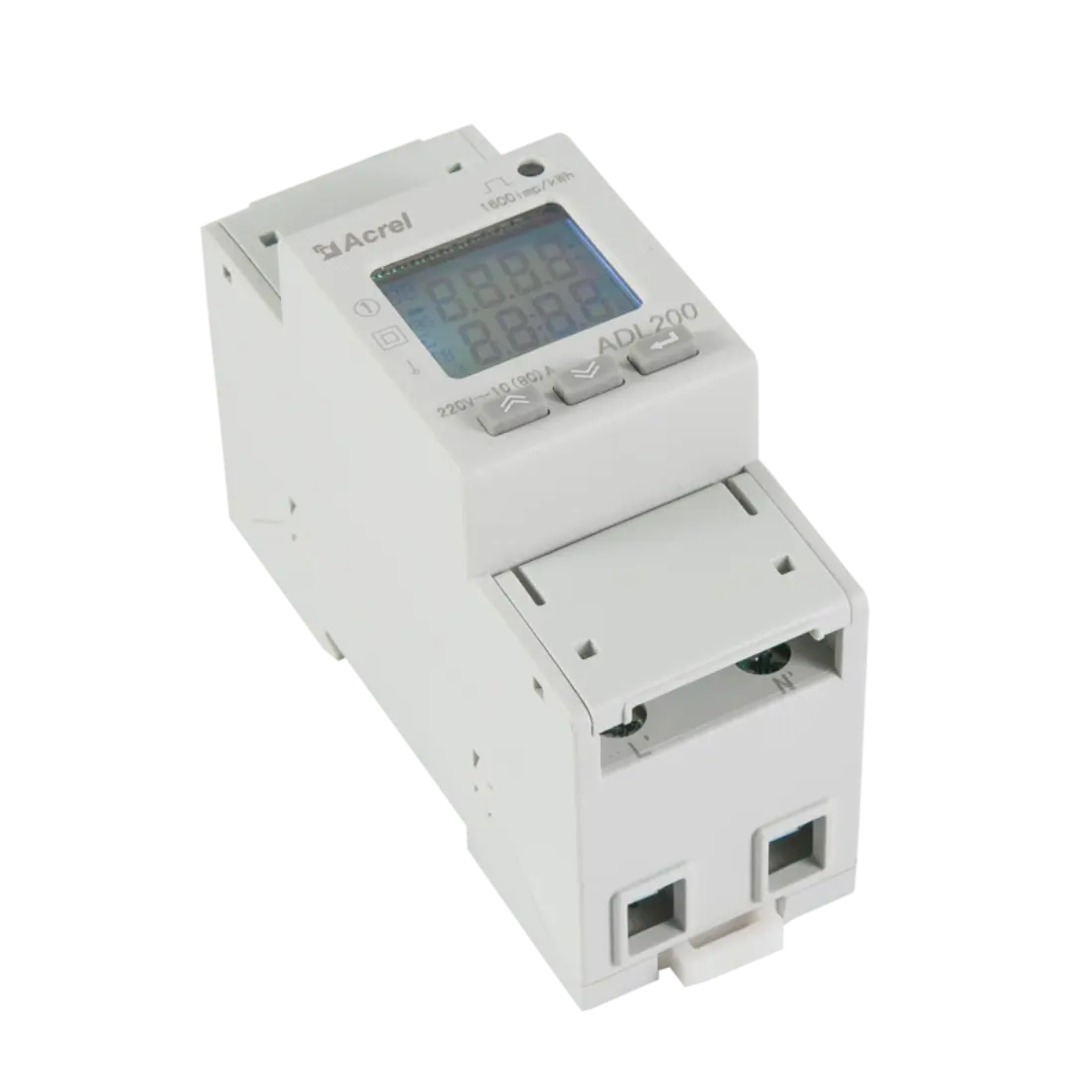

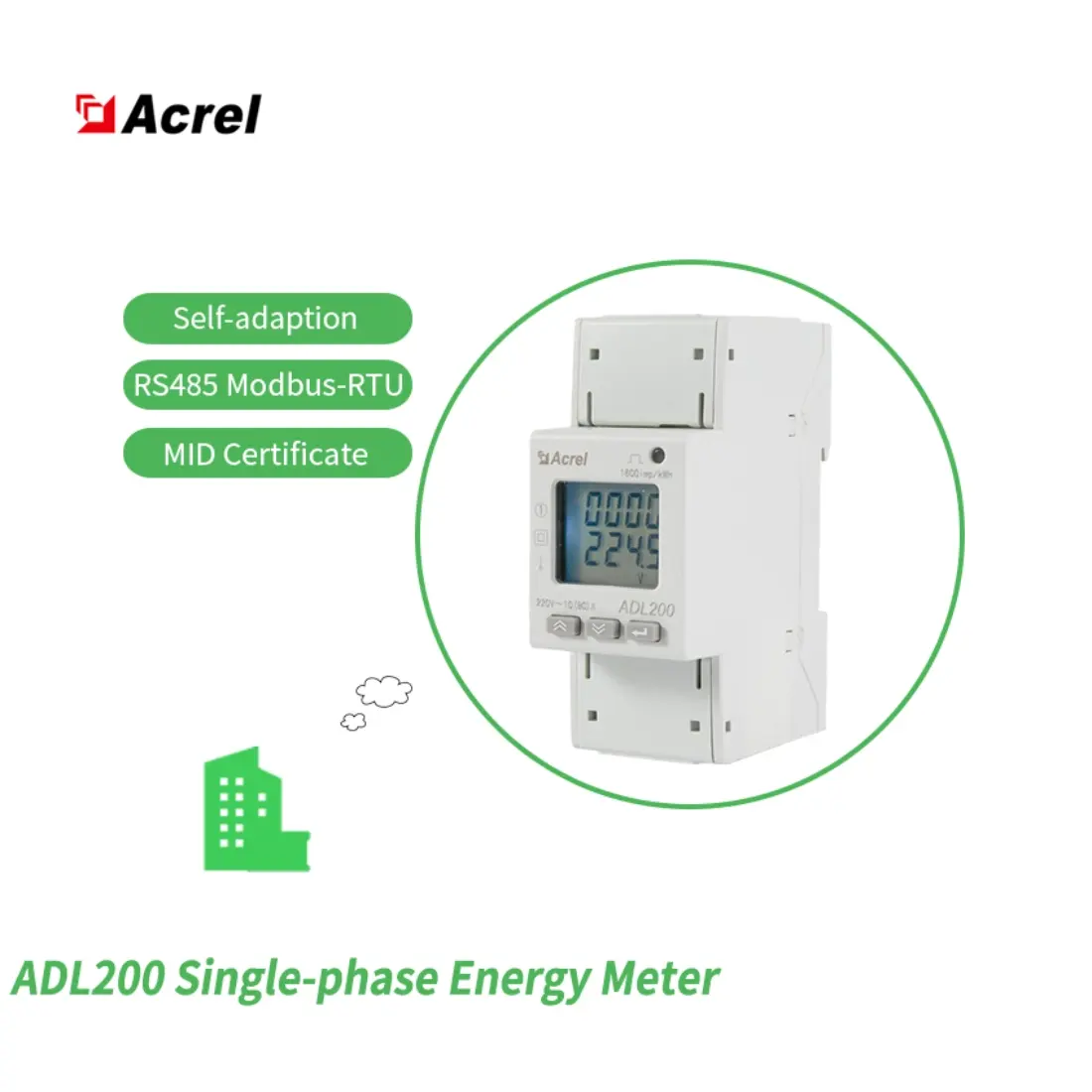

ADL200 Single Phase Energy Meter With MID

Function

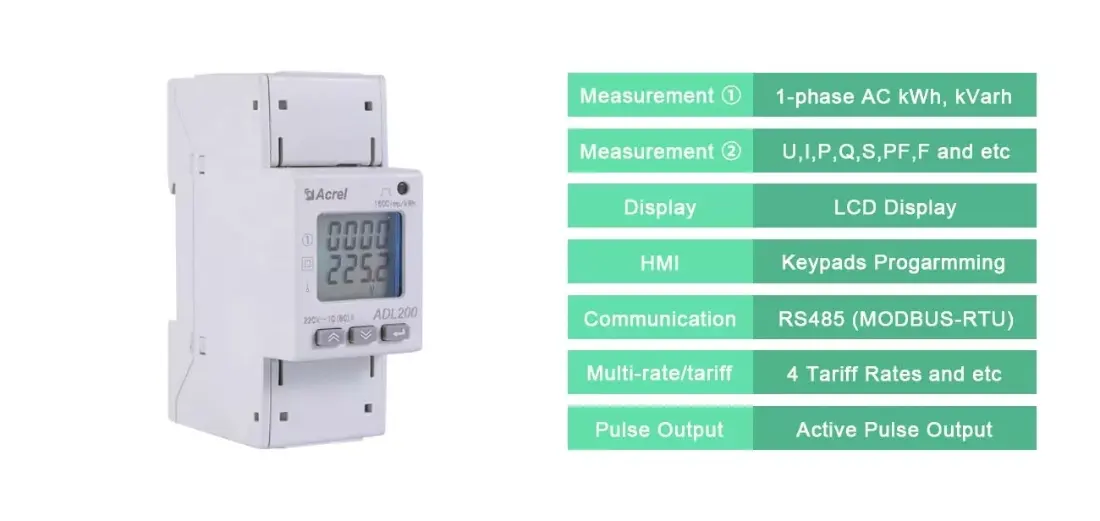

Function description

Function provide

Measurement of kWh

Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage

■

Measurement of electrical parameters

Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency

■

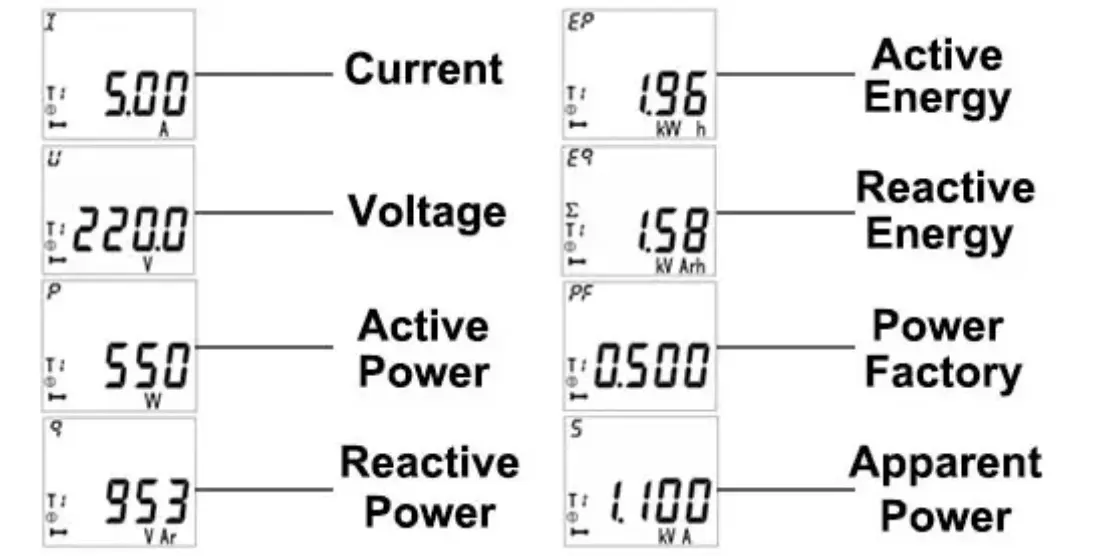

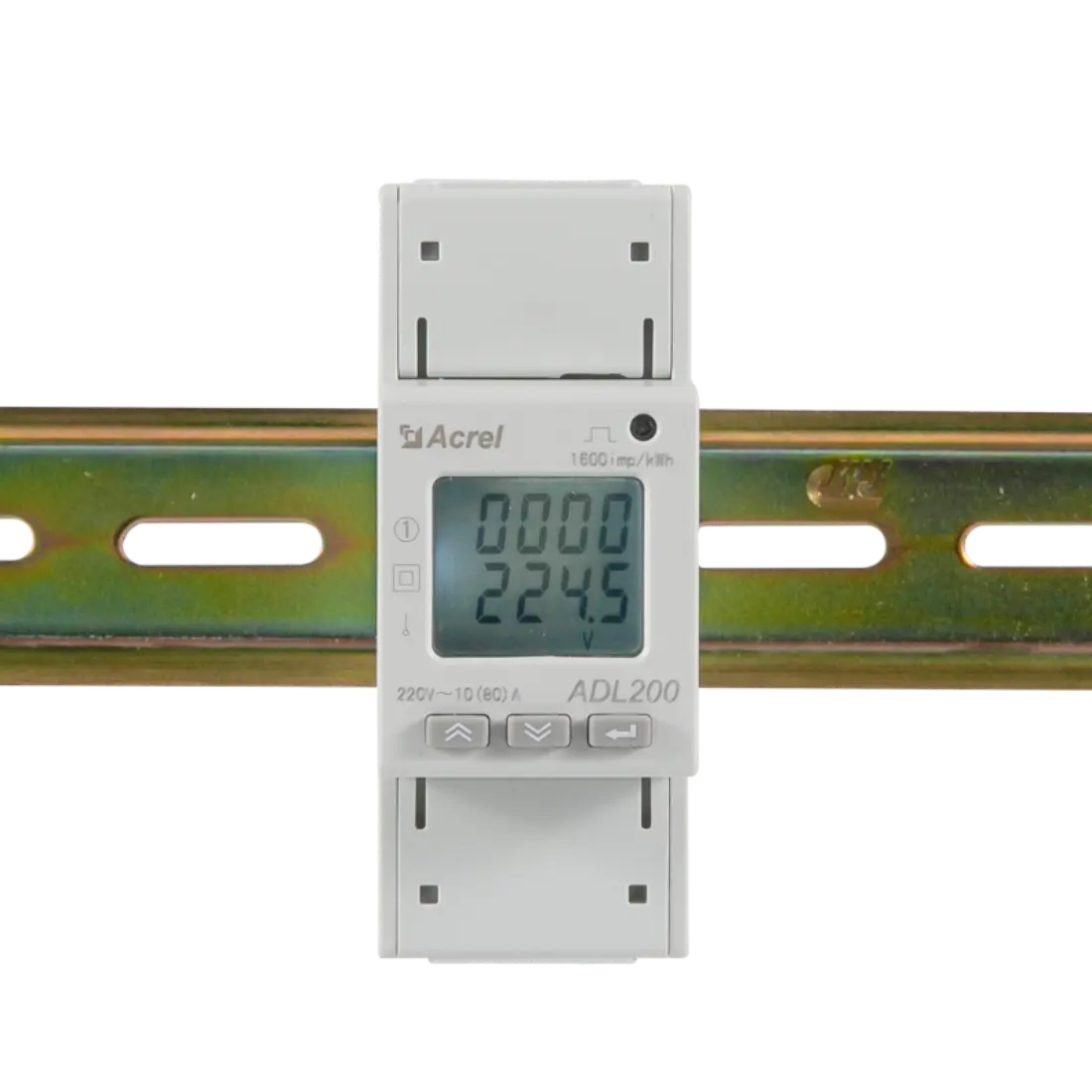

LCD Display

8 bits section LCD display

■

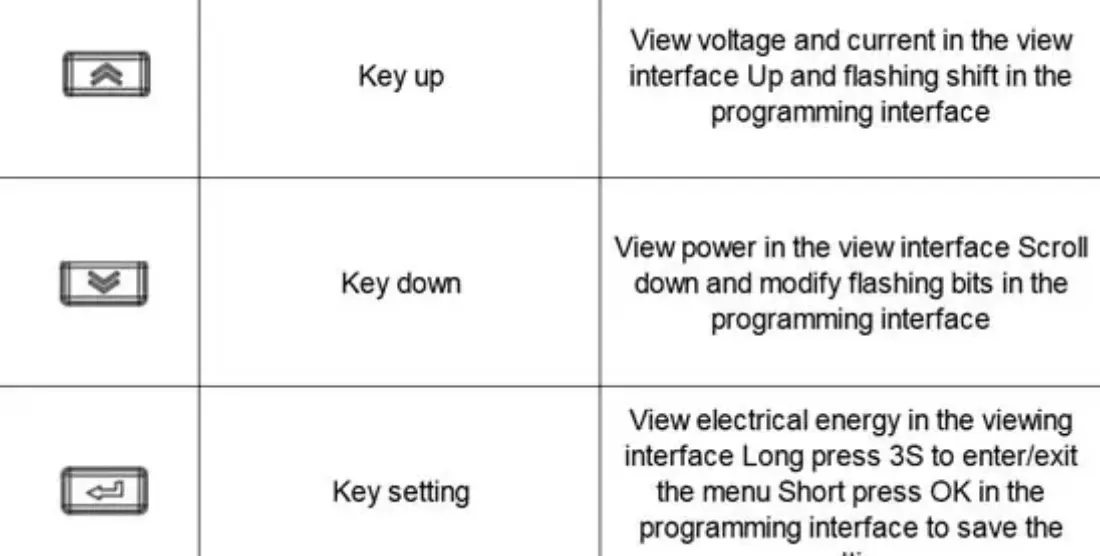

Key programming

3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol

■

Pulse output

Active energy pulse output

■

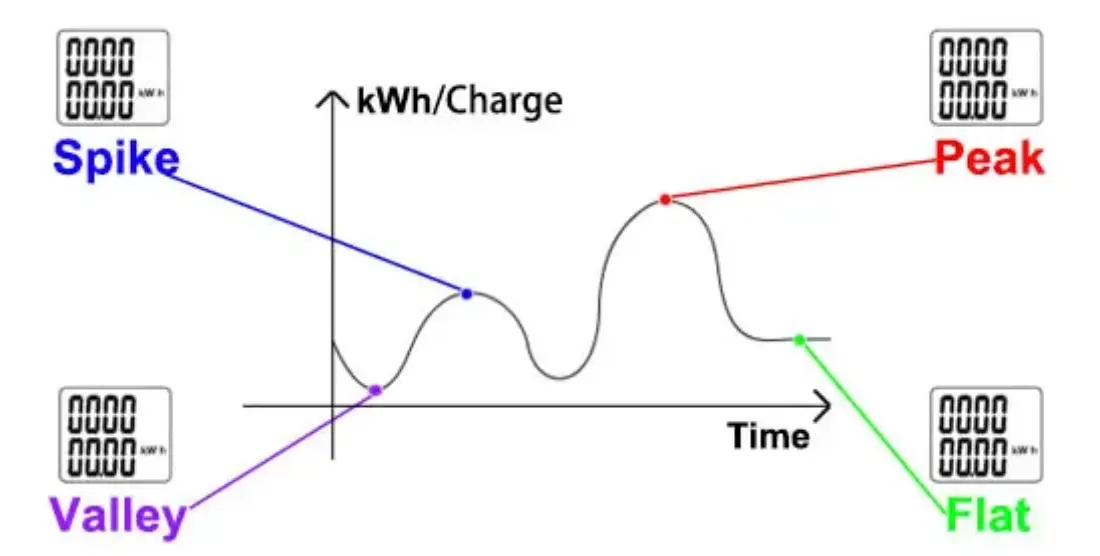

  Multi-tariff

Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates

□F

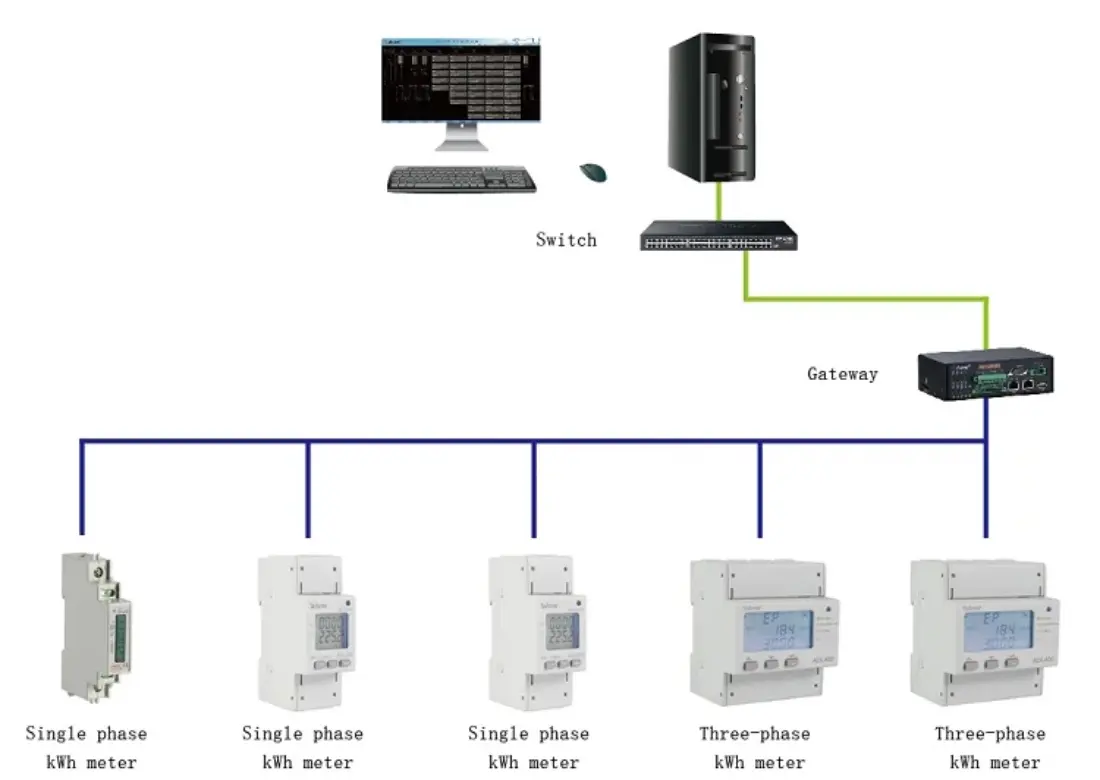

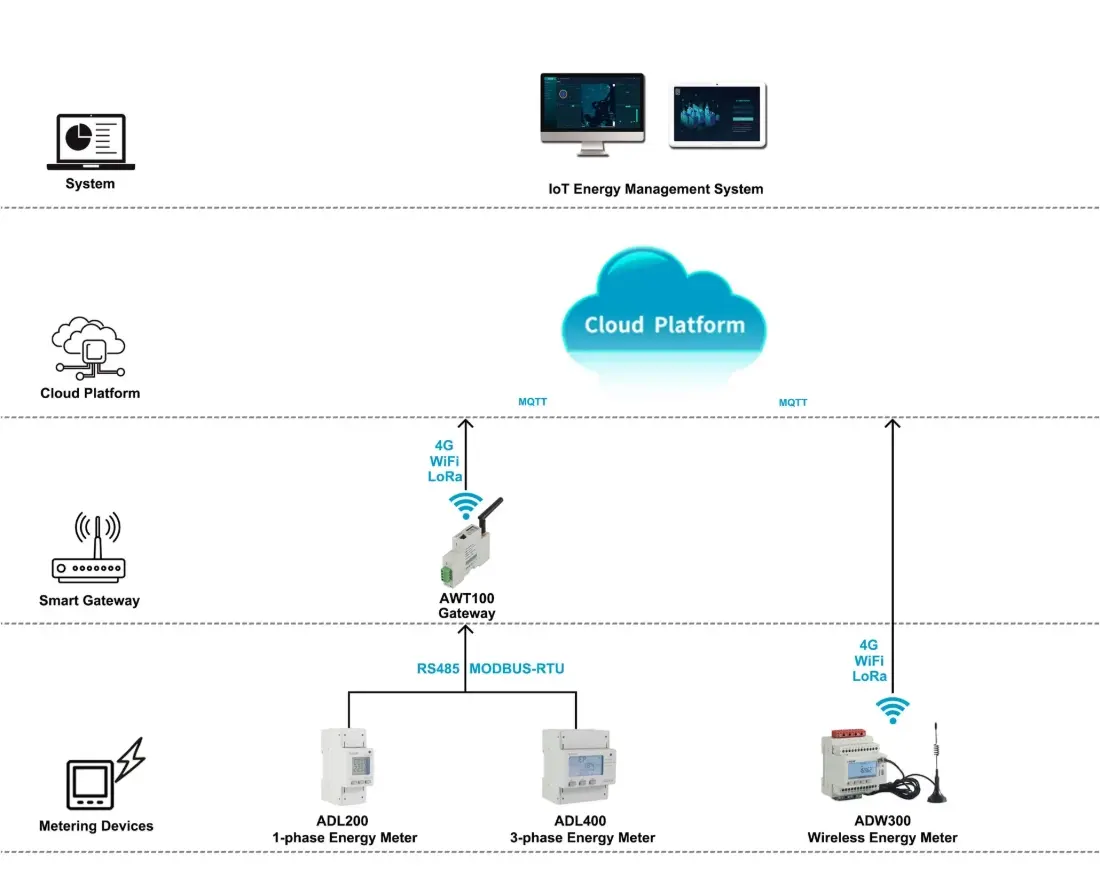

  Communication

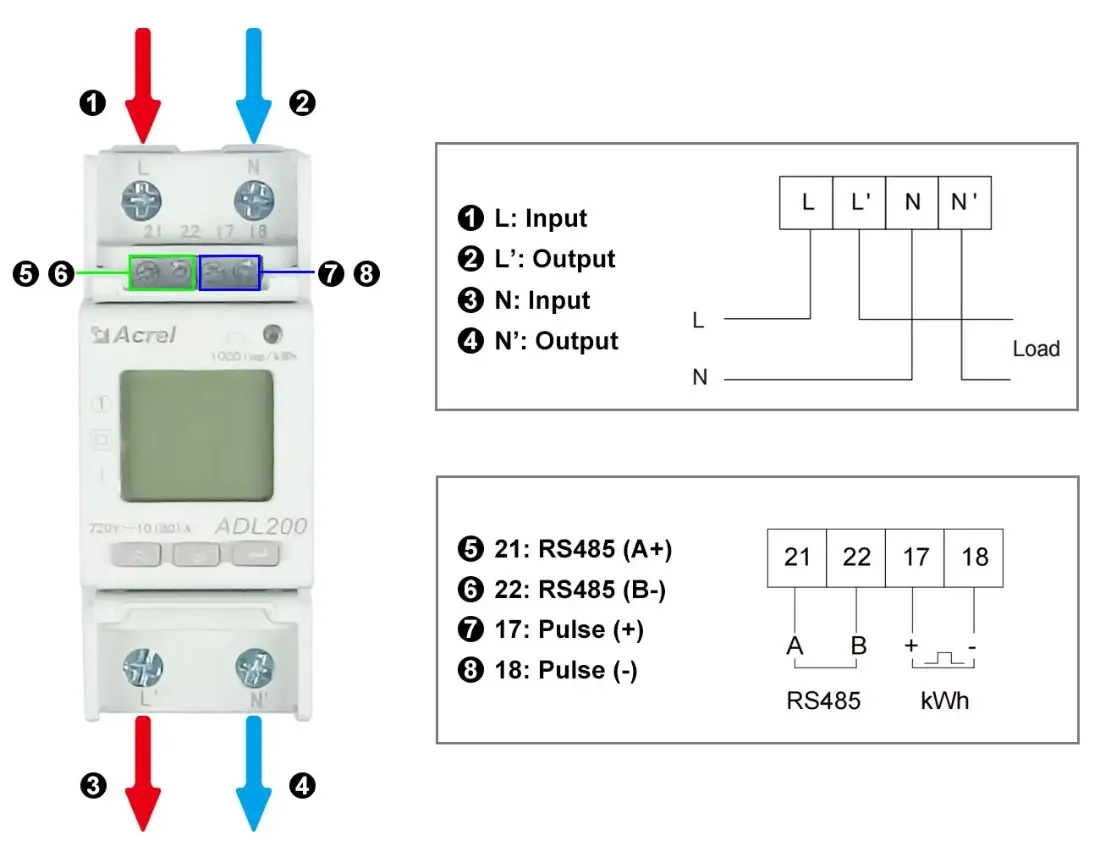

Communication interface: RS485, Communication protocol: MODBUS-RTU

■C

“■” means standard, “□” means optional.

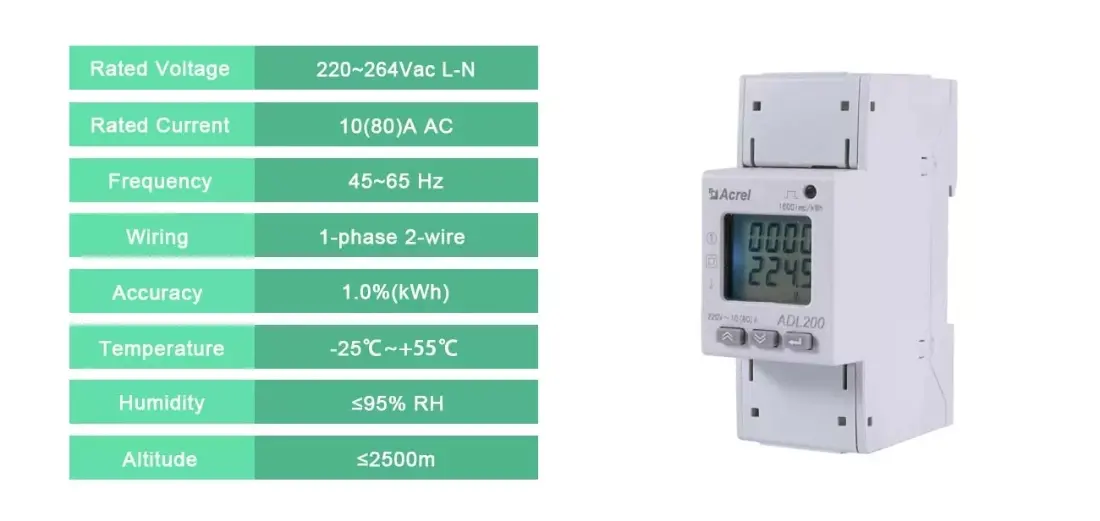

Input voltage

Reference voltage

AC 220V

Reference frequency

50Hz

Power consumption

<10VA

Input current

Basic current

10A

Maximum current

80A

Starting current

4‰Ib

Consumption

<4VA

Measurement performance

Accuracy of measuring

1 class

Range of measuring

000000.00~99999999kWh

Clock accuracy

Error≤0.5s/d

Active pulse

Pulse width

80±20ms

Pulse constant

1000imp/kWh

Communicati on

Interface

RS485(A+、B-)

Connection mode

Shielded twisted pair conductors

Protocol

MODBUS-RTU

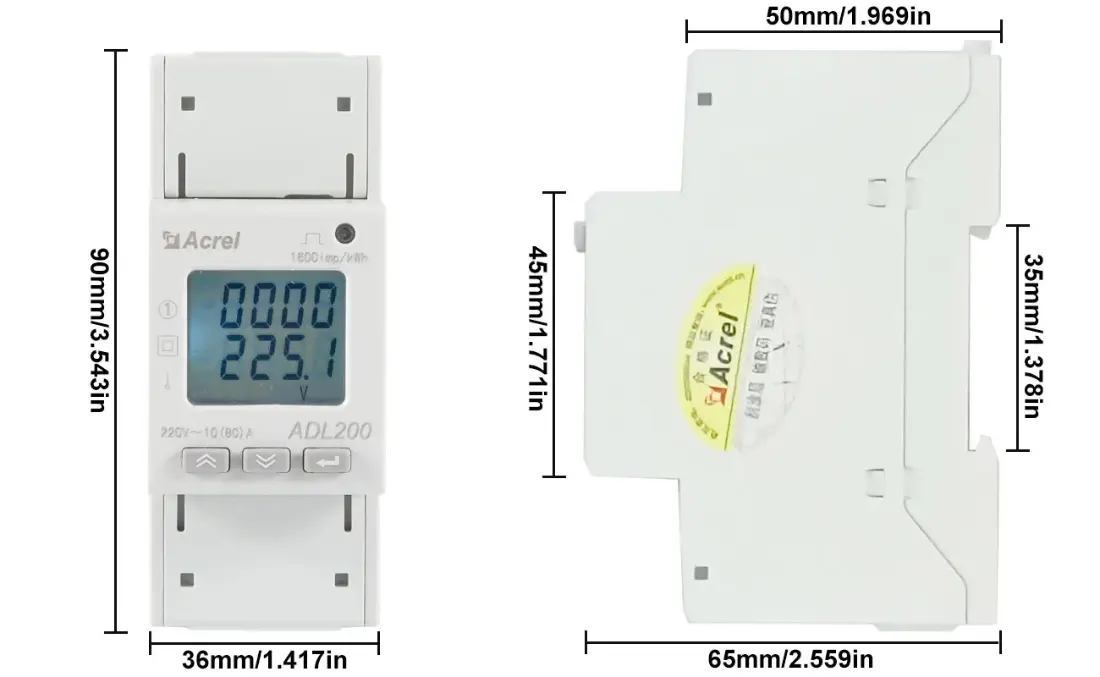

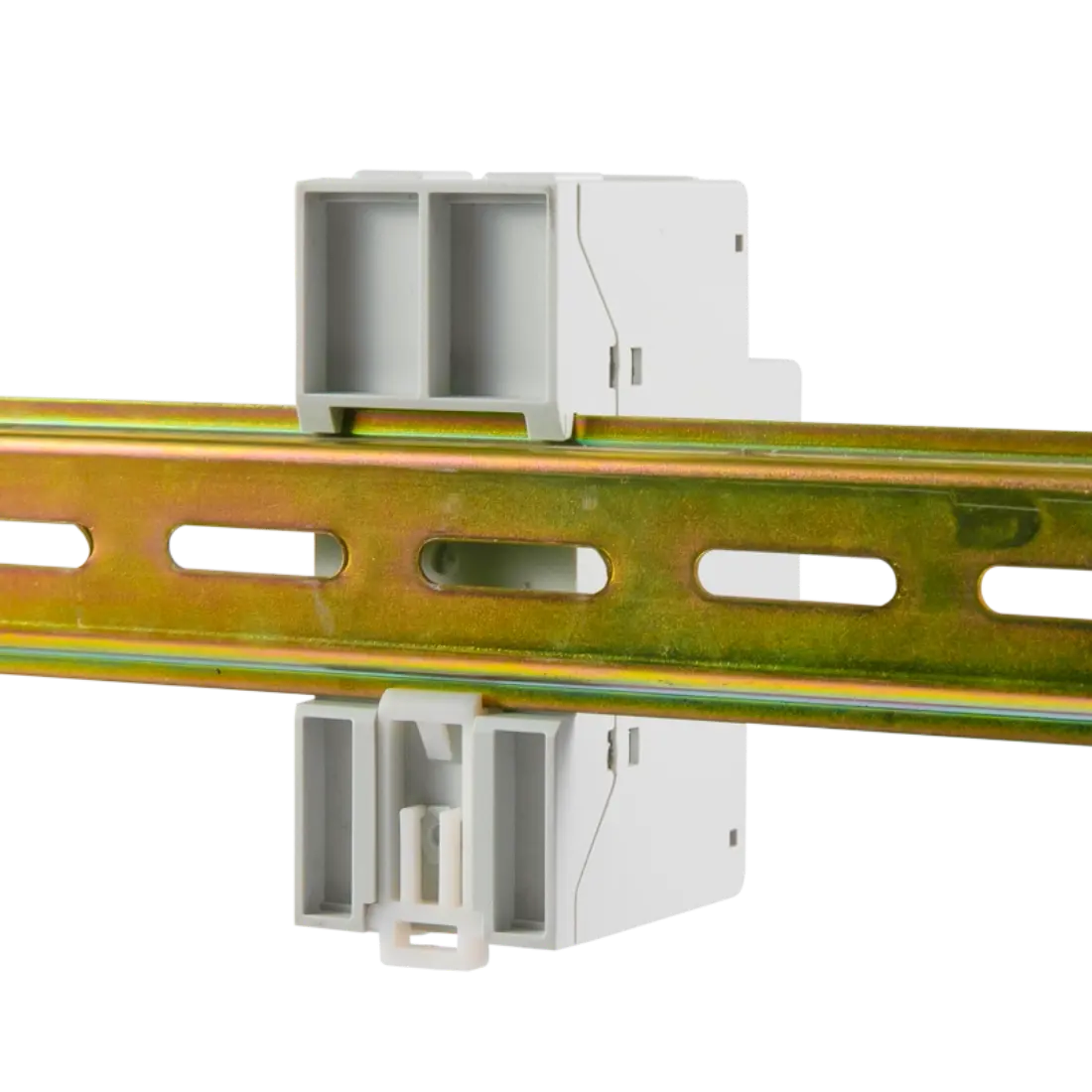

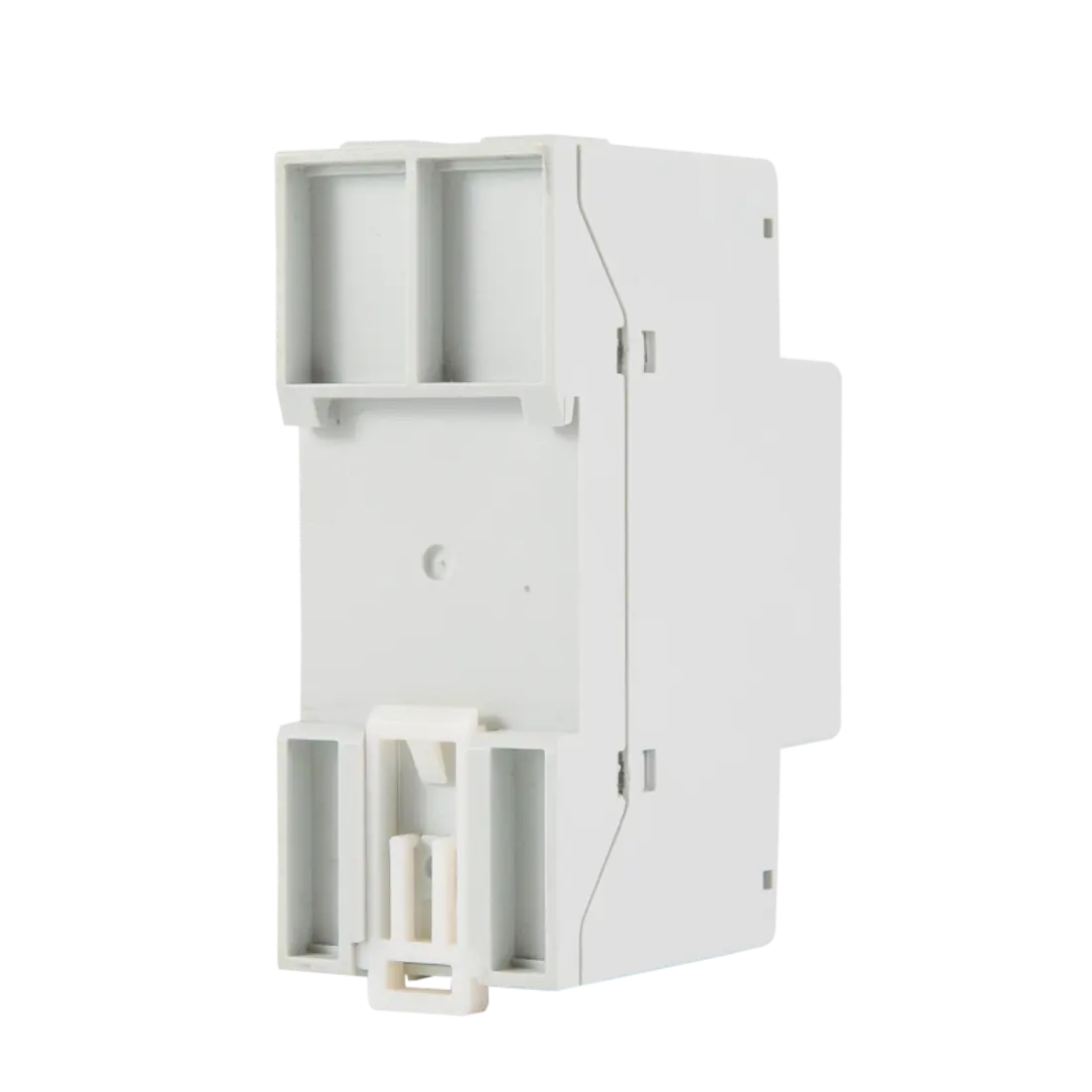

Outline

Length ×Width ×Height

90mm×36mm×65mm

Strong current terminal

Torque

<1.8Nm

Temperature range

Work temperature

-25℃~55℃

Storage Temperature

-40℃~70℃

Relative humidity

≤95%(No condensation)

Altitude

<2000m
