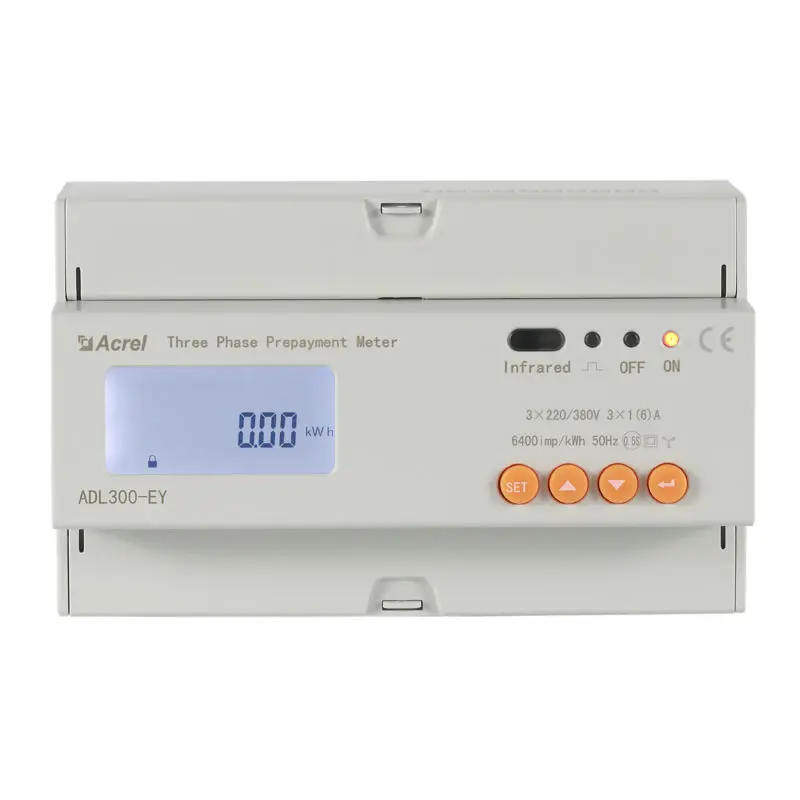

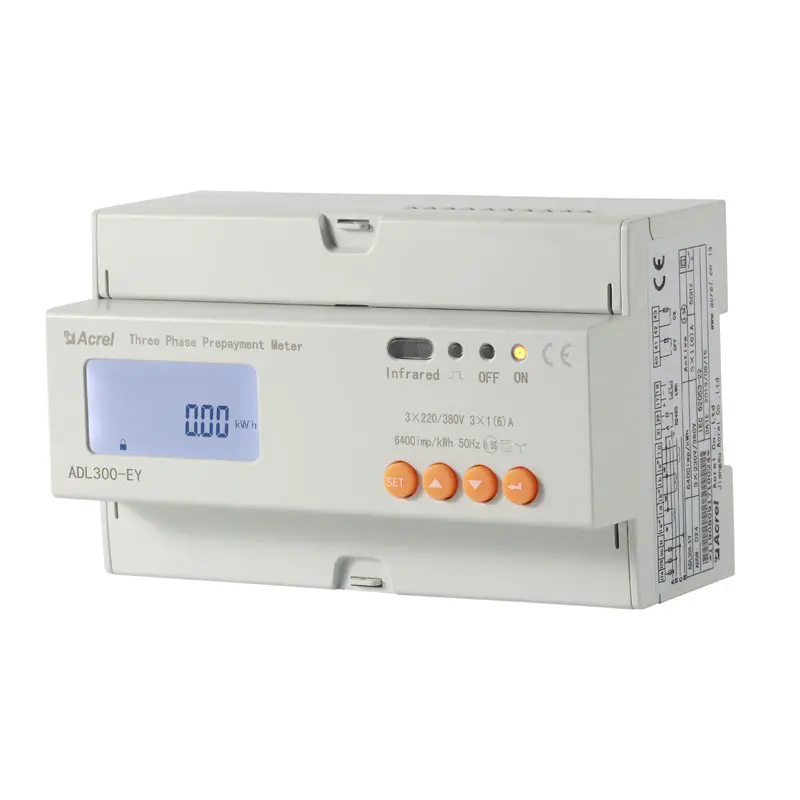

    ADL300-EY Three-phase Prepaid&Postpaid Energy Meter

    Product Description

    ● Application: Prepaid&Postpaid
    ● Measurement: 3-phase kWh, kVarh, Active Power, Reactive Power, Current, Voltage and etc
    ● Rated Voltage: 3x380~456Vac L-L & 45~65Hz
    ● Rated Current: 3x10(80)A AC (via direct connect); 3x1(6)A AC (via CTs)
    ● Communication: RS485 (MODBUS-RTU); Infrared
    ● Auto Control: Built-in Holding Relay for Switch On-off Control
    ● Multi-rate/tariff: 4 Tariff Rates and etc
    ● Standard&Certificate: CE
    WhatsApp contact us

    • Detailed description

    • Parameters

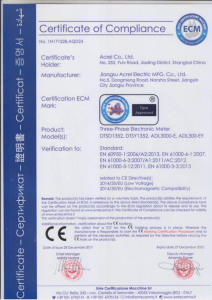

    • Certificate

    • Download

    ▋ Features

    Features of ADL300-EY Prepayment Energy Meter
    Local&Online Topping Up● Topping up by RFID Card (Local)● Topping up by Mobile APP (Online)● Topping up by Prepaid System (Online)● Low Balance Credit Alarm by sending SMS Payment Methods
    Auto&Remote Switch Control● Meter Supports Prepaid Mode & Postpaid Mode● Auto Tripping when Balance Credit is below Zero (Prepaid Mode)● Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS● Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)● Prepaid&Postpaid Mode of Meters can be set using Prepaid System
    Multi-rate&Multi-tariff● 4 Tariff Rates (Spike, Peak, Flat, Valley kWh Unit Price)● 14 Time Intervals by Day● Set Unit Price of Electricity Consumption for different Time Period of 1 Day

    ▋ Dimension&Packaging

    Outline Dimension

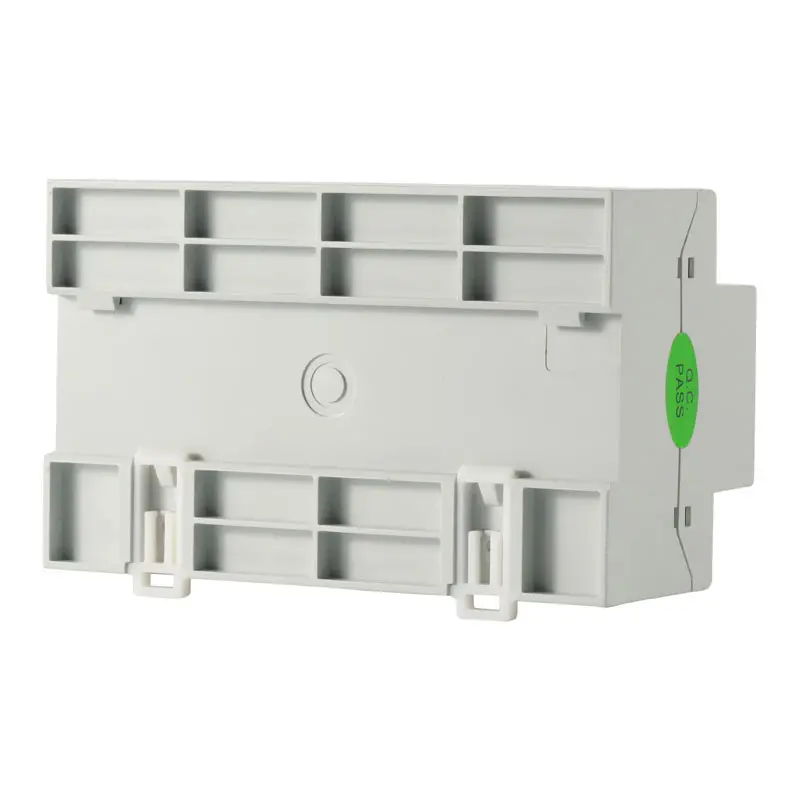

    Dimension of ADL300-EY (Direct Connect Ver.)

    Dimension of ADL300-EY (CT Operated Ver.)

    About Packagement

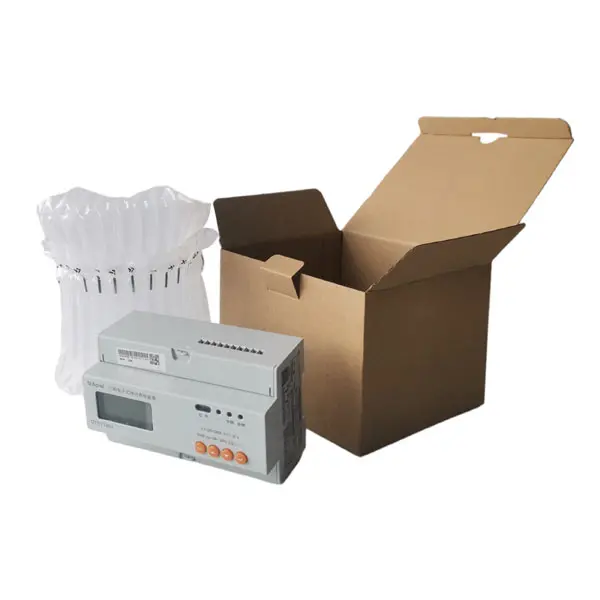

    Packaging Overview(Minimum)
    Packing Dimension and Weight(Minimum) Minimum Package Contain 1 pcs ProductsDimension: 170mm*150mm*130mm Total N.W. (1 pcs)0.461 KG
    Packing Dimension and Weight(Large) Large Package Contain 36 pcs ProductsDimension: 540mm*480mm*280mm Total N.W. (36 pcs)18.856 KG
    AverageLead Time Manufacturing: 3~4 days
    (If paired with system need extra 1~2 days for adjustment)     		Shippment: 8~9 days(World Wide Shipment)
    ProductHS Code 9028301400
    COCountry of Origin China
    Direct Connect Type

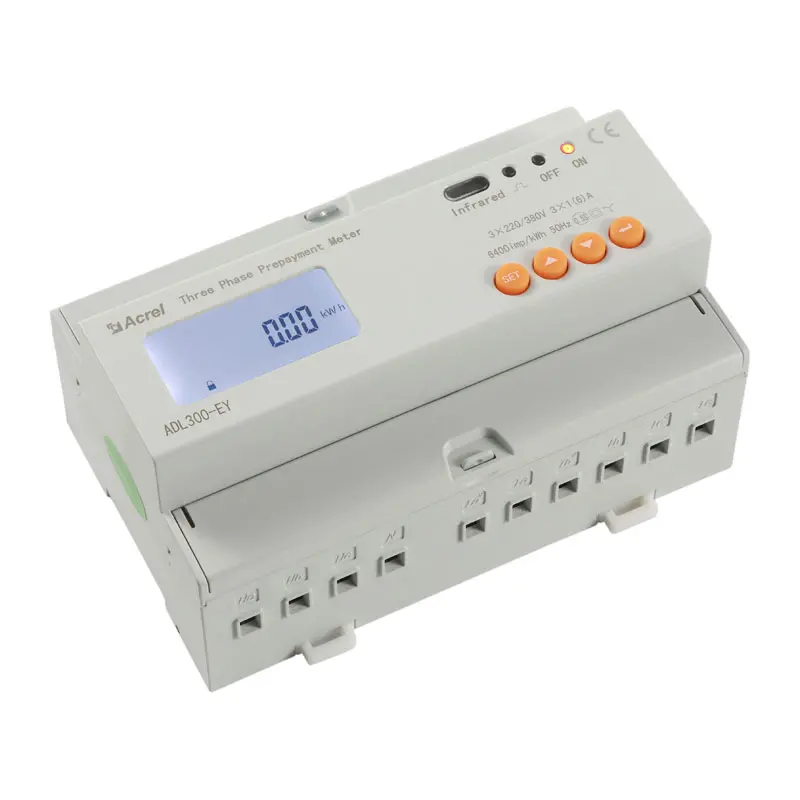

    PIN/Terminal Overview of ADL300-EY (Direct Connect Type)
    Power Wiring: 3-phase 4-wire via direct connect
    Power Wiring: 3-phase 3-wire via direct connect
    RS485 Wired Communication of ADL300-EY (Direct Connect Type) with IoT Gateway
    CT Operated Type
    PIN/Terminal Overview of ADL300-EY (CT Operated Type)
    Power Wiring: 3-phase 4-wire CT operated
    Power Wiring: 3-phase 3-wire CT operated
    RS485 Wired Communication of ADL300-EY (CT Operated Type) with IoT Gateway

    ▋ Installation Instruction

    35mm DIN Rail Energy Meter

    ▋ Work-site Installation

    Parameter Description&Value
    Measurement
    		 kWh&kVarh Total active kWh (bidirectional --positive and negative in total)
    Electrical Paratmeters U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency)
    Function Mode
    		 Prepaid Mode Meter will shut down the power once the credit balance is below zero. (Data like credit balance is saved in the meter)
    Postpaid Mode Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using Prepaid System)
    Mode Change Meter can change the mode between prepaid and postpaid by receiving the command from prepaid system
    Control
    		 Auto-tripping Control   Auto-tripping control is processed by the built-in high-capacity holding relay of the meters to realized on-off control of circuits breaker, also, this type of control will only be triggerred when meter is in Prepaid Mode
    Remote Control Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode
    Multi-rate
    Multi-Tariff
    		 Optional Function 4 tariff rates (spike, peak, valley, flat); 14 time intervals by day
     Input
    Voltage
    		 Rated Voltage 3x380~456Vac L-L (Voltage signal input will be also served as power supply for meters)
    Frequency 45~65Hz
    Consumption <4VA (each phase)
    Input
    Current
    		 Rated Current 3x10(80)A AC (direct connection); 3x1(6)A AC (connected via CTs)
    Starting Current 0.004 Ib (direct connection); 0.002 In (connnected via CTs)
    Accuracy
    		 Measurement Class 0.5s
    Clock ≤0.5s/d

    Pulse
    		 Pulse Width 80ms±20ms
    Pulse Constant 6400imp/kWh (direct connection); 400imp/kWh (connected via CTs)
    Communication
    		 RS485 Interface MODBUS-RTU Protocol
    Infrared Used for Meter Reading
    HMI
    		 LCD Display 8 bits section LCD display
    Keypads Programming Setting of communication, current ratio and etc.
    Mechanical
    Feature
    		 Out-line Dimension
    (L*W*H)    		 72mm*88mm*70mm
    Max Wiring Ability (with Flexible Cable) 25mm2
    Environment
    		 Operating Temperature -25℃~+55℃
    Storage Temperature -40℃~+70℃
    Humidity ≤95% (No condensation)
    Altitude ＜2000m
