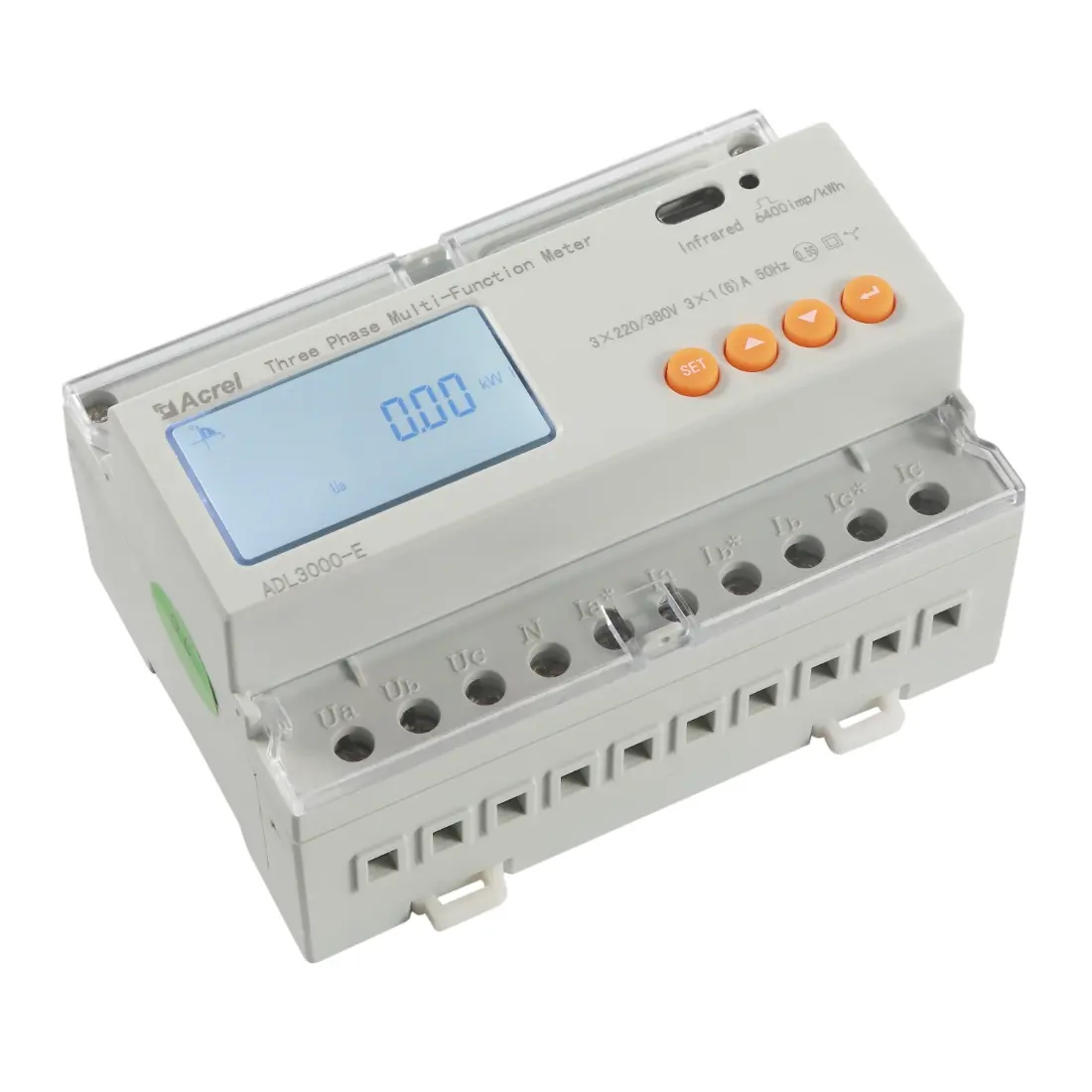

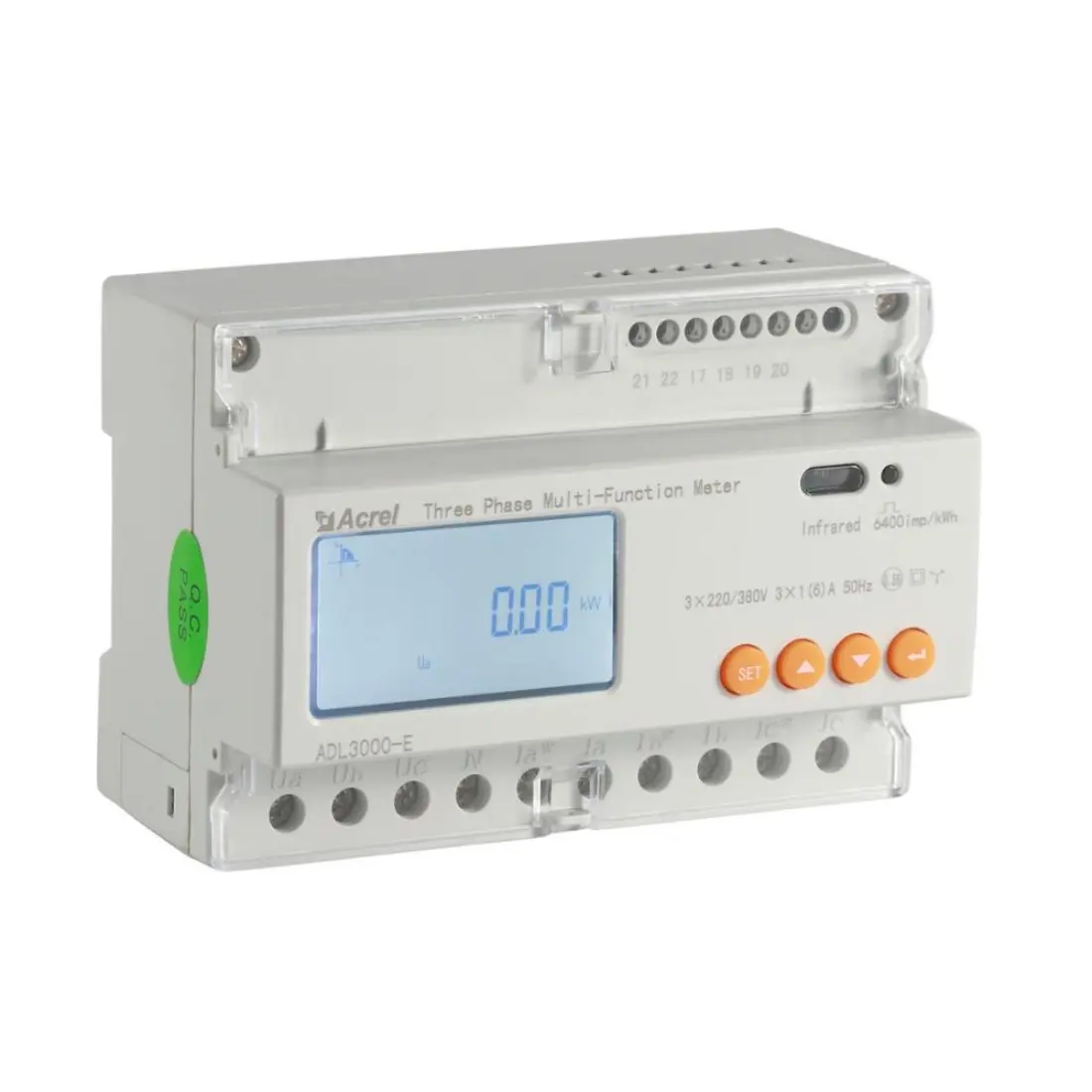

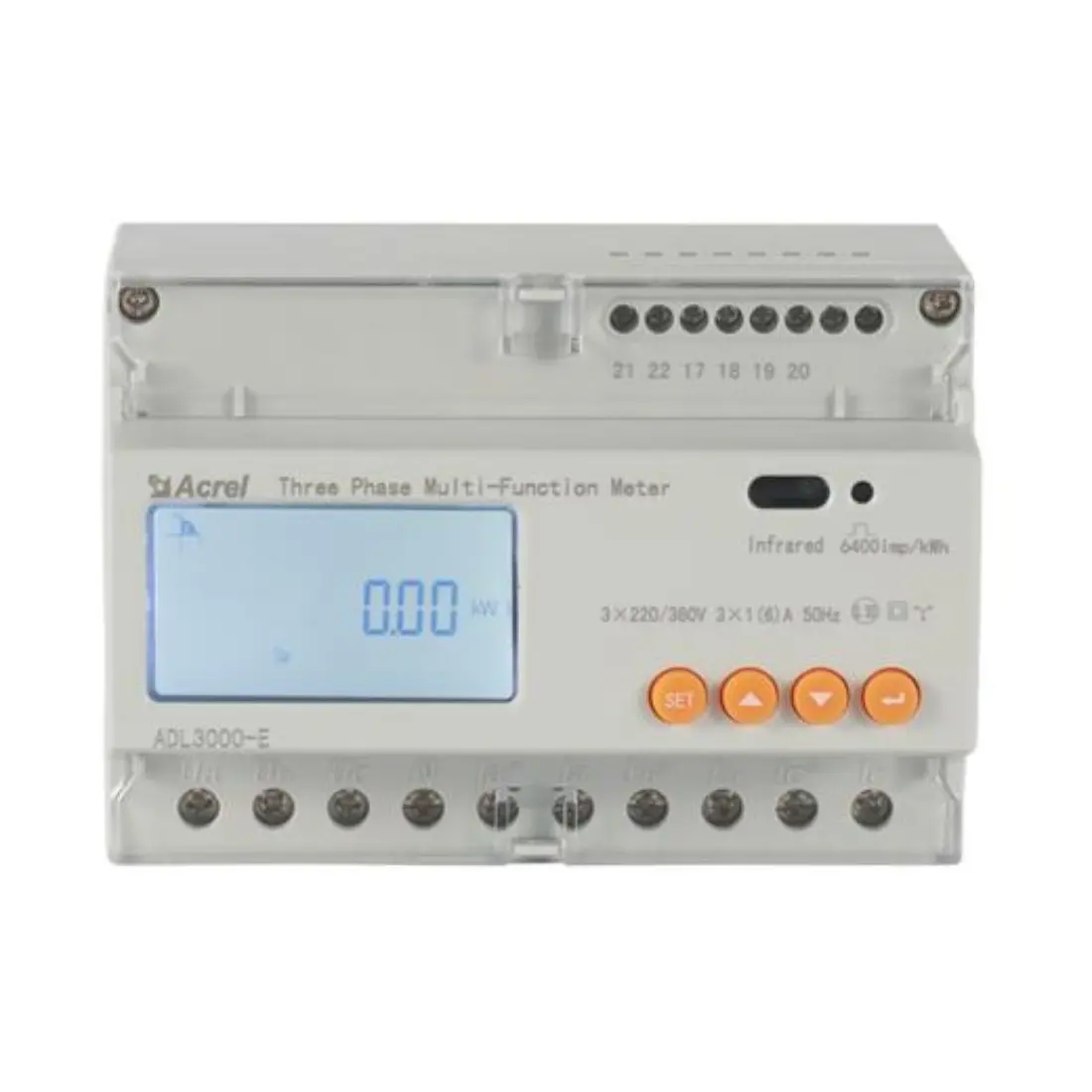

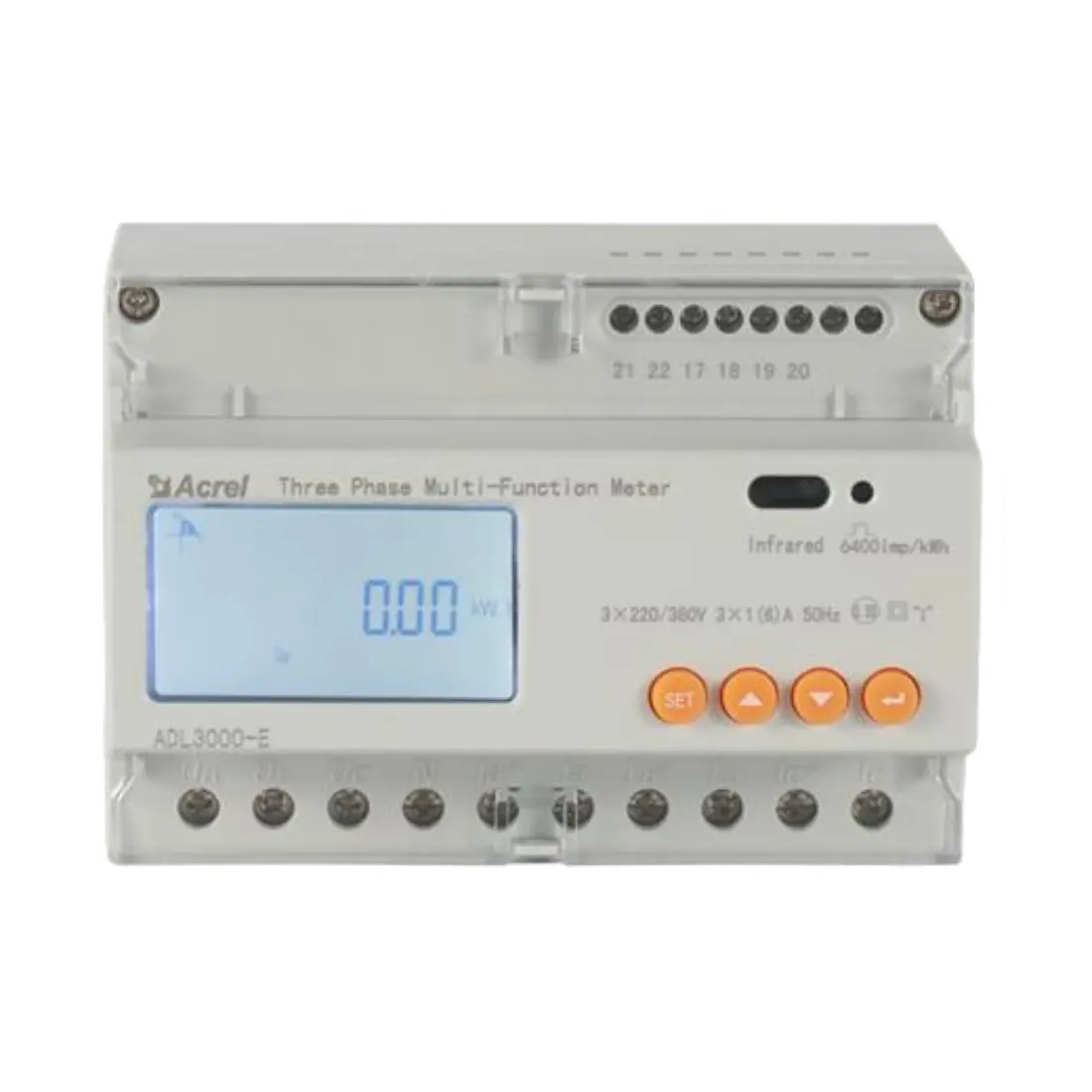

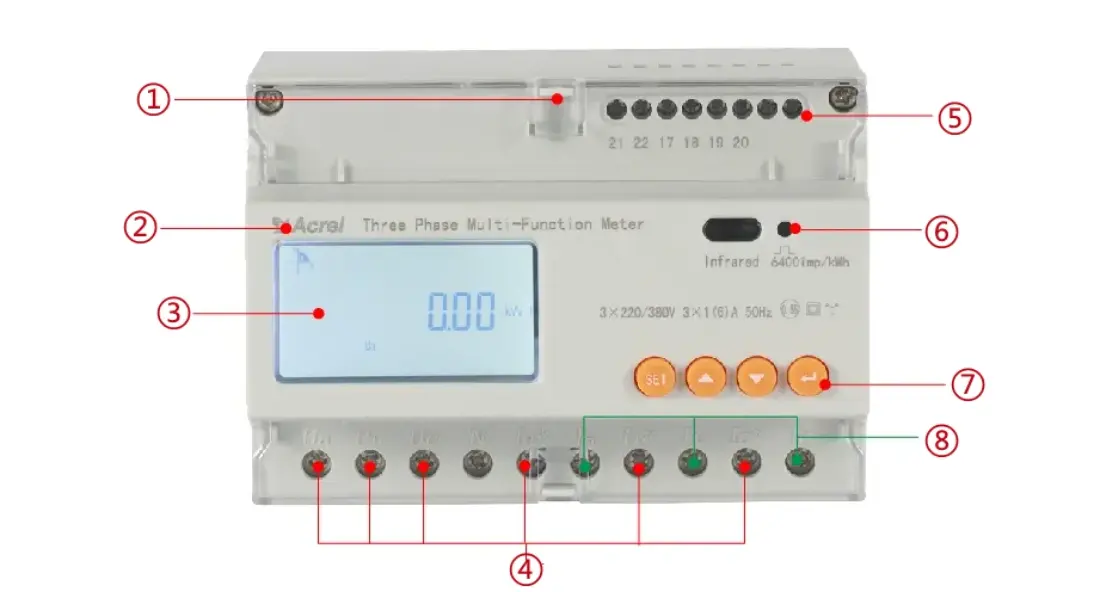

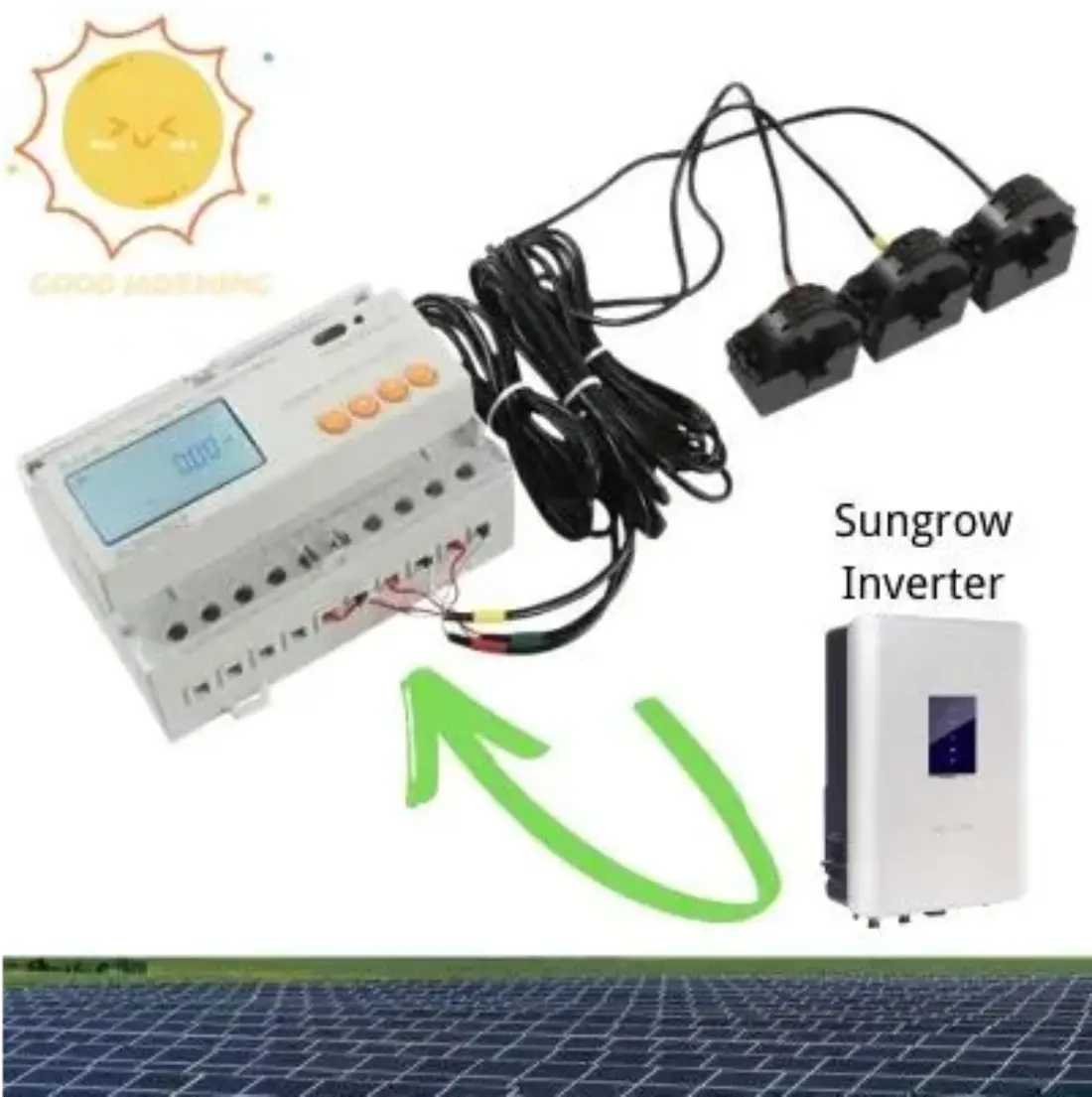

    ADL3000-E Three Phase Din Rail Meter

    Product Description

    ● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
    ● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    ● Current Rating: 3x10(80)A; 3x1(6)A
    ● Frequency: 45~65Hz
    ● Commnunication: RS485 (MODBUS-RTU) and Infrared
    ● Multi-rate: Spike, Peak, Valley and Flat kWh
    ● Extra Function: Cable Temperature Measurement and DO/DI
    ● Display: LCD (8 digits)

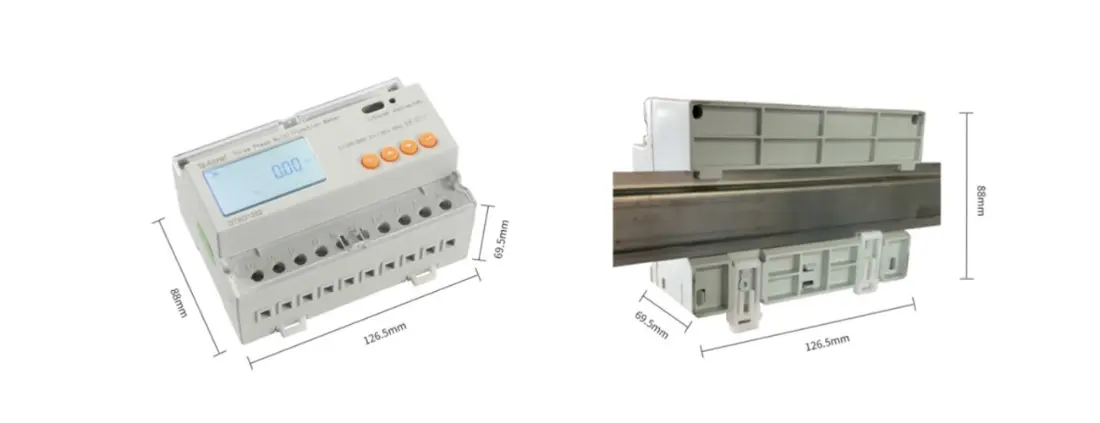

    ● Dimension: 127*88*70mm (L*W*H)

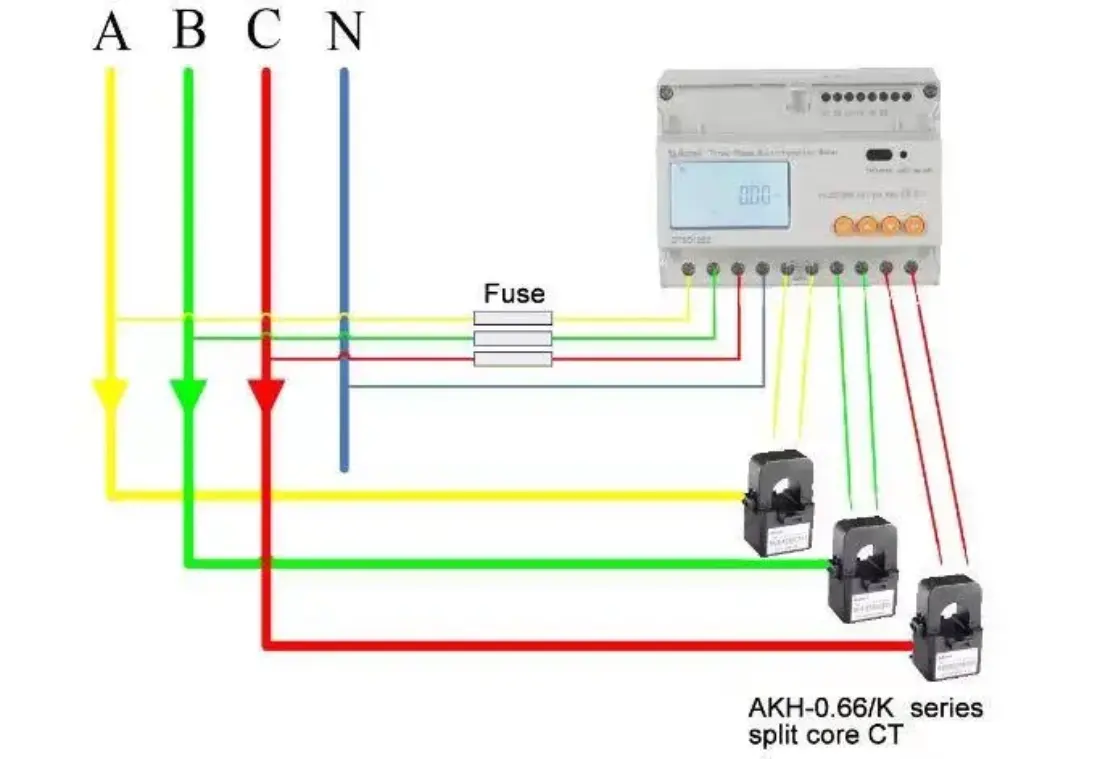

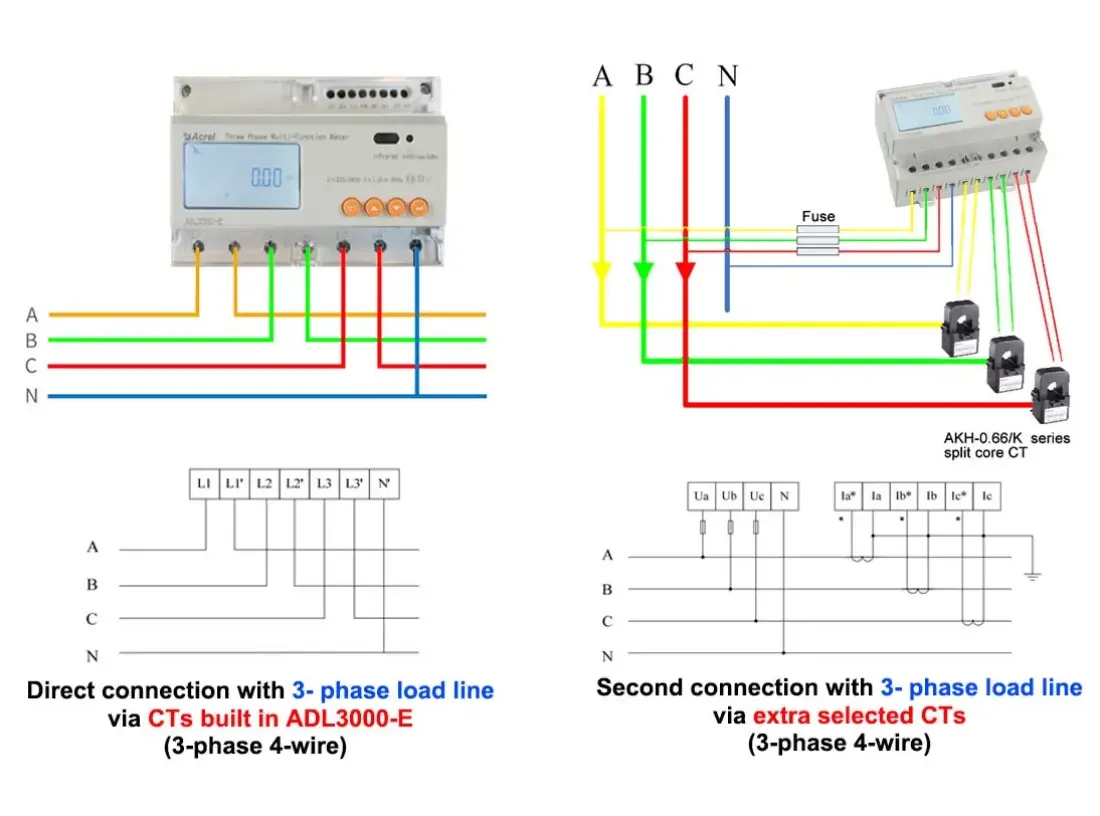

    ● Wiring: 3-phase 4wire; 3-phase 3-wire
    ● Installation: 35mm DIN Rail
    ● Standard&Certificate: UL; IEC; CE
    WhatsApp contact us

    • Detailed description

    • Parameters

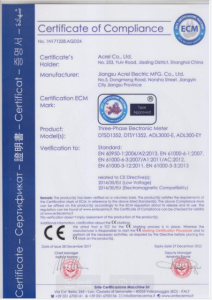

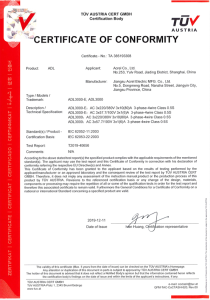

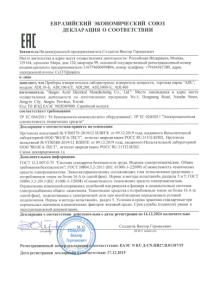

    • Certificate

    • Download

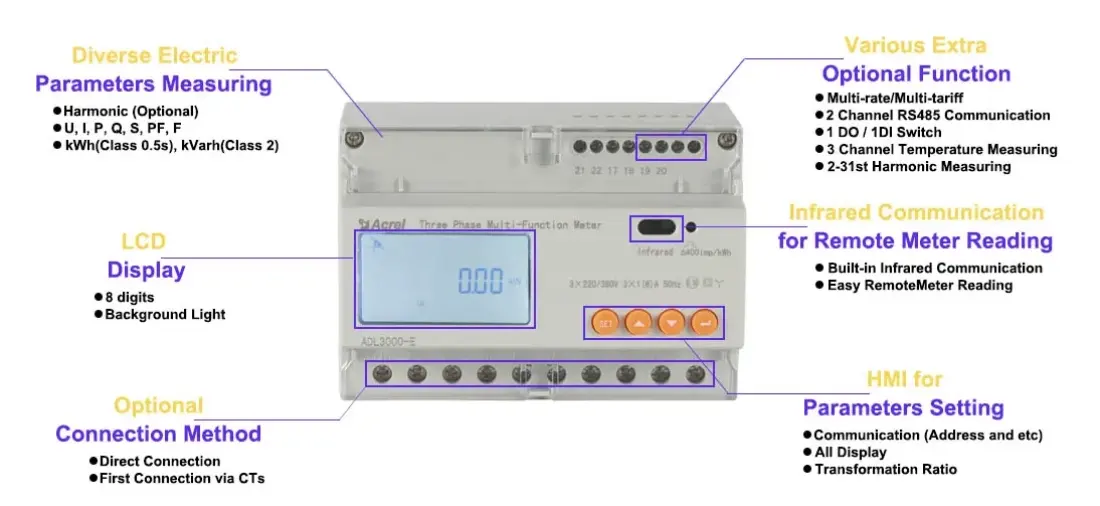

    • Din rail mounted
    • kWh: Class 0.5S, kVarh:Class 2
    • AC 3×220/380V, 3×380V，3×57.7/100V, 3×100V
    • 3×1（6）A, 3×10（80）A
    • U、I、P、Q、S、PF、kWh、kvarh

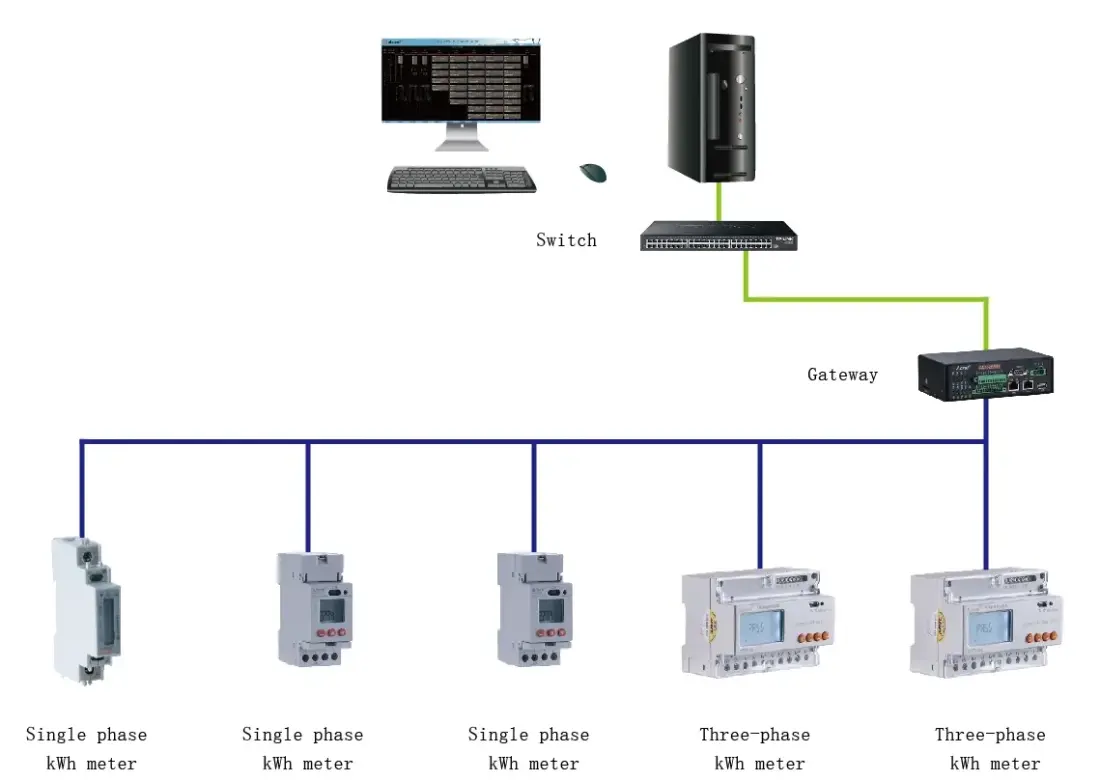

    • RS485(MODBUS-RTU)
    FunctionFunction descriptionFunction provide
    Measurement of kWhActive kWh (positive and negative)■
     Reactive kWh (positive and negative)■
     A, B, C phase positive active kWh■
    Measurement of electrical parametersU、I、P、Q、S、PF、F■
      ■
    Measurement of2~31ST Voltage and current harmonic□Note 1

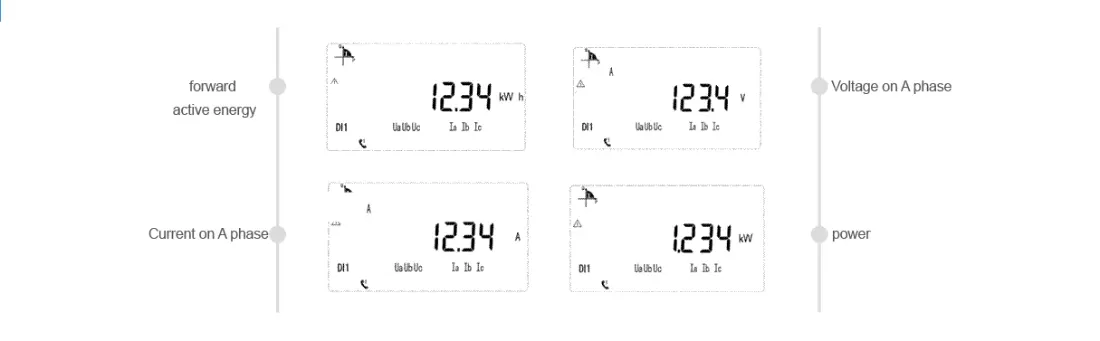

    LCD Display8 bits section LCD display, background light■
    Key programming4 keys to communication and set parameters■
    Pulse outputActive pulse output■
     Reactive pulse output□Note 2
     Clock pulse output□Note 2
    Multi-tariff and functionsActive switch input□Note 3
     Switch output□Note 2
     Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates□
     Max demanded kWh and time happened□
     Frozen data on last 48 months, last 90days□
     Date, time□
    CommunicationInfrared communication■
     The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU□
     The second communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU□Note 3
    Temperature measurementSupport 3 outlay NTC temperature□Note 4

    “■” means standard, “□” means optional.

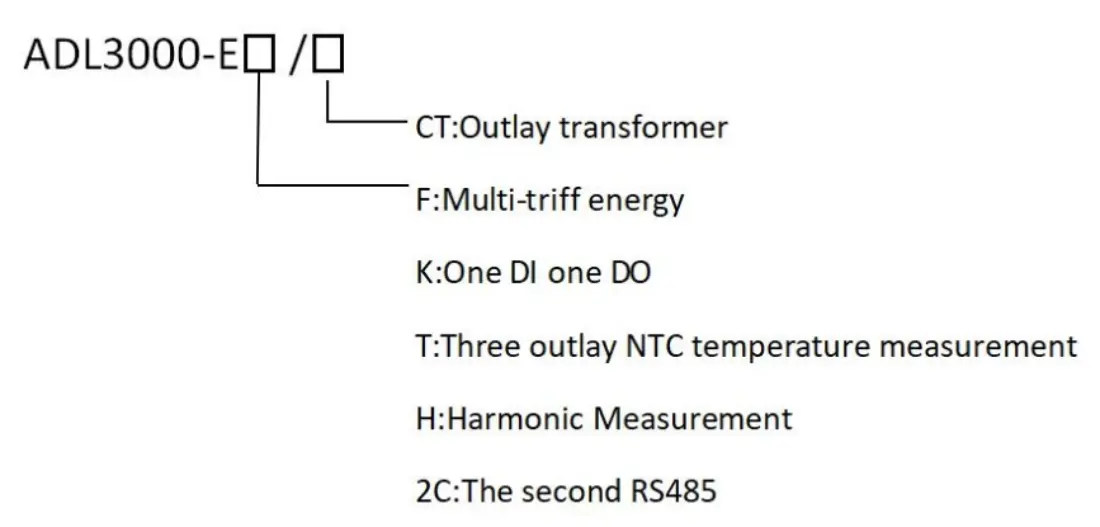

    Note: 1: Harmonic is a standard while choosing outlay transformer, optional for other situation. 2: Reactive pulse output, clock pulse output and switching output: Choose one of these three functions. 3: Active switching, the second communication path: Choose one of these two. 4: Both 1 and 2 cannot be chosen while choosing temperature measurement.

    Voltage

    Reference voltage

    3*57.7/100V,3*220/380V,3*100V,3*380V



    Reference frequency

    50Hz



    Consumption

    <10VA(Single phase)

    Current

    Maximum current

    6A,80A



    Starting current

    Direct connect:0.004lb

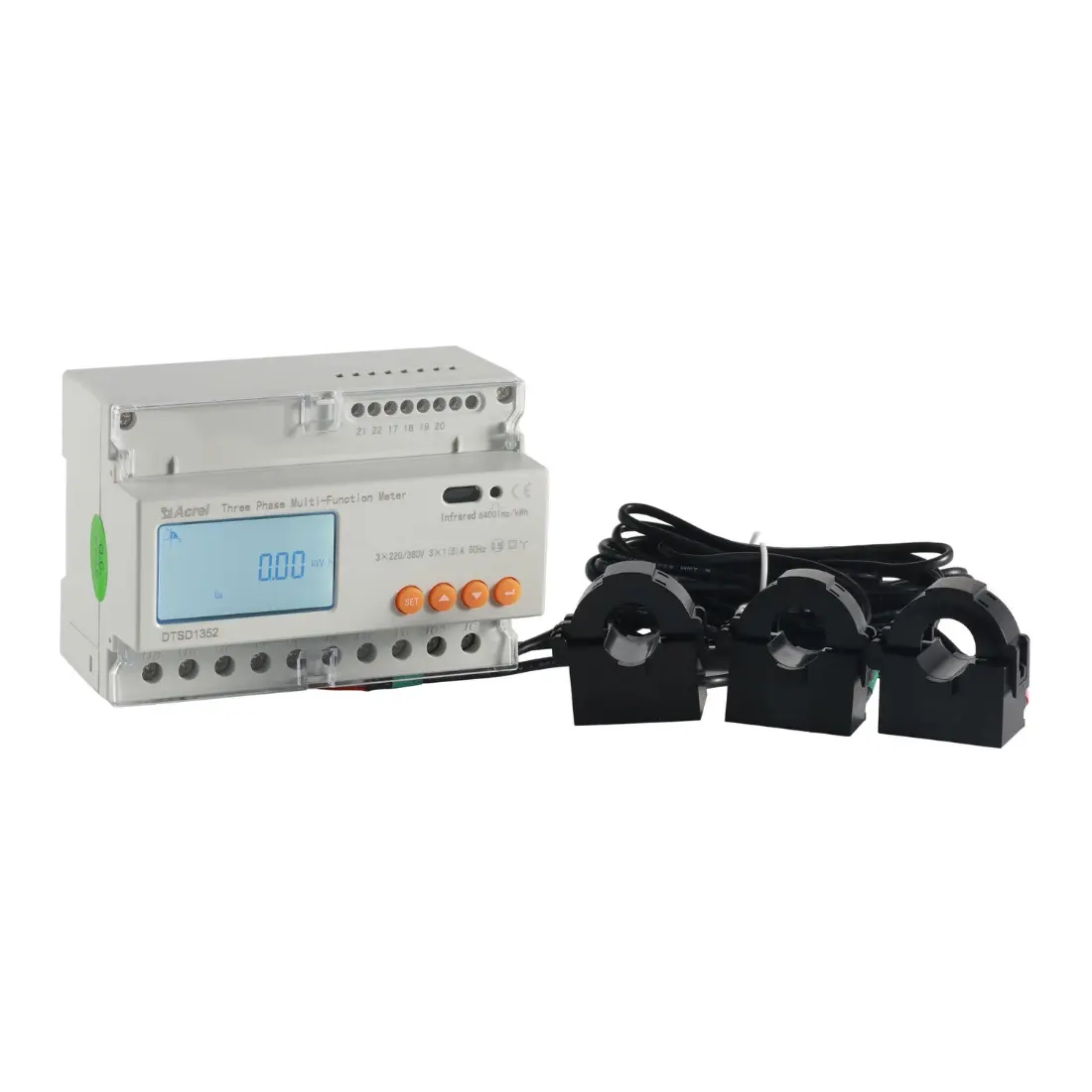

    Connect via:0.001ln



    Consumption

    <1VA(Single phase rated current)

    Measurement performance

    Accuracy

     Class 0.5



    Standards compliant

    IEC 62053-22:2003

    Pulse

    Pulse width

    80+20ms



    Pulse constant

    400imp/kWh

    6400imp/kWh

    Communication

    Interface

    RS485



    Protocol

    Mod bus-RTU

    Temperature range

    Work

    -25℃~55℃



    Storage

    -40℃~70℃

    Humidity

    ≤95%(No condensation)

    Altitude

    <2000m
