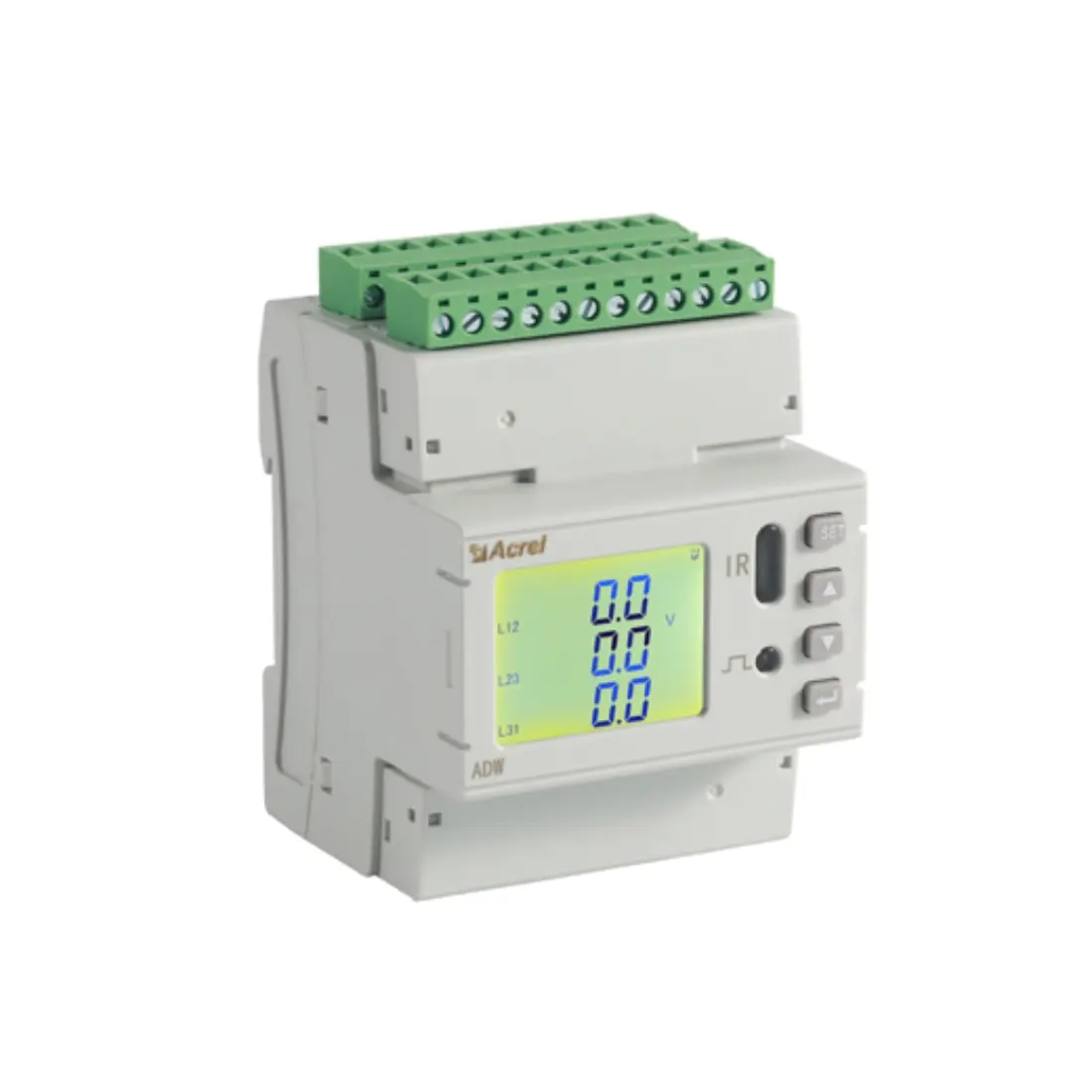

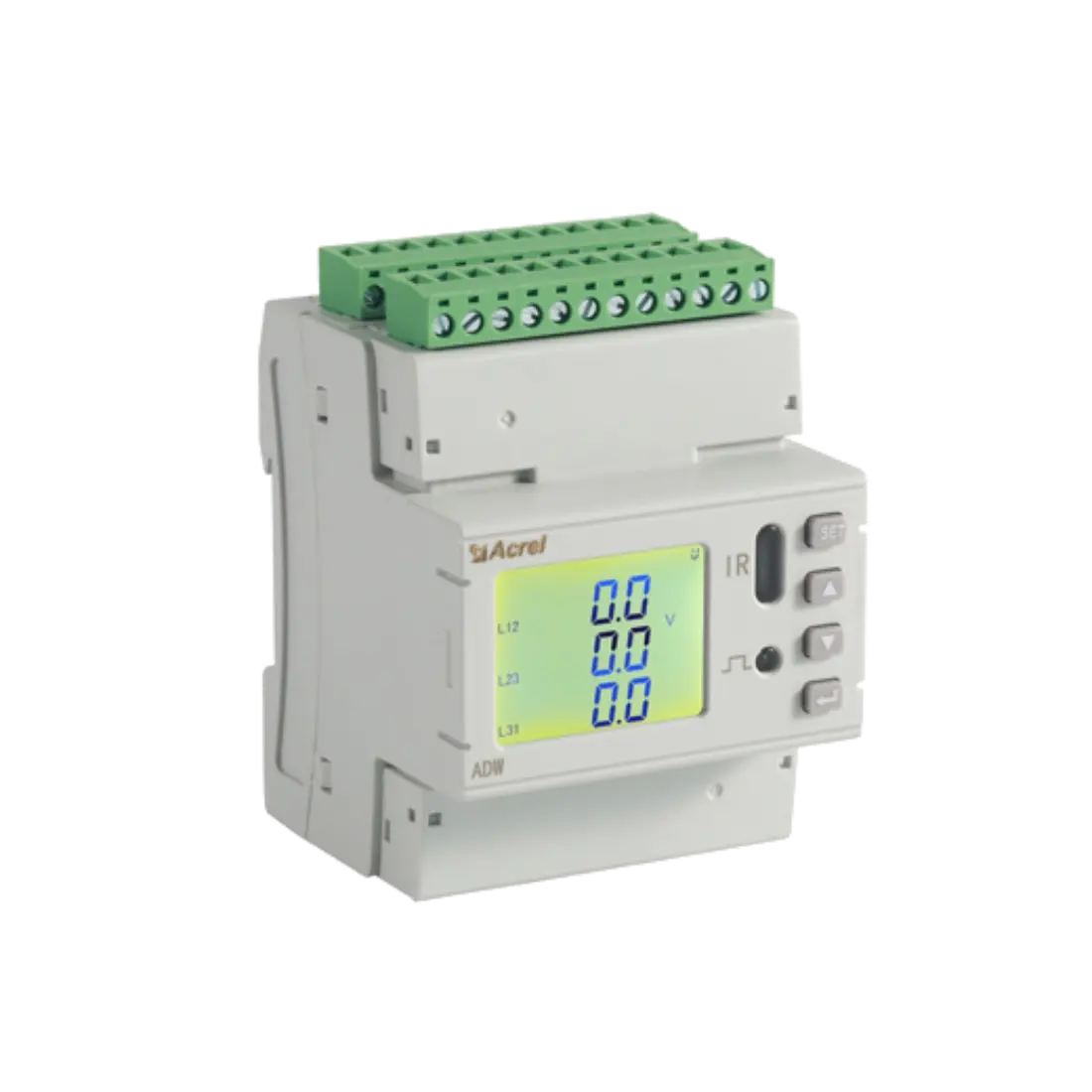

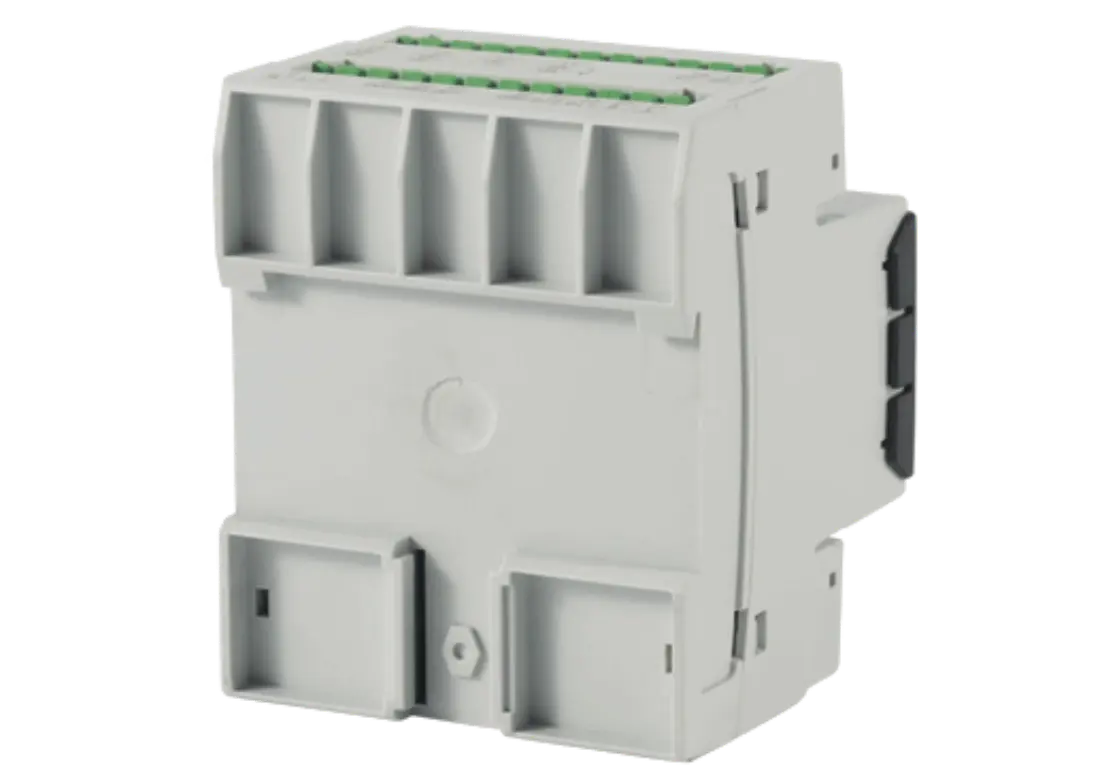

ADW210 IoT Multi-Circuit Energy Meter

Product Description

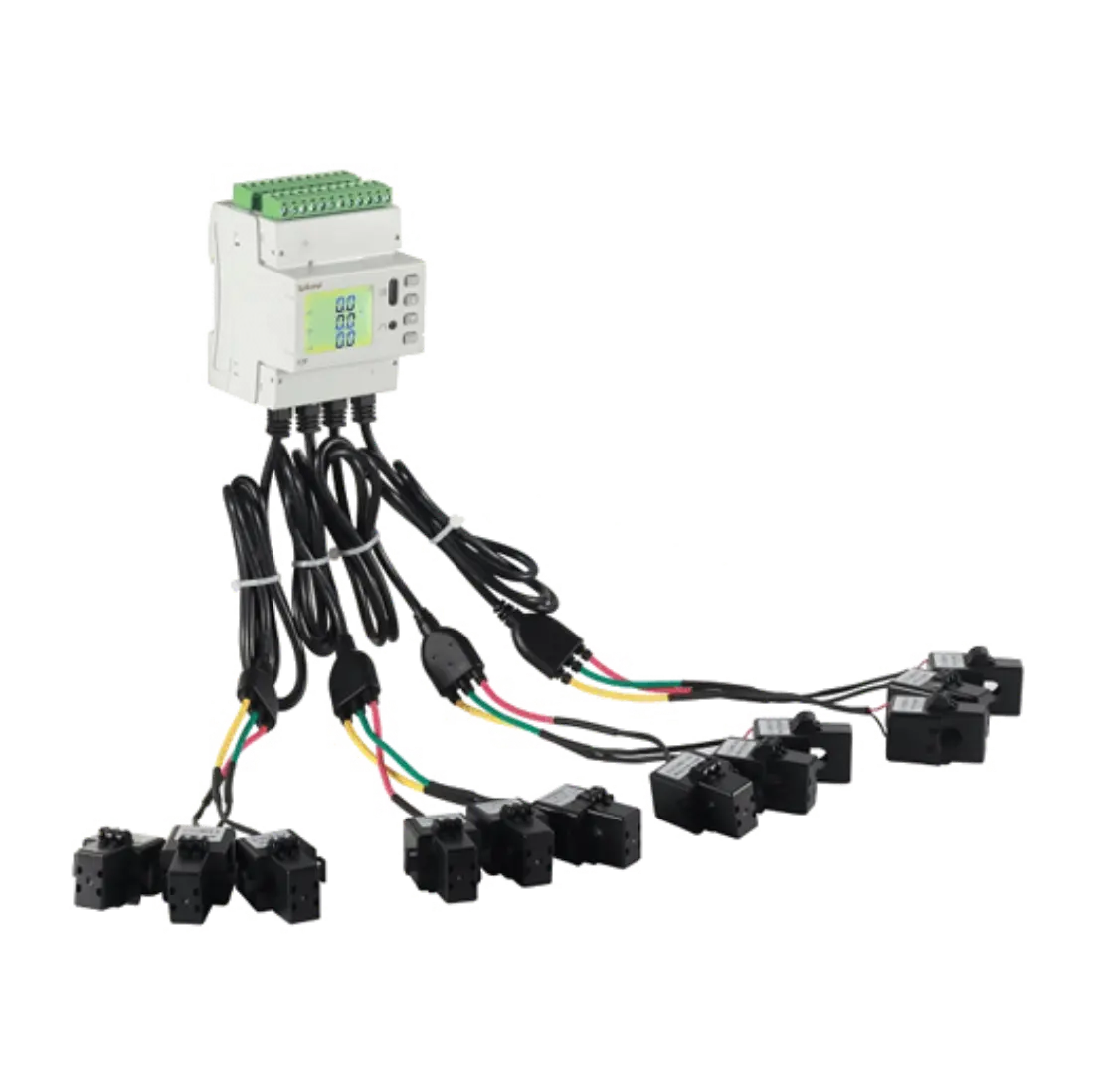

● Monitoring: Up to 4 circuits 3-phase or 12 circuits 1-phase.

● Measurement: kWh, kVarh, Current, Voltage, Power, 2~31^stHarmonic and etc

● Voltage Rating: 3x380V~456Vac L-L & 3x220~264Vac L-N

● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)

● Frequency: 45~65Hz

● Communication: RS485 (MODBUS-RTU)

● Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function

● Display: LCD

● Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body

● Wiring: 3-phase 4-wire & 3-phase 3-wire Connection

● Installation: 35mm DIN Rail

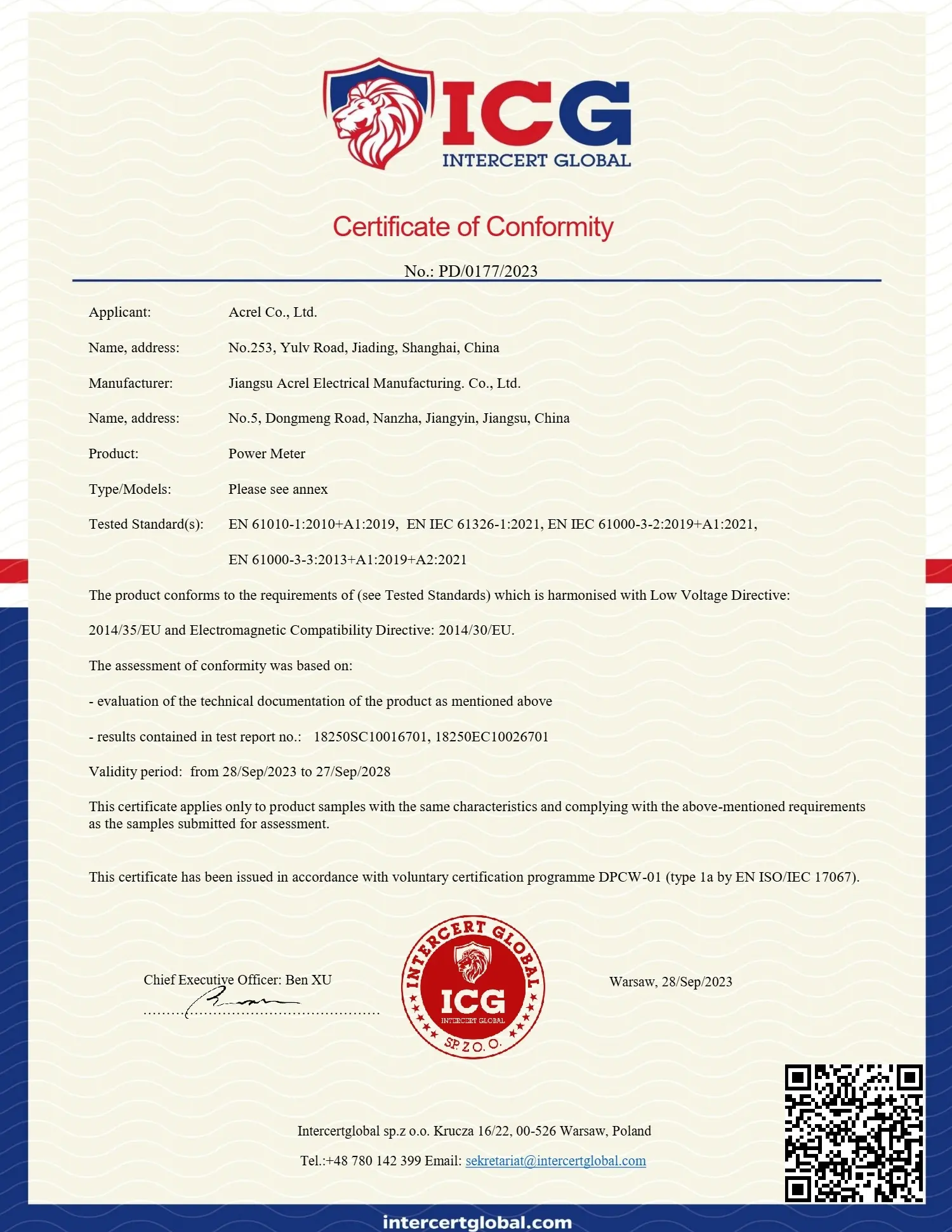

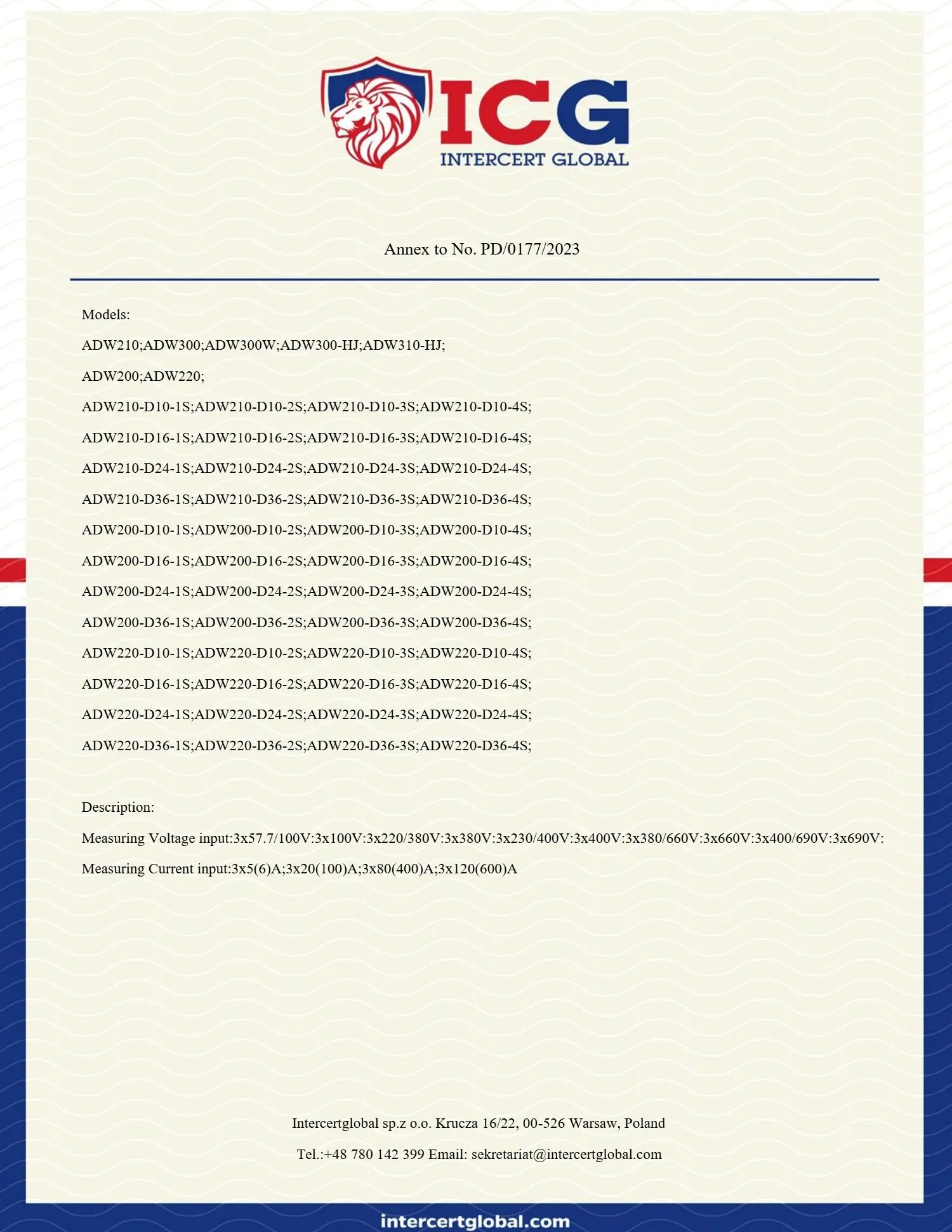

● Standard&Certificate: CE; LVD

Prototype Function

Function	Description
Energy Measurement	kWh (positive and negative)
	kvarh (positive and negative)
	A,B,C three-phase positive kWh
Electric Parameter	U, I, P, Q, S, PF, Hz
Harmonic	2-31st voltage and current harmonic
Communication	RS485 (MODBUS-RTU); baud rate 1200~38400
Key Programming	4 keypads to set communication and parameters
Display	LCD display, 8 digits
LED Alarm	Over-voltage, over-current, interruption phase
Data Log	Maximum demanded kWh and the time it happened.
SOE	up to 200 pcs, record on-off status of DO/DI
Pulse Output	Active optocoupler pulse output with open collector
Multi-rate/Tariff	4 time zones & 12 time periods

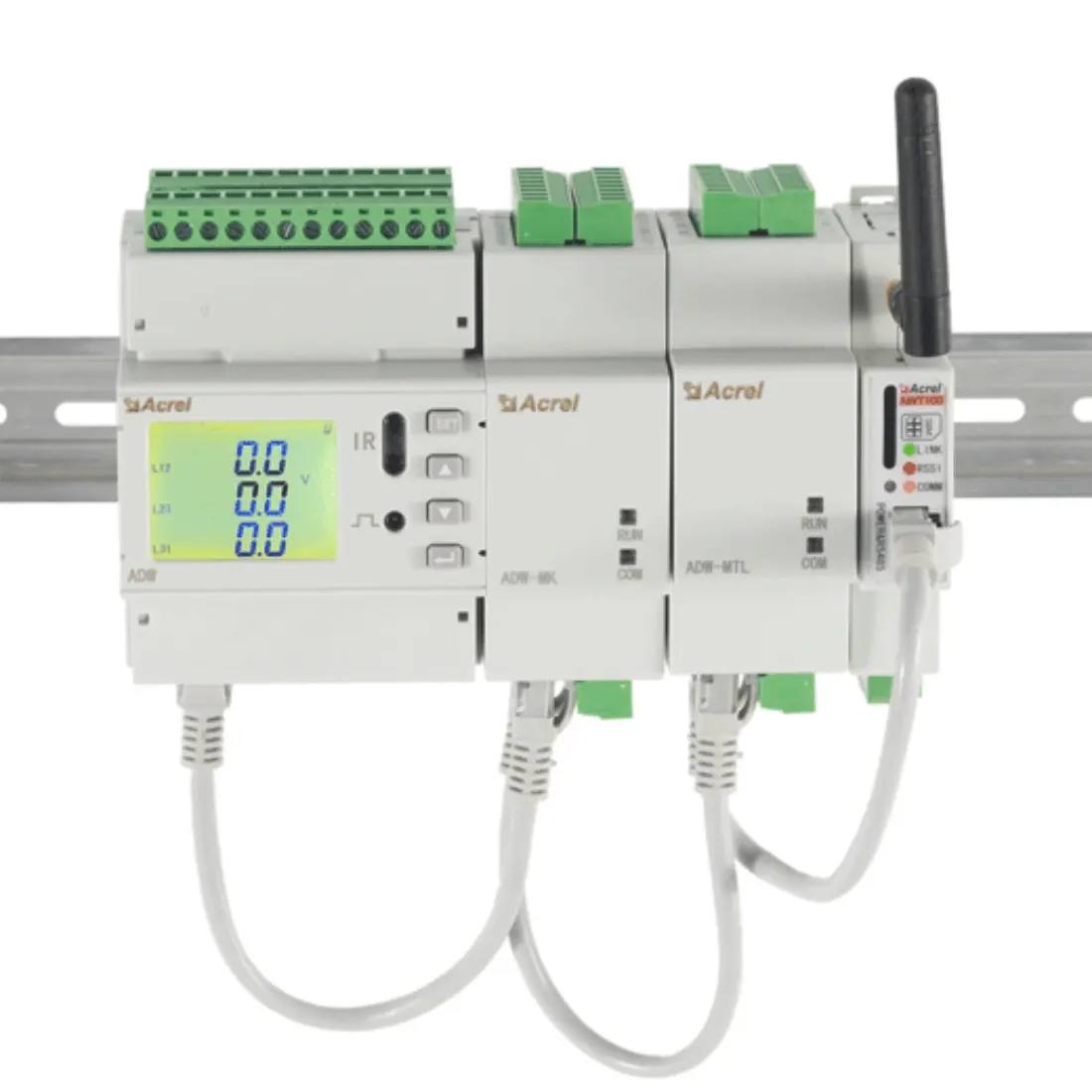

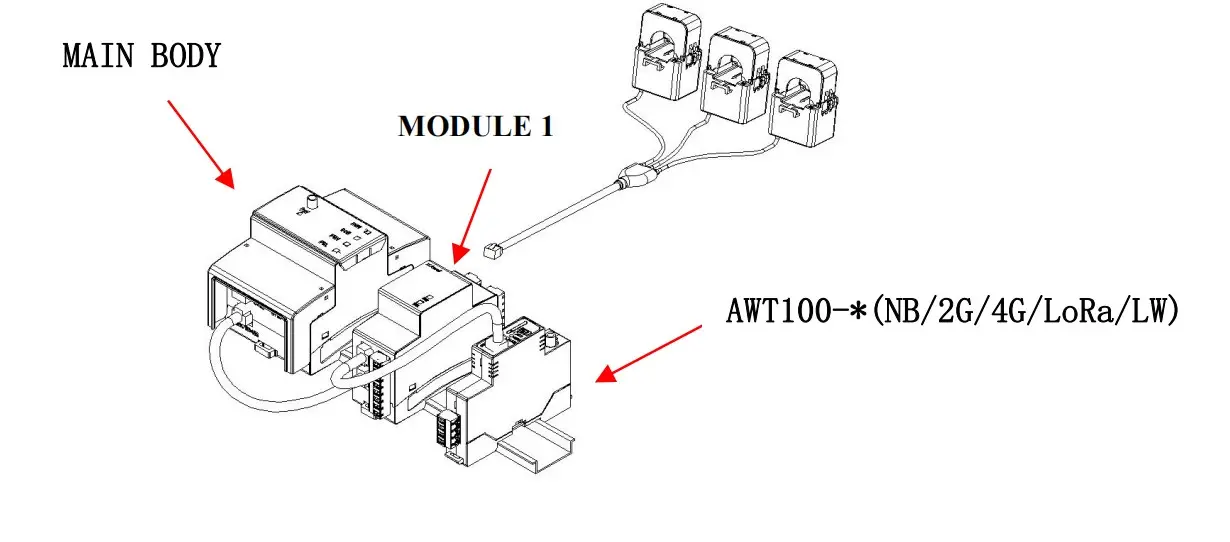

Expanded Module Function

Expanded Module	Description

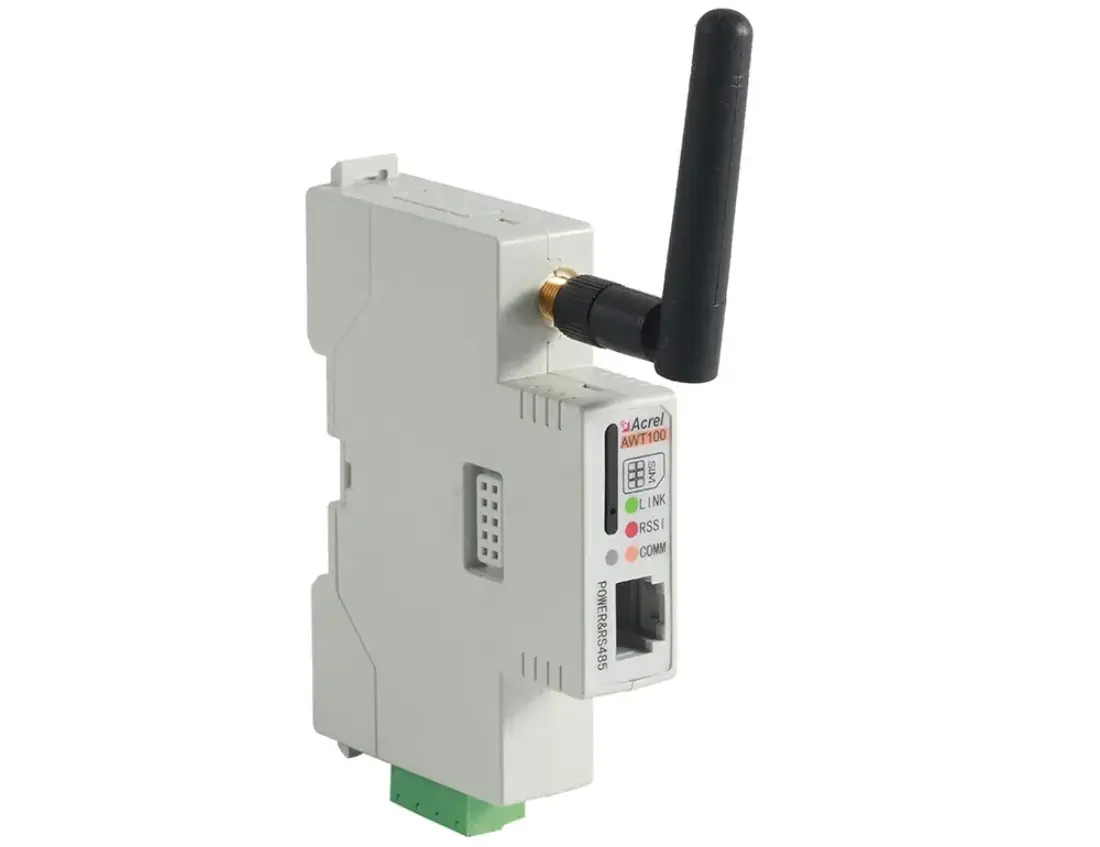

AWT100 Communication Module	4G (Global general module)
	2G
	LoRaWAN (868 MHz, 923MHz)
	LoRa (460~510 MHz)
	NB-IoT

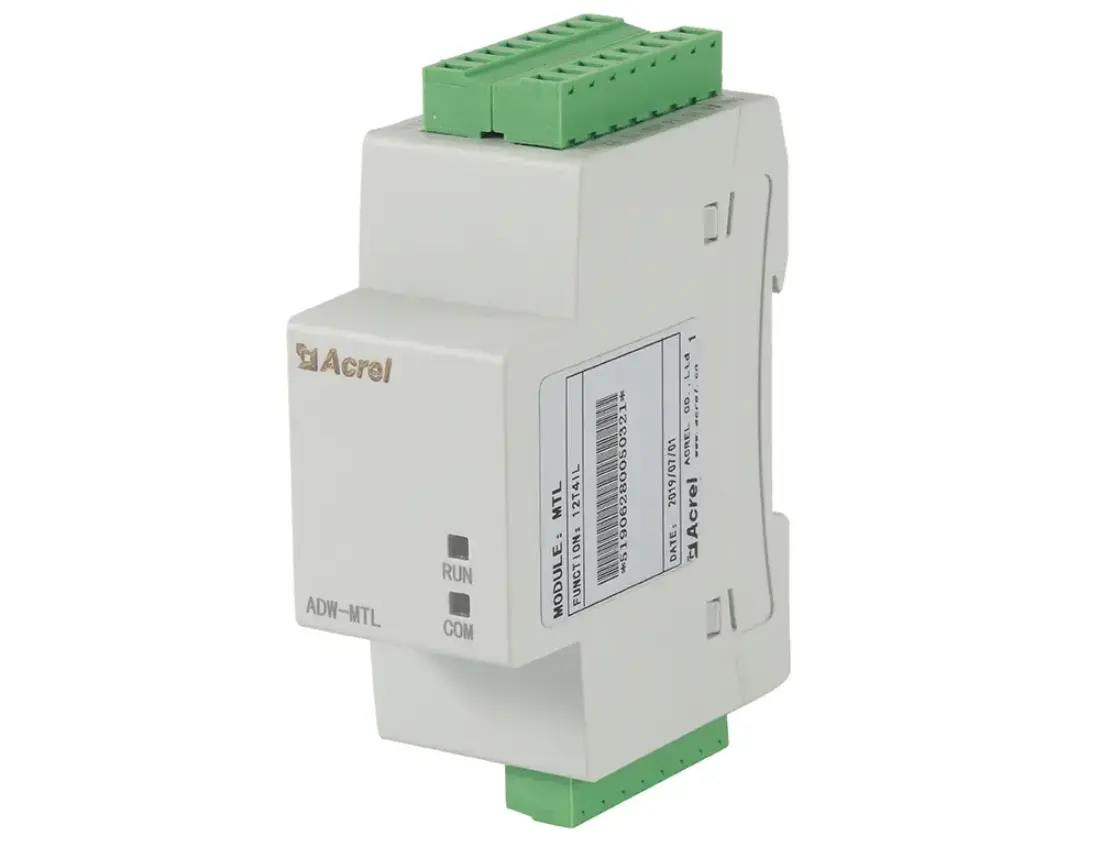

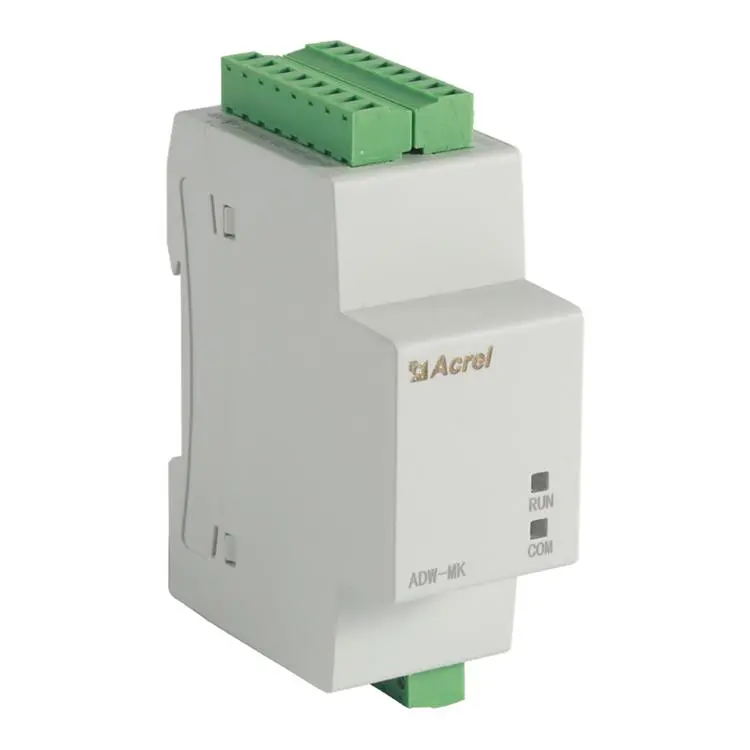

-MK Swtich Module	12 × DI (input)	Dry contact input with built-in power supply
	4 × DO (output)	Relay normally open contact output; rating AC 250V/3A ,DC 30V/3A
	Power Supply	DC 12V；consumption:≤1W；RJ45 interface
	Communication	RJ45 interface; MODBUS-RTU (communication with main body)

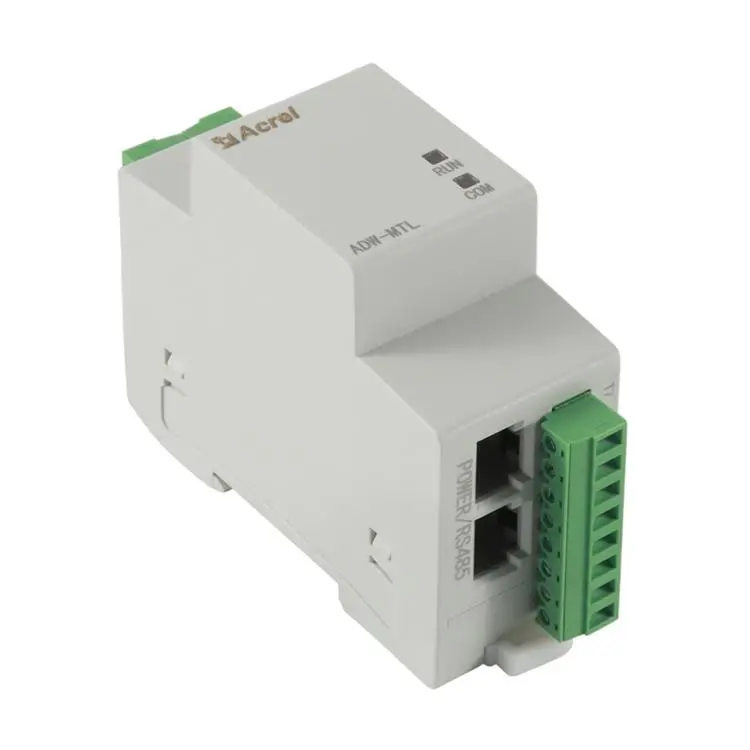

-MTC Temperature & Residual Current Measuring Module	Temperature Measurement	-20℃~+100℃
	Residual Current Measurement	10~3000 mA
	Accuracy	Temperature：± 2℃； Residual Current：1% (Class 1)
	Power Supply	DC 12V；consumption:≤1W；RJ45 interface
	Communication	RJ45 interface; MODBUS-RTU (communication with main body)

Technical Parameters (Prototype/Main body)

Parameters	Description
Input	Voltage	AC 3×220V/380V
		Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s
		Power consumption:≤ 0.5VA
	Current	AC 5A、100A、400A、600A;(external open-type CT)
		Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s
		Power consumption:≤ 0.5VA
	Frequency	45～65Hz
Measuring Accuracy	Voltage&Current	Class 0.5
	Active Power	Class 1
	Reactive Power	Class 2
	Frequency	0.05Hz
	2~31st harmonic	± 1%
Auxiliary Power	AC/DC 85～265V;consumption≤10VA;
EMC	Better than grade 3
Safety	Withstand Voltage	＞AC 2000V/1min
	Insulation Resistance	＞100MΩ
Environment	Working Temperature	-20℃~+60℃
	Storage Temperature	-40℃~+70℃
	Humidity	≤95% (No condensation)
	Altitude	≤2500m

Technical Parameters (paired Current Transformer)
