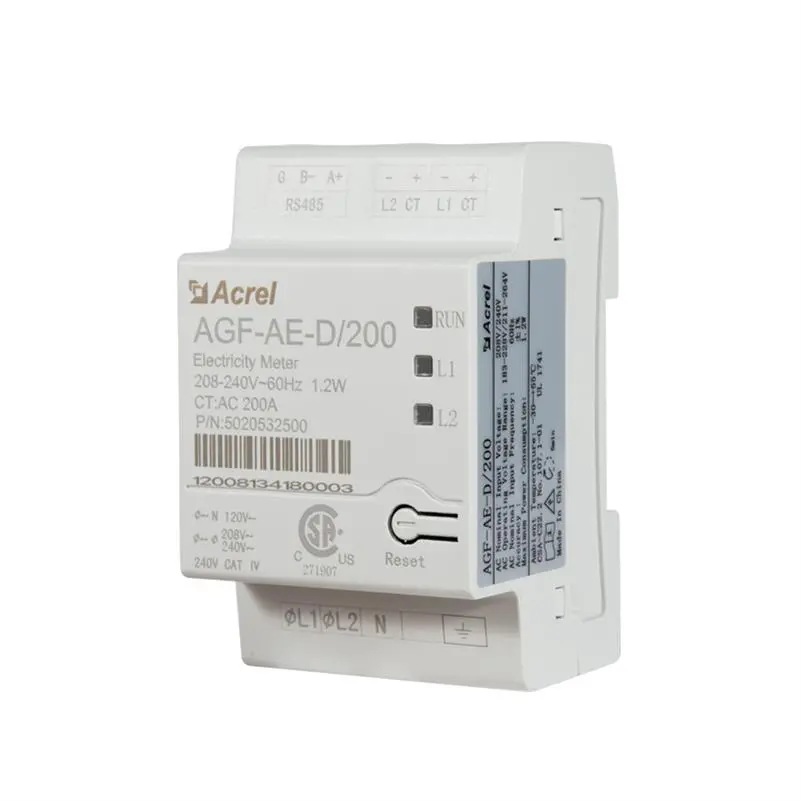

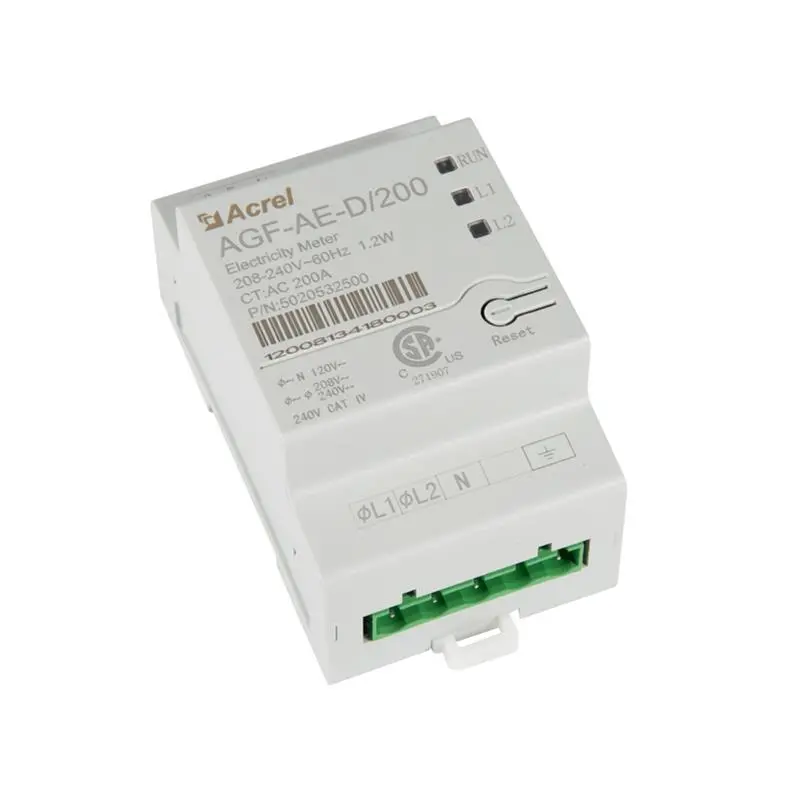

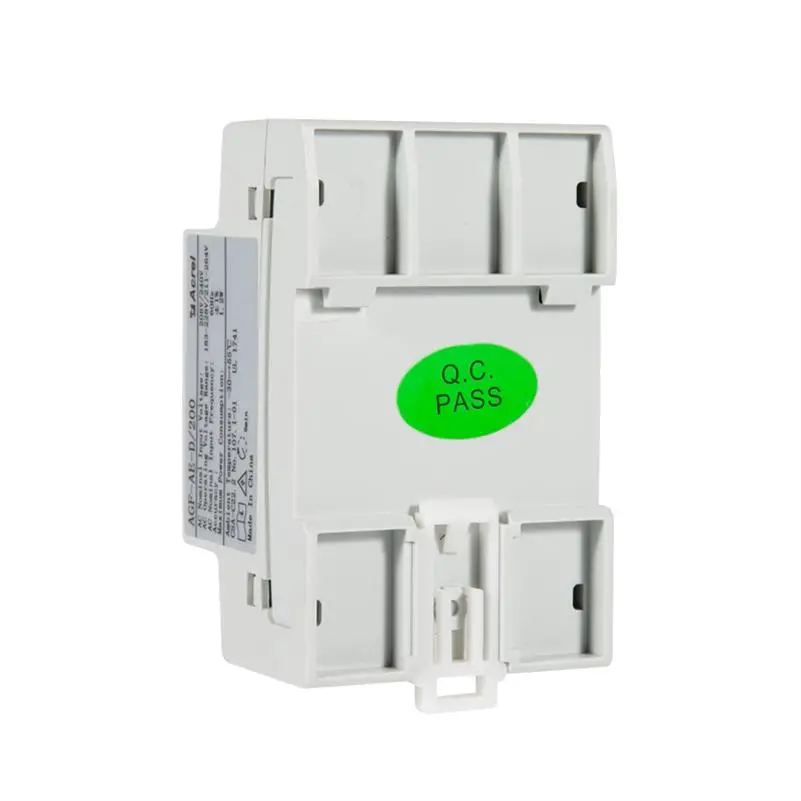

AGF-AE-D UL certified 2-phase Bidirectional Energy Meter (1-phase,3-wire)

Product Description

● Measurement: Active Powr, Reactive Power, Current, Voltage and etc

● Wiring: 1-phase 3-wire Connection

● Current Rating: 100A or 200A AC (paired with external CTs)

● Communication: RS485 (MODBUS-RTU)

● Application: Using in distributed Solar PV and Anti-reflux Inverters

● Dimension: 54.1*87.8*52mm (H*W*D)

● Installation: 35mm DIN Rail

● Standard&Certificate: UL1741;TUV

WhatsApp contact us

Detailed description
Parameters

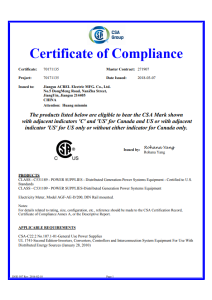

Certificate
Download

▋ Common Applicaiton

▋ Features

Used for distributed Solar PV● Reflux Monitoring● Connected with Load Line through CTs● Directly connect with inverters

Single-phase Three-wire Connection● Rated Voltage of Line to N: 120V● Rated Voltage of Line to Line: 208/240V● Grids Supported： L1/L2/N/PE

RS485 Communication● MODBUS-RTU Protocol● Communicate with Inverter to realize anti-reflux Function● Response Time: ≤1s

Bidirectional Metering● Active&Reactive Energy Metering● Rated RMS Current: 100/200A● Accuracy: ±0.5%/±1%

▋ Display Sample

▋ Wiring Illustration

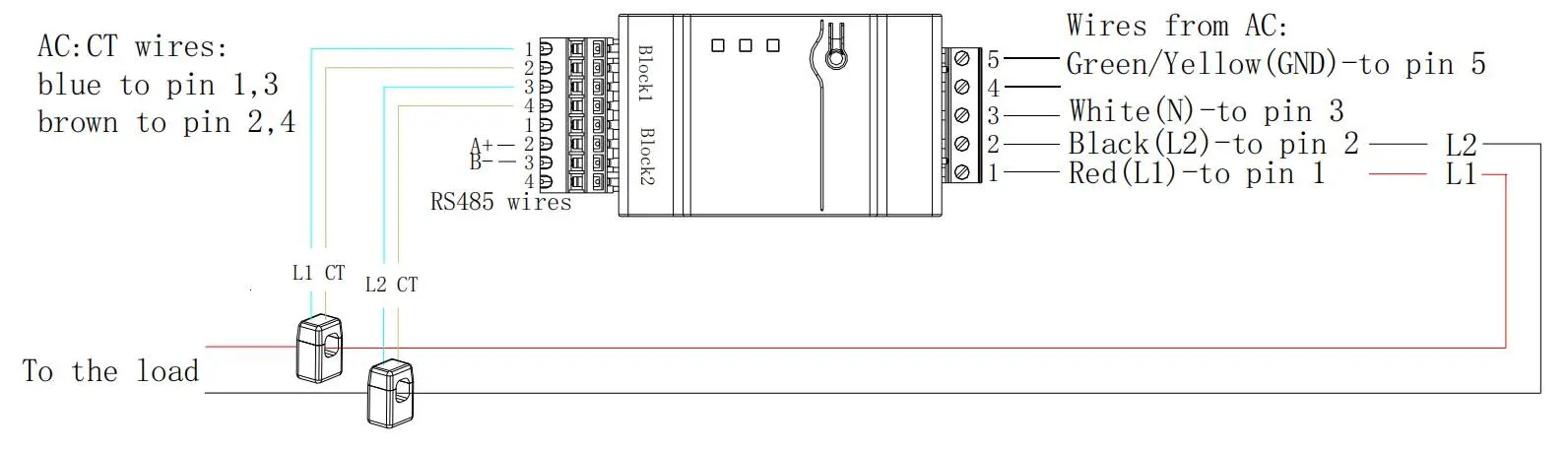

Connected with Load Line through CTs

Directly connect with inverter

▋ Practical Application

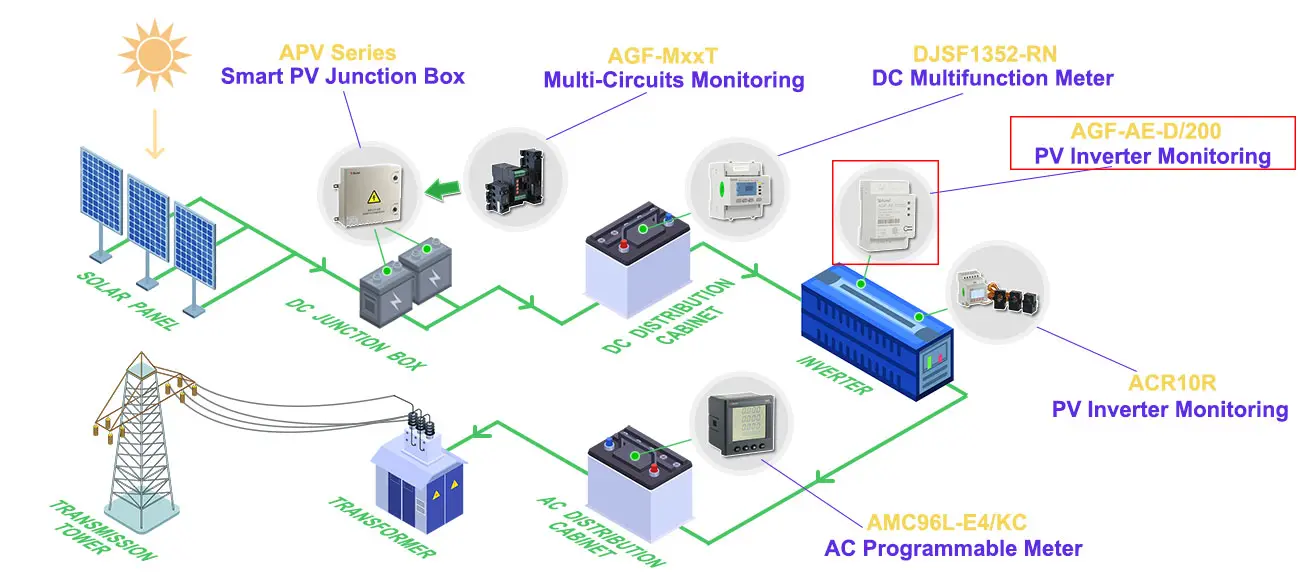

Solor PV Power Distribution Monitoring Solution

AGF-AE-D Practical Utility In Distributed Solar PV
Meter Electrical Service Units AGF-AE-D/100 AGF-AE-D/200 Rated Voltage-Line to N 120 V Rated Voltage-Line to Line 208/240 V Extended Voltage Range 88%~110% AC Frequency 60 Hz Grids Supported L1/L2/N/PE Power Consumption 1.2 W Communication Meter Communication Interfaces RS 485 Response Time ≤1 S Meter Accuracy Rated RMS current 100 200 A 1%-100% of CT Current ±0.5 ±1 % Current Transformers Number of Supplied Current Transformers 2 Dimensions I.D:15 O.D:35 70.5×54.5×39 (H×W×D) mm Standard Compliance Safety UL1741 Installation Specifications Dimensions(H×W×D) 54.1×87.8×52 mm Weight 0.2 kg Operating Temperature Range -30~55 ℃ Relative Humidity (noncondensing) 5 - 90 % Mounting Type DIN-Rail，35mm The meter is intended to be installed in a power distribution box in the end use. The acceptance of the application is to be evaluated in the end product

Download [ | ] AGF-AE-D200 UL.pdf pdf (143.85 KB) [ | ] AGF-AE-D Manual.pdf pdf (1.80 MB)

Current Language

Change Language

AGF-AE-D UL certified 2-phase Bidirectional Energy Meter (1-phase,3-wire)

Get in touch with us

RelatedProducts

Frequently asked questions

Meter Electrical Service			Units
	AGF-AE-D/100	AGF-AE-D/200
Rated Voltage-Line to N	120		V
Rated Voltage-Line to Line	208/240		V
Extended Voltage Range	88%~110%
AC Frequency	60		Hz
Grids Supported	L1/L2/N/PE
Power Consumption	1.2		W
Communication
Meter Communication Interfaces	RS 485
Response Time	≤1		S
Meter Accuracy
Rated RMS current	100	200	A
1%-100% of CT Current	±0.5	±1	%
Current Transformers
Number of Supplied Current Transformers	2
Dimensions	I.D:15 O.D:35	70.5×54.5×39 (H×W×D)	mm
Standard Compliance
Safety	UL1741
Installation Specifications
Dimensions(H×W×D)	54.1×87.8×52		mm
Weight	0.2		kg
Operating Temperature Range	-30~55		℃
Relative Humidity (noncondensing)	5 - 90		%
Mounting Type	DIN-Rail，35mm
