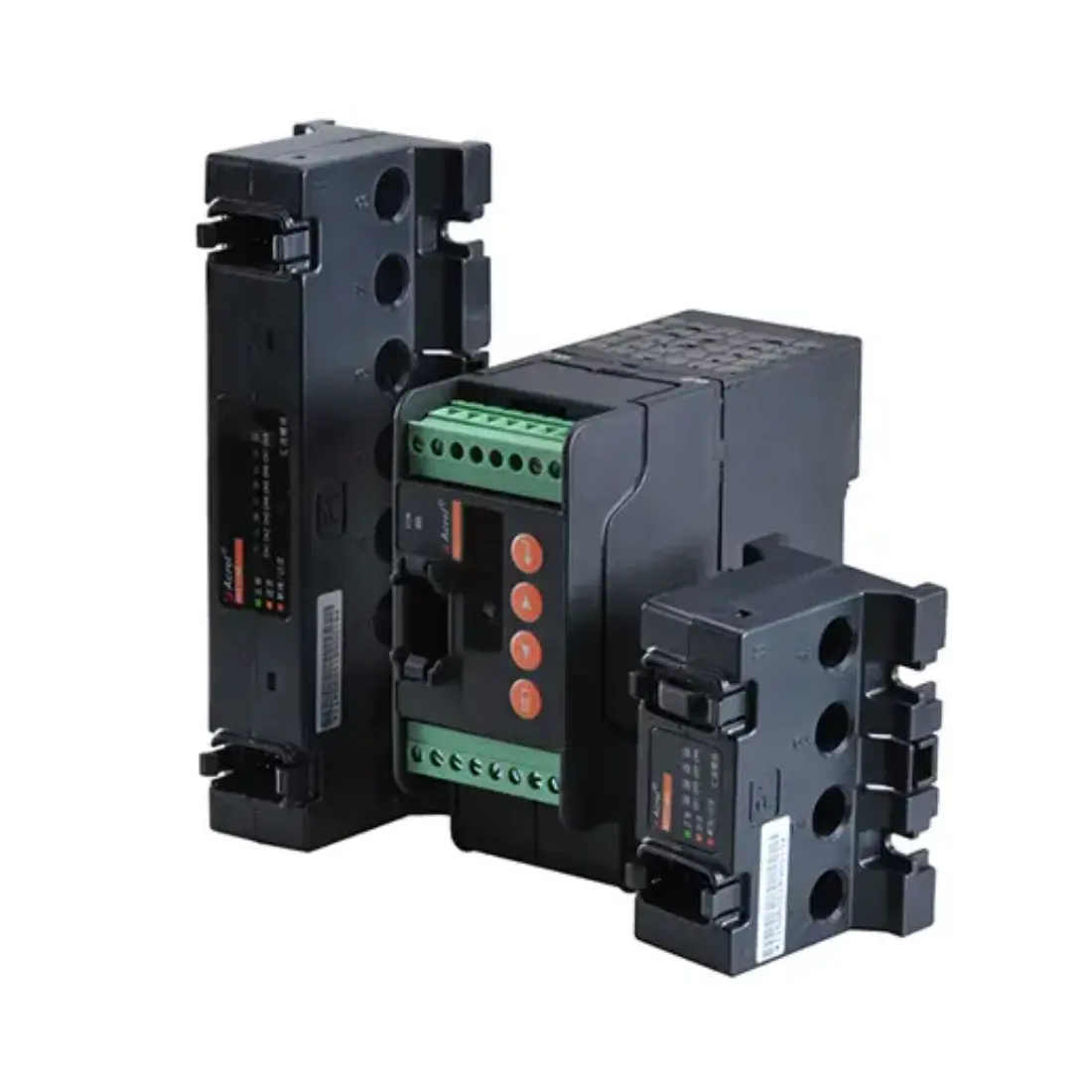

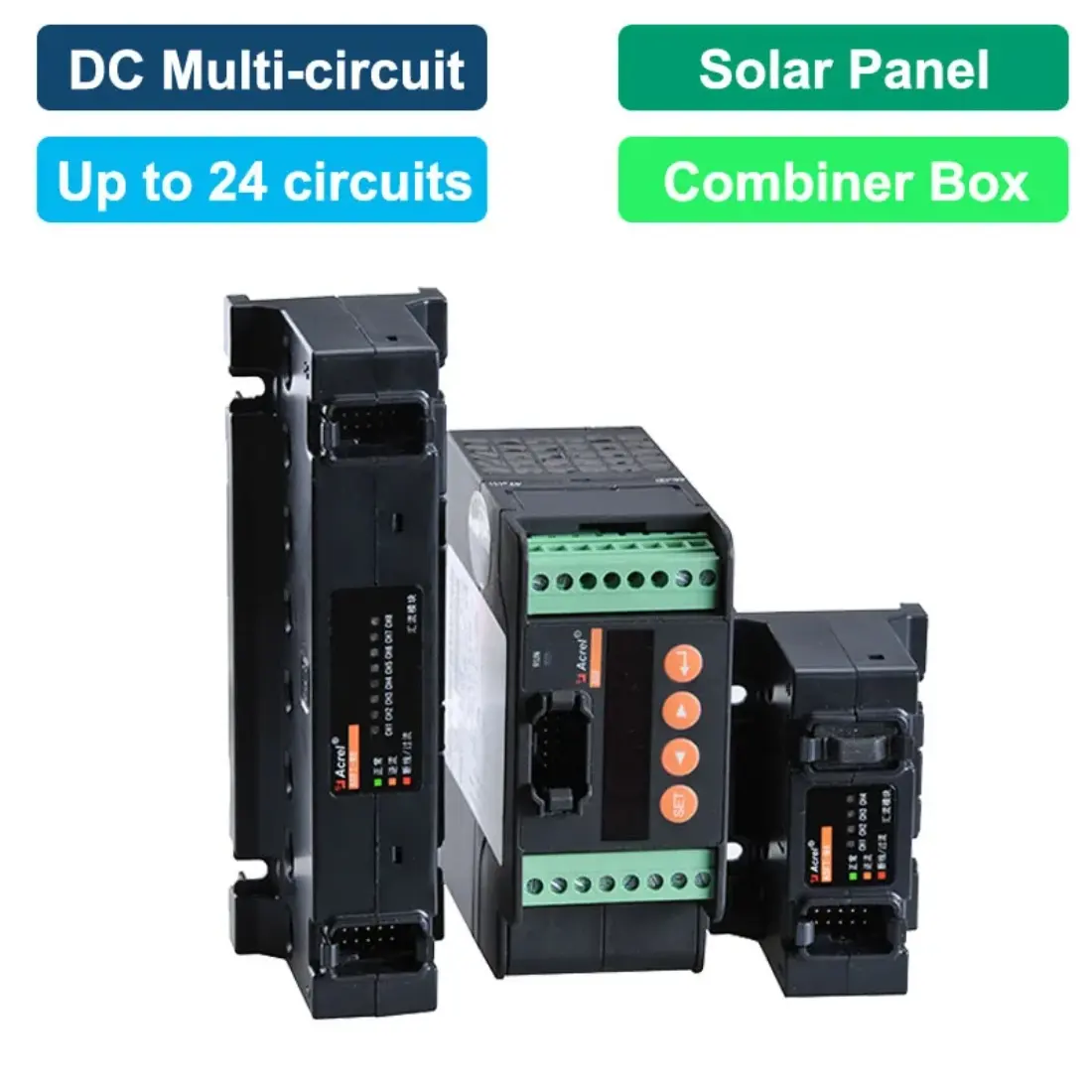

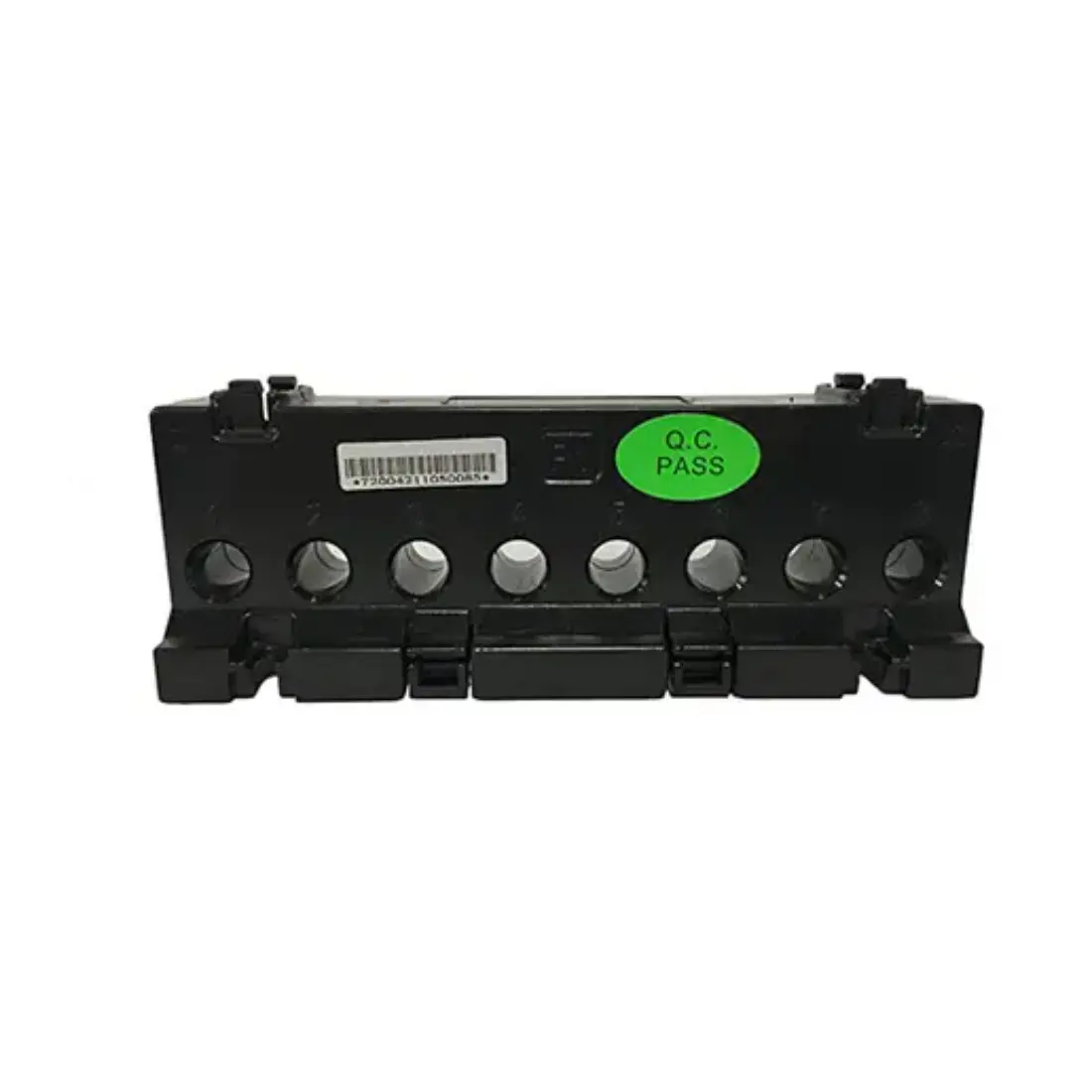

AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box

Product Description

● Measurement: DC Current of up to 24 Circuits (with Hall Sensors); Voltage of Busbar

● Communication: RS485 (MODBUS-RTU)

● Application: Paired with PV Combiner Box for DC Multi-circuits Monitoring

● Temperature Monitoring: Inner Temperature of PV Combiner Box

● DI Function: 3-channel Digital Input

● Display: LCD Display

● Installation: 35mm DIN Rail (Main Body); Perforation (Cable)

● Power Supply: 1000V DC or 1500V DC

● Standard&Certificate: CE;LVD;EMC

WhatsApp contact us

Detailed description
Parameters

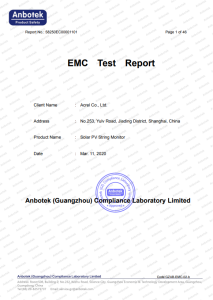

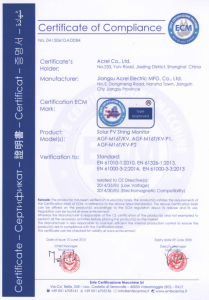

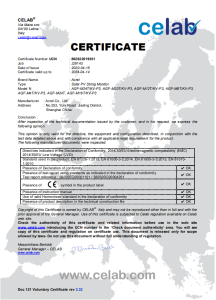

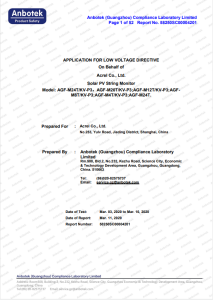

Certificate
Download

Measurement: DC Current of up to 24 Circuits (with Hall Sensors); Voltage of Busbar

Communication: RS485 (MODBUS-RTU)

Application: Paired with PV Combiner Box for DC Multi-circuits Monitoring

Temperature Monitoring: Inner Temperature of PV Combiner Box

DI Function: 3-channel Digital Input

Display: LCD Display

Installation: 35mm DIN Rail (Main Body); Perforation (Cable)

Power Supply: 1000V DC or 1500V DC

Standard&Certificate: CE;LVD;EMC

Common Applicaiton

AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box

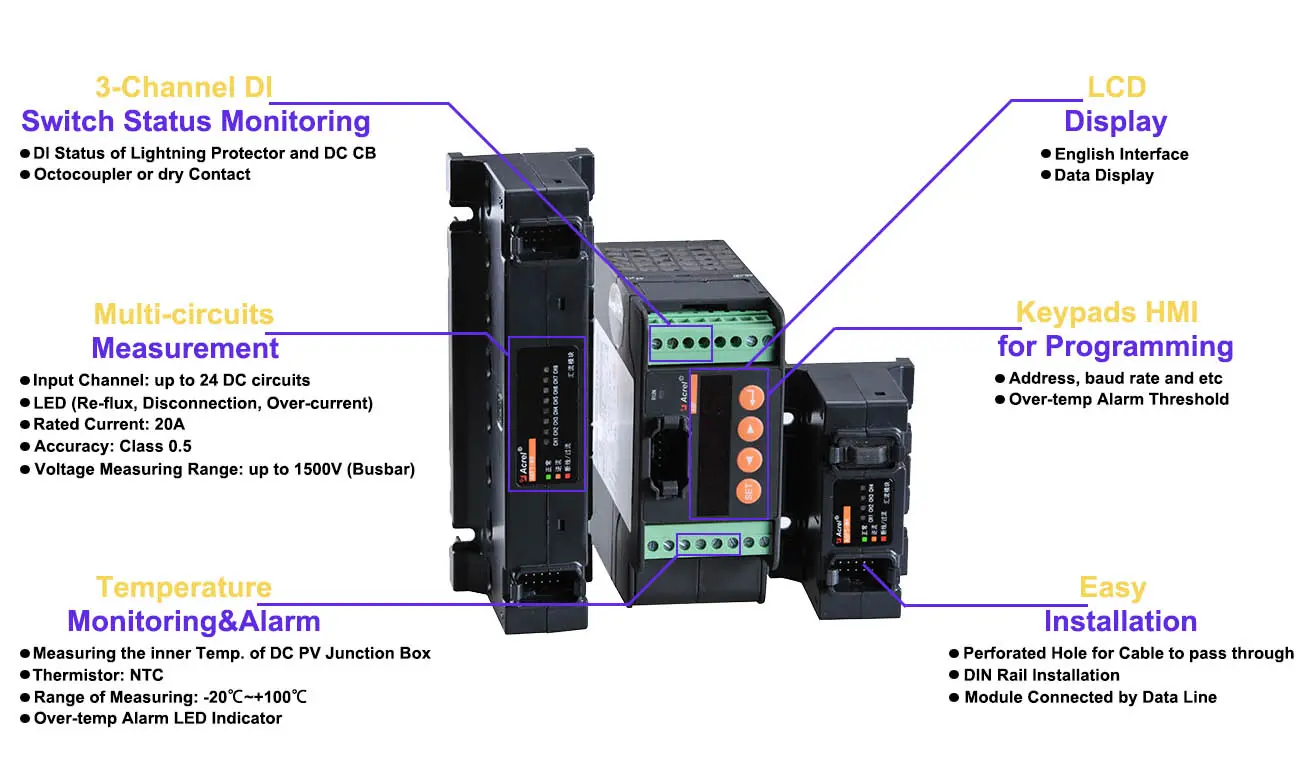

Features

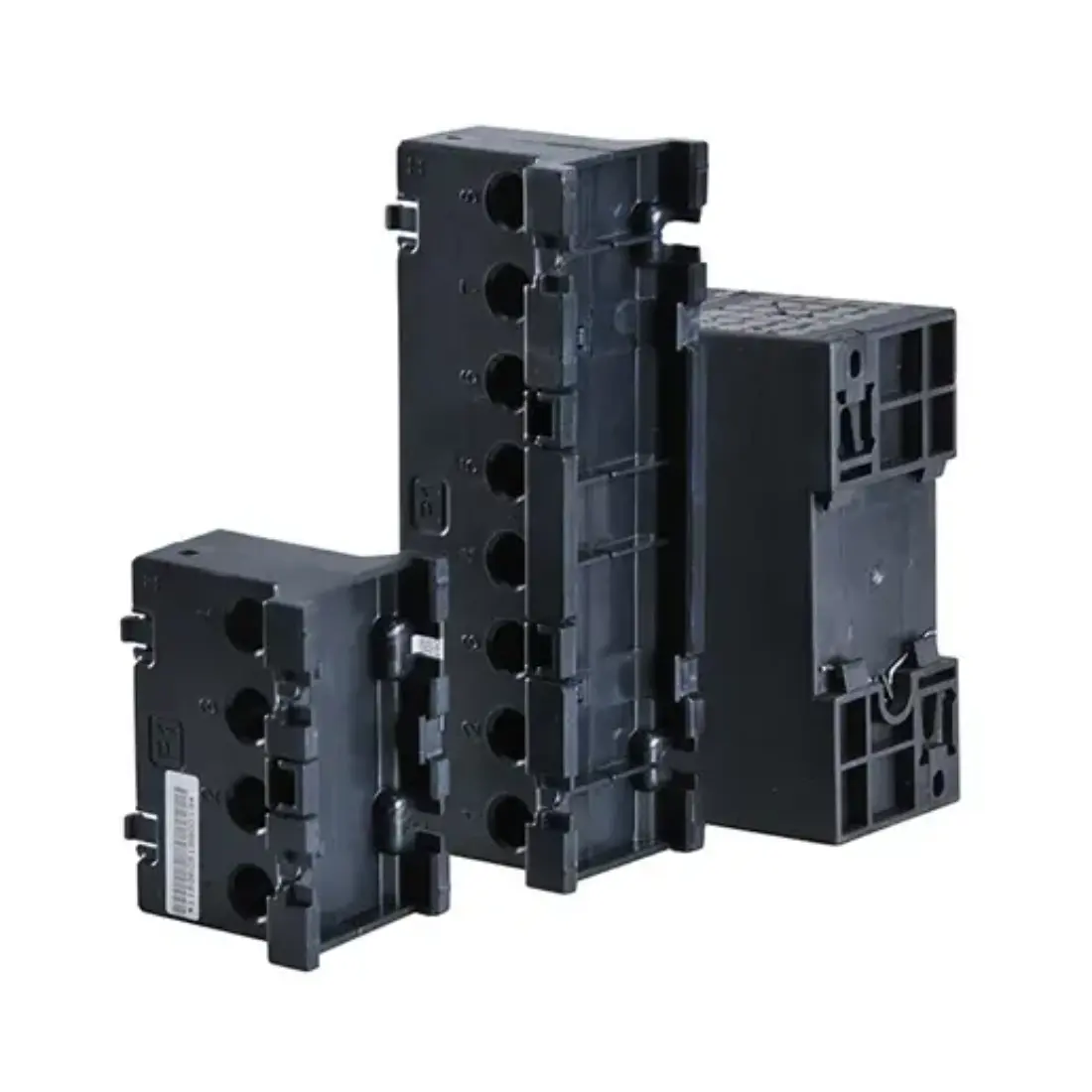

Multi-circuits Measurement up to 24 DC Circuits

● Input Channel: up to 24 Circuits

● LED Indicator for Re-flux, Disconnection, Over-current

● Rated Current: 20A

● Accuracy: 0.5 Class

● Voltage Measuring Range: up to 1500V (Busbar)

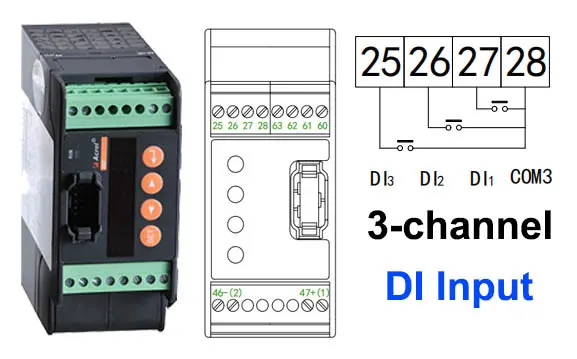

3-Channel DI Switch Status Monitoring

● DI Status of Lightning Protector and DC CB

● Octocoupler or dry Contact

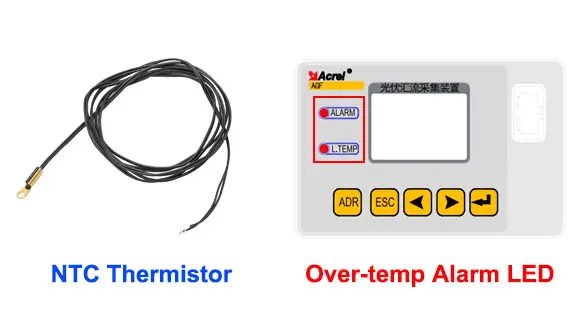

Temperature Measuring & Over-temperature Alarm Function

● Measuring the inner Temperature of DC PV Junction Box

● Thermistor: NTC

● Range of Measuring: -20℃~+100℃

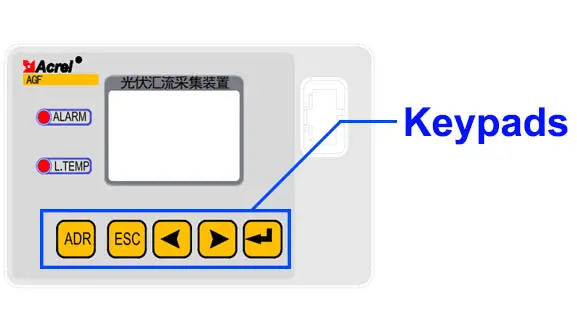

Keypads HMI for Programming

● Communication(address, baud rate and etc.)

● Over-temp Alarm Threshold

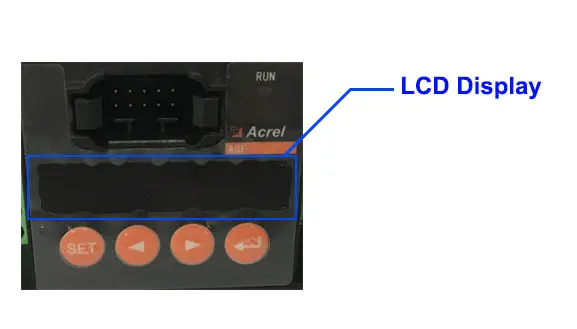

LCD Display

● English Interface

● Data Display

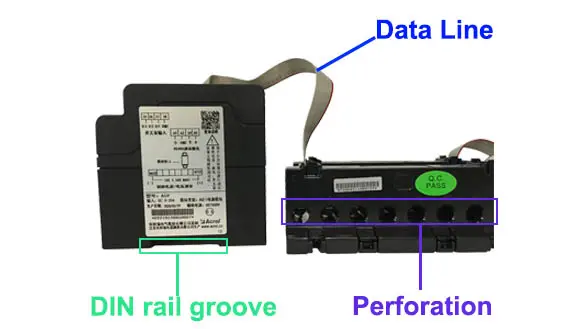

Easy Installation

● Perforated Hole for Cable to pass through

● DIN Rail Installation

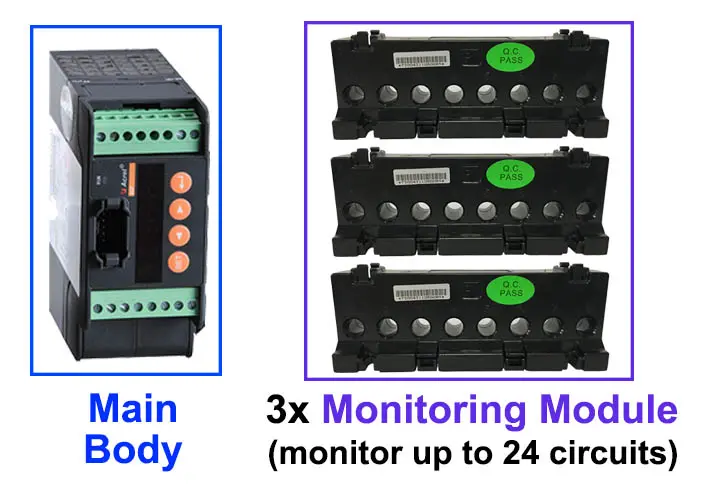

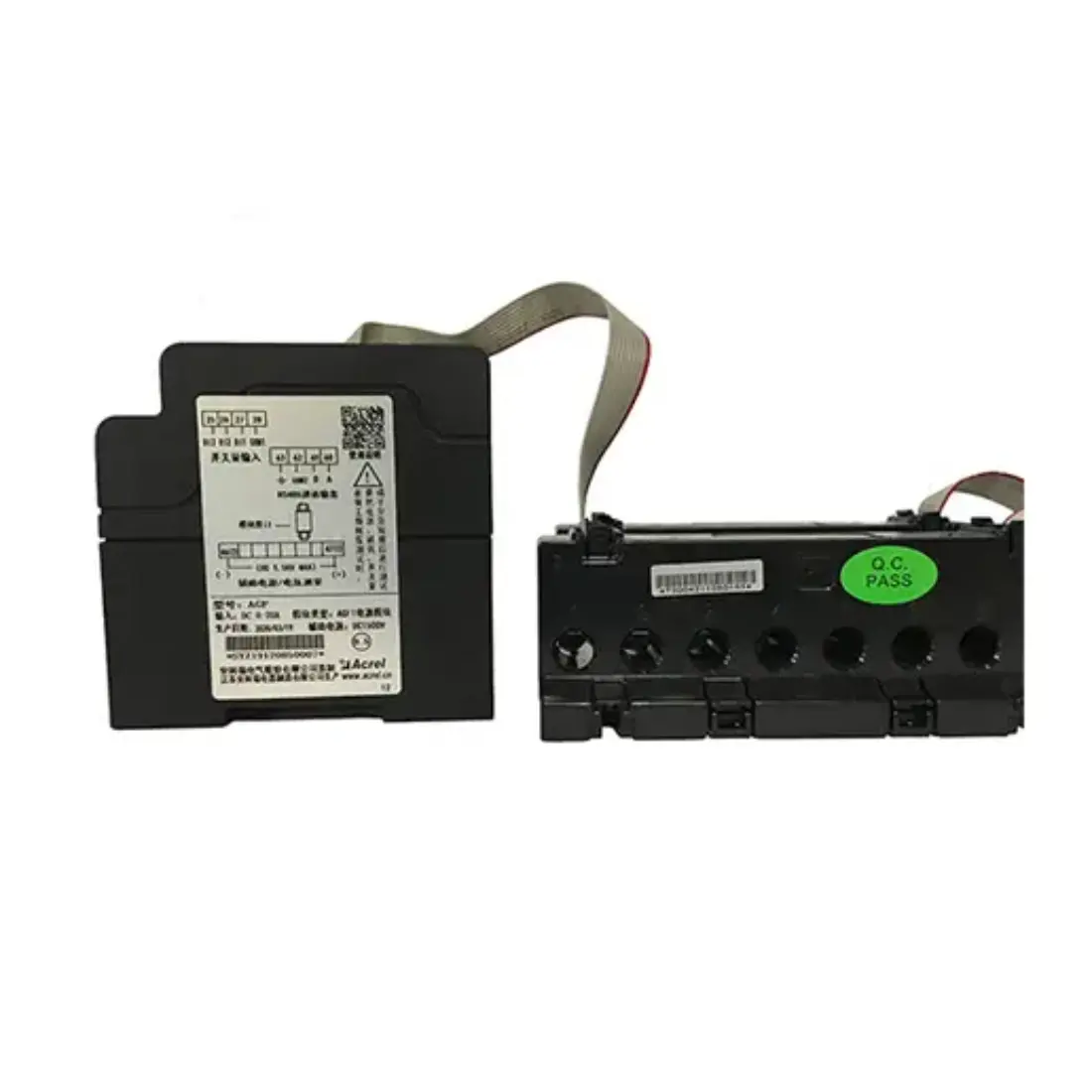

● Module Connected by Data Line

Wiring Instruction

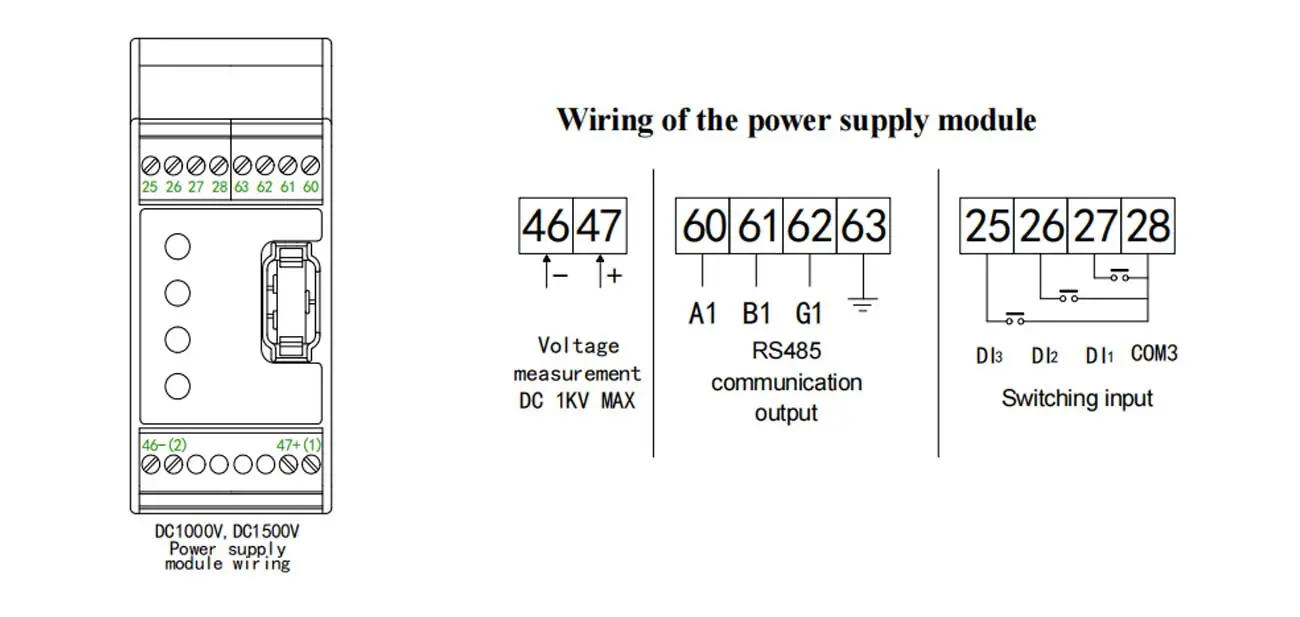

Wiring of Terminals

Installation Instruction

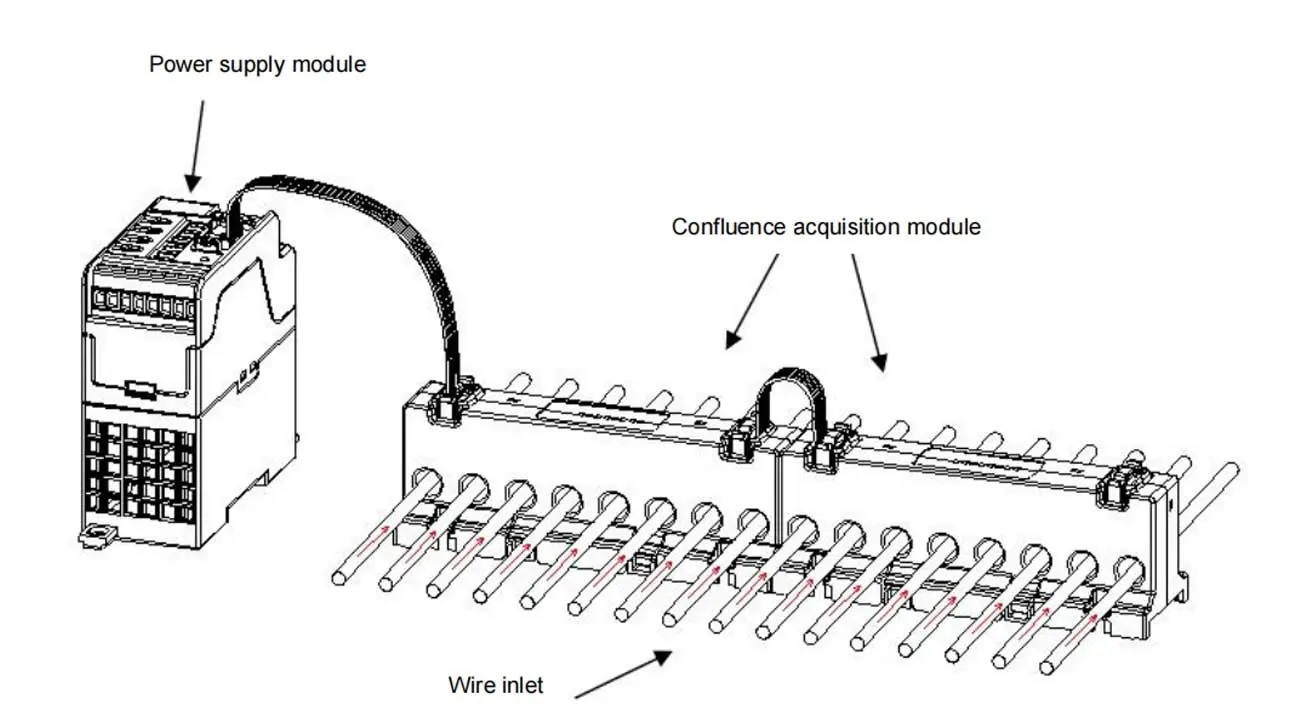

Cable Wiring through Perforation

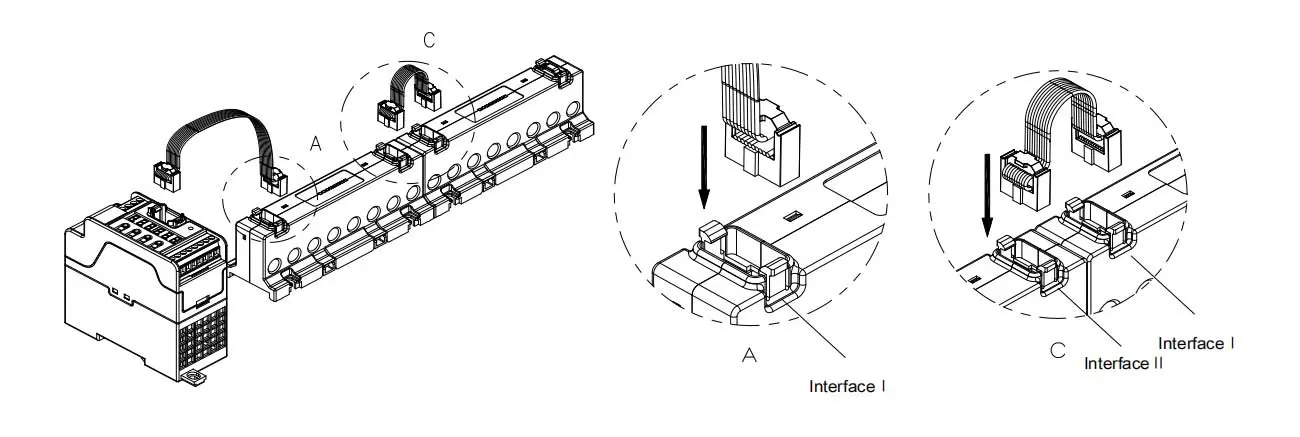

Module Connected by Data Line

Practical Application

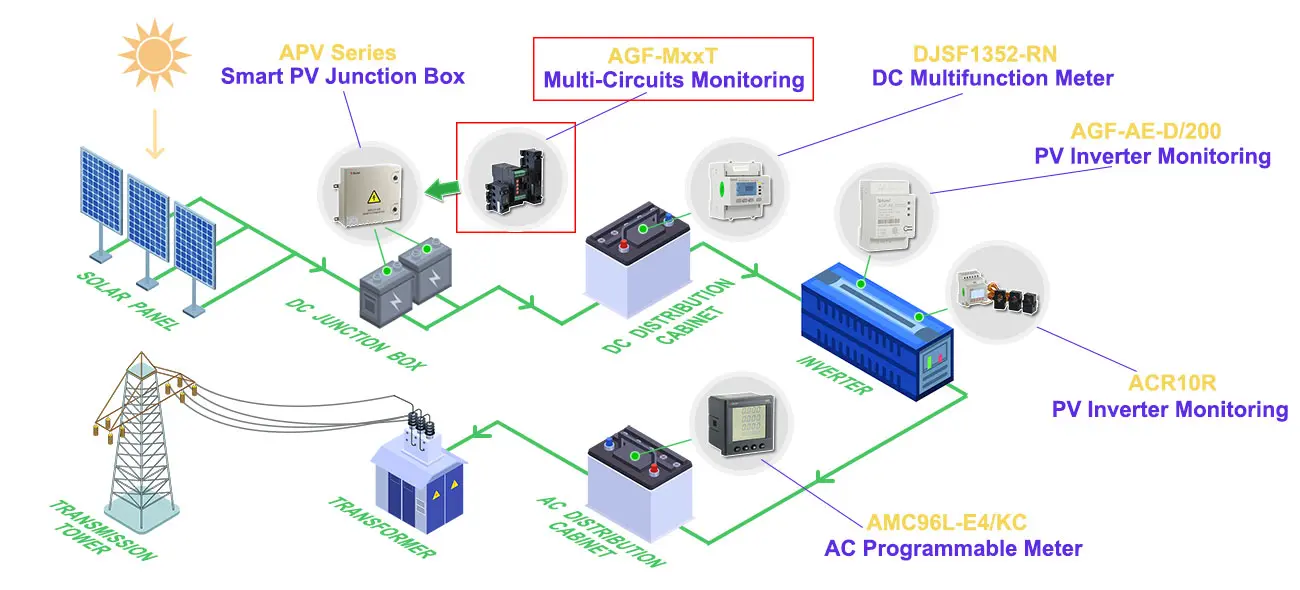

Solar PV Power Distribution Monitoring Solution

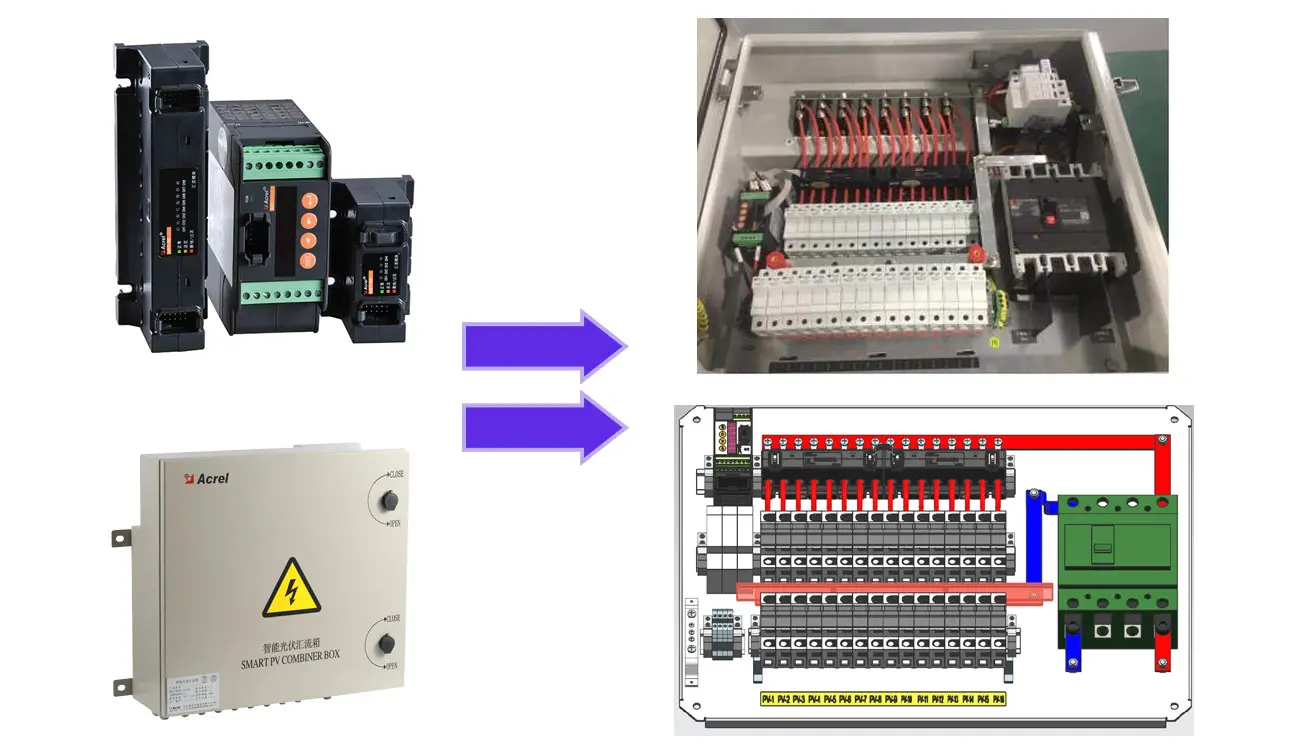

Practical Application of AGF-MxxT in PV Combiner Box

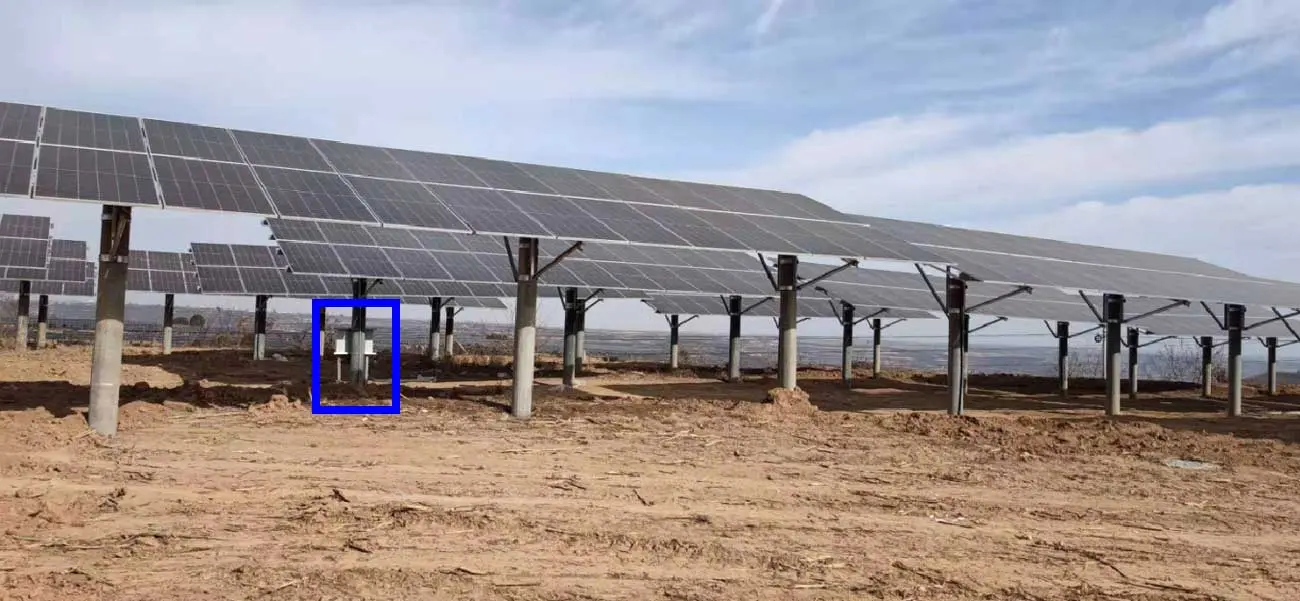

APV Smart Solar PV Combiner Box installed under PV Array
Item AGF-M4T AGF-M8T AGF-M12T AGF-M16T AGF-M20T AGF-M24T Input channels 4 8 12 16 20 24 Rated current DC 0~20A Response time 1s Accuracy 0.5 class Temperature coefficient 400ppm RS485 communication RS485/ModBus-RTU protocol，4800/9600/19200/38400bps Additional function Switch input 3-way input(optocoupler or dry contact mode) General technical parameters Temperature/ Humidity Working temperature: -35~+65℃， humidity95%,no condensation, no corrosion gas place *Display module work temperature:-20~+70℃ Temperature measurement function To measure the inner temperature of box （-20℃～100℃） Altitude ≤3000m Insulation resistance ≥100MΩ Industrial frequency withstand voltage power/communication/switching input/cell voltage input--AC 2kV/1min (When the auxiliary power supply is DC1500V, the withstand voltage between the power supply, photocell input and other circuit is AC 2.7kV) Current input/power、cell voltage 、communication、switching state—AC3.5kV/1min EMC GB_T 17626.2-2006； Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV. GB_T 17626.4-2008； Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV GB_T 17626.5-2008； Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV GB_T 17626.8-2006； Power frequency magnetic field immunity test grade 4

Download [ | ] AGF-MxxT Multi-circtui DC Energy Meter Datasheet pdf (1.65 MB) [ | ] CE Certificate-1 of AGF-MxxT Series pdf (532.49 KB) [ | ] CE Certificate-2 of AGF-MxxT Series pdf (784.73 KB) [ | ] LVD Certificate of AGF-MxxT Series pdf (1.61 MB) [ | ] EMC Certificate of AGF-MxxT Series pdf (2.48 MB)

Current Language

Change Language

AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box

Get in touch with us

RelatedProducts

Frequently asked questions

Item	AGF-M4T	AGF-M8T	AGF-M12T	AGF-M16T	AGF-M20T	AGF-M24T
Input channels	4	8	12	16	20	24
Rated current	DC 0~20A
Response time	1s
Accuracy	0.5 class
Temperature coefficient	400ppm
RS485 communication	RS485/ModBus-RTU protocol，4800/9600/19200/38400bps
Additional function
Switch input	3-way input(optocoupler or dry contact mode)
General technical parameters
Temperature/ Humidity	Working temperature: -35~+65℃， humidity95%,no condensation, no corrosion gas place *Display module work temperature:-20~+70℃
Temperature measurement function	To measure the inner temperature of box （-20℃～100℃）
Altitude	≤3000m
Insulation resistance	≥100MΩ
Industrial frequency withstand voltage	power/communication/switching input/cell voltage input--AC 2kV/1min (When the auxiliary power supply is DC1500V, the withstand voltage between the power supply, photocell input and other circuit is AC 2.7kV) Current input/power、cell voltage 、communication、switching state—AC3.5kV/1min
EMC	GB_T 17626.2-2006； Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV.
	GB_T 17626.4-2008； Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV
	GB_T 17626.5-2008； Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV
	GB_T 17626.8-2006； Power frequency magnetic field immunity test grade 4
