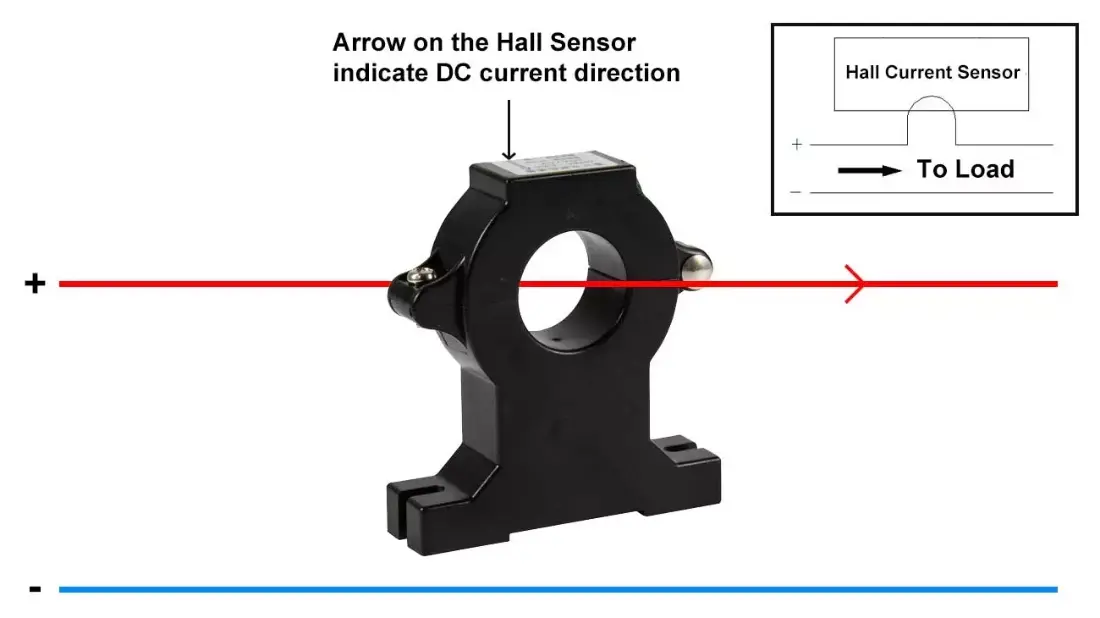

Hall current sensors are mainly used to isolate and convert AC, DC, pulse and other complex signals. After signal control of current signals are converted according to the Hall Effect Theory, they can be directly acquired by AD, DSP, PLC, secondary instruments and other devices.

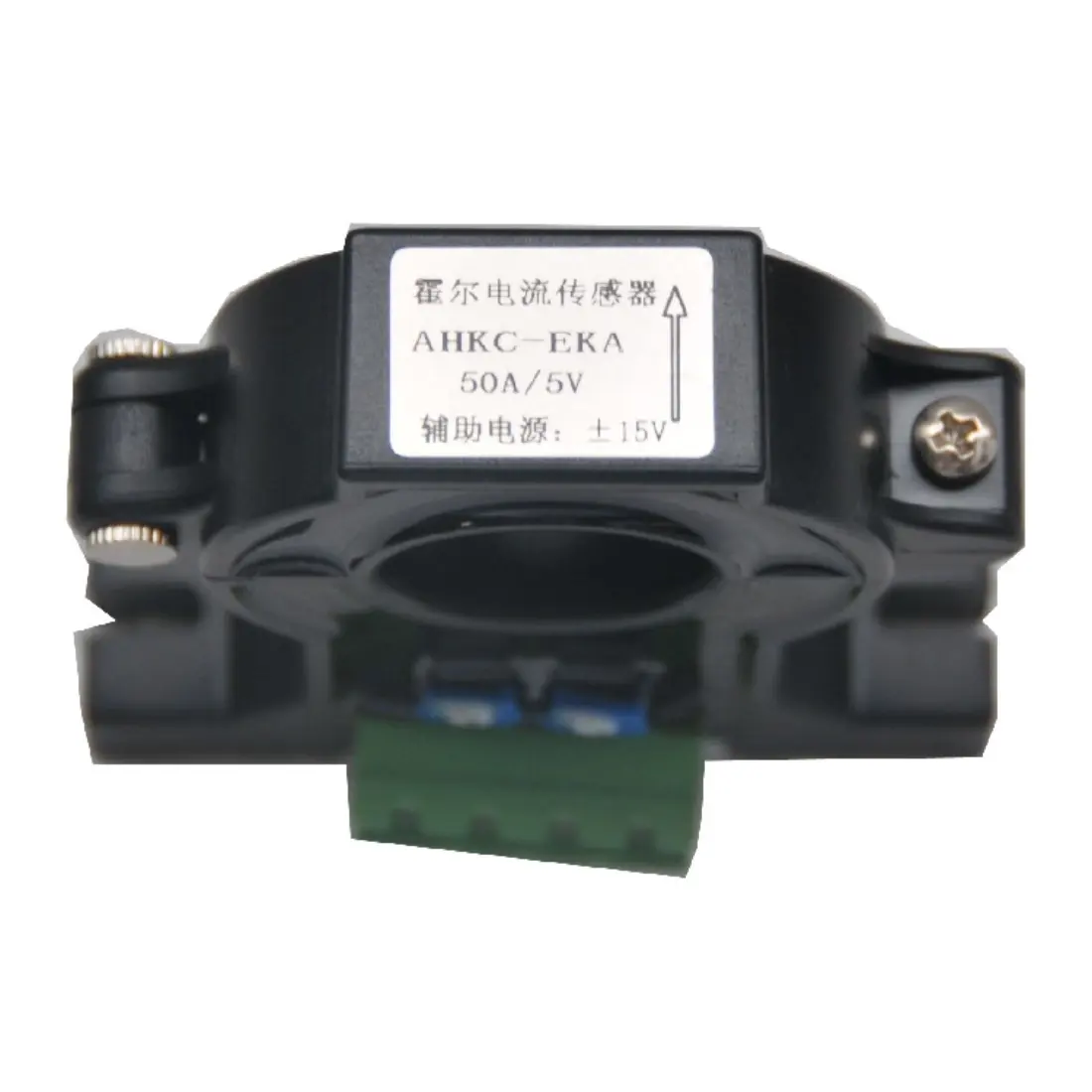

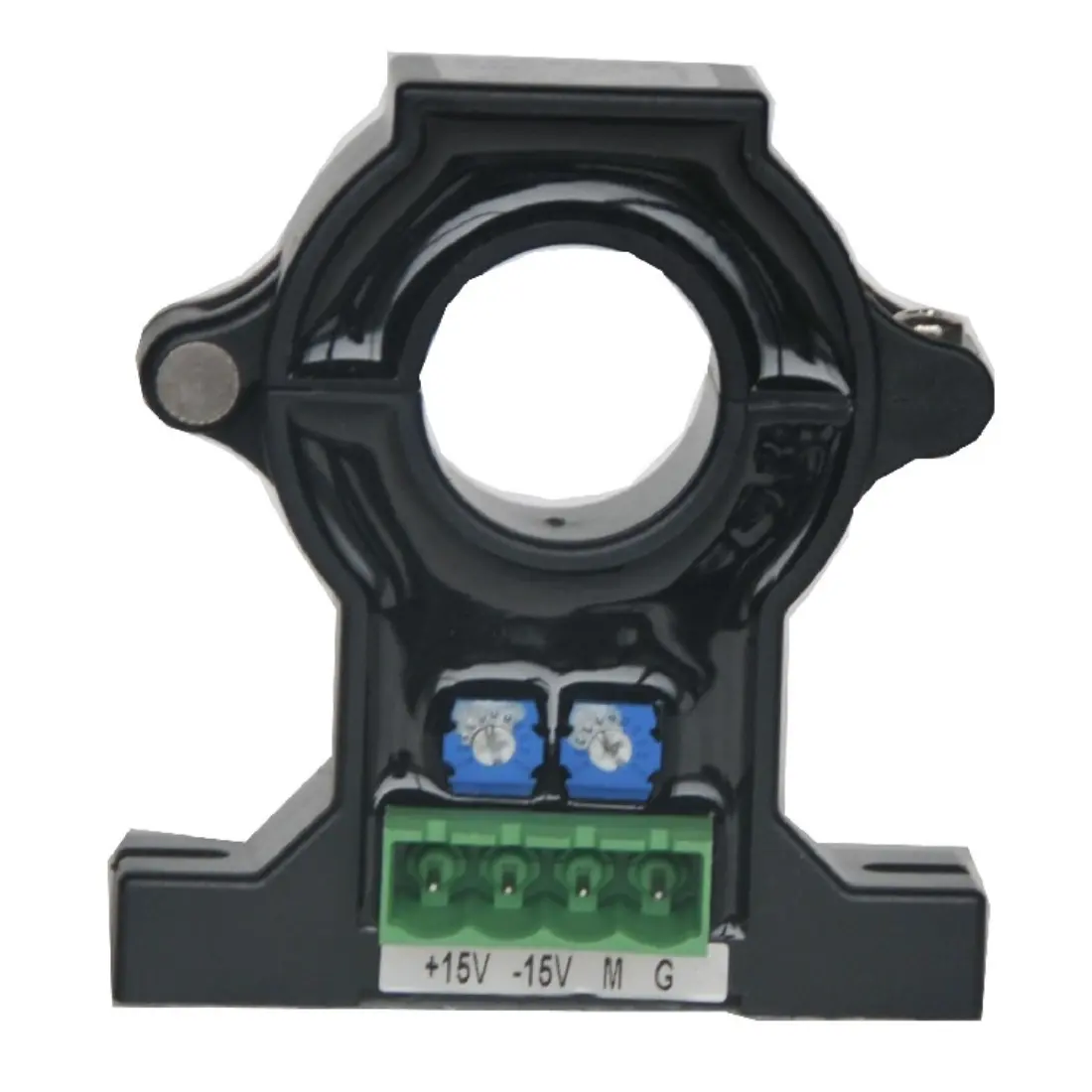

AHKC-EKA Hall Effect Current Sensor
Product Description
-
Detailed description
-
Parameters
-
Certificate
-
Download
-

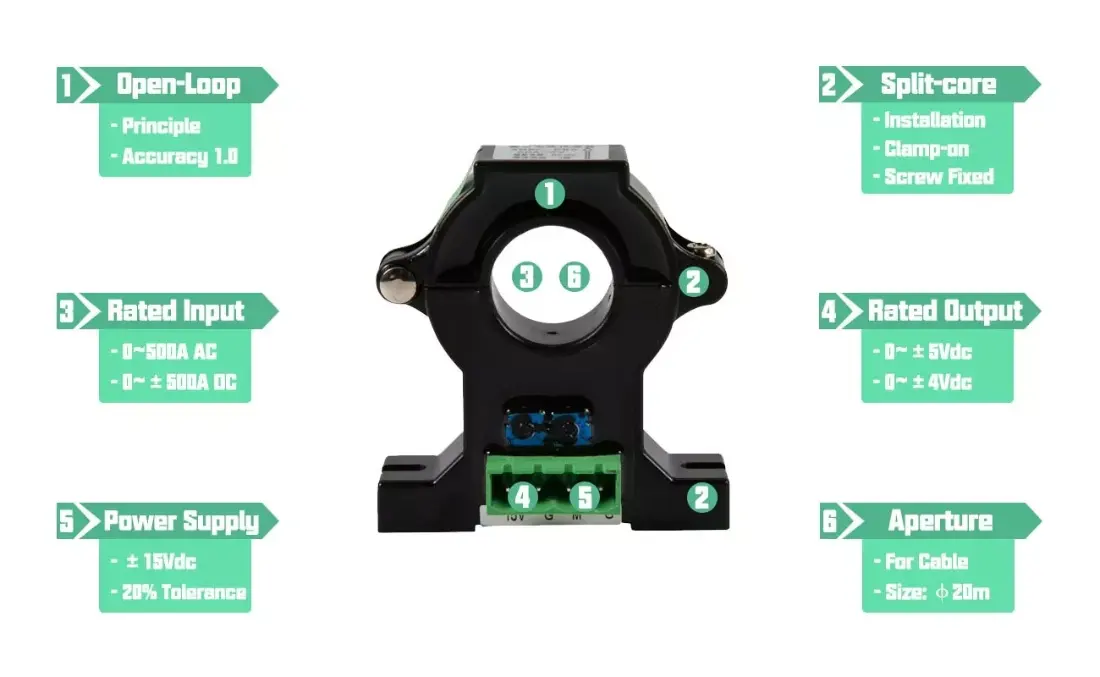

- Small package size
- Low power consumption
- Extended measuring range
- Measurement：AC, DC, pulse and other complex current
-
Model
Rated current
Power supply
Rated output

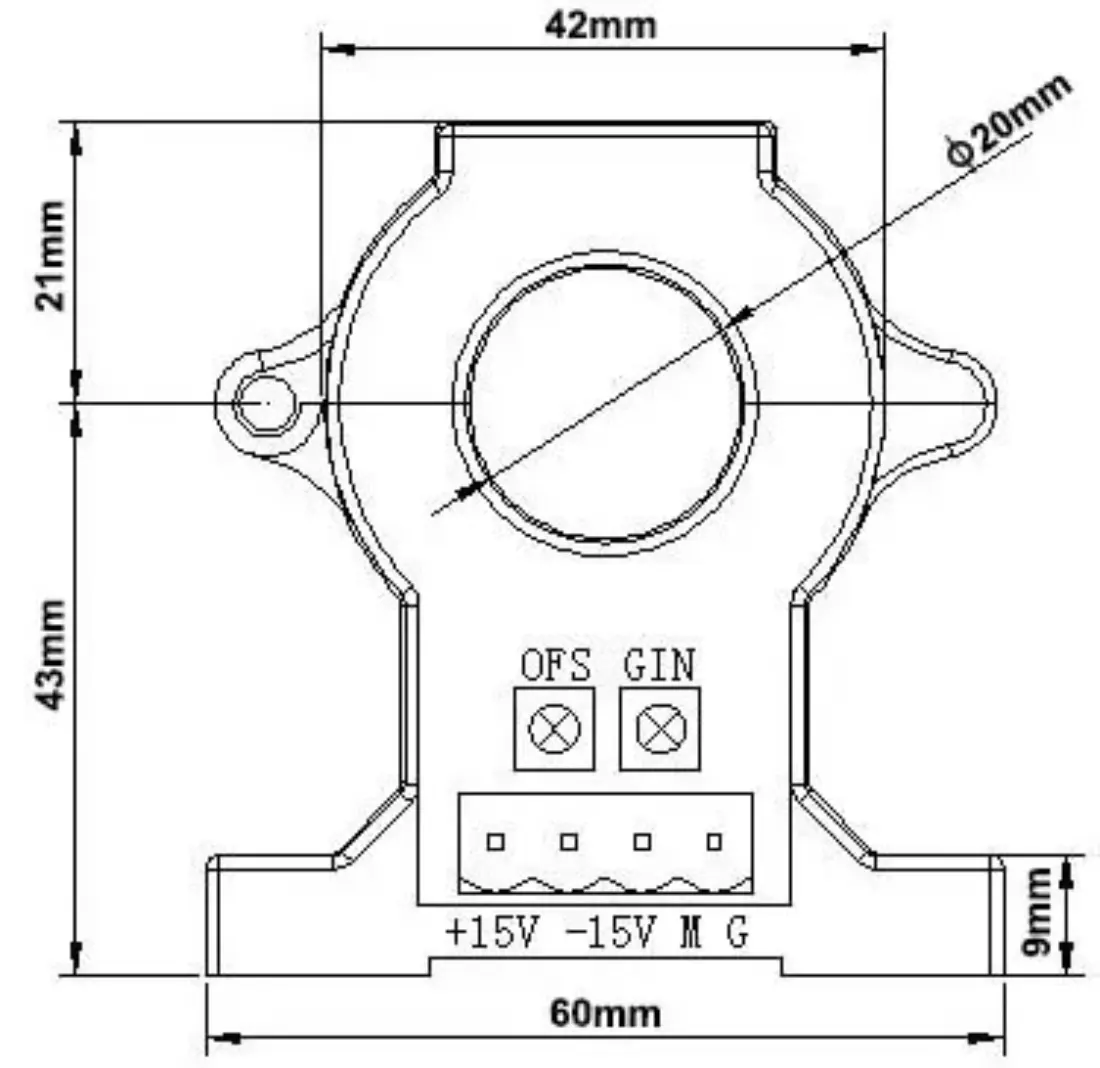

Measuring Aperture(mm)
Accuracy
AHKC-EKA
0~(20-500)A
±15V
5V/4V
φ20
1
AHKC-EKAA
DC 0~(50-500)A
12V/24V
4~20mA
φ20
1
AHKC-EKDA
AC 0~(200-1000)A
12V/24V
4~20mA
φ20
1
AHKC-EKB
0~(200-1000)A
±15V
5V
φ40
1
AHKC-EKBA
DC 0~(200-1000)A
12V/24V
4~20mA
φ40
1
AHKC-EKBDA
AC 0~(200-1000)A
12V/24V
4~20mA
φ40
1
AHKC-EKC
0~（500-1500）A
±15V
5V/4V
φ55
1
AHKC-EKCA
DC 0~(500-1500)A
12V/24V
4~20mA
φ55
1
WHKC-EKCDA
AC 0~(500-1500)A
12V/24V
4~20mA
φ55
1
AHKC-K
0~(400-2000)A
±15V
5V
64x16
1
AHKC-KAA
DC 0~(400-2000)A
12V/24V
4~20mA
64x16
1
AHKC-KDA
AC 0~(400-2000)A
12V/24V
4~20mA
64x16
1
AHKC-H
0~(500-3000)A
±15V
5V
82x32
1
AHKC-KA
0~(500-5000)A
±15V
5V
104x36
1
AHKC-HB
0~(2000-8000)A
±15V
5V
132x52
1
0~(10000-20000)A
±15V
5V
132x52
1
AHKC-HBAA
DC 0~(2000-8000)A
12V/24V
4~20mA
132x52
1
DC 0~(10000-20000)A
12V/24V
4~20mA
132x52
1
AHKC-HBDA
AC 0~(2000-8000)A
12V/24V
4~20mA
132x52
1
AC 0~(10000-20000)A
12V/24V
4~20mA
132x52
1
-
