Product Description
Hall current sensors are mainly used to isolate and convert AC, DC, pulse and other complex signals. After signal control of current signals are converted according to the Hall Effect Theory, they can be directly acquired by AD, DSP, PLC, secondary instruments and other devices.
Detailed description
Parameters
Certificate
Download
|

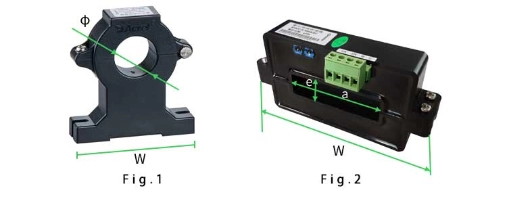

Size Specification |
Outline size |
Through size |
Mounting size |
|||||
|
W |
H |
D |
a |
e |
φ |
M |
N |
|
|
AHKC-EKA |
60 |
64 |
16 |
/ |
/ |
20 |
47 |
/ |
|
AHKC-EKAA |
60 |
64 |
16 |
/ |
/ |
20 |
47 |
/ |
|
AHKC-EKDA |
60 |
64 |
16 |
/ |
/ |
20 |
47 |
/ |
|
AHKC-EKB |
100 |
102 |
24 |
/ |
/ |
40 |
80 |
/ |
|
AHKC-EKBA |
100 |
102 |
24 |
/ |
/ |
40 |
80 |
/ |
|
AHKC-EKBDA |
100 |
102 |
24 |
/ |
/ |
40 |
80 |
/ |
|
AHKC-EKC |
115 |
110 |
27 |
/ |
/ |
55 |
95.5 |
/ |
|
AHKC-EKCA |
115 |
110 |
27 |
/ |
/ |
55 |
95.5 |
/ |
|
AHKC-EKCDA |
115 |
110 |
27 |
/ |
/ |
55 |
95.5 |
30 |
|
AHKC-K |
127 |
63 |
25 |
64 |
16 |
/ |
/ |
30 |
|
AHKC-KAA |
127 |
63 |
25 |
64 |
16 |
/ |
/ |
30 |
|
AHKC-KDA |
127 |
63 |
25 |
64 |
16 |
/ |
/ |
46 |
|
AHKC-H |
149 |
79 |
25 |
82 |
32 |
/ |
/ |
60 |
|
AHKC-KA |
176 |
95.5 |
29 |
104 |
36 |
/ |
/ |
80 |
|
AHKC-HB |
204 |
111.5 |
29 |
132 |
52 |
/ |
/ |
48*2 |
|
AHKC-HBAA |
204 |
111.5 |
29 |
132 |
52 |
/ |
/ |
48x2 |
|
AHKC-HBDA |
204 |
111.5 |
29 |
132 |
52 |
/ |
/ |
48x2 |
|
Model |
Rated current |
Power supply |
Rated output |
Measuring Aperture(mm) |
Accuracy |
|
AHKC-EKA |
0~(20-500)A |
±15V |
5V/4V |
φ20 |
1 |
|
AHKC-EKAA |
DC 0~(50-500)A |
12V/24V |
4~20mA |
φ20 |
1 |
|
AHKC-EKDA |
AC 0~(200-1000)A |
12V/24V |
4~20mA |
φ20 |
1 |
|
AHKC-EKB |
0~(200-1000)A |
±15V |
5V |
φ40 |
1 |
|
AHKC-EKBA |
DC 0~(200-1000)A |
12V/24V |
4~20mA |
φ40 |
1 |
|
AHKC-EKBDA |
AC 0~(200-1000)A |
12V/24V |
4~20mA |
φ40 |
1 |
|
AHKC-EKC |
0~（500-1500）A |
±15V |
5V/4V |
φ55 |
1 |
|
AHKC-EKCA |
DC 0~(500-1500)A |
12V/24V |
4~20mA |
φ55 |
1 |
|
WHKC-EKCDA |
AC 0~(500-1500)A |
12V/24V |
4~20mA |
φ55 |
1 |
|
AHKC-K |
0~(400-2000)A |
±15V |
5V |
64x16 |
1 |
|
AHKC-KAA |
DC 0~(400-2000)A |
12V/24V |
4~20mA |
64x16 |
1 |
|
AHKC-KDA |
AC 0~(400-2000)A |
12V/24V |
4~20mA |
64x16 |
1 |
|
AHKC-H |
0~(500-3000)A |
±15V |
5V |
82x32 |
1 |
|
AHKC-KA |
0~(500-5000)A |
±15V |
5V |
104x36 |
1 |
|
AHKC-HB |
0~(2000-8000)A |
±15V |
5V |
132x52 |
1 |
|
0~(10000-20000)A |
±15V |
5V |
132x52 |
1 |
|
|
AHKC-HBAA |
DC 0~(2000-8000)A |
12V/24V |
4~20mA |
132x52 |
1 |
|
DC 0~(10000-20000)A |
12V/24V |
4~20mA |
132x52 |
1 |
|
|
AHKC-HBDA |
AC 0~(2000-8000)A |
12V/24V |
4~20mA |
132x52 |
1 |
|
AC 0~(10000-20000)A |
12V/24V |
4~20mA |
132x52 |
1 |
|
Shape |
Model |
Rated current |
Power supply |
Rated output |
Measuring Aperture(mm) |
FOB Shanghai(USD) |
|
|
AHKC-EKA |
0~(20-500)A |
±15V |
5V/4V |
φ20 |
16 |
|
AHKC-EKAA |
DC 0~(50-500)A |
12V/24V |
4~20mA |
φ20 |
16 |
|
|
AHKC-EKDA |
AC 0~(200-1000)A |
12V/24V |
4~20mA |
φ20 |
18 |
|
|
AHKC-EKB |
0~(200-1000)A |
±15V |
5V |
φ40 |
31 |
|
|
AHKC-EKBA |
DC 0~(200-1000)A |
12V/24V |
4~20mA |
φ40 |
31 |
|
|
AHKC-EKBDA |
AC 0~(200-1000)A |
12V/24V |
4~20mA |
φ40 |
34 |
|
|
|
AHKC-EKC |
0~（500-1500）A |
±15V |
5V/4V |
φ55 |
41 |
|
AHKC-EKCA |
DC 0~(500-1500)A |
12V/24V |
4~20mA |
φ55 |
41 |
|
|
WHKC-EKCDA |
AC 0~(500-1500)A |
12V/24V |
4~20mA |
φ55 |
41 |
|
|
AHKC-K |
0~(400-2000)A |
±15V |
5V |
64x16 |
39 |
|
|
AHKC-KAA |
DC 0~(400-2000)A |
12V/24V |
4~20mA |
64x16 |
39 |
|
|
AHKC-KDA |
AC 0~(400-2000)A |
12V/24V |
4~20mA |
64x16 |
55 |
|
|
|
AHKC-H |
0~(500-3000)A |
±15V |
5V |
82x32 |
55 |
|
AHKC-KA |
0~(500-5000)A |
±15V |
5V |
104x36 |
56 |
|
|
AHKC-HB |
0~(2000-8000)A |
±15V |
5V |
132x52 |
134 |
|
|
0~(10000-20000)A |
±15V |
5V |
132x52 |
195 |
||
|
AHKC-HBAA |
DC 0~(2000-8000)A |
12V/24V |
4~20mA |
132x52 |
260 |
|
|
DC 0~(10000-20000)A |
12V/24V |
4~20mA |
132x52 |
520 |
||
|
AHKC-HBDA |
AC 0~(2000-8000)A |
12V/24V |
4~20mA |
132x52 |
260 |
|
|
AC 0~(10000-20000)A |
12V/24V |
4~20mA |
132x52 |
520 |
