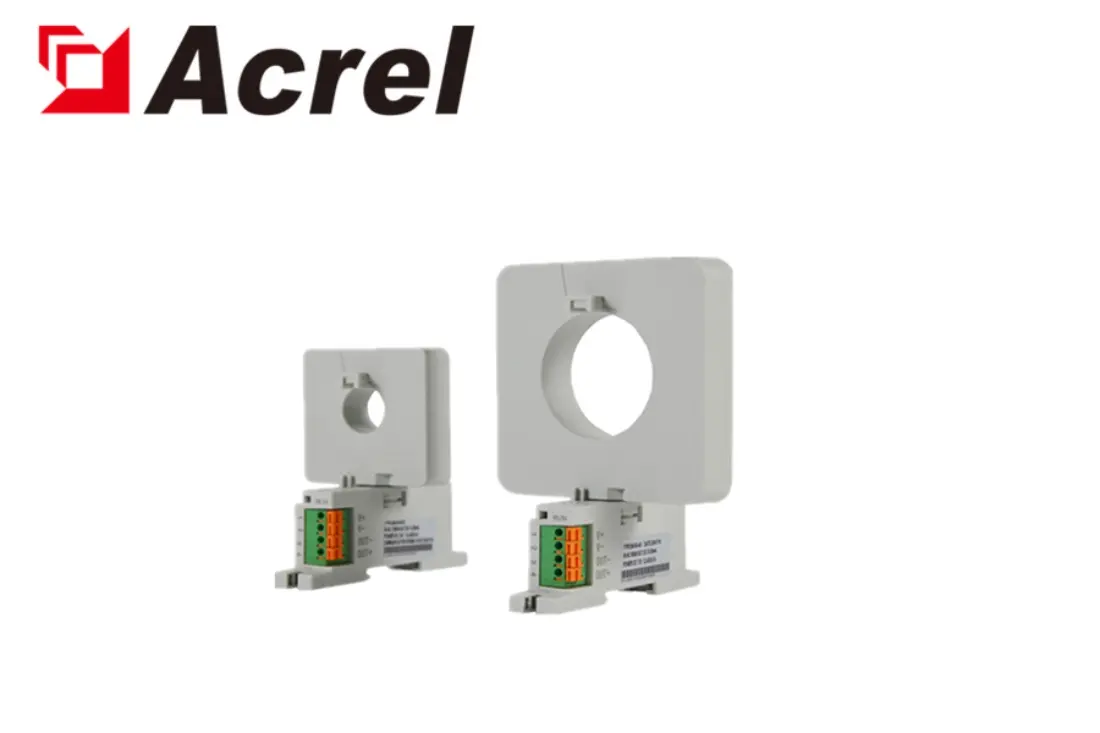

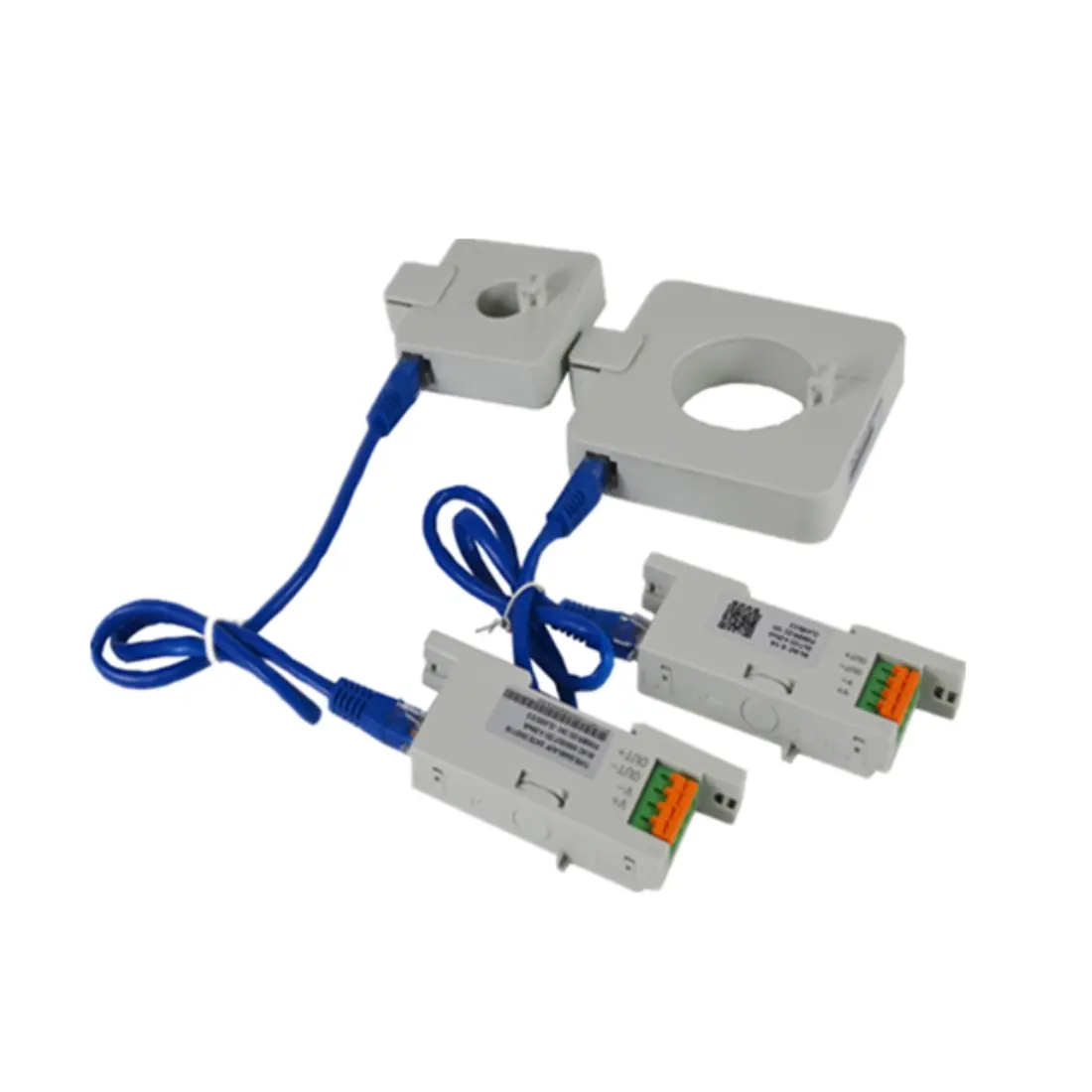

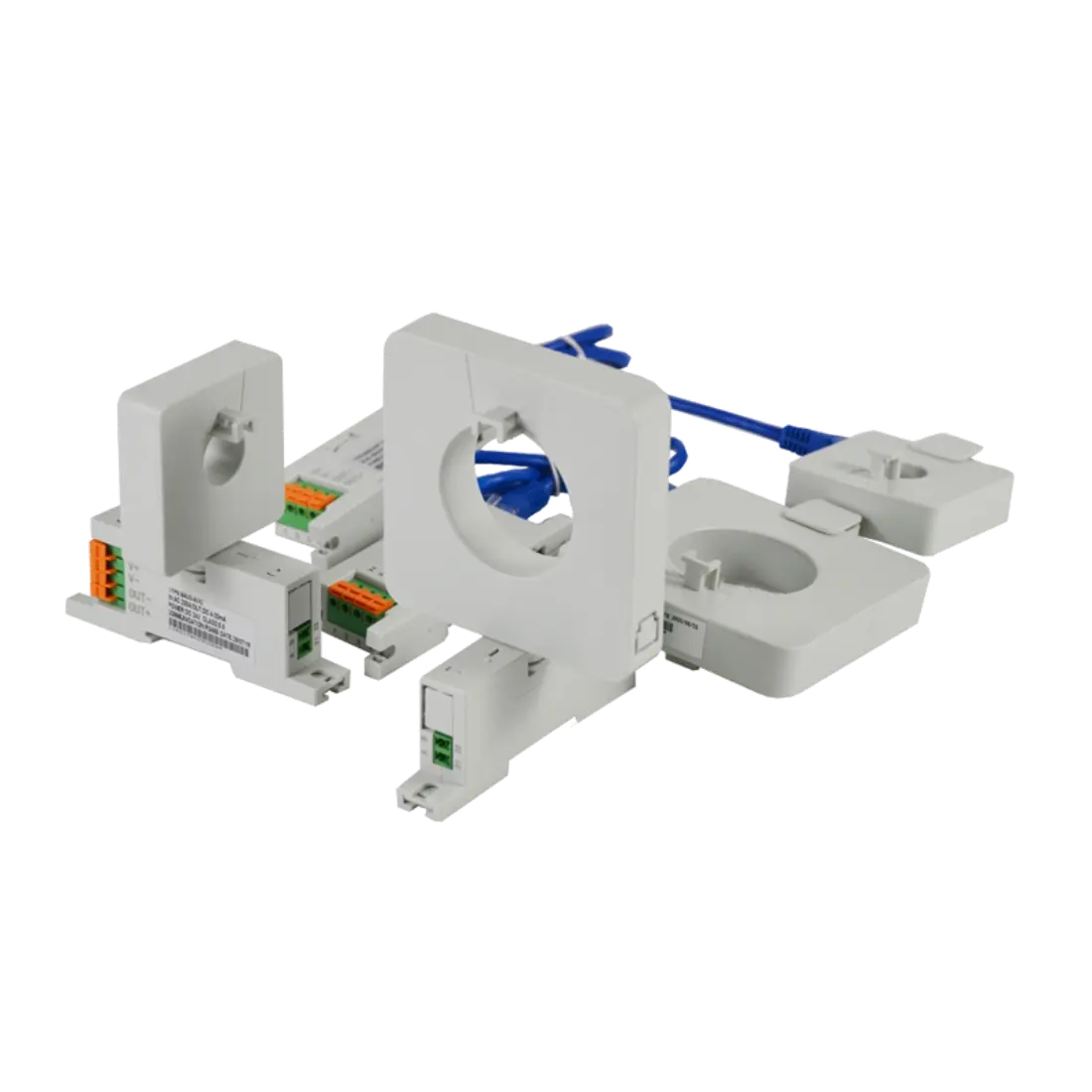

    BA Smart Split Type AC Current Sensor

    Product Description





    WhatsApp contact us

    • Detailed description

    • Parameters

    • Certificate

    • Download

    Technical parameters Value
    Accuracy Class 0.5
    Input Nominal BA20(II)-AI AC 0~(0.5~200)A
    BA50(II)-AI AC 0~(60~600)A
    BA50l(II)-AI AC 0~(0.1~1)A
    Overload Countinuous 1.2 times,Instantaneous current 10 times/1 second
    Aborbed power ≤1VA
    Frequency response 25Hz~800Hz,suitable for power frequency application
    Output Nominal DC4-20mA or 0-20mA or 0-5V or 0-10V
    Load resistance When powered by DC12V, the current output is ≤250Ω
    When powered by DC24V, the current output is ≤500Ω
    Voltage output ≥1KΩ
    Communication RS485,Modbus-RTU
    Response time     ≤400ms
    Power supply Voltage   DC 12V or 24V
    Power consumption   ≤1W
    Insulation resistance ＞100MΩ
    Compressive strength 2.0kv/1min, 50Hz between input/output and power
    Temperature Coefficient When the temperature is -10℃~+55℃，≤400ppm/℃
    Environment Temperature Working temperature:-10~+55℃，Storage temperature:-25~+70℃
    Humidity ≤93%RH，No condensation, no corrosive gas place
    Altitude ≤2000m

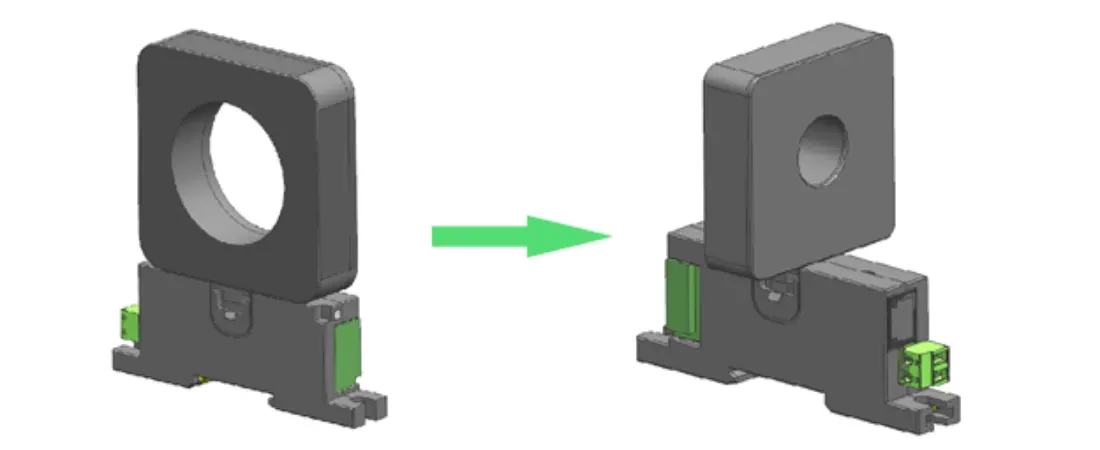

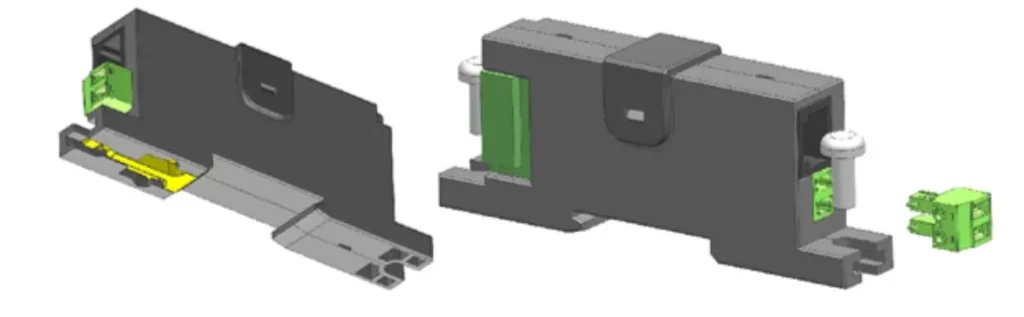

    Installation method TS35 din rail mounted or fix the cabinet with screws
