Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.

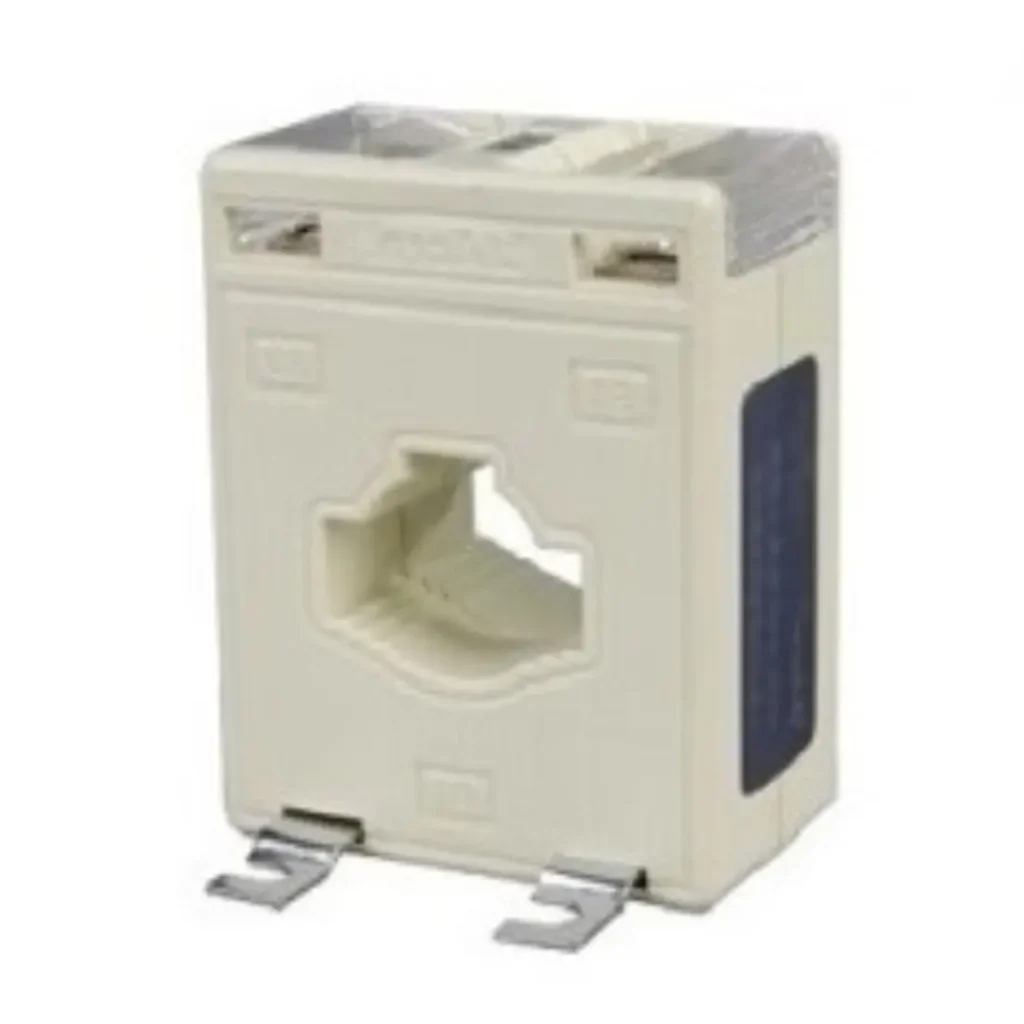

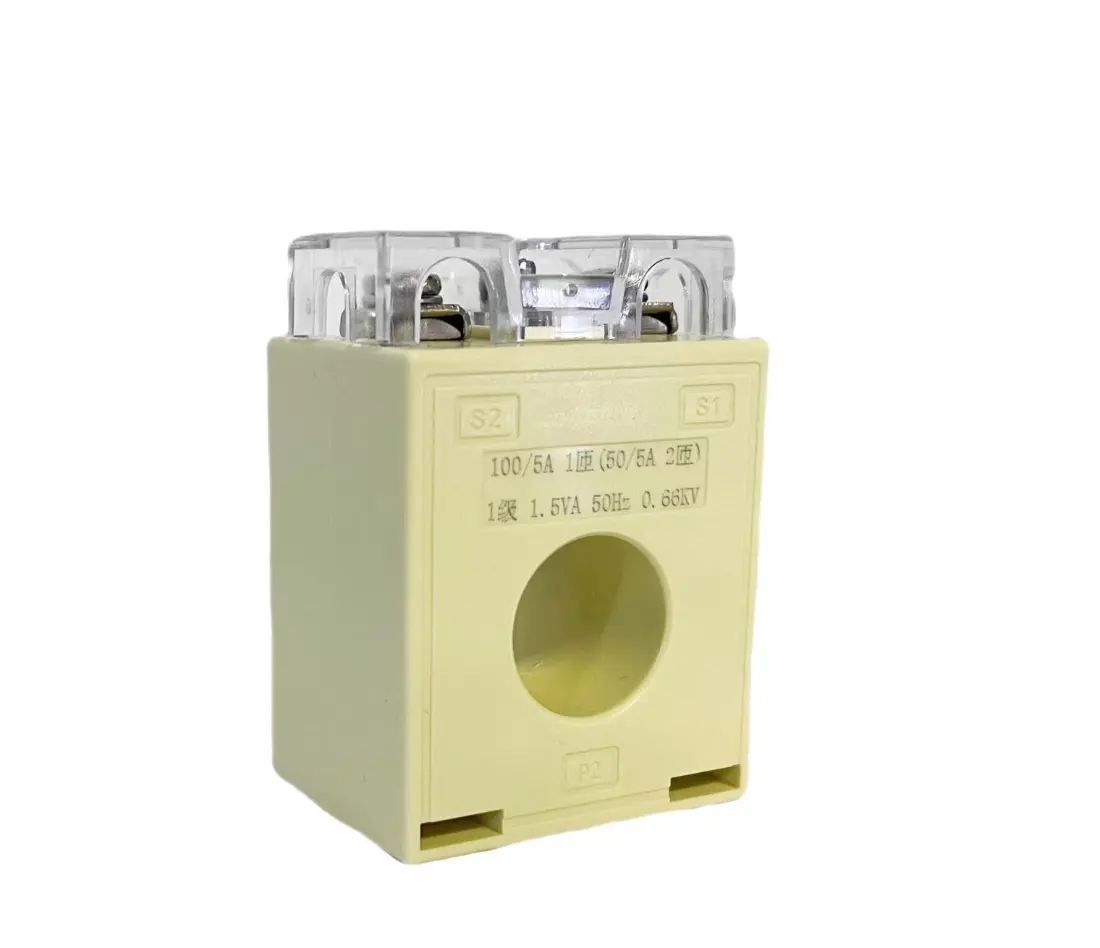

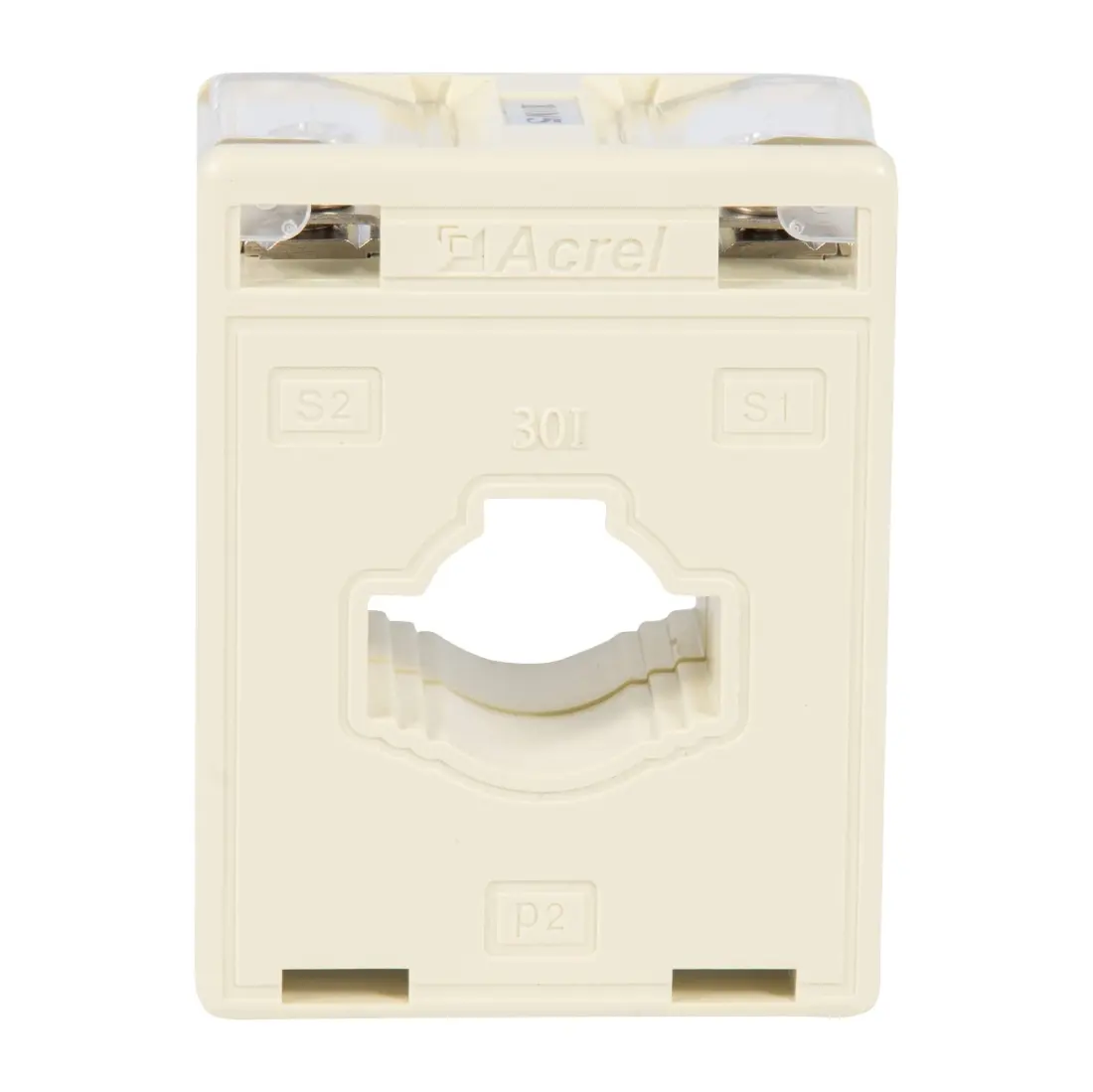

AKH-0.66I Measurement Current Transformer
Product Description
-
Detailed description
-
Parameters
-
Certificate
-
Download
-
- Accuracy: Class 0.2/Class 0.5/Class 1.0
- Primary Current Input: 15~600A AC

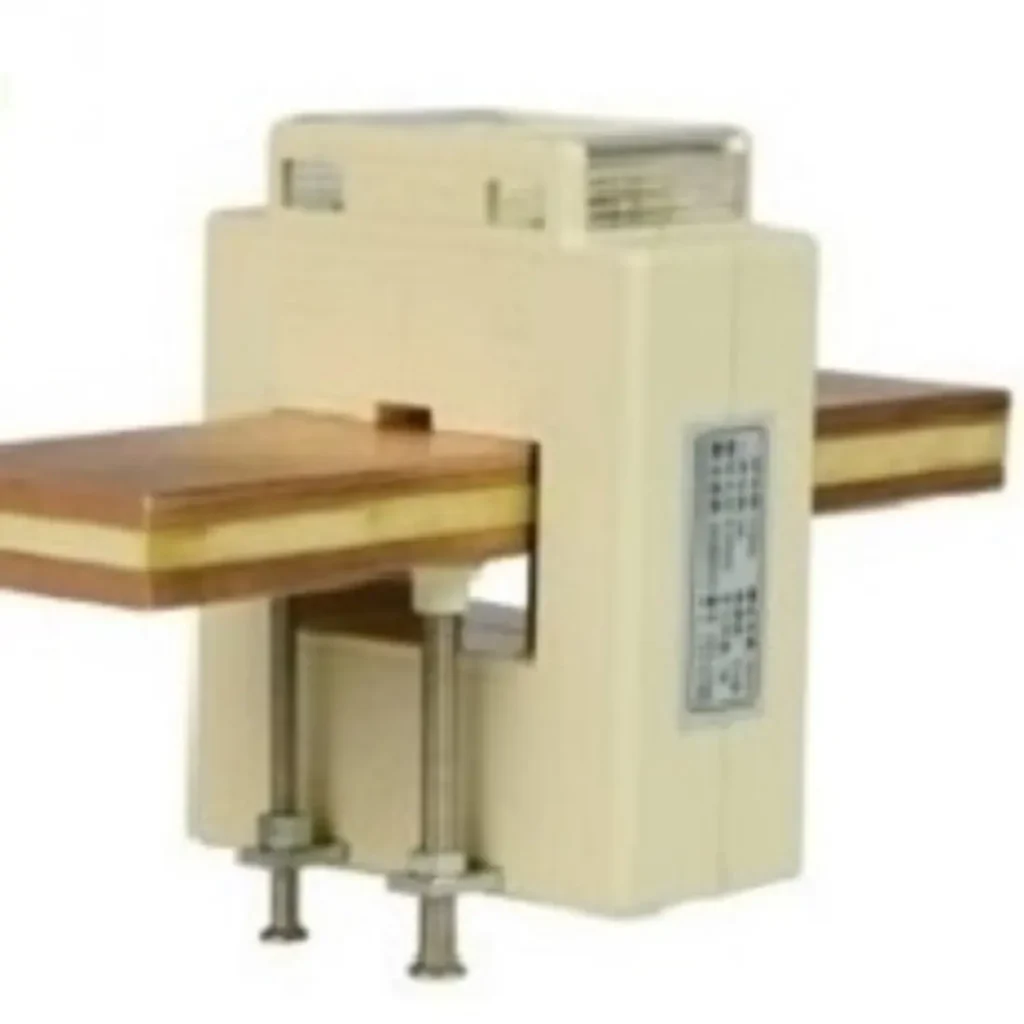

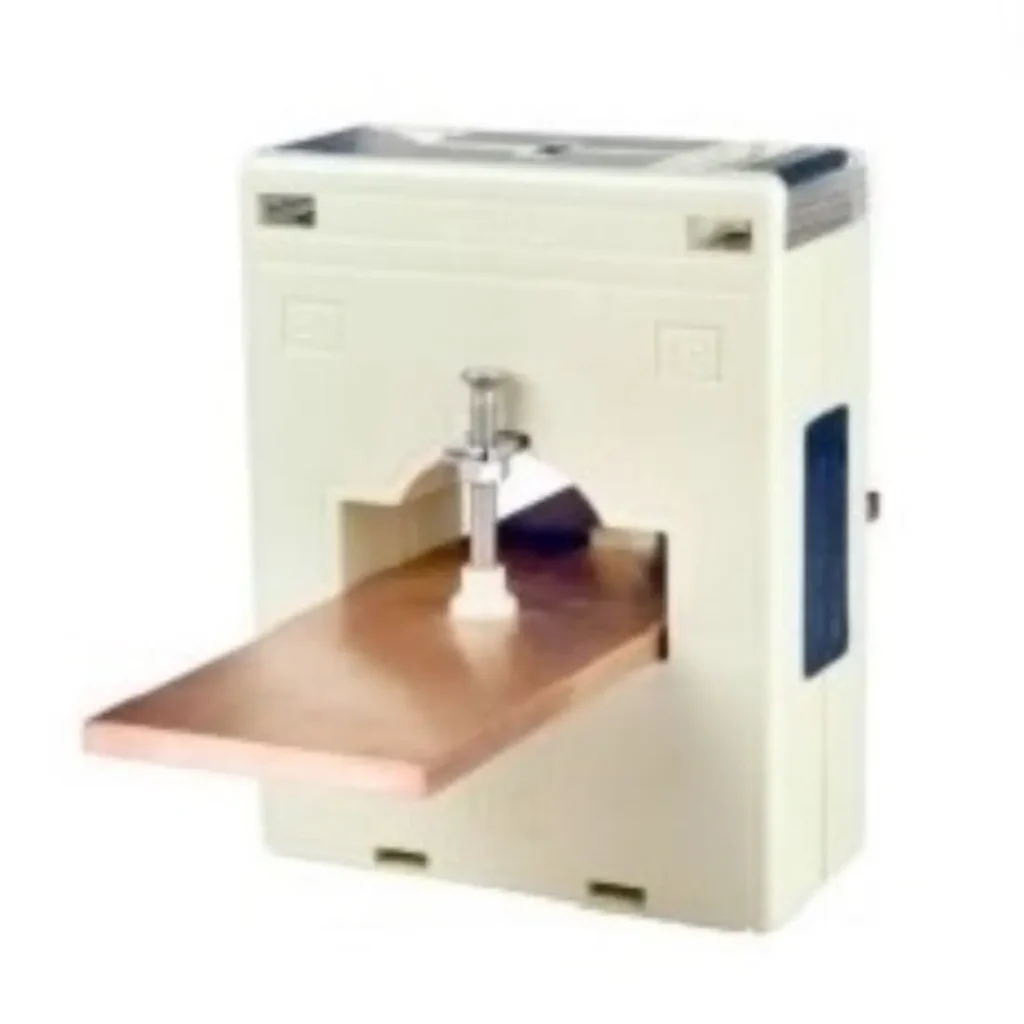

- Application: On Busbar or Cable
- Rated Voltage: 660V AC
- Rated Frequency: 50~60Hz

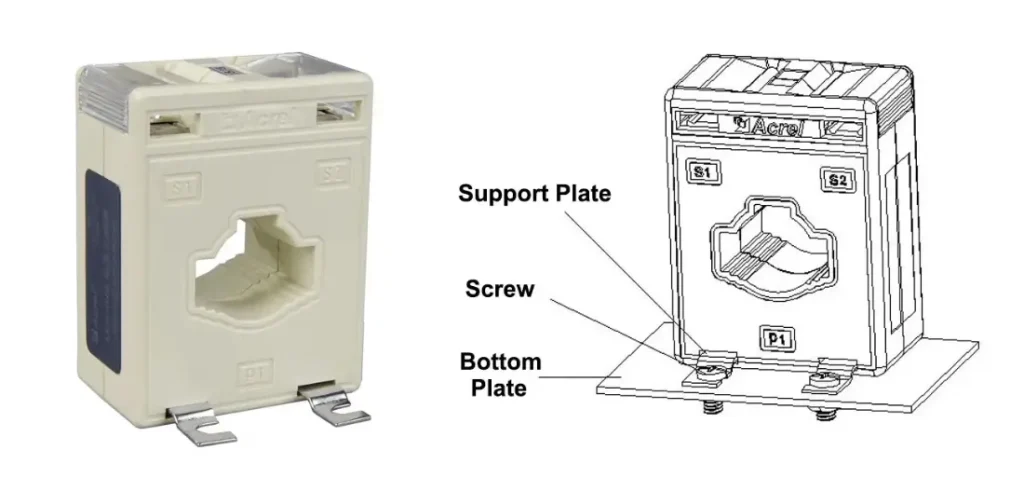

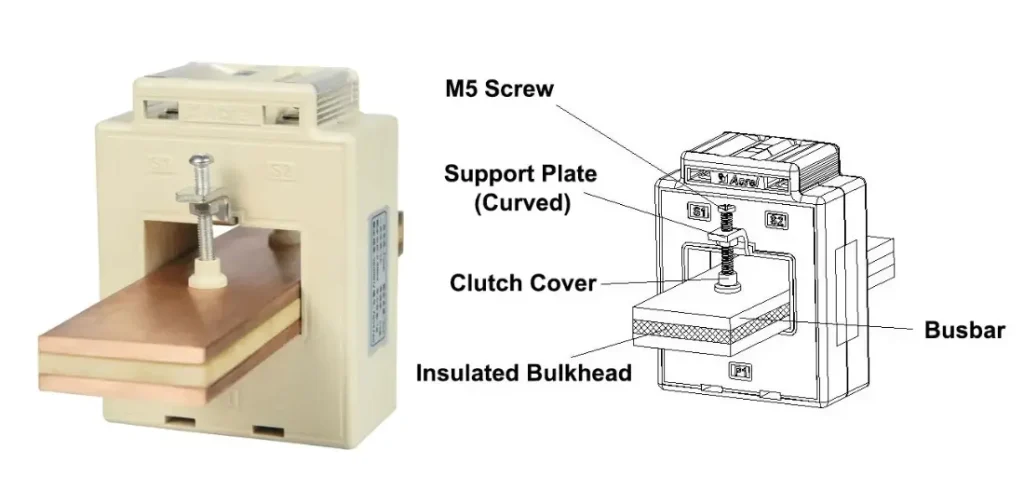

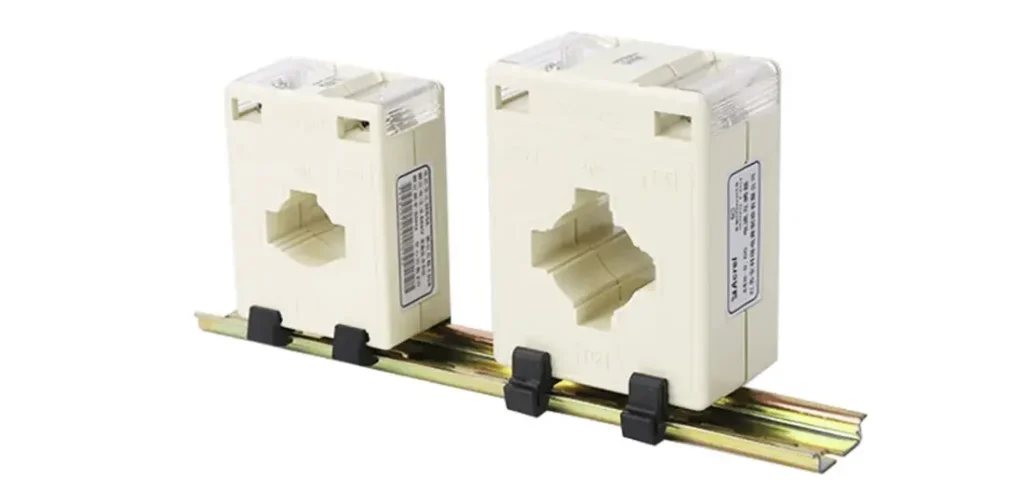

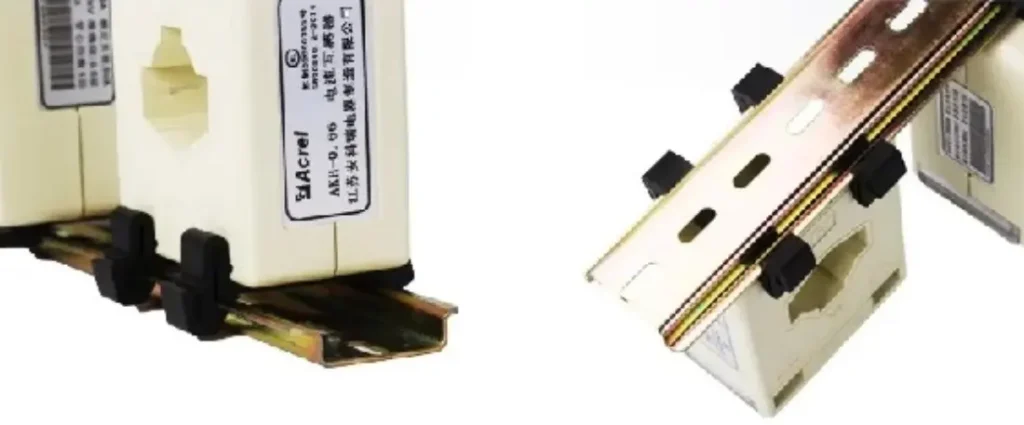

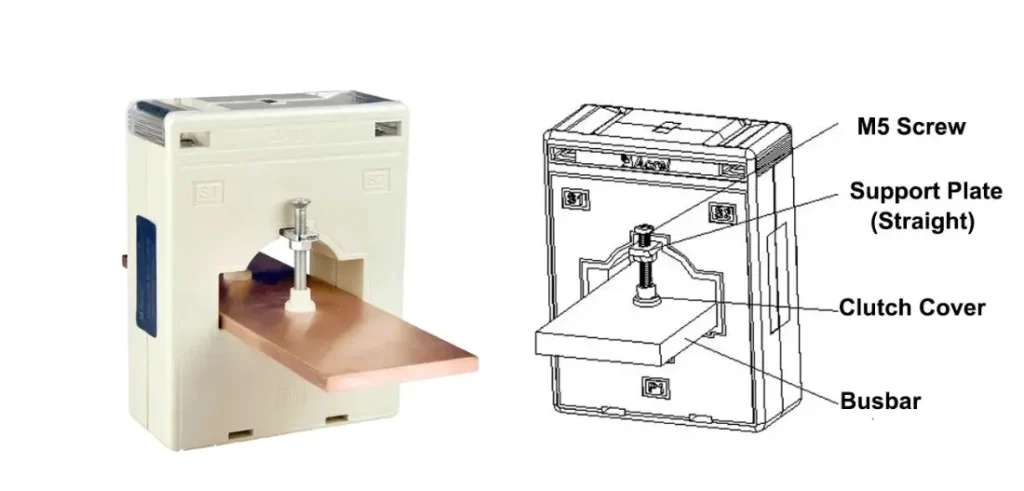

- Installation: Fixed by Sheet Metal/Fixed by Clutch Cover/35mm DIN Rail
-
Ratio Class & Burden (VA/Ω) Turns Busbar Type(mm)/QTY Dia.(mm) 0.2 0.5 1 15/5(1) 1.5 5 / Ф22 20/5(1) 1.5 4 25-30/5(1) 1.5 3 40-60/5(1) 1.5 2 75-100/5(1) 1.5 1 30×10/1 150-200/5(1) 2.5 1 250/5(1) 3.75 1 AKH-0.66/I 30I 300-450/5(1) 5 1 500/5(1) 10 1 600/5 10 1 10/5(1) 1.5 10 / Ф30 15/5(1) 1.5 8 20/5(1) 1.5 5 25-30/5(1) 1.5 4 40/5(1) 1.5 3 50-75/5(1) 1.5 2 100/5(1) 1.5 1 40×10/1 150/5(1) 2.5 1 200/5(1) 2.5 1 AKH-0.66/I 40I 250/5(1) 3.75 1 300-450/5(1) 5 1 500-800/5(1) 10 1 1000/5(1) 10 1 150/5(1) 2.5 1 60×10/1 Ф44 200-250/5(1) 2.5 1 60×6/1-2 300-450/5(1) 5 1 500-800/5(1) 10 1 1000-1250/5(1) 10 1 1500-2000/5(1) 20 1 AKH-0.66/I 60I 2500/5(1) 30 1 150/5(1) 2.5 1 80×10/1 Ф50 200-250/5(1) 2.5 1 300-400/5(1) 5 1 500-800/5(1) 10 1 1000-1250/5(1) 10 1 1500-2000/5(1) 20 1 AKH-0.66/I 80I 2500-3000/5(1) 30 1 -
