    HomeProductsPower SensorAKH-0.66 Low voltage Current TransformerAKH-0.66II Current Transformer
    • AKH-0.66II Current Transformer
    • AKH-0.66II Current Transformer

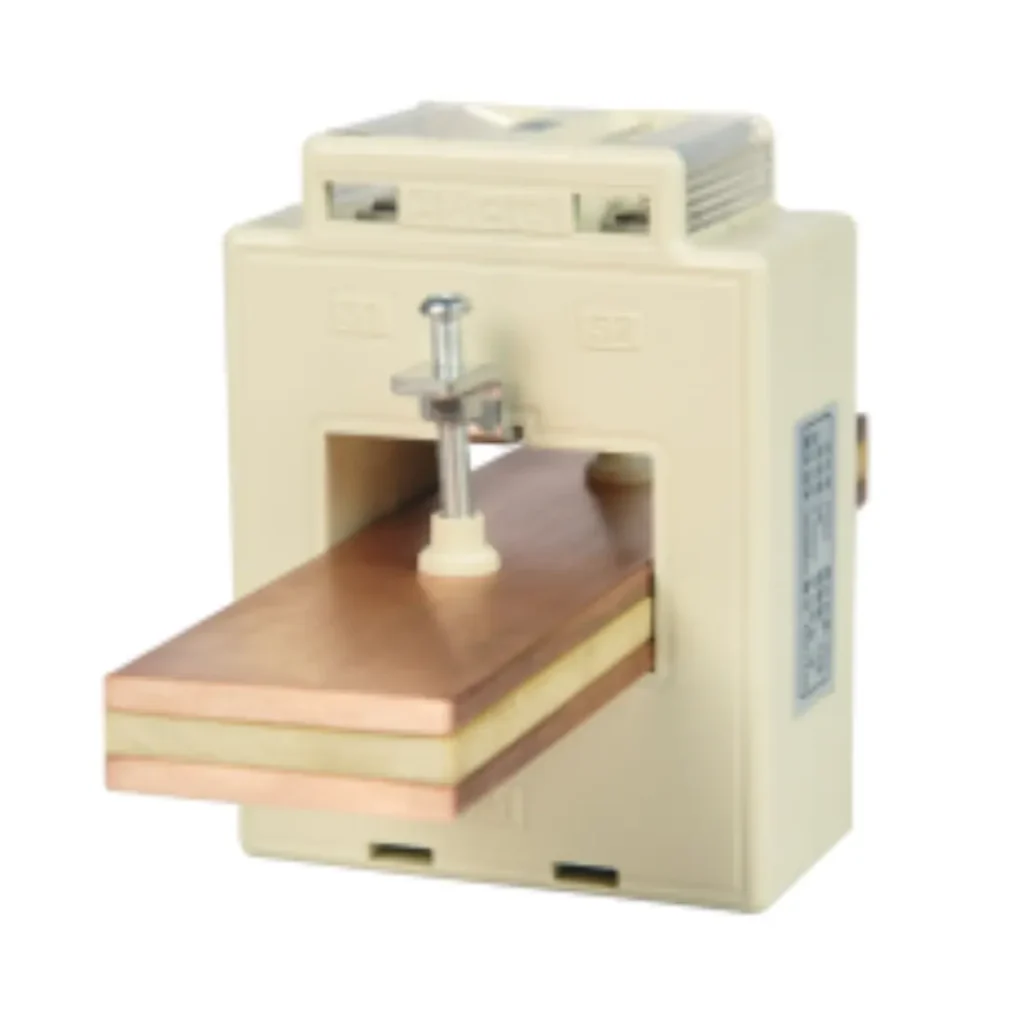

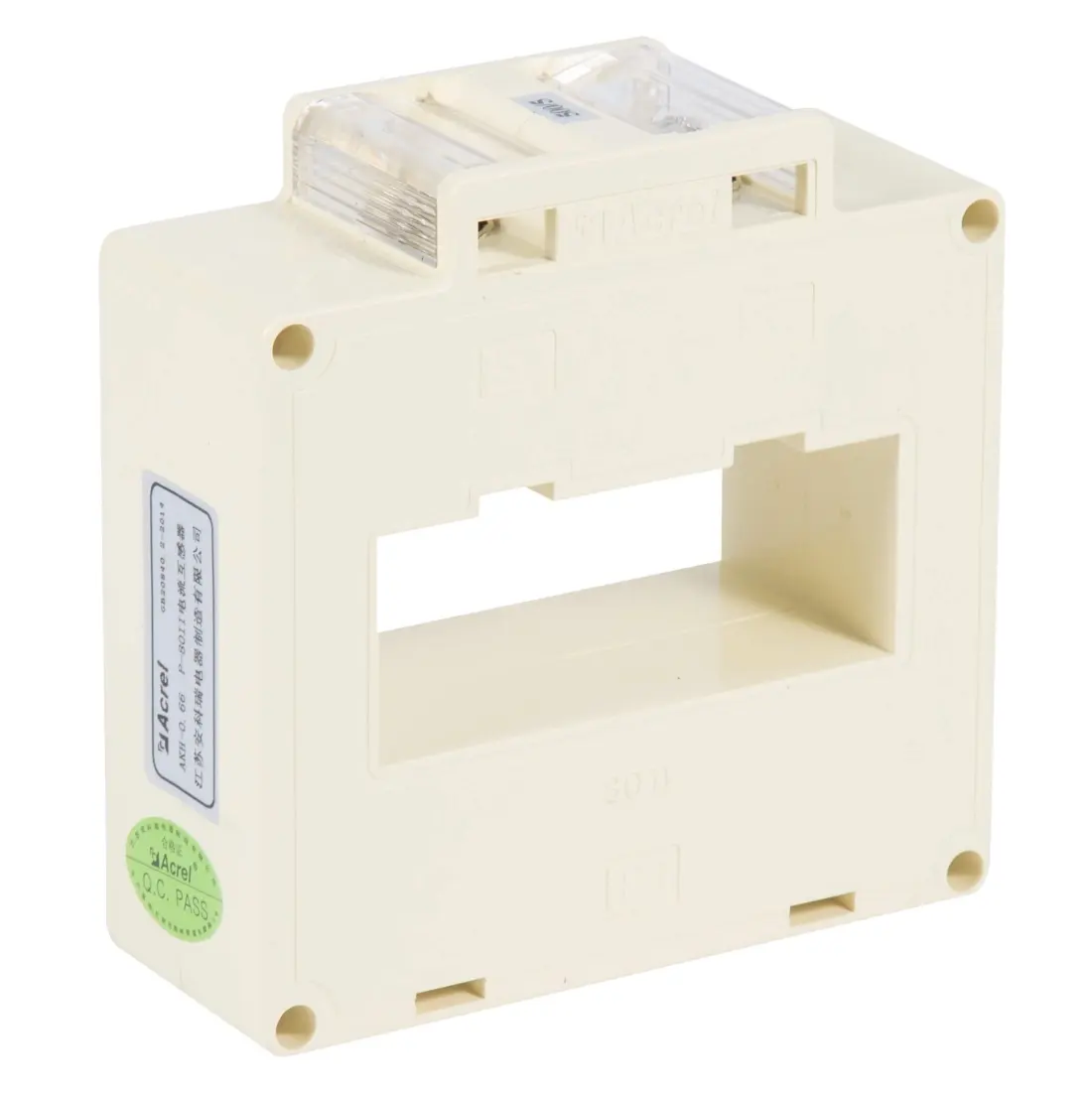

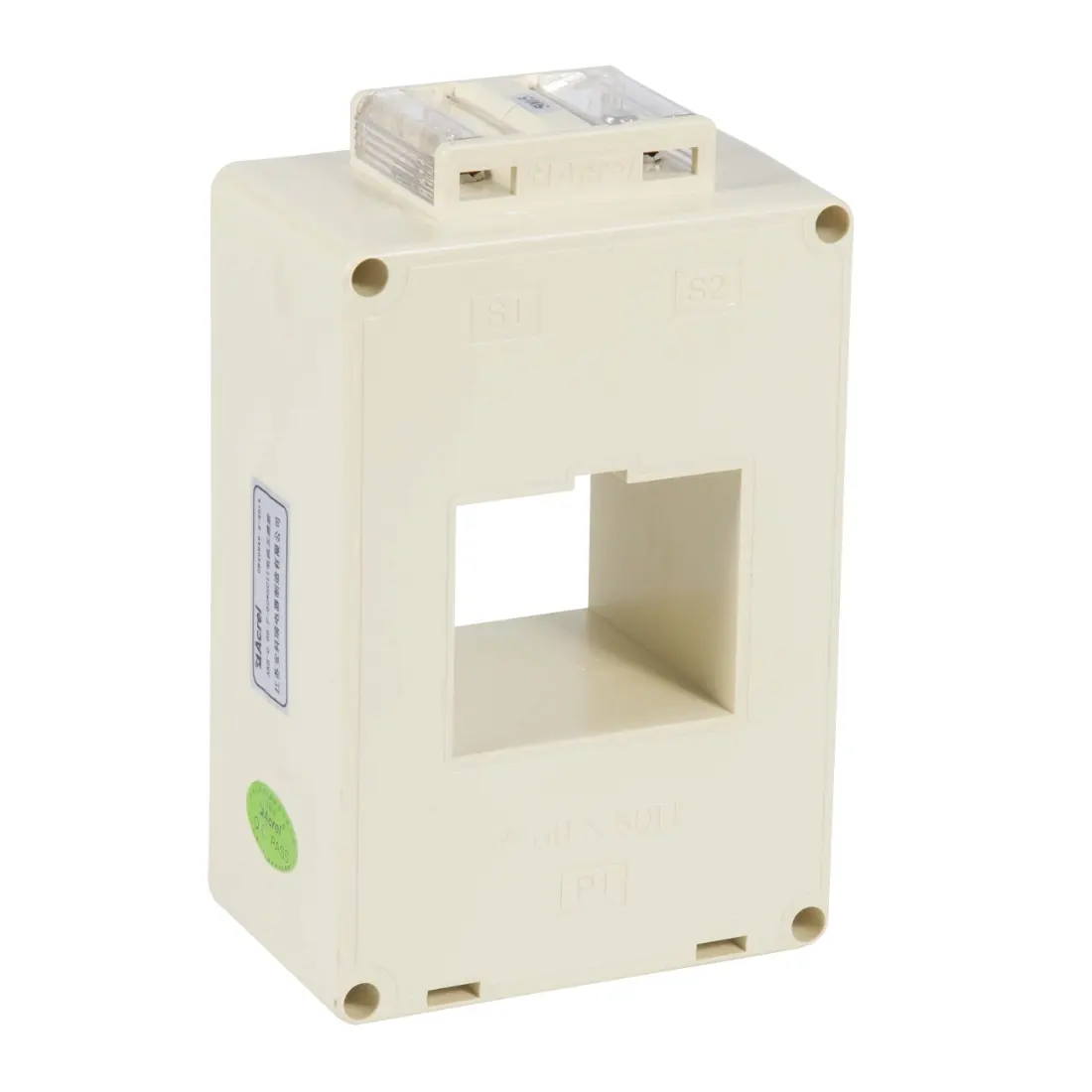

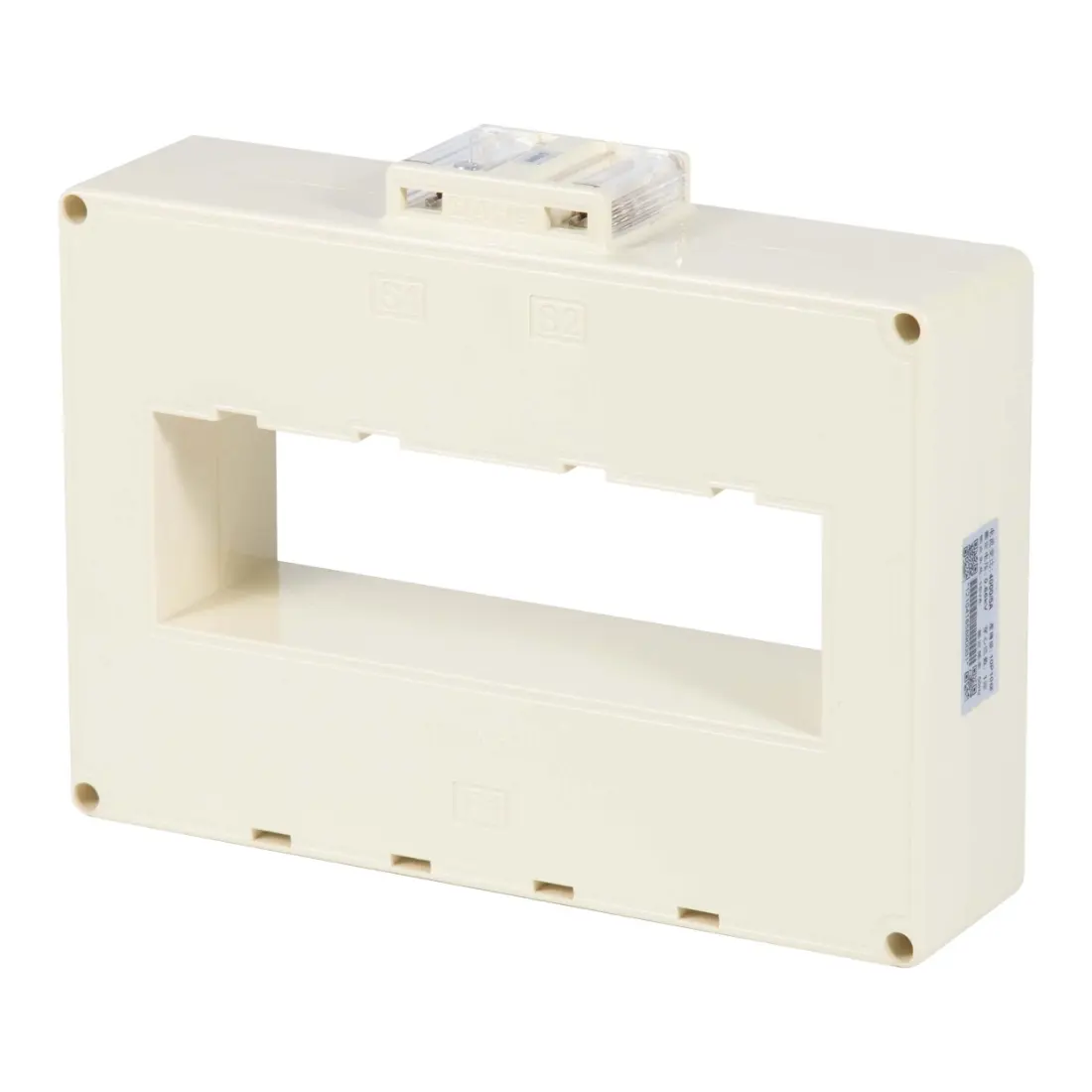

    AKH-0.66II Current Transformer

    Product Description

    WhatsApp contact us

    • Detailed description

    • Parameters

    • Certificate

    • Download

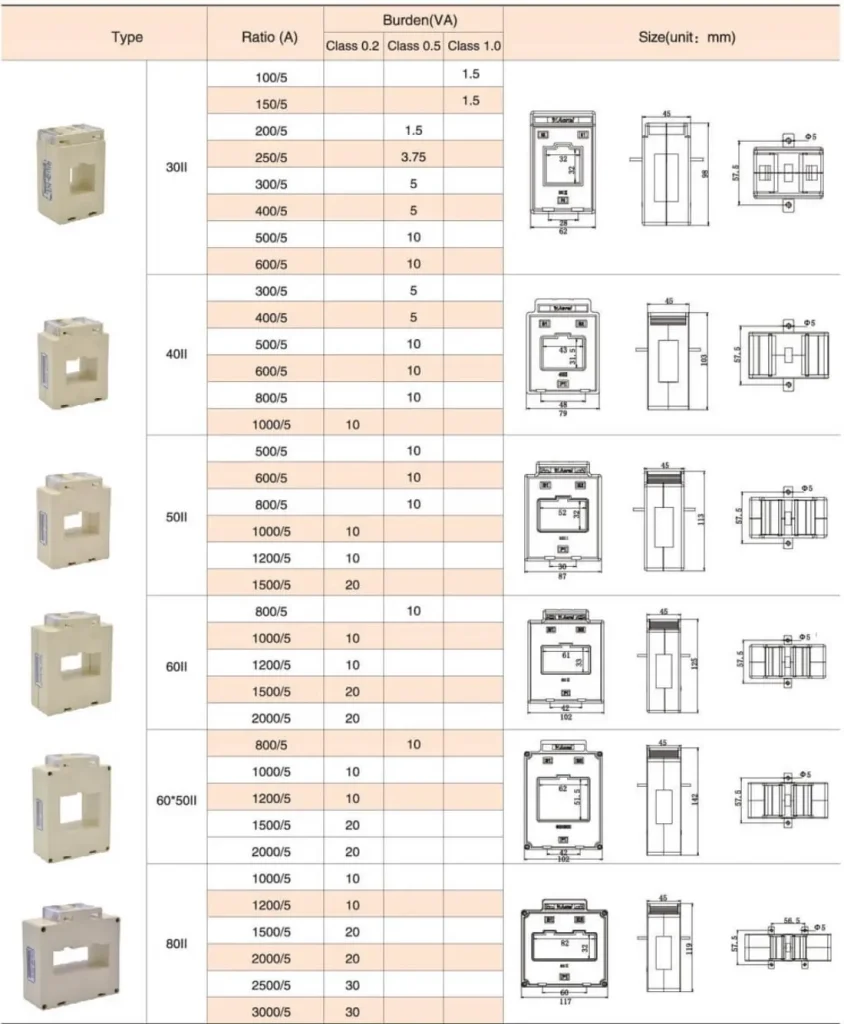

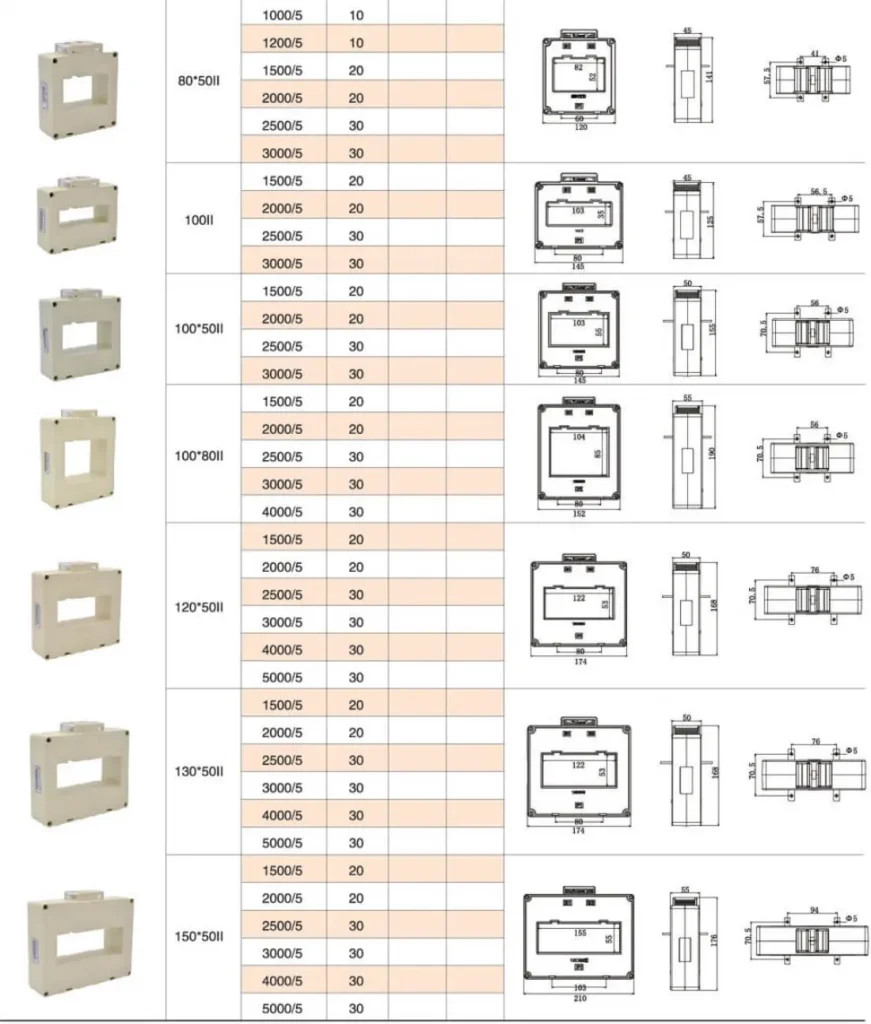

      Ratio Class & Burden (VA/Ω) Turns Busbar Type(mm)/QTY Dia.(mm)
    0.2 0.5 1
      15/5(1)     1.5 5 / Ф22
      20/5(1)     1.5 4
      25-30/5(1)     1.5 3
      40-60/5(1)     1.5 2
      75-100/5(1)     1.5 1 30×10/1
      150-200/5(1)   2.5   1
      250/5(1)   3.75   1
    AKH-0.66/I 30I  300-450/5(1)   5   1
      500/5(1)   10   1
      600/5   10   1
      10/5(1)     1.5 10 / Ф30
      15/5(1)     1.5 8
    20/5(1)     1.5 5
    25-30/5(1)     1.5 4
    40/5(1)     1.5 3
    50-75/5(1)     1.5 2
    100/5(1)     1.5 1 40×10/1
    150/5(1)     2.5 1
    200/5(1)   2.5   1
    AKH-0.66/I 40I  250/5(1)   3.75   1
      300-450/5(1)   5   1
    500-800/5(1)   10   1
      1000/5(1) 10     1
      150/5(1)     2.5 1 60×10/1 Ф44
    200-250/5(1)   2.5   1 60×6/1-2
    300-450/5(1)   5   1
    500-800/5(1)   10   1
    1000-1250/5(1) 10     1
    1500-2000/5(1) 20     1
    AKH-0.66/I 60I  2500/5(1) 30     1
      150/5(1)     2.5 1 80×10/1 Ф50
    200-250/5(1)   2.5   1
    300-400/5(1)   5   1
    500-800/5(1)   10   1
    1000-1250/5(1) 10     1
    1500-2000/5(1) 20     1
    AKH-0.66/I 80I  2500-3000/5(1) 30     1
