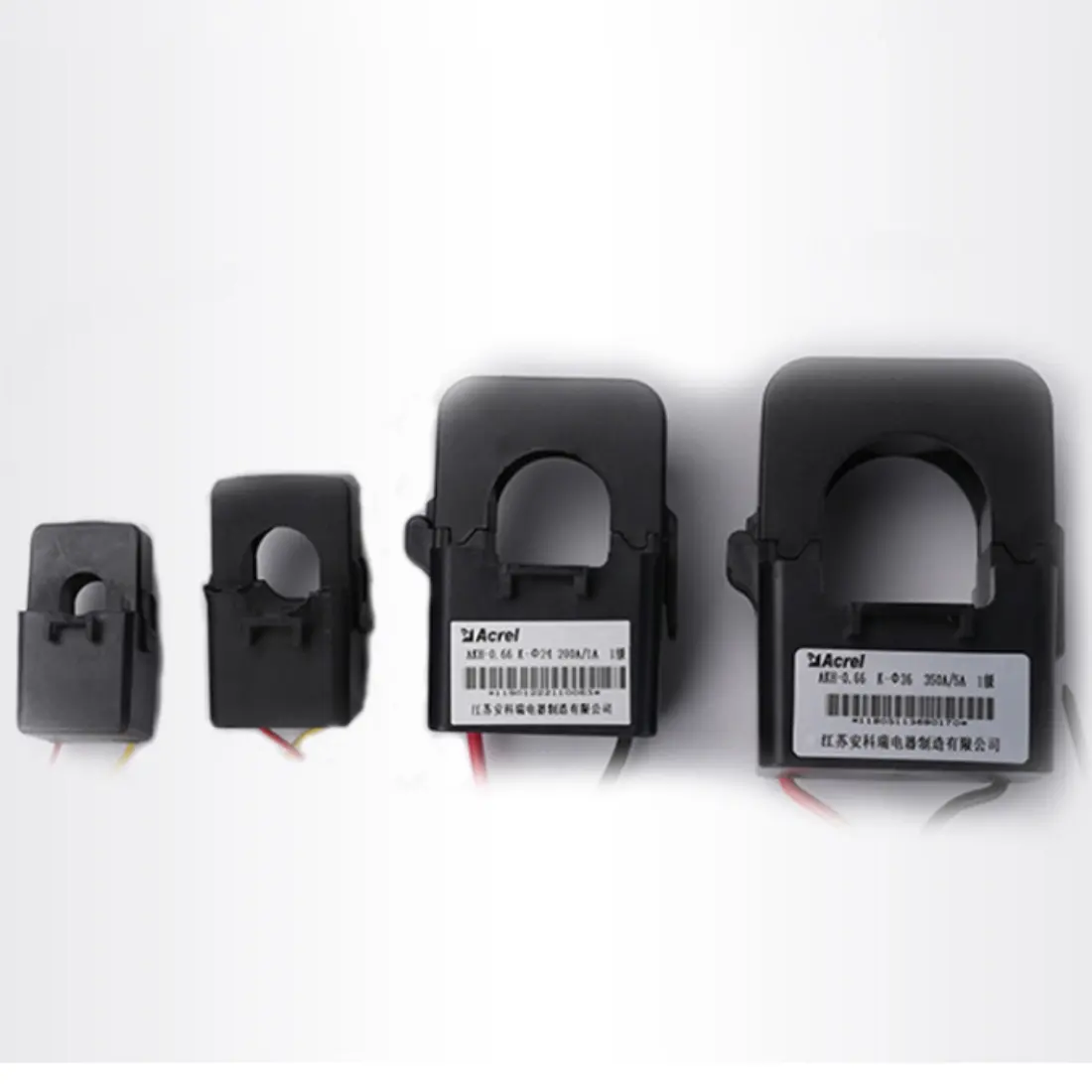

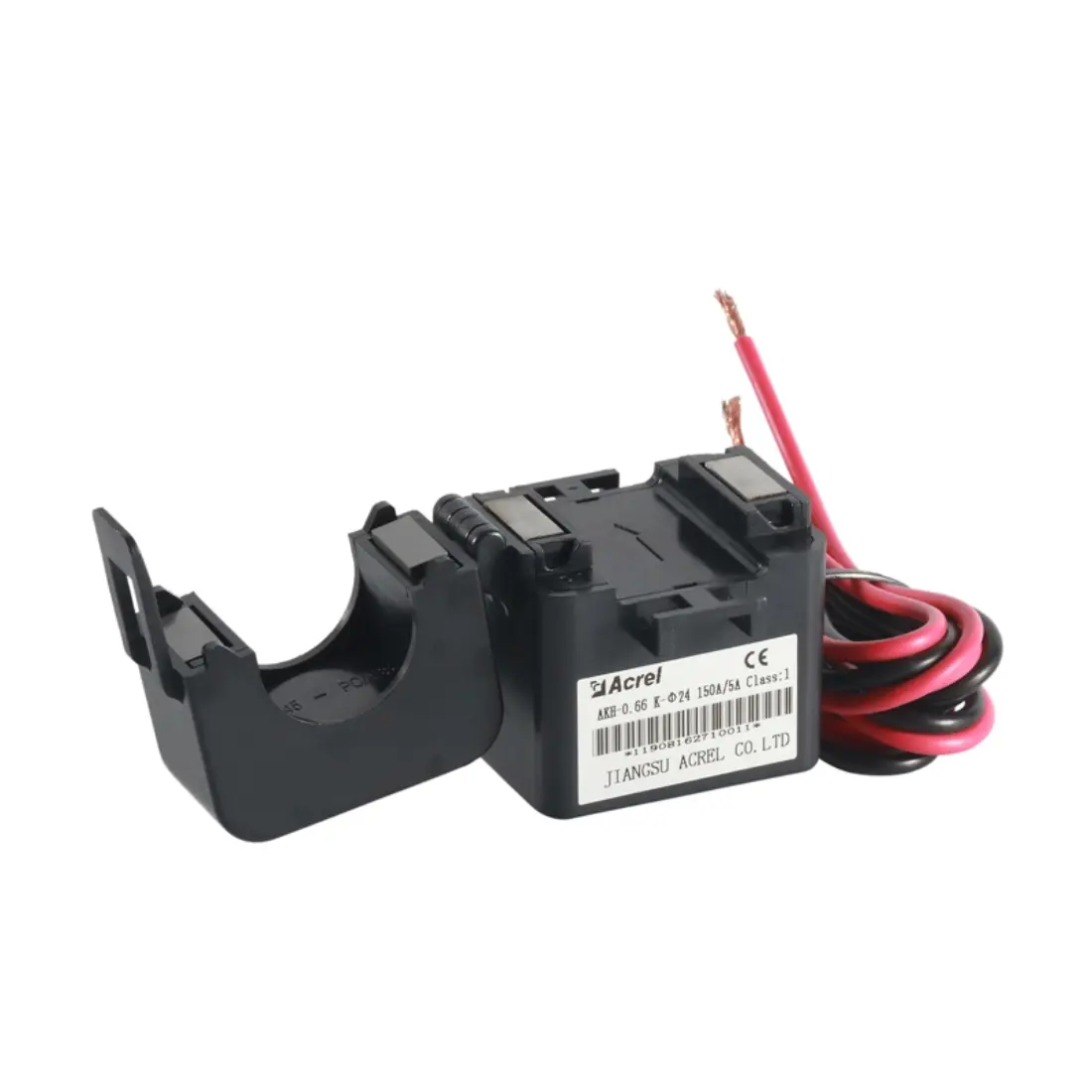

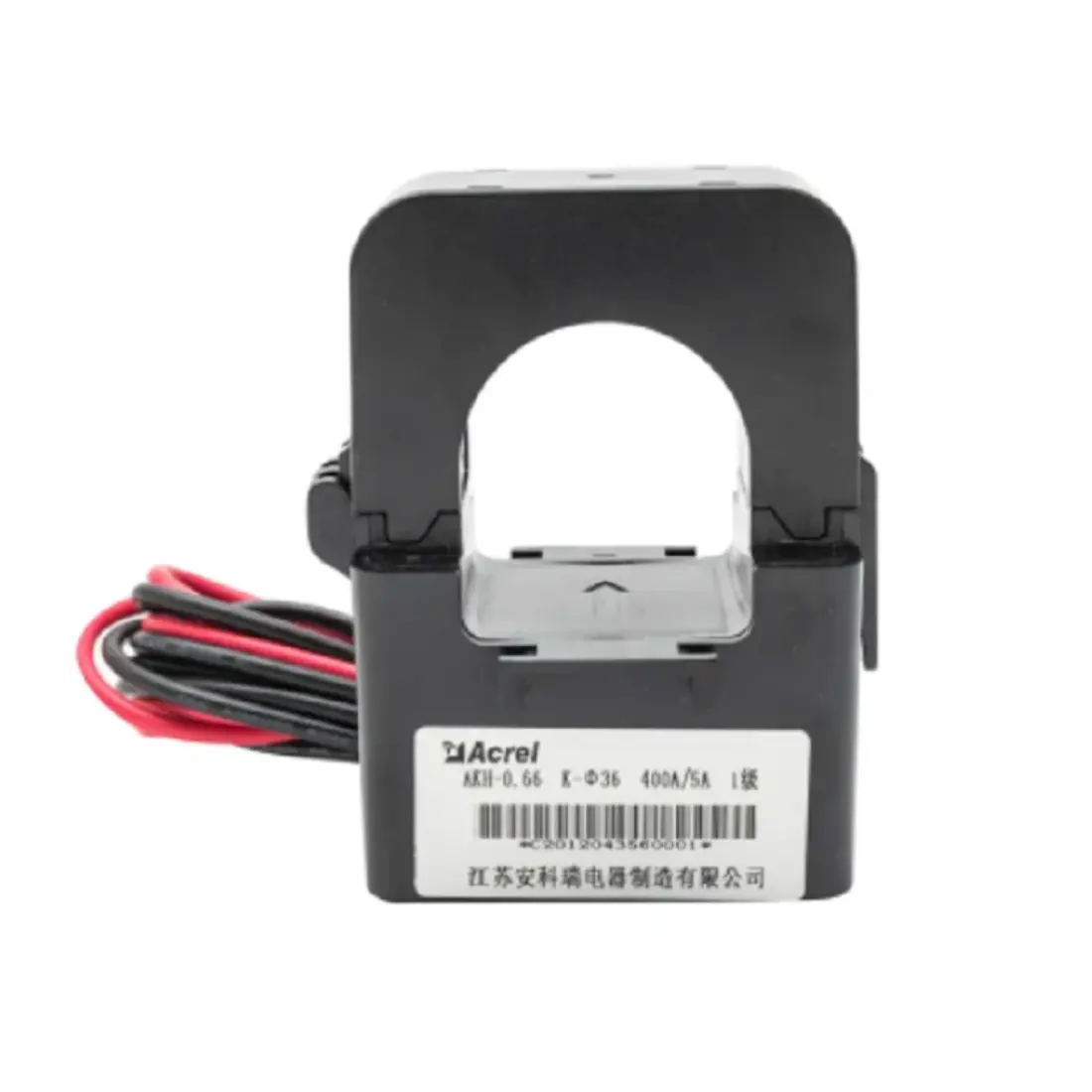

    AKH-0.66K-Φ Split Core Current Transformer

    Product Description

    ● Measurement: Alternating Current (AC)
    ● Installtion: Split-core type/clamp on installation
    ● Primary Current Input: 100~400A AC
    ● Accuracy: Class 0.5
    ● Rated Operating Voltage: 660V AC
    ● Rated Frequency: 50~60Hz
    ● Operating Temperature: -30℃~+60℃
    ● Operating Altitude: ≤3000m
    ● Power Frequency withstand Voltage: 3000V/1min 50Hz

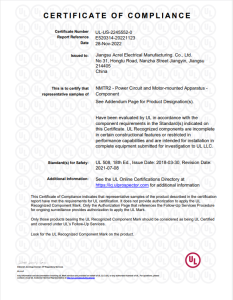

    ● Standard&Certificate: UL
    WhatsApp contact us

    • Detailed description

    • Parameters

    • Certificate

    • Download

    • Split core current transformer
    • Accuracy: class 0.5
    • Rated Frequency: 50~60Hz
    • Installation: Clamp-on (installed on Cable)
    • Suitable for electricity renovation project

    ▋ Series Overview

    Model NamePrimary InputSecondary OutputAccuracy ClassRated LoadPerforation Hole Size (mm)
    AKH-0.66/K-φ16-U20~120A100~333mV0.510Ωφ16
    AKH-0.66/K-φ16-M20~120A10~50mA0.510Ωφ16
    AKH-0.66/K-φ24-U100~400A100~333mV0.510Ωφ24
    AKH-0.66/K-φ24-M100~400A20~100mA0.510Ωφ24
    AKH-0.66/K-φ24-A150~200A5A1.01VAφ24
    250~300A5A1.01.5VAφ24
    AKH-0.66/K-φ24-B150~200A1A1.01Ωφ24
    250~300A1A1.01.5Ωφ24

    ▋ Dimension

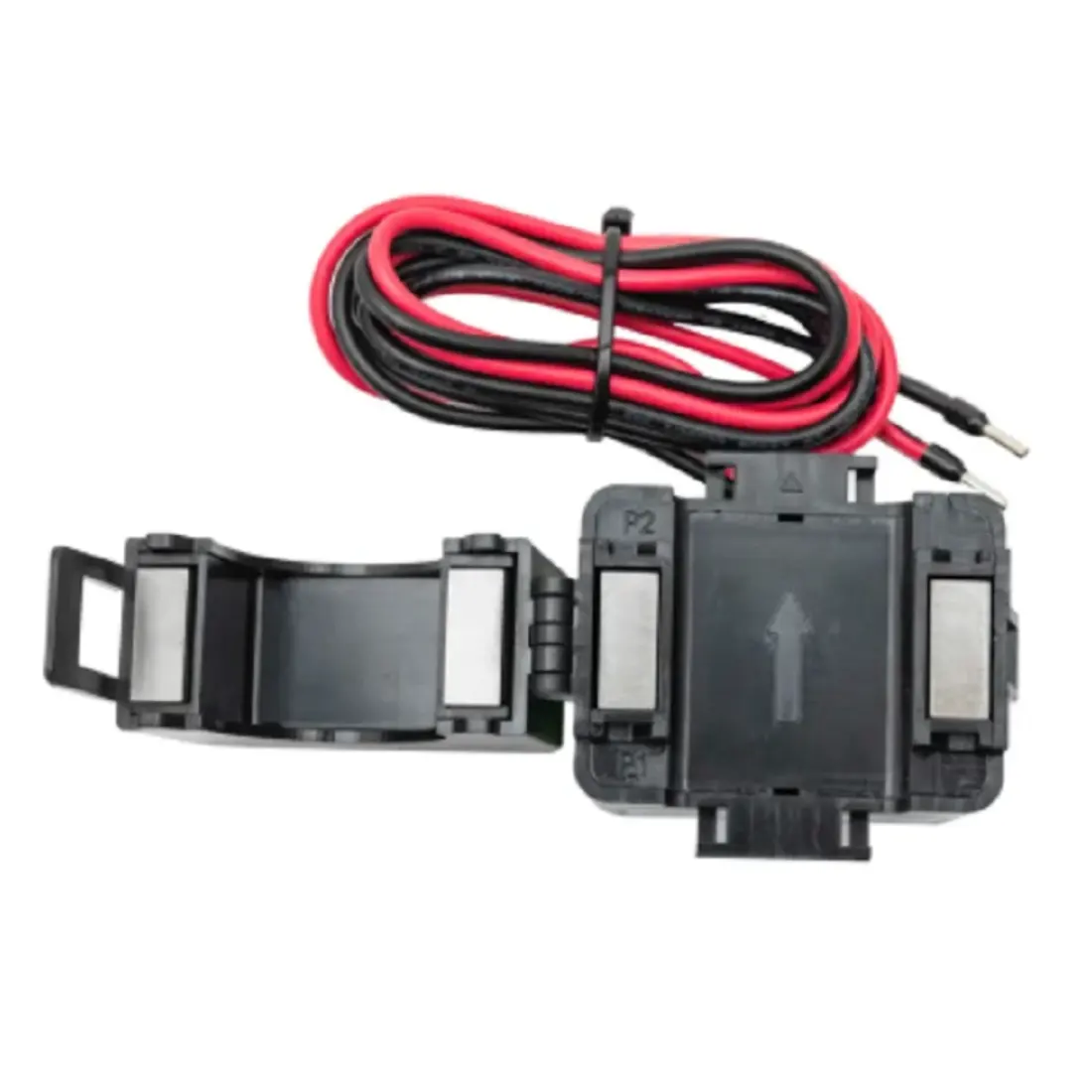

    Noted: The secondary signal output line is a red and black cable, with red being S1 and black being S2. The cable length is 1m ± 5cm.

    ▋ Installation Instruction

    Noted: The clamping up installation direction of CT must be according to the actual forward current direction.

    Model current ration(A) Accuracy Rated load(VA) Max cable diameter(mm)
    AKH-0.66/K-φ10 5 A/1.25mA 0.5 10 φ10
    (10-20) A/5mA
    (40-60) A/20mA
    AKH-0.66/K-φ16 (20-50) A/10mA 0.5 10 φ16
    (40-100) A/20mA
    100 A/40mA
    AKH-0.66/K-φ24 (60-200) A/20mA 0.5 10 φ24
    (100-250) A/40mA
    400A-100mA
    AKH-0.66/K-φ36 (100-200) A/10mA 0.5 10 φ36
    (200-400) A/20mA
    (300-600) A/100mA
    400 A/40mA
    600 A/75mA
    AKH-0.66/K-φ24 (150-200) A/5(1)A 1 1 φ24
    (250-300) A/5(1)A 1.5
    AKH-0.66/K-φ36 (300-400) A/5(1)A 1 1.5 φ36
    (500-600) A/5(1)A 0.5 1.5



    Model Name

    Current Ratio (Primary/Secondary)

    Accuracy Class

    Rated Load (VA)

    Perforation Hole Size (mm)

    AKH-0.66/K-φ10

    5A/1.25mA

    0.5

    10

    φ10

    (10~20)A/5mA



    (40~60)A/20mA



    AKH-0.66/K-φ16

    (20~50)A/10mA

    0.5



    φ16

    (40~100)A/20mA



    100A/40mA



    AKH-0.66/K-φ24

    (60~200)A/20mA

    0.5



    φ24

    (100~250)A/40mA



    400A/100mA



    AKH-0.66/K-φ36

    (100~200)A/10mA

    0.5



    φ36

    (200~400)A/20mA



    (300~600)A/100mA



    400A/40mA



    600A/75mA



    AKH-0.66/K-φ24

    (150~200)A/5(1)A

    1

    1

    Φ24

    (250~300)A/5(1)A

    1.5

    AKH-0.66/K-φ36

    (300~400)A/5(1)A

    1.5

    Φ36

    (500~600)A/5(1)A

    0.5

    1.5

    AKH-0.66/K-φ50

    (600~700)A/5(1)A



    2.5

    Φ50

    (800~900)A/5(1)A



    5

    1000A/5(1)A



    10
