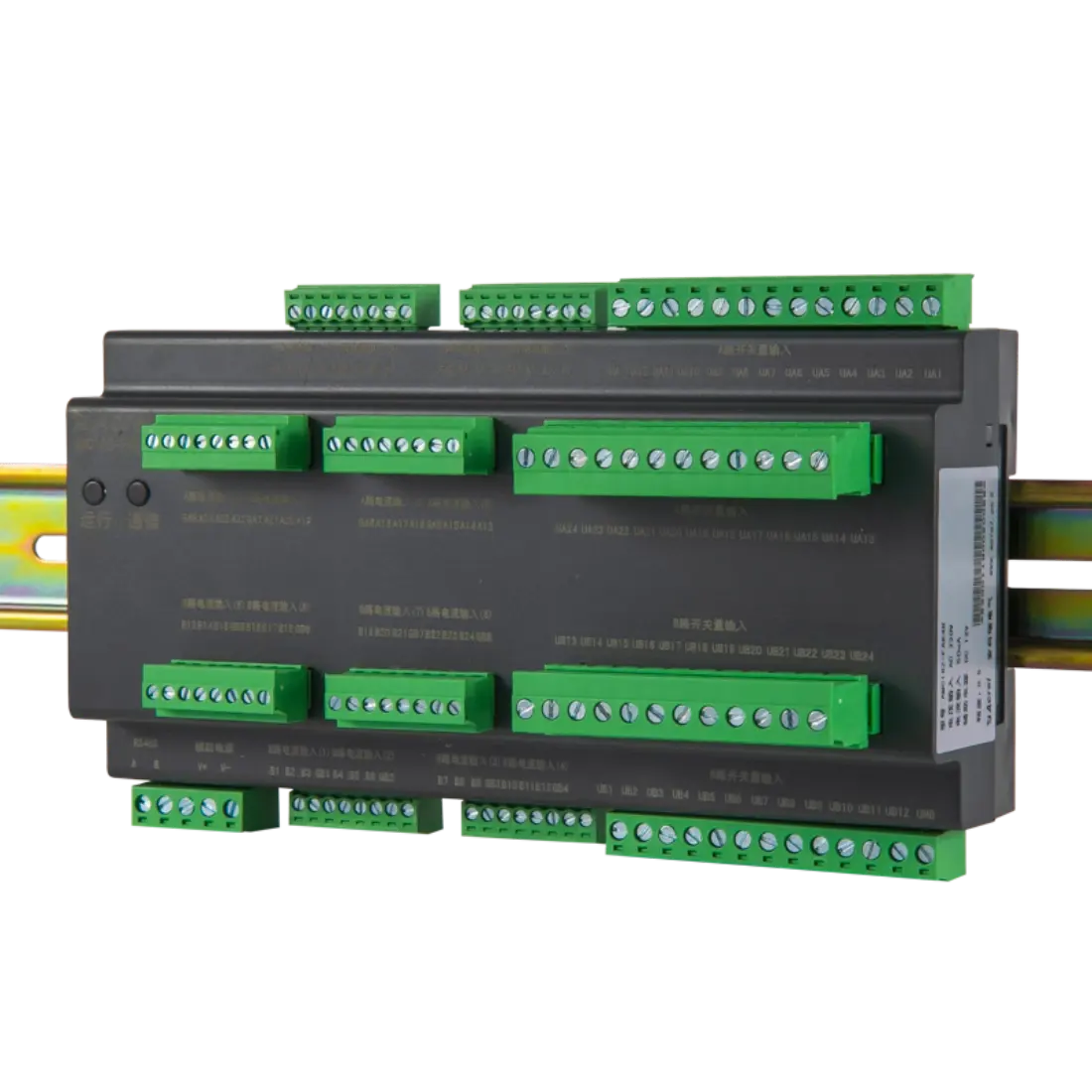

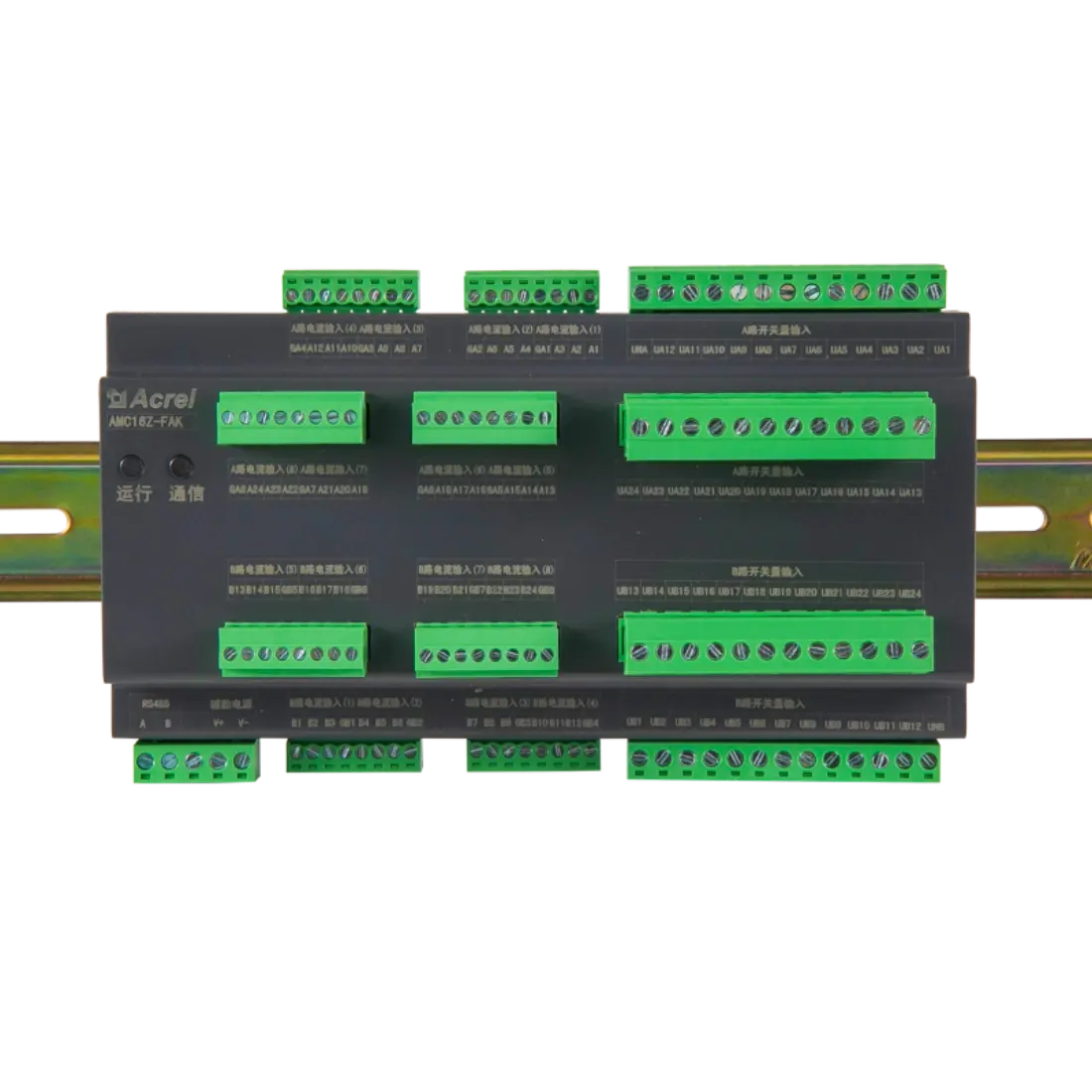

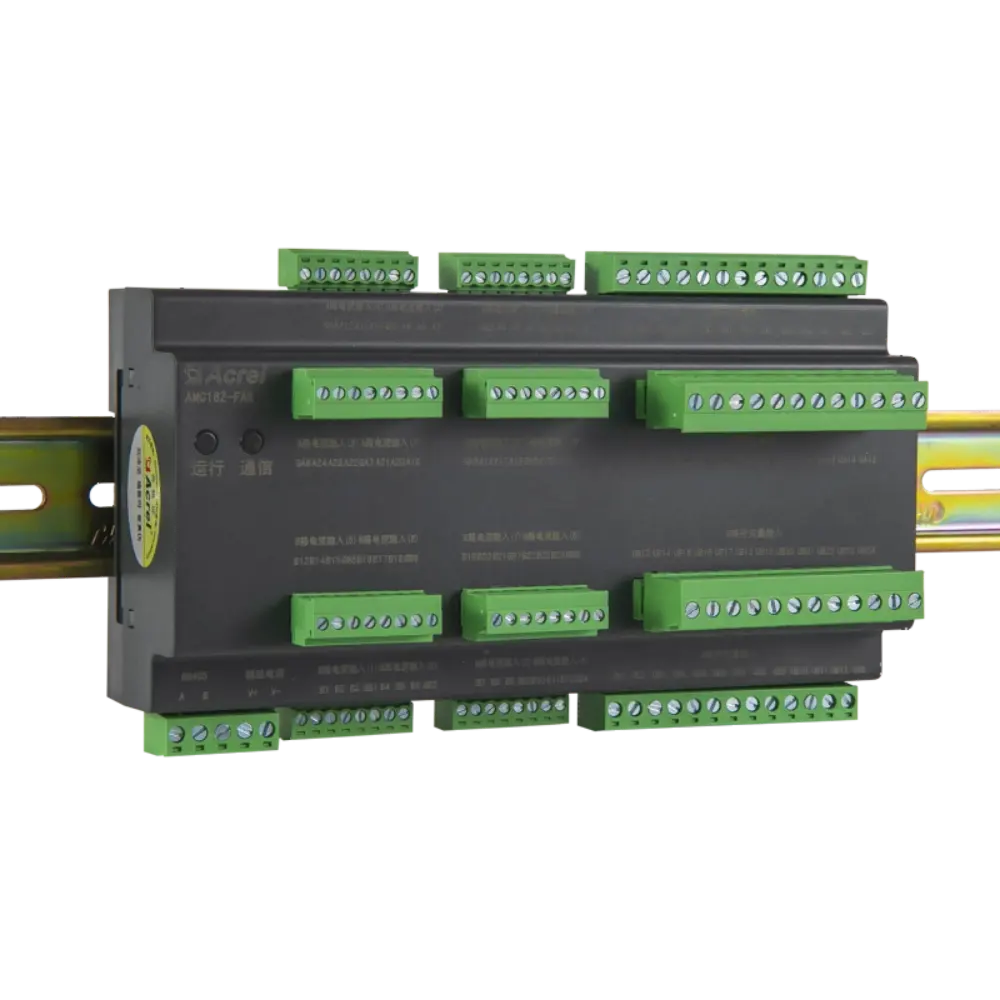

    • AMC16Z-FAK48 Multi channel din rail ac power meter
    • AMC16Z-FAK48 Multi channel din rail ac power meter

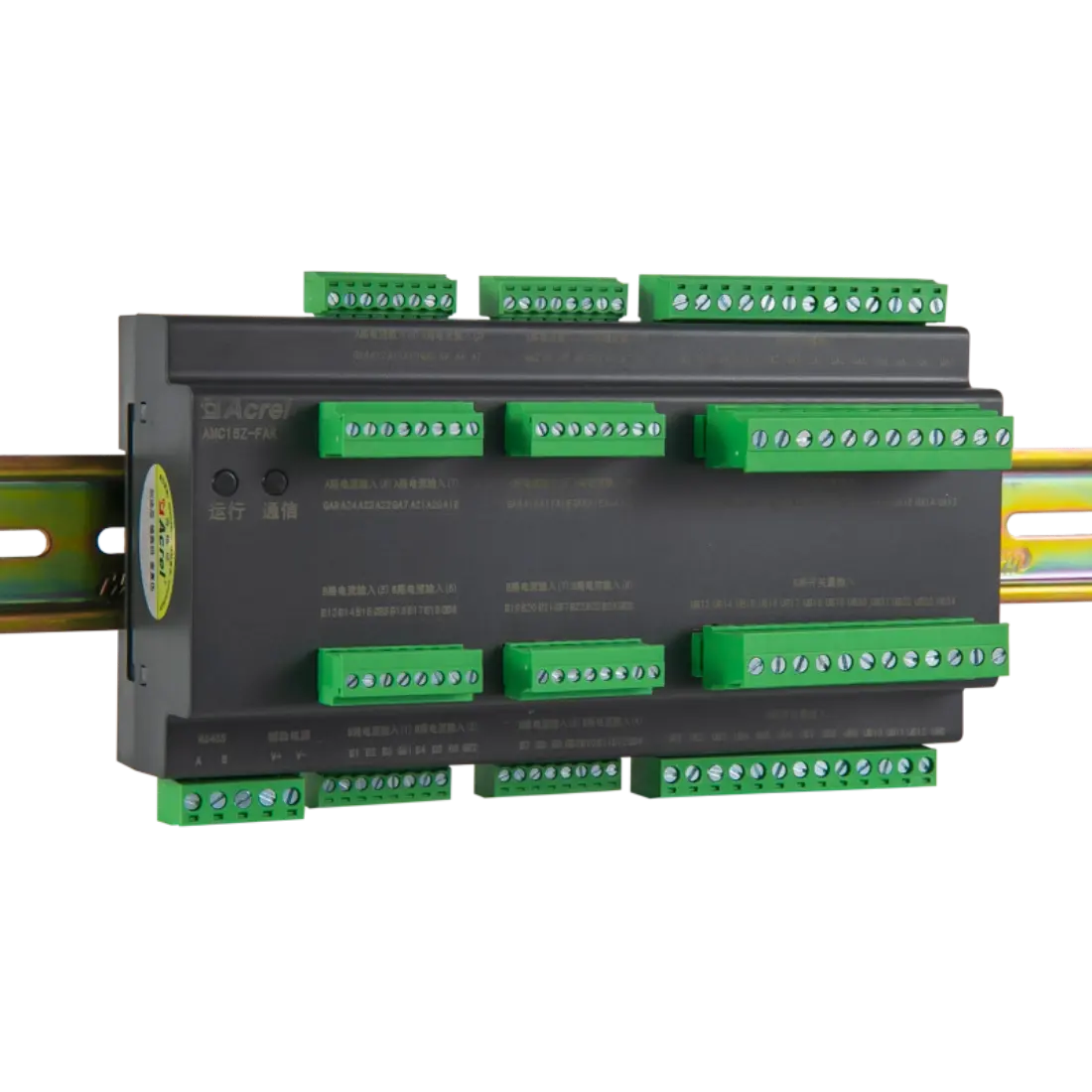

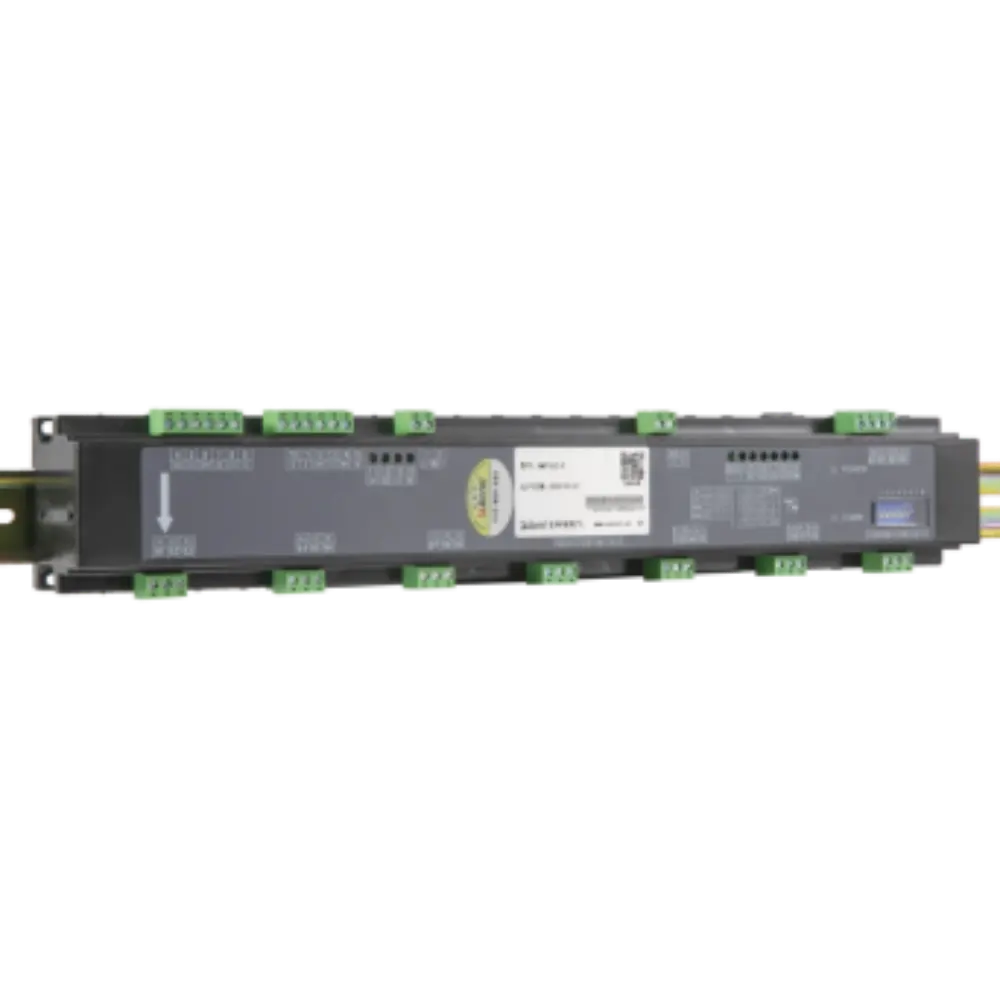

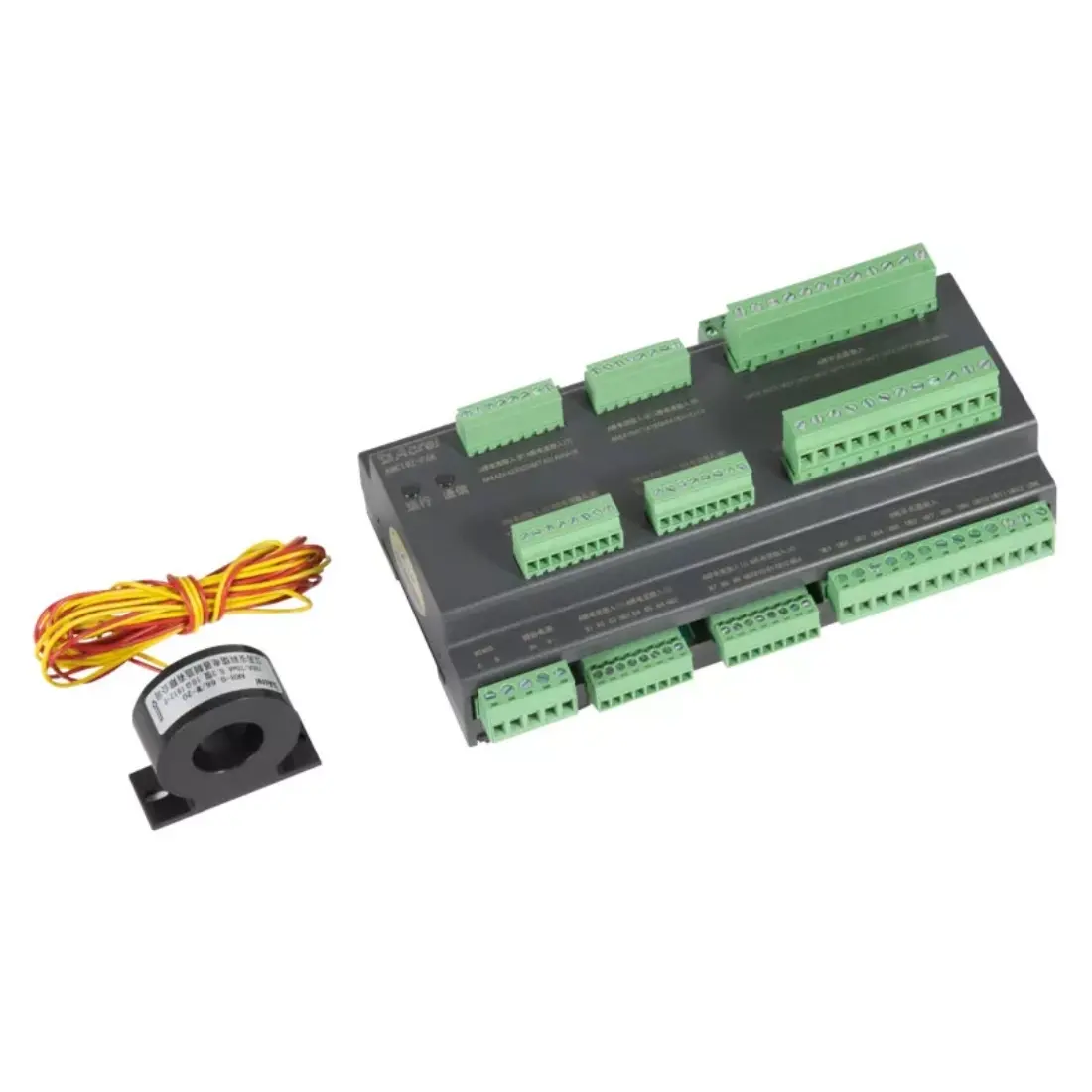

    AMC16Z-FAK48 Multi channel din rail ac power meter

    Product Description

    ● Monitoring: AC Outgoing Branch Circuits Multi-metering (1-phase & 3-phase)
    ● Measurement: Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor and etc
    ● Power Quality: 2nd~31st&Total Harmonic
    ● Communicaiton: RS485 (MODBUS-RTU)
    ● Rated Voltage: 220~264Vac L-N
    ● Rated Current: 50mA AC (via -/50mA CTs)
    ● Standard&Certificate: CE; IEC; LVD
    WhatsApp contact us

    • Detailed description

    • Parameters

    • Certificate

    • Download

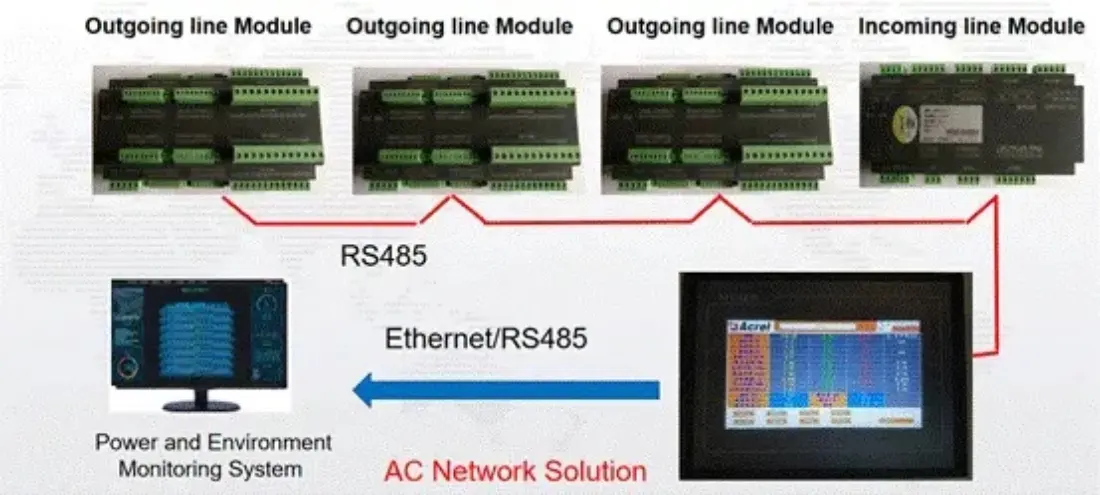

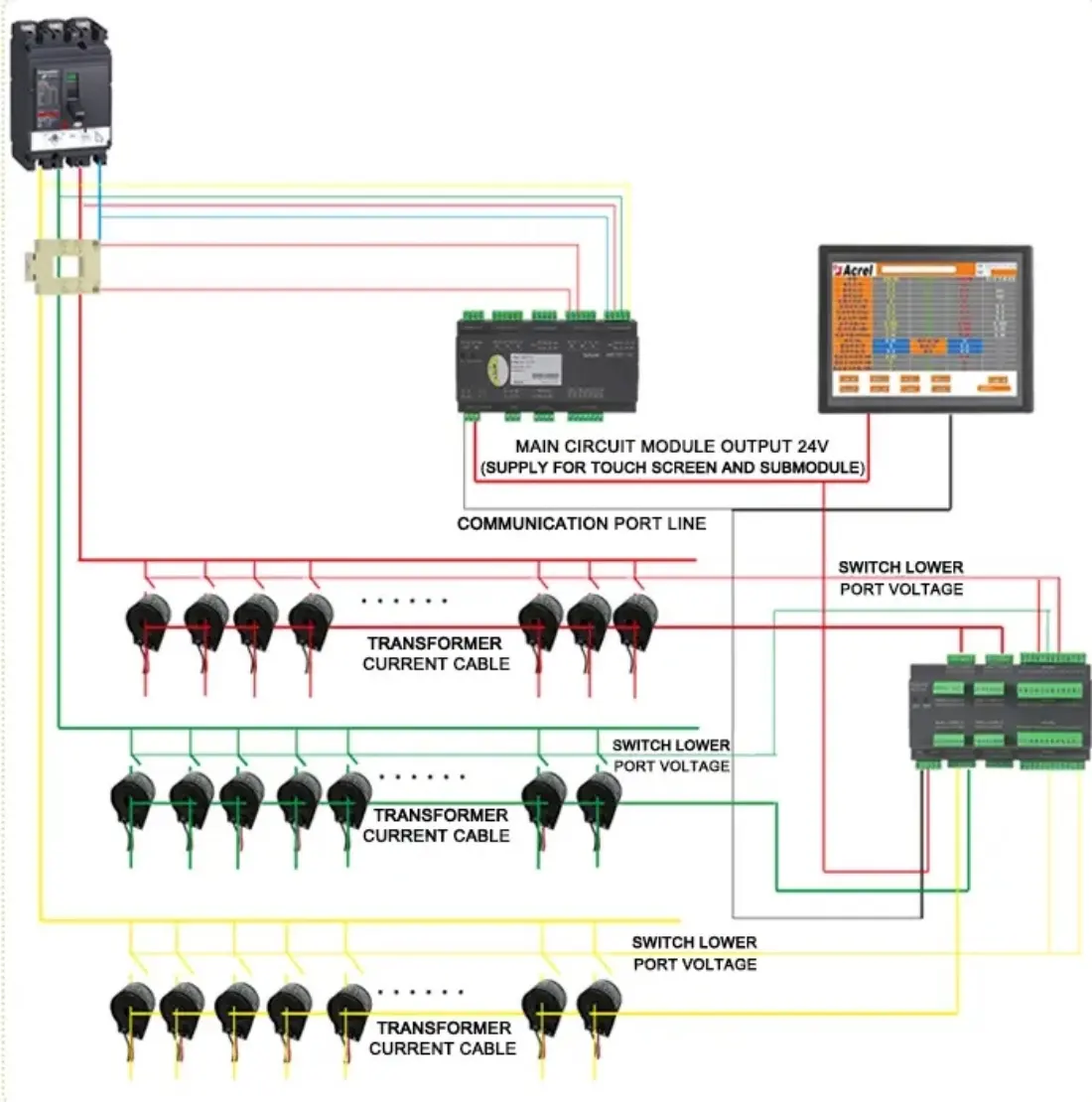

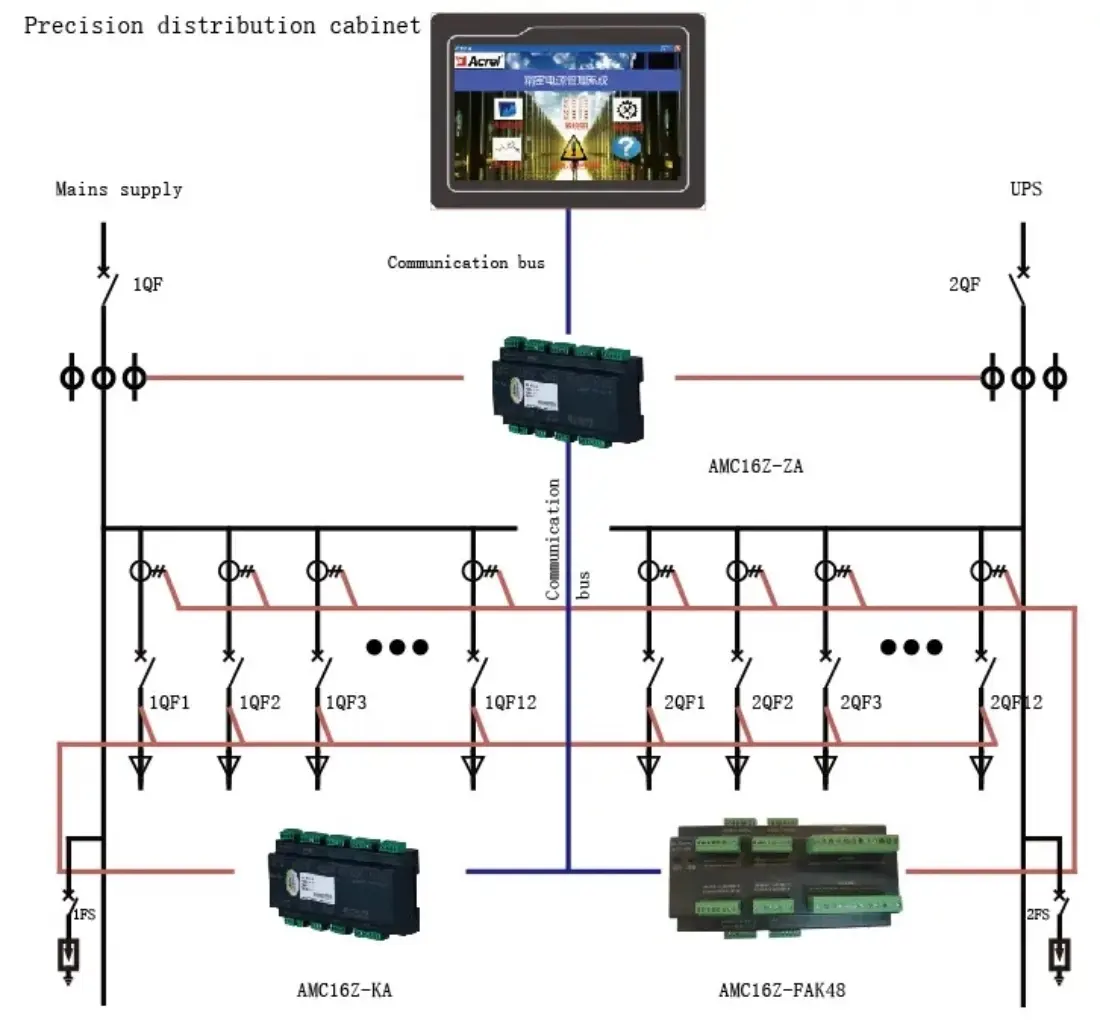

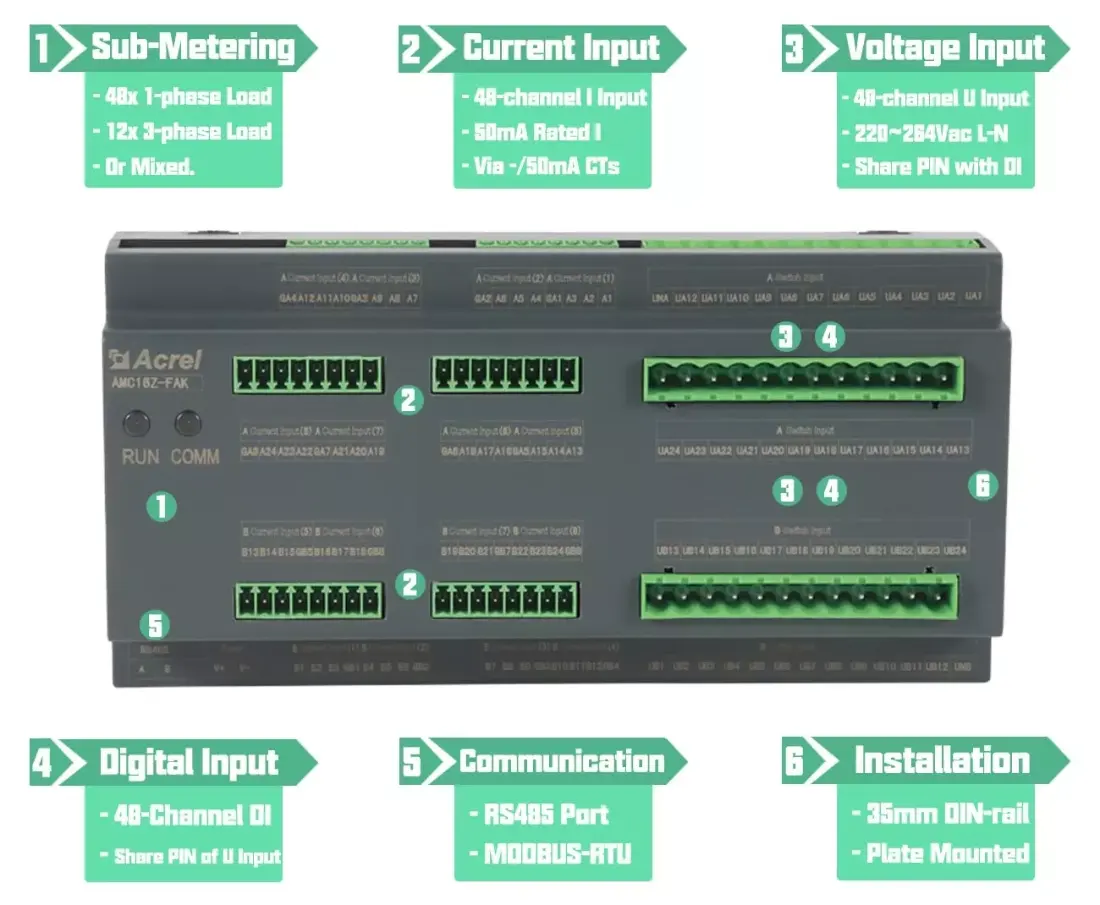

    • 48 channels of A+B double way AC outgoing line
    • total harmonic content (THD), 2-63 harmonics
    • Switch input: 6-way dry contact
    • 1-way RS485 communication and phase adjustment
    • Certification: CE EAC MID

    Shape Model Function FOB Shanghai
    （USD）    		 Option function and price(USD)
    AMC16Z-ZA Monitor the full power parameters of A+B double-way three-phase AC incoming circuit, Neutral ground voltage, neutral current,6-way switch state monitoring, 2-way alarm output, 2-way leakage communication, and phase-sequence detection. 130 1.Temp & Humidity sensor
    2.Leakage current trandformer
    AMC16Z-ZD Monitor the full power parameters of 24 branches of A+B double-way AC outgoing line, 1-way RS485 communication and phase adjustment. 118 Temp & Humidity sensor
    AMC16Z-KA Wet contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication. 88 /
    AMC16Z-KD Dry contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication. 88 /
    AMC16Z-FAK24  Monitor the full power parameters and switch state of 24 branches of A+B double way AC outgoing line, 1-way RS485 communication and phase adjustment. 175 /
    AMC16Z-FAK48 Monitor the full power parameters and switch state of 48 branches of A+B double way AC outgoing line, 1-way RS485 communication and phase adjustment. 266 /
    AMC16Z-FDK24 Monitor the full-power parameters and switching status of A+B double-channel DC outlet 24and 1-channel RS485 communication. 175 /
    AMC16Z-FDK48 Monitor the full-power parameters and switching status of A+B double-channel DC off-line 48 sub-lines and 1-channel RS485 communication. 266 /
    AMC16Z-D Monitor the full power parameters of three-phase incoming circuit,Neutral ground voltage, neutral current, 4-way switch state monitoring, 2-way alarm output, 2-way leakage communication,Full power parameters of 21-way single-phase outgoing lines (7-way three-phase) 266 1.Temperature monitoring(T)+30
    2.Temperature sensor+8
    3.Leakage monitoring(L)+30
    4.Harmonic and demand measurement(H)+30



    Technical parameters AMC16Z-FAK24 AMC16Z-FAK48
    Measurement parameters Voltage, current, frequency, active power, reactive power, power factor, active power, reactive power, switching state
    2-31 times harmonics
    Bus Voltage Rated 220VAC
    Measurement ±20%
    Overload Instantaneous voltage 2 times/second
    Current outgoing line
    loop    		 Rated 50mA
    Range 0.125～60mA
    Overload Duration 1.2 times, instantaneous 10 times/second
    Input frequency 45～60Hz
    Measurement accuracy Outgoing line Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1
    Auxiliary power supply Power supply by AMC16Z-ZA
    Environment Temperature Working:-15℃～55℃ Storage:-25℃～70℃
    Humidity Relative humidity
    Altitude ≤2500m
    Communication RS485/Modbus-RTU

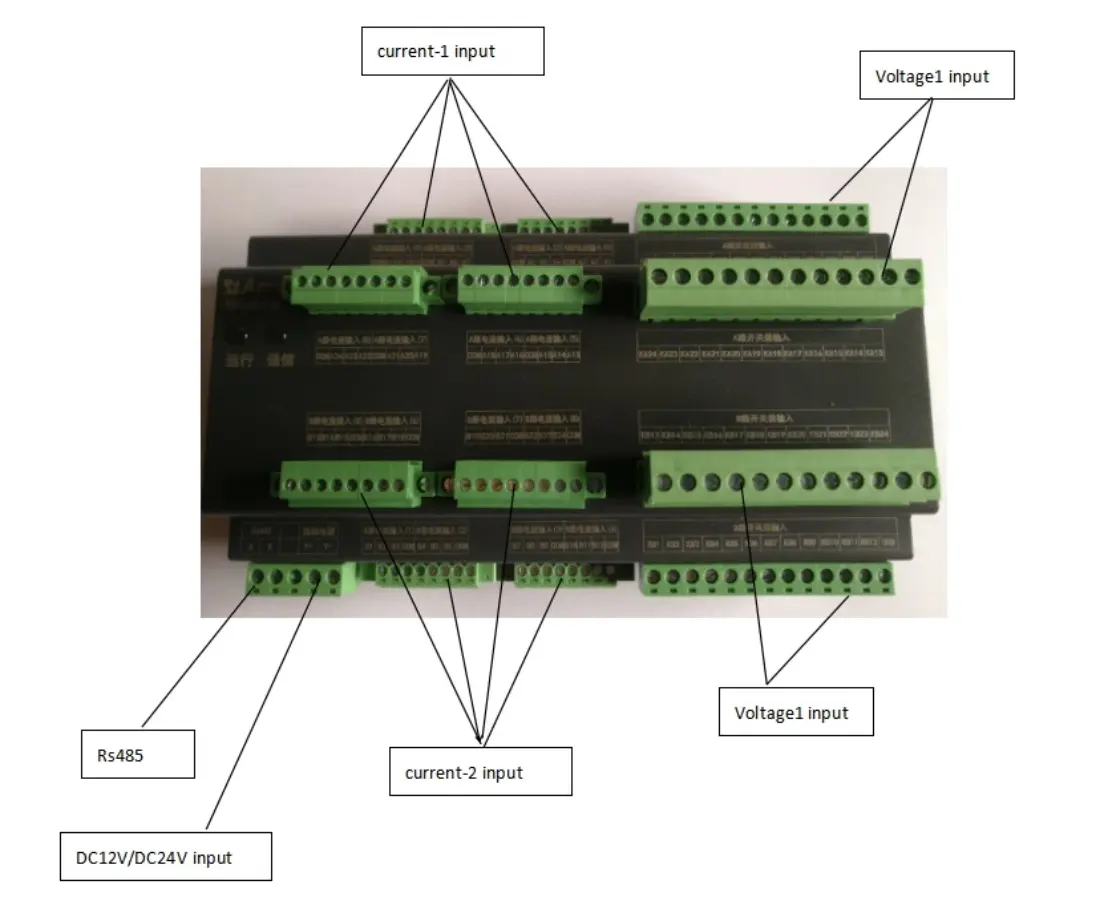

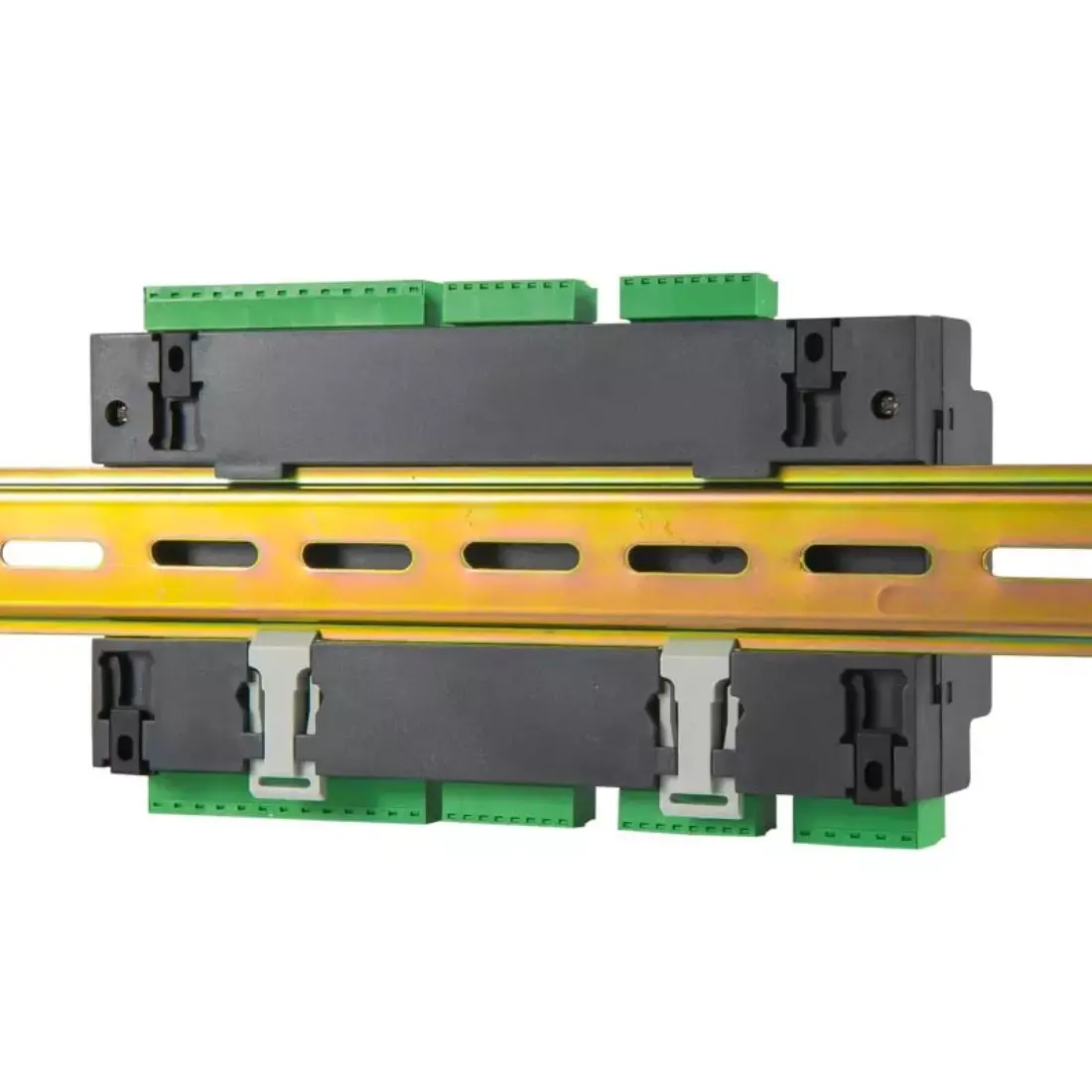

    Installation method DIN35mm Guide rail or bottom plate mounting
    IP grade IP20
    Class of pollution 2
    Safe Insulation All terminals and the insulation resistance between the conductive pieces not below 100 m Ω
    Withstand voltage A-channel voltage and current signal // B-channel voltage and current signal // other ports meet AC2kV 1min between pairs, leakage current should be less than 2mA, no breakdown or flashover phenomenon.
    Electromagnetic compatibility Anti static interference Level 4
    Resistance to radiation of Radio frequency electromagneti Level 3



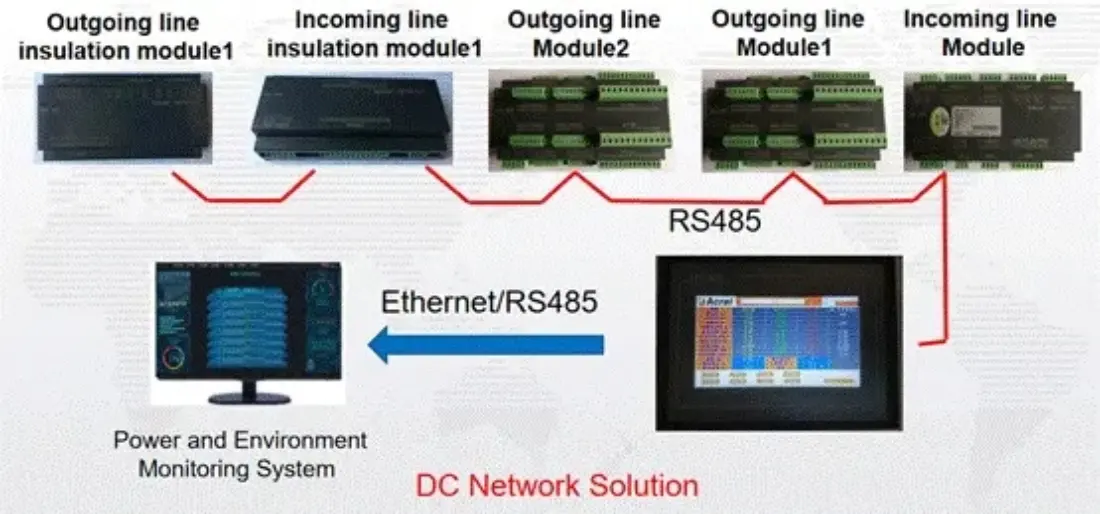

    Ty Model Function description

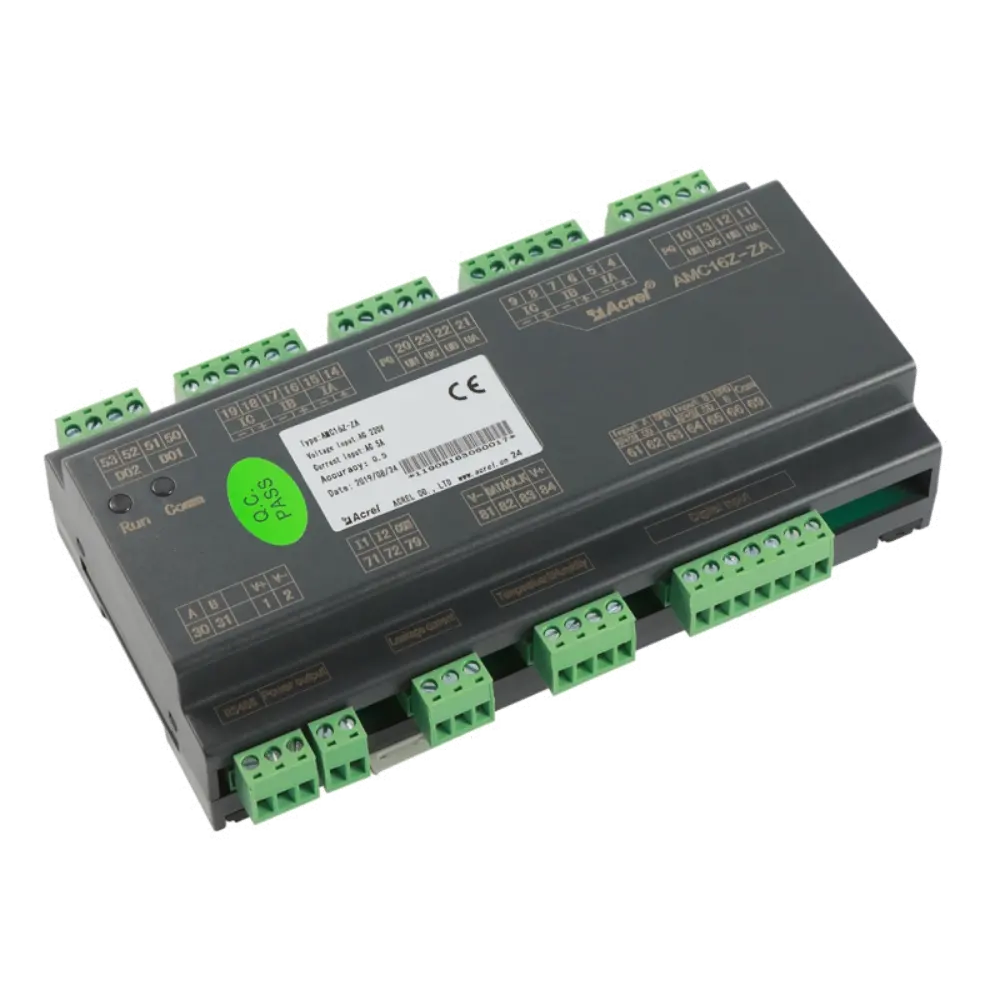

    AMC16Z-ZA Monitor the full power parameters of A+B double-way three-phase AC incoming circuit, 6-way switch state monitoring, 2-way alarm output, 2-way leakage communication, and phase-sequence detection.
    AMC16Z-FA Monitor the full power parameters of 24 branches of A+B double-way AC outgoing line, 1-way RS485 communication and phase adjustment.
    AMC16Z-FAK24  Monitor the full power parameters and switch state of 24 branches of A+B double way AC outgoing line, 1-way RS485 communication and phase adjustment.
    AMC16Z-FAK48 Monitor the full power parameters and switch state of 48 branches of A+B double way AC outgoing line, 1-way RS485 communication and phase adjustment.
    AMC16Z-KA Wet contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
    AMC16Z-KD Dry contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
    AMC16Z-AC220V AC220V extended power supply, and use when the monitoring circuit is beyond 96
    branches of A+B
