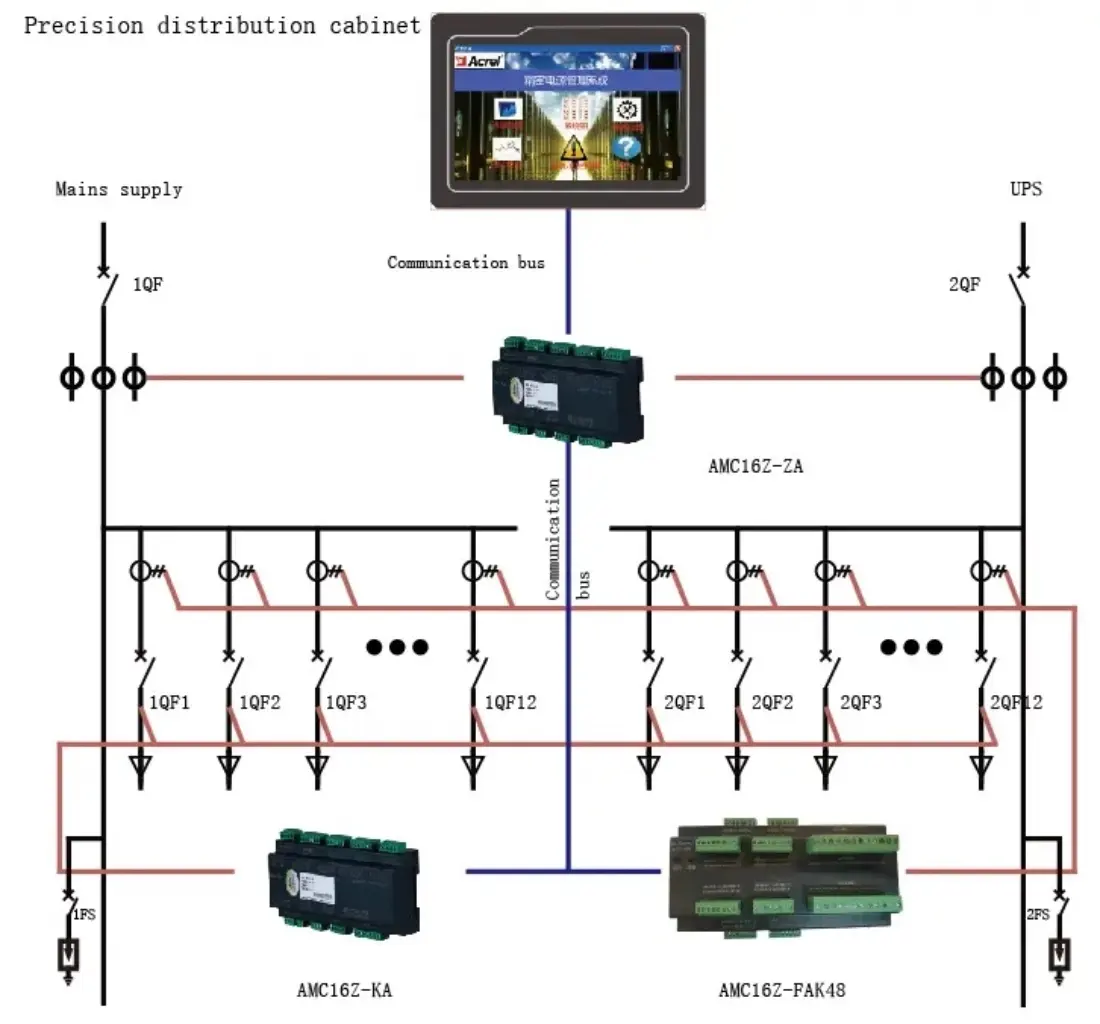

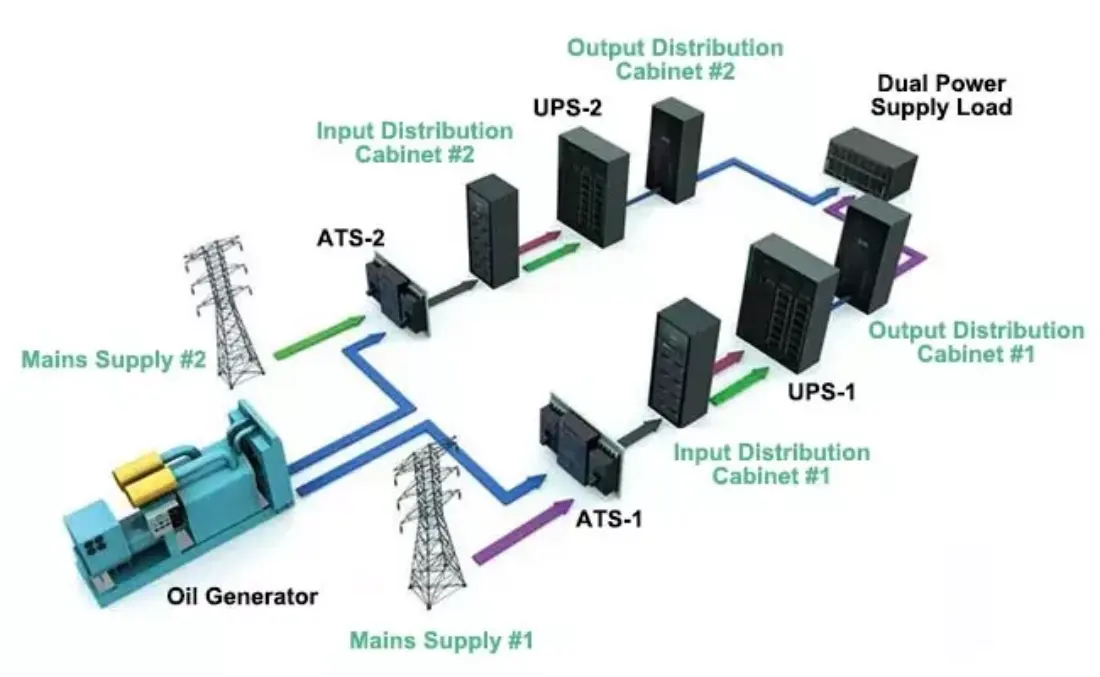

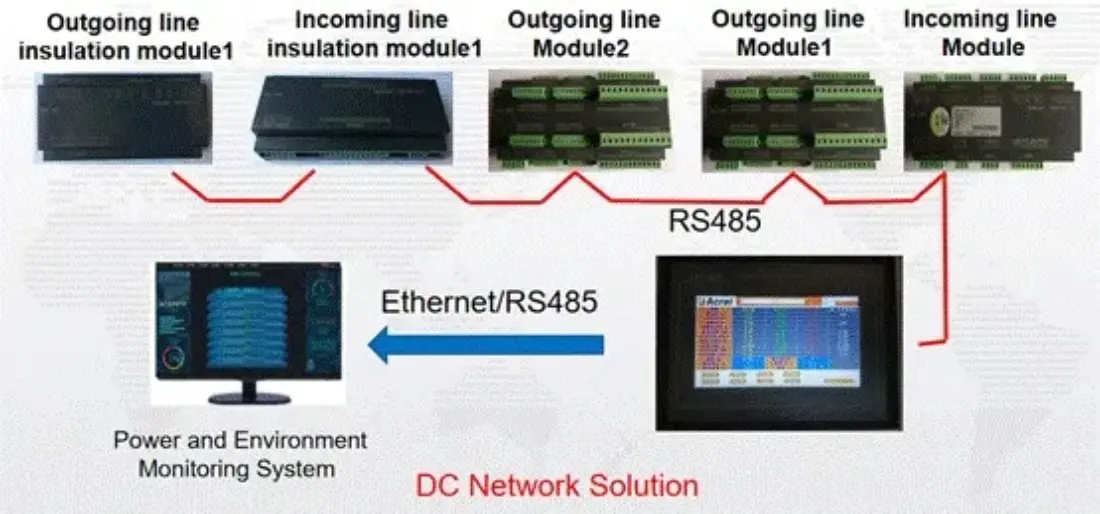

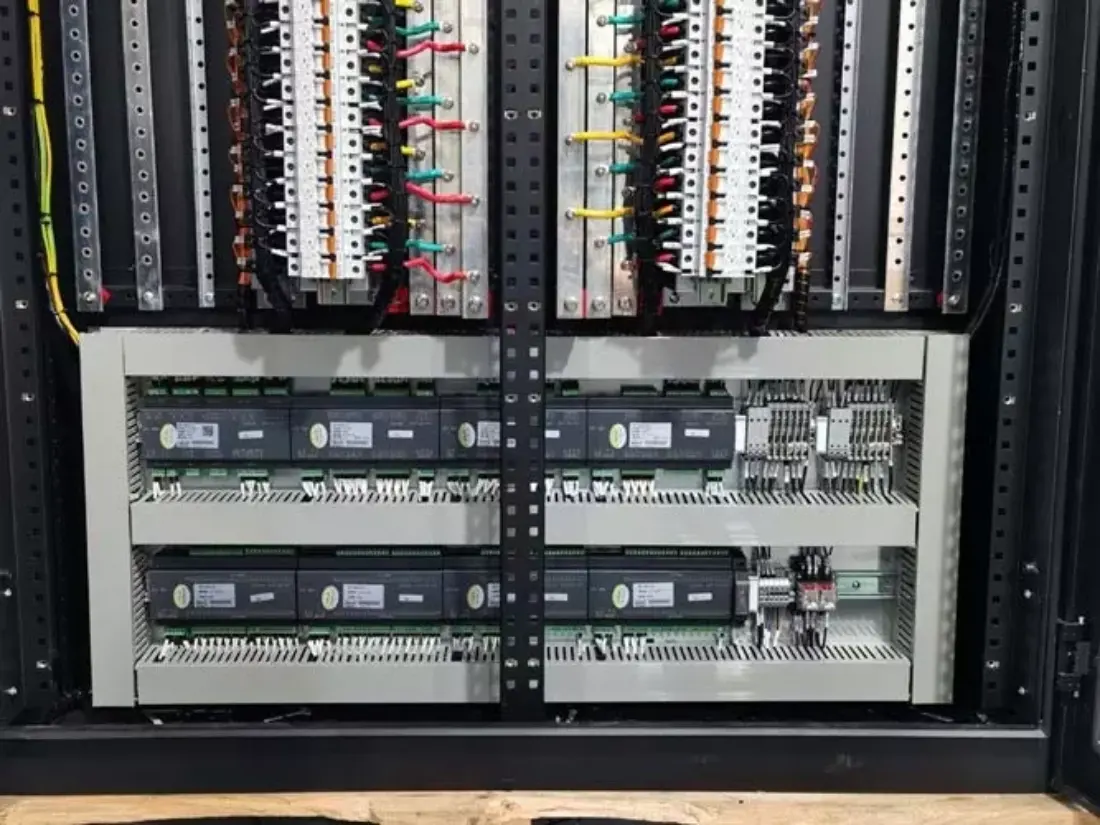

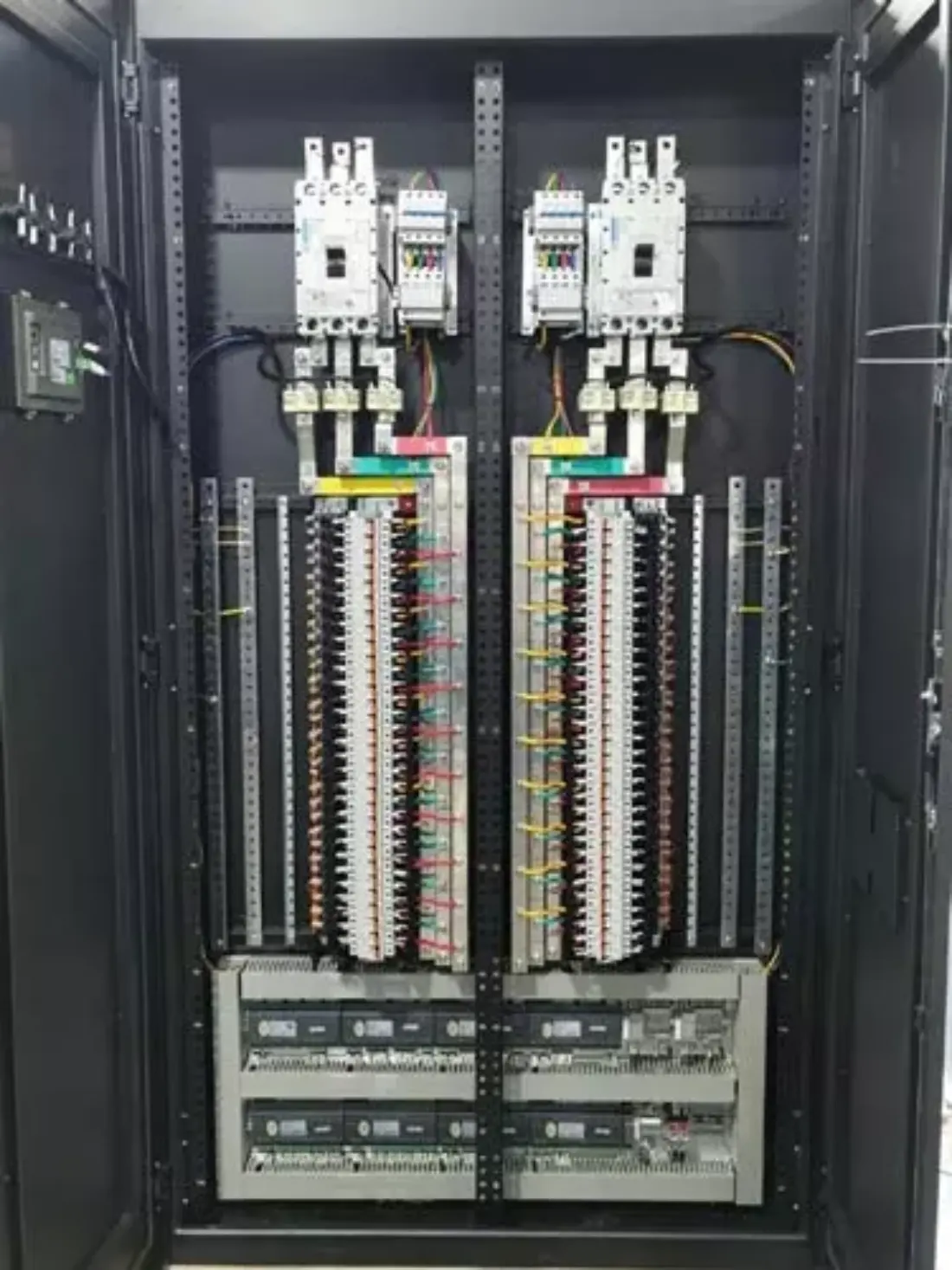

Acrel AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management. The device is designed exquisite and can provide real-time monitoring for A+B two incoming and 96 outgoing circuits’ all electric parameters, input and output switch and lightning arrester status, all alarm threshold of measuring channels can be set separately, line-crossing and limit-exceeding instantly trigger the audible and visual alarm, realizing the high integration of monitoring circuits in the volume of traditional meters.

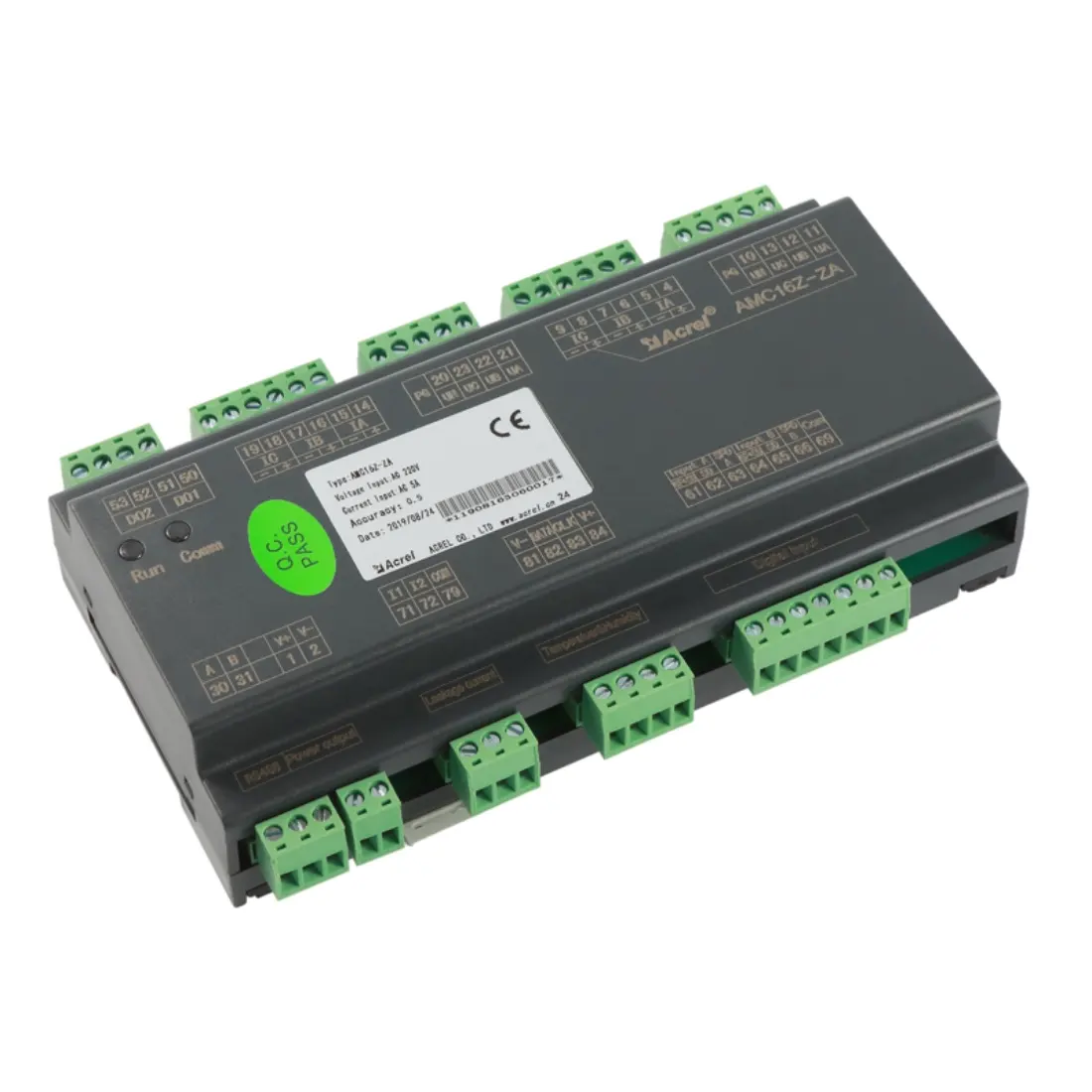

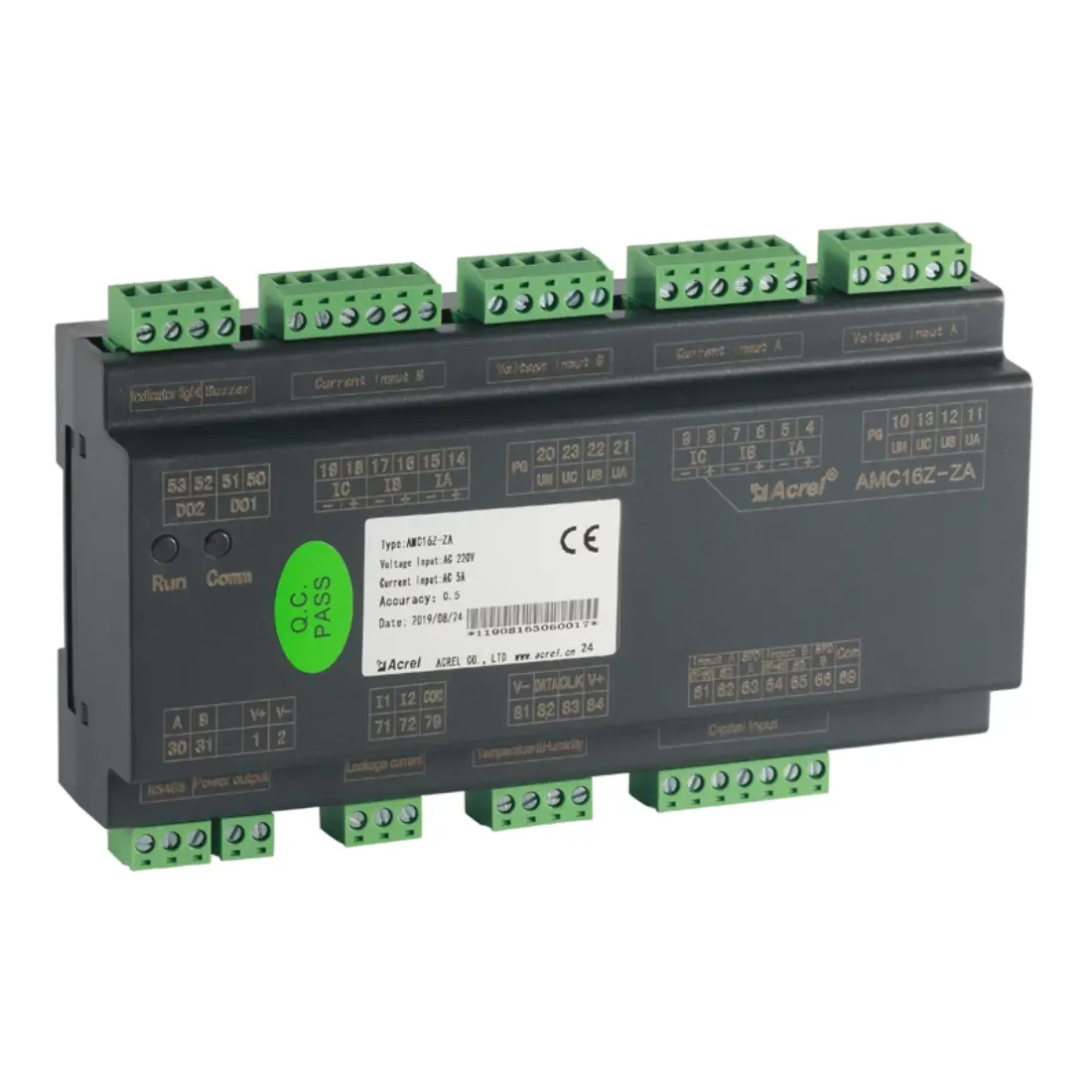

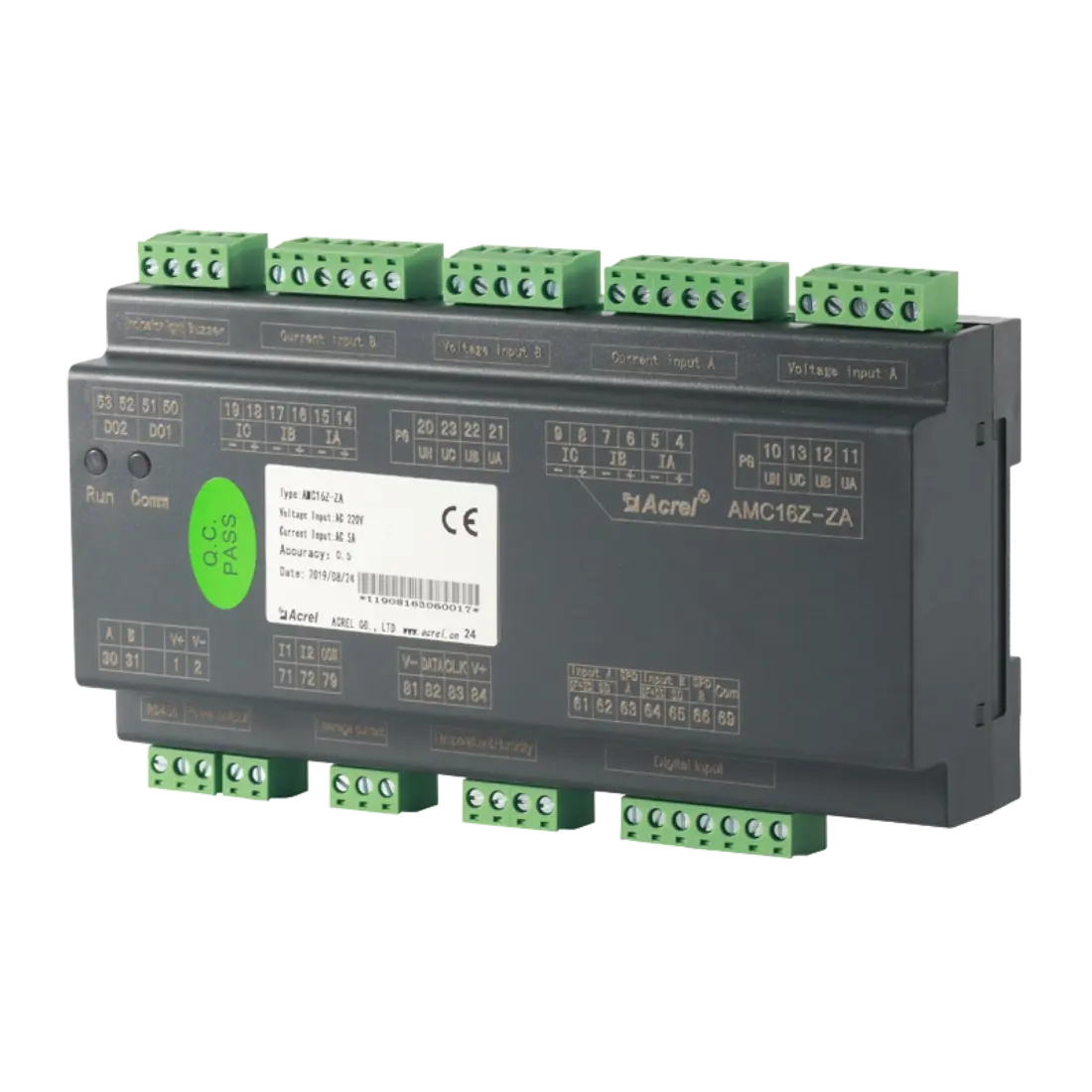

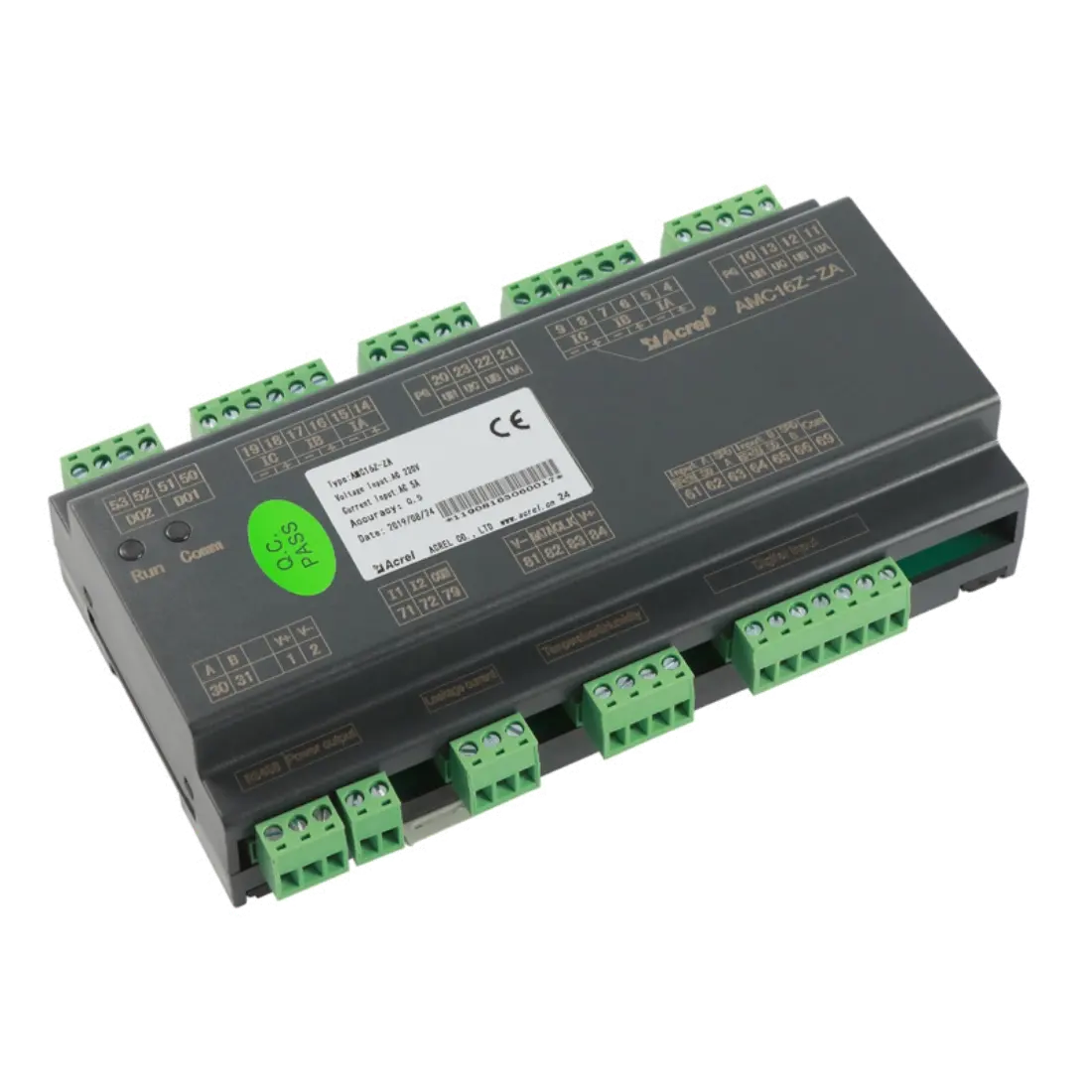

AMC16Z-ZA AC multi channel energy meter
Product Description
-
Detailed description
-
Parameters
-
Certificate
-
Download
-

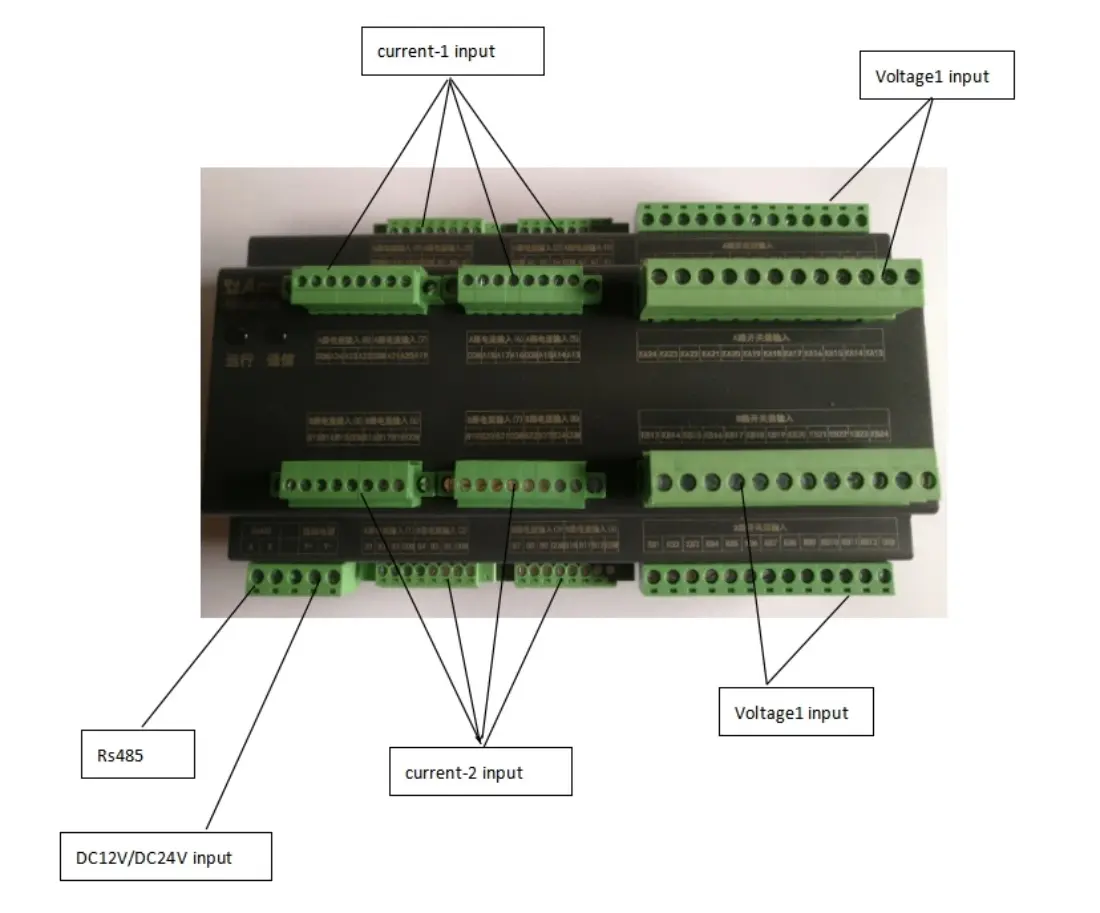

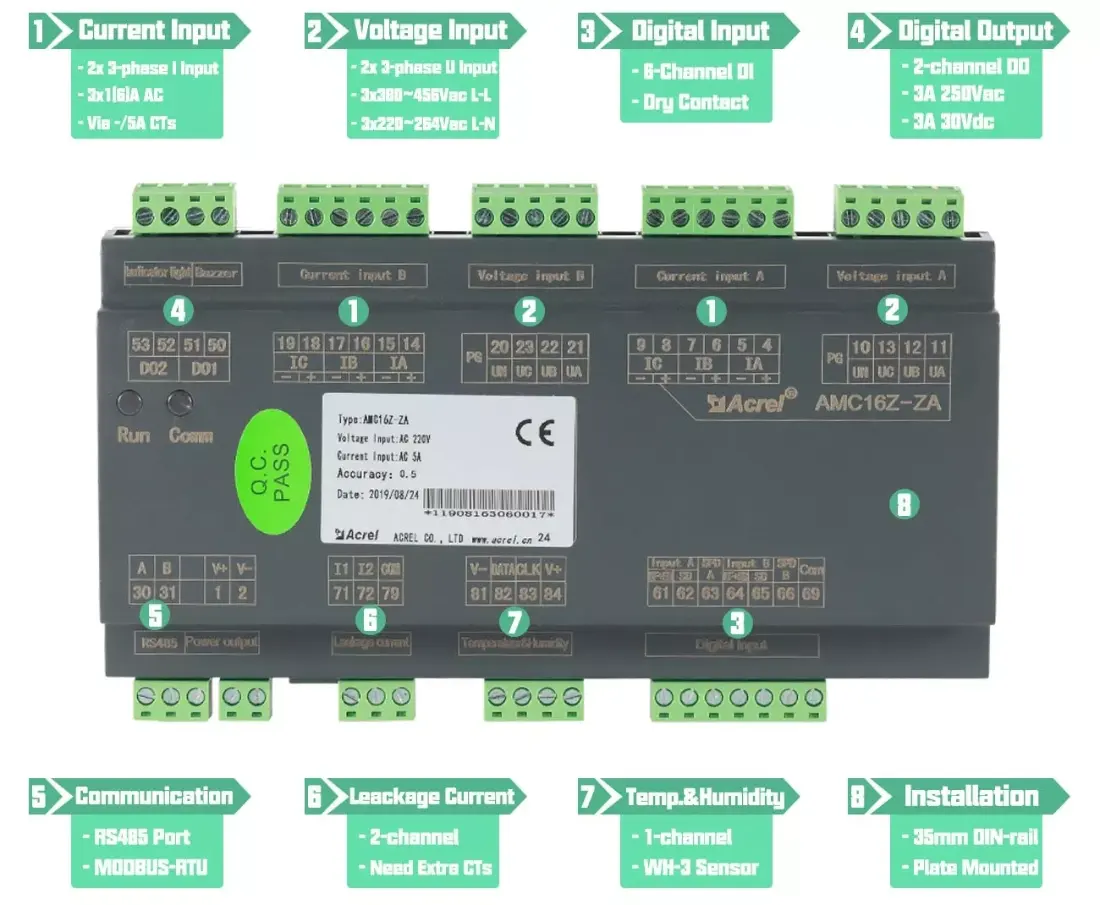

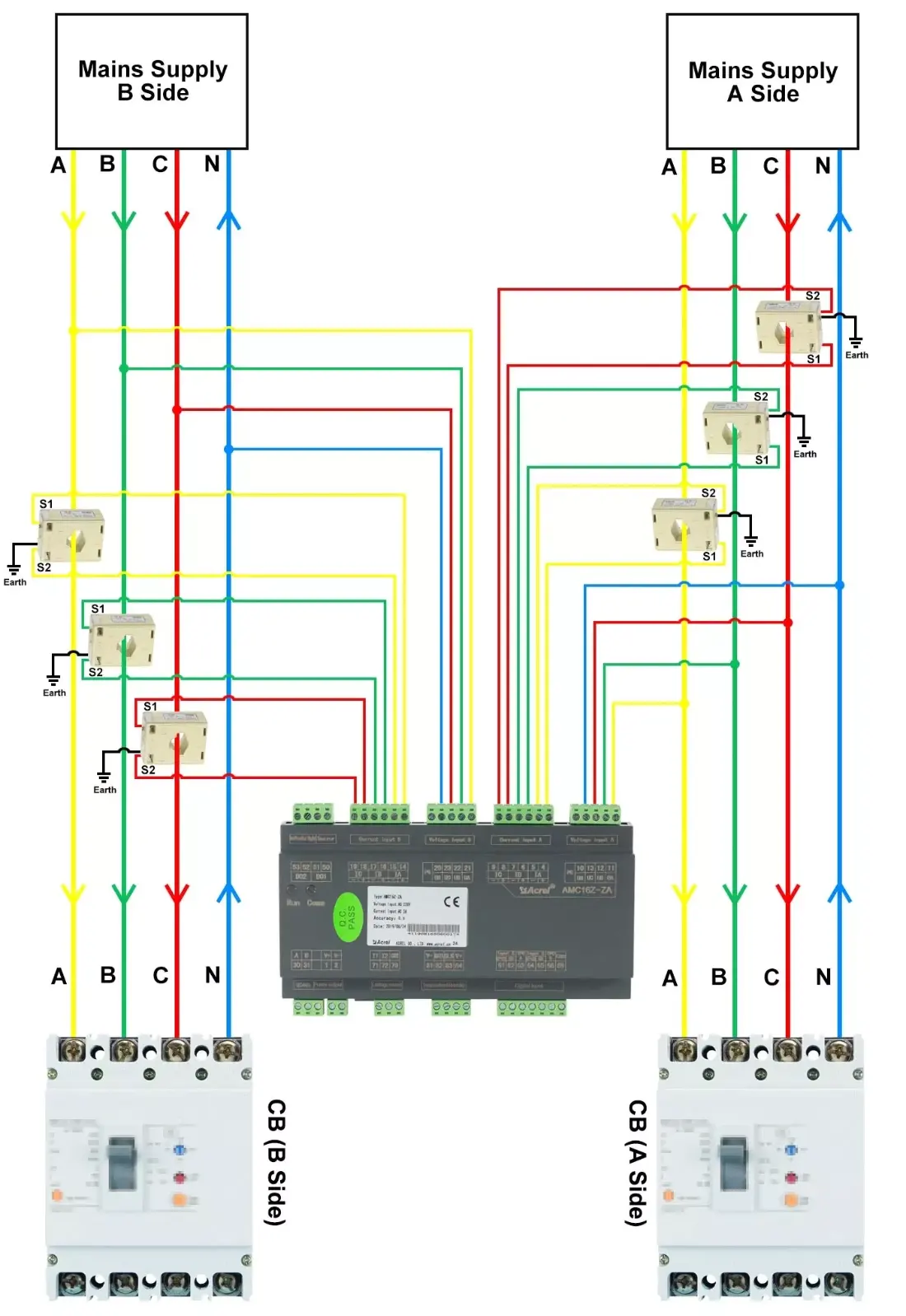

- AC Input Lines
- 6-way dry contact
- Monitor the full power parameters
- RS485/Modbus-RTU
- DIN35mm guide rail or base plate installation
-
Type
AMC16Z-ZA(-P24)
Measured parameters
Voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy
Zero ground voltage, zero sequence current, total harmonic content (THD),2-63 harmonics, current and voltage unbalance degree, current K factor (KF), voltage crest factor (CF), telephone waveform factor (THFF), peak voltage, voltage and current sequence quantity, environmental temperature and humidity.
Busbar voltage
Rated
220VAC
Measurement range
±20%
Overload
Instant voltage 2 times/s
Current input circuit
Rated
Twice 5A
Range
0～6A
Overload
Duration 1.2 times, instantaneous 10 times/s
Temperature and humidity
Temperature range
-40℃～+99℃
Humidity range
20%～90%
Input Frequency
45～60Hz
Measurement precision
Inlet wire
Voltage/current 0.2 Class, active power/electric energy 0.5 Class, reactive power/electric energy 1 Class
Temperature
±1℃
Humidity
±5%
Auxiliary power supply
AMC16Z-ZA: signal power supply (≤15W)
AMC16Z-ZA-P24:DC24V independent auxiliary power supply
Environment
Temperature
Work: -15℃～55℃ Storage: -25℃～70℃
Humidity
Relative humidity≤93%
Altitude
≤2500m
Switch output
2-way 3A 250VAC/3A 30VDC
Switch input
6-way dry contact

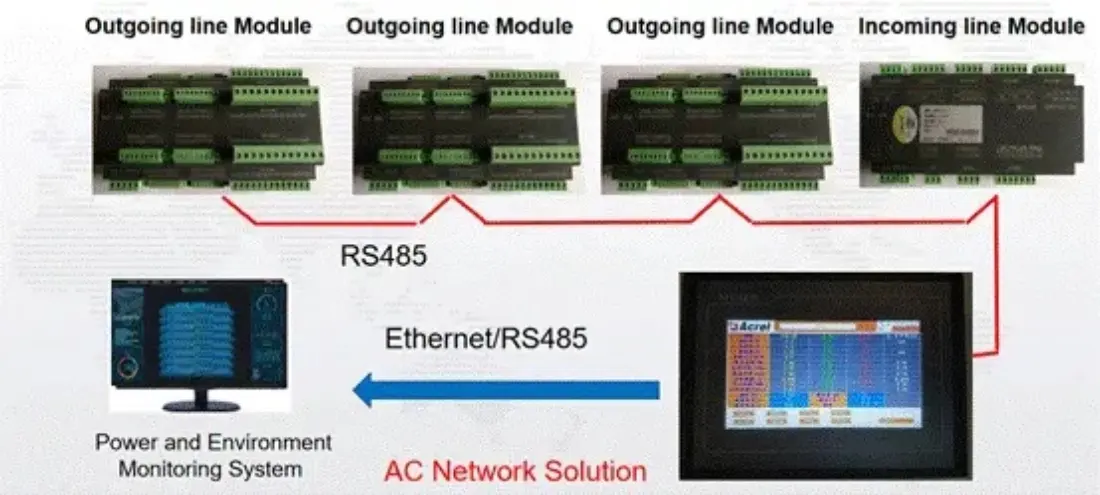

Communication
RS485/Modbus-RTU

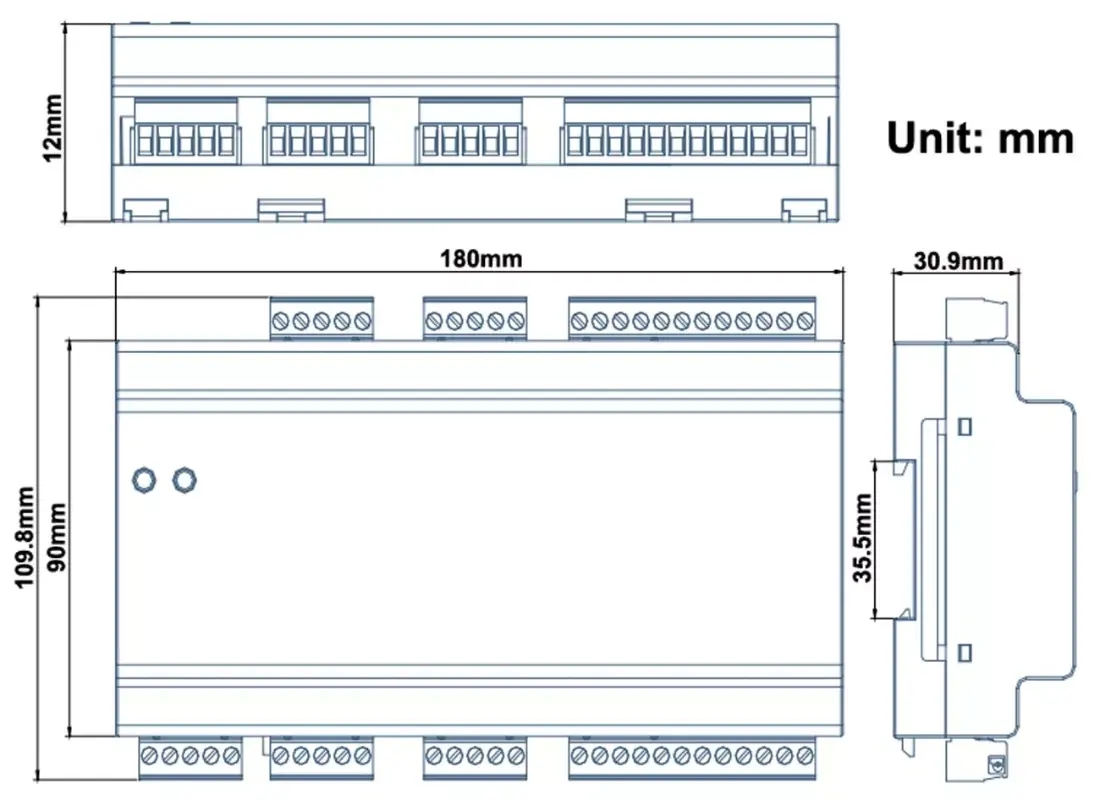

Installation method
DIN35mm guide rail or base plate installation
Protection degree
IP20
Pollution degree
2
Safety
Insulation
Insulation resistance between all the terminals and shell conductive parts not less than 100MΩ
Withstand voltage
Circuit A voltage current signal, Circuit B voltage current signal, between the switch output and other terminals meeting AC2kV 1min, between the switch input and other terminals meeting AC0.5kV 1mim, leakage current should be less than 2mA, no breakdown or flashover.
Electromagnetic compatibility
Static interference immunity
Level 4
Electrical fast transient burst immunity
Level 3
Surge interference immunity
Level 4
RF electromagnetic field radiation immunity
Level 3
-
