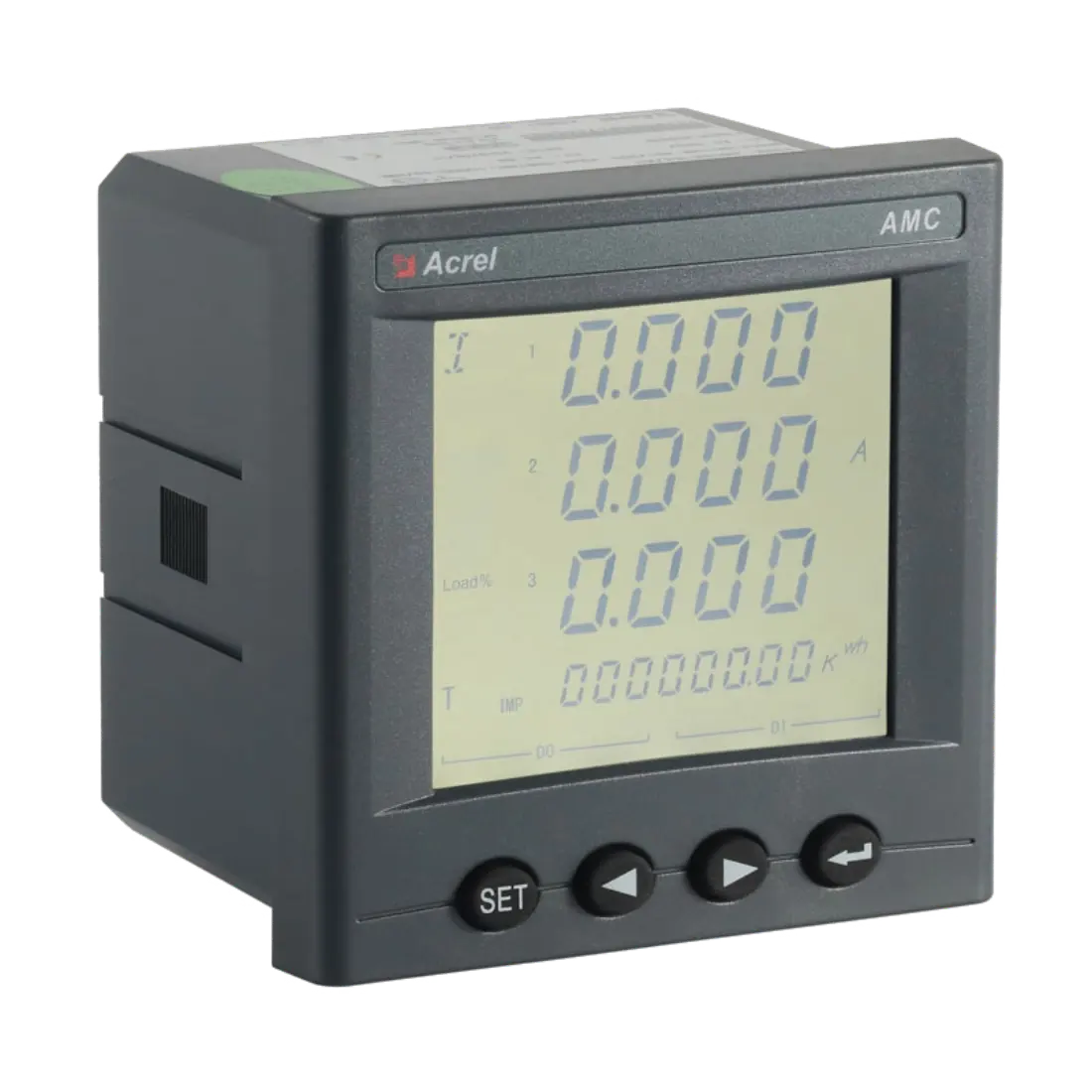

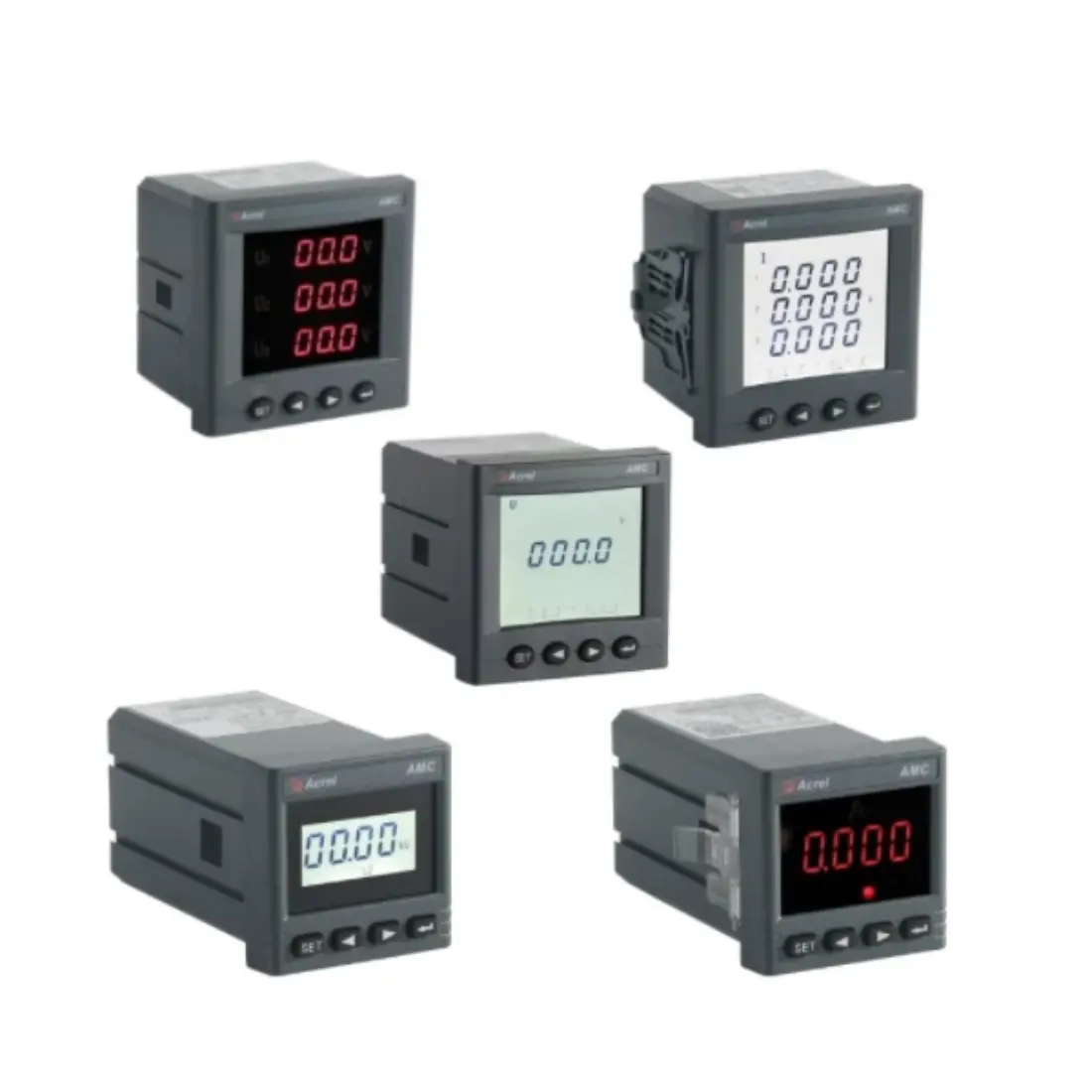

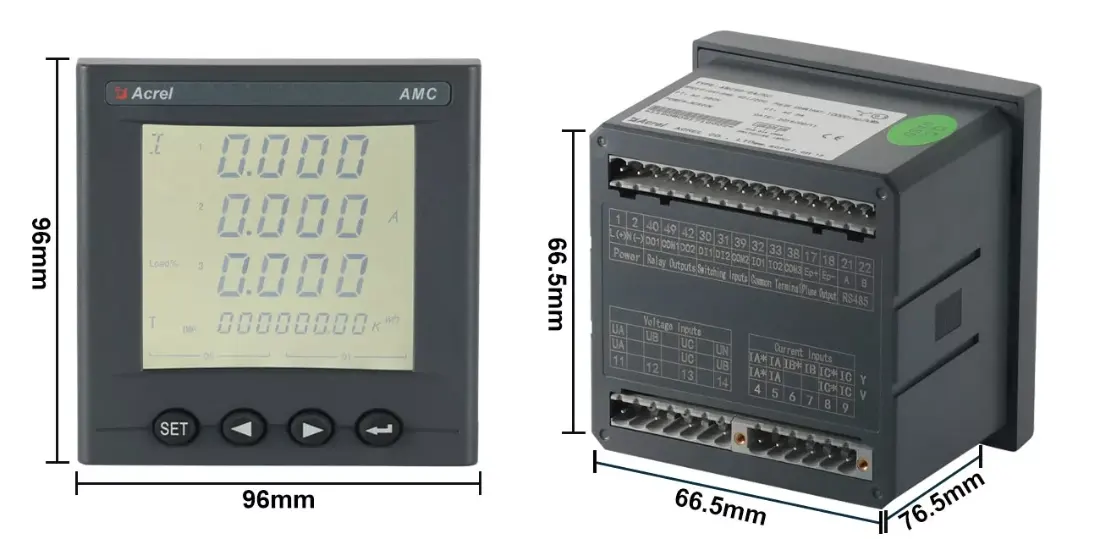

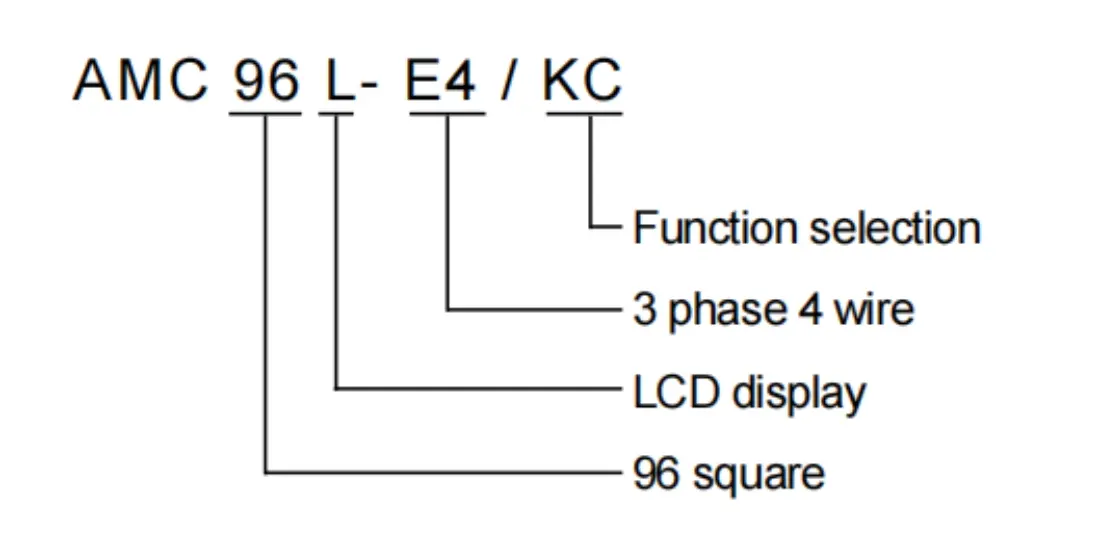

AMC96L-E4KC Three Phase Multi-function Panel Kwh Meter

Product Description

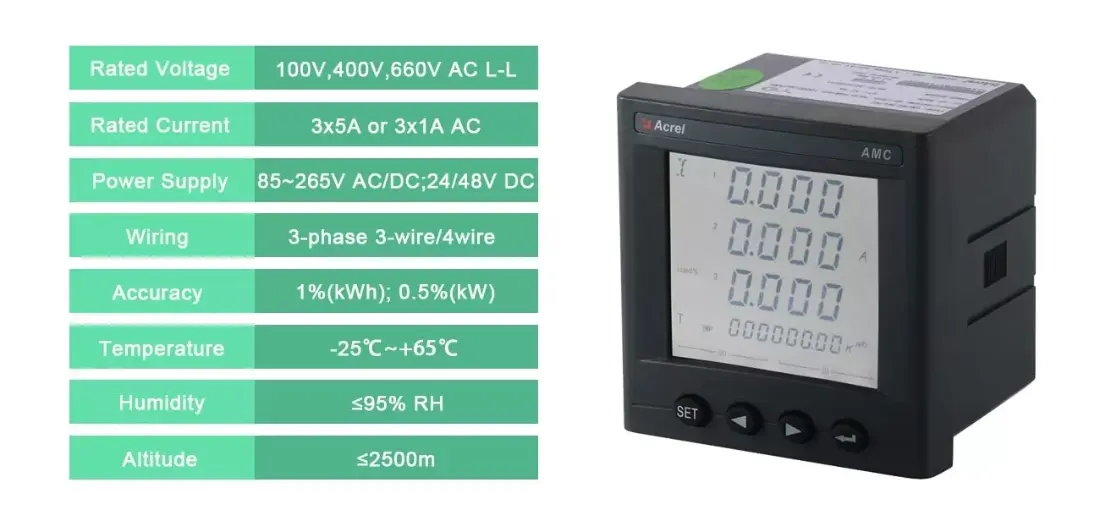

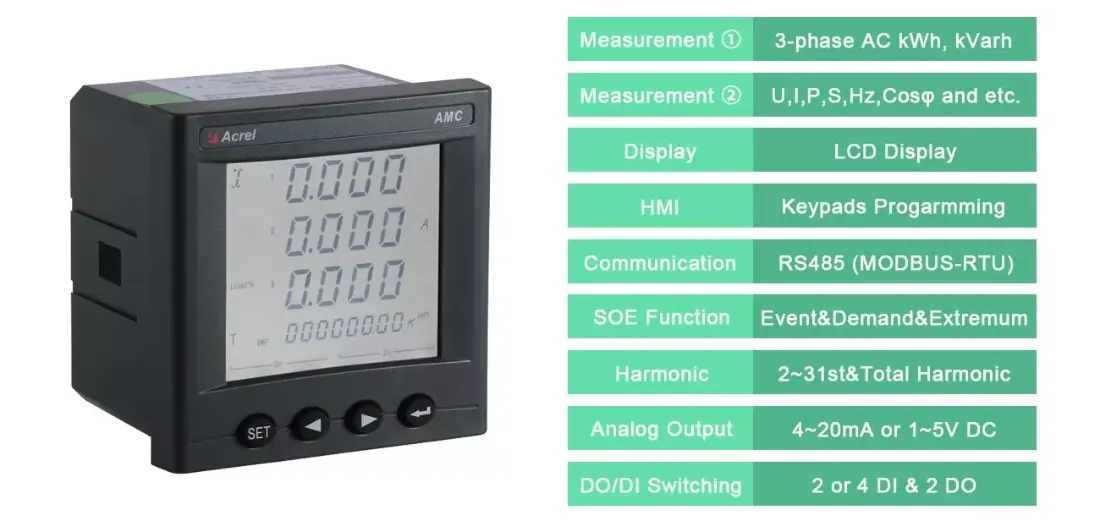

● Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc

● Accuracy: 1% (kWh); 0.5% (Active Power)

● Rated Voltage: 400V or 660V AC L-L (direct connect); 100V AC L-L (via PTs)

● Rated Current: 5A AC or 1A AC (via CTs)

● Power Supply: 85~265V AC/DC; 24V or 48V DC

● Communication: RS485 (MODBUS-RTU)

● SOE Funciton: Event&Demand&Extremum Record

● Harmonic Measurement: 2~31^st and total Harmonic

● Analog Output: 4~20mA DC or 1~5V DC

● DI/DO Function: 2/4-channel DI&2-channel DO

● Standard&Certificate: CE Certificates

Function	Description&Value
Measurement	Three-phase AC kWh, kVarh, Active Power, Reactive Power, Forward&Reverse Power, Current, Voltage, Zero Sequence Voltage, Zero sequence Current, Voltage-phase Angle, Voltage&Current Unbalance, Power Factor,Harmonic, Frequency

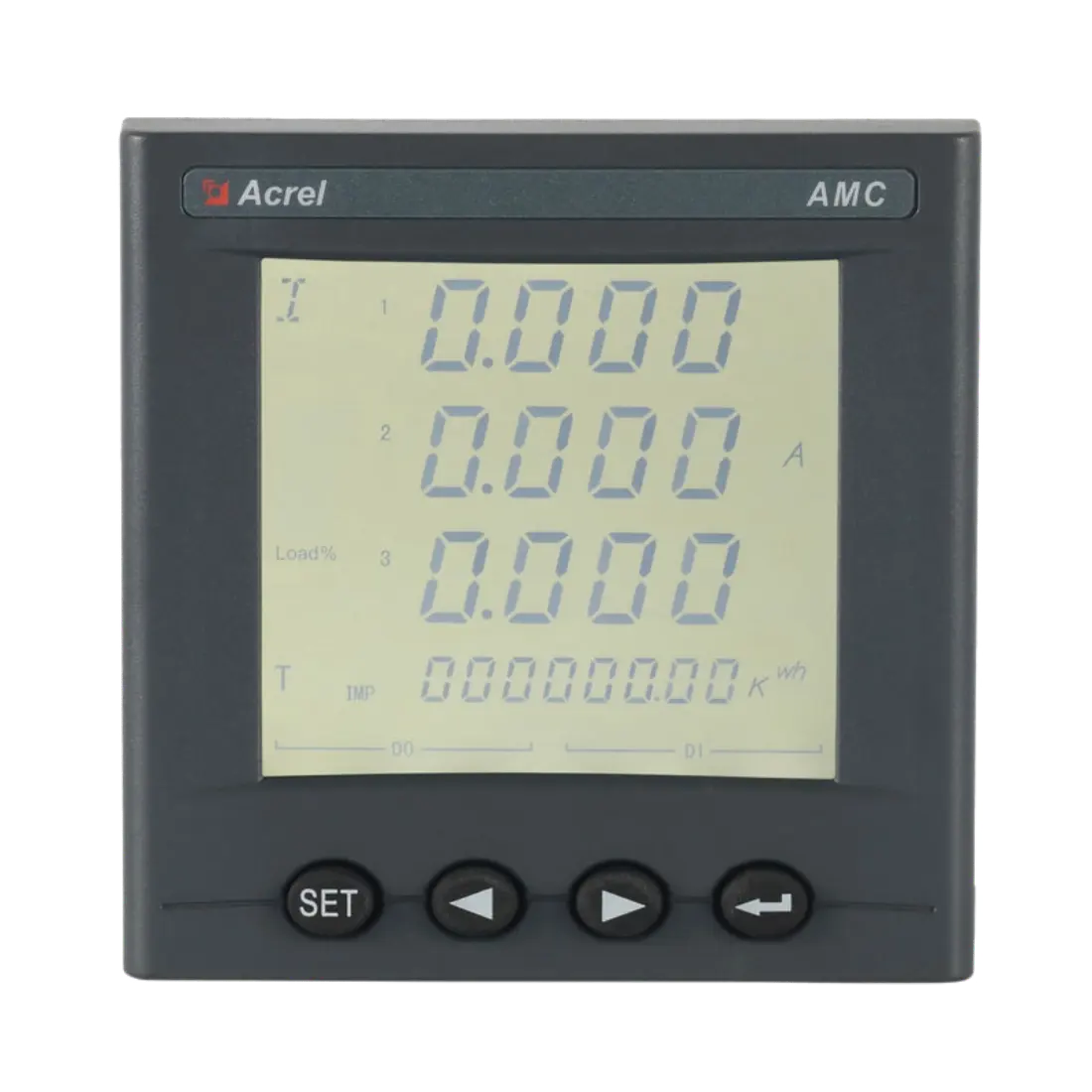

Display	LCD display
Communication (Optional)	RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 1200~38400 bps etc.
Alarm Output (Optional)	1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc.
Analog Output (Optional)	1~5V DC or 4~20mA DC
DI/DO Switching (Optional)	DI (Digital input): 2-channel or 4-channel dry contact digital input with built in power supply DO (Digital output): 2-channel digital output with NO relay contact. Capacity: 3A/30V DC,3A/250V AC

Parameter	Description&Value

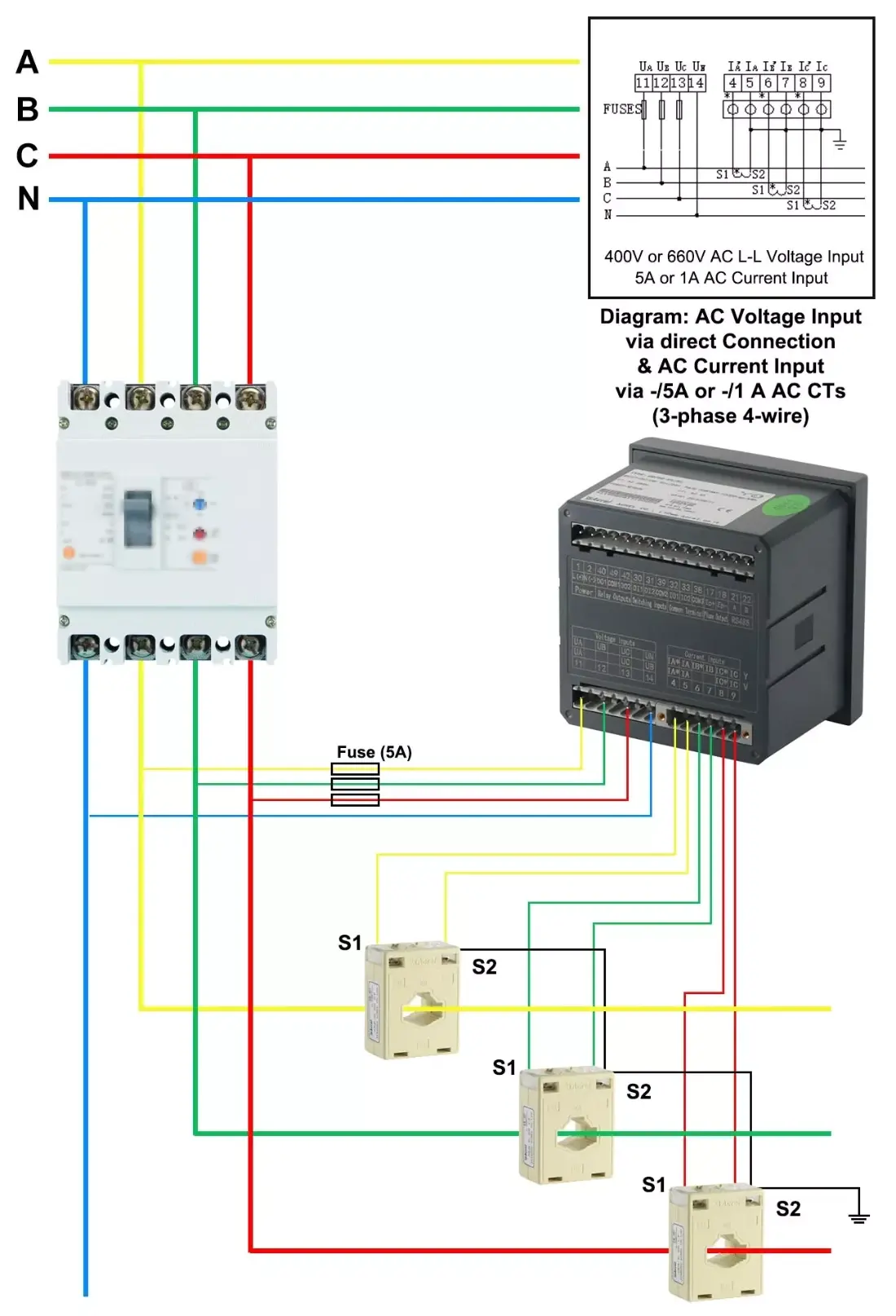

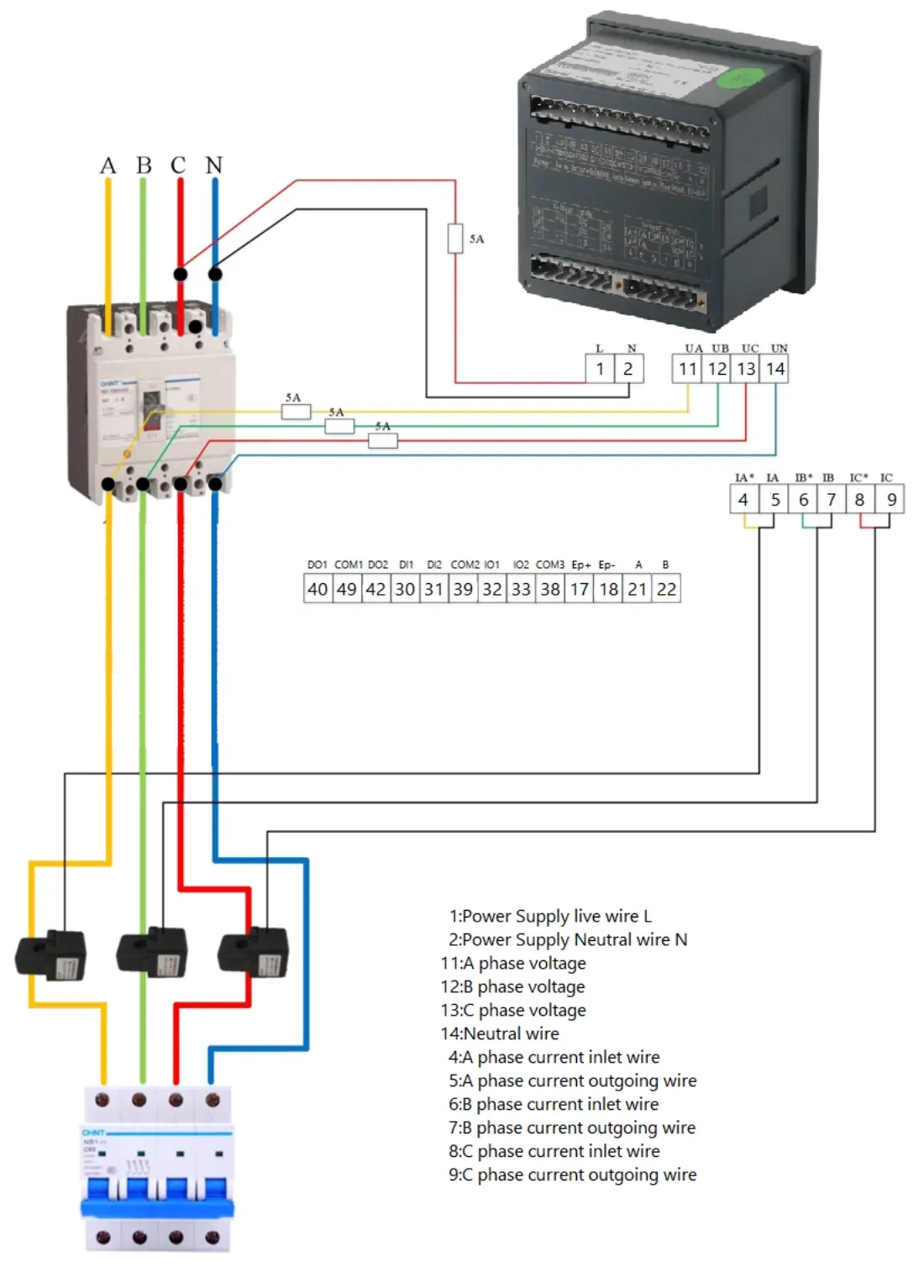

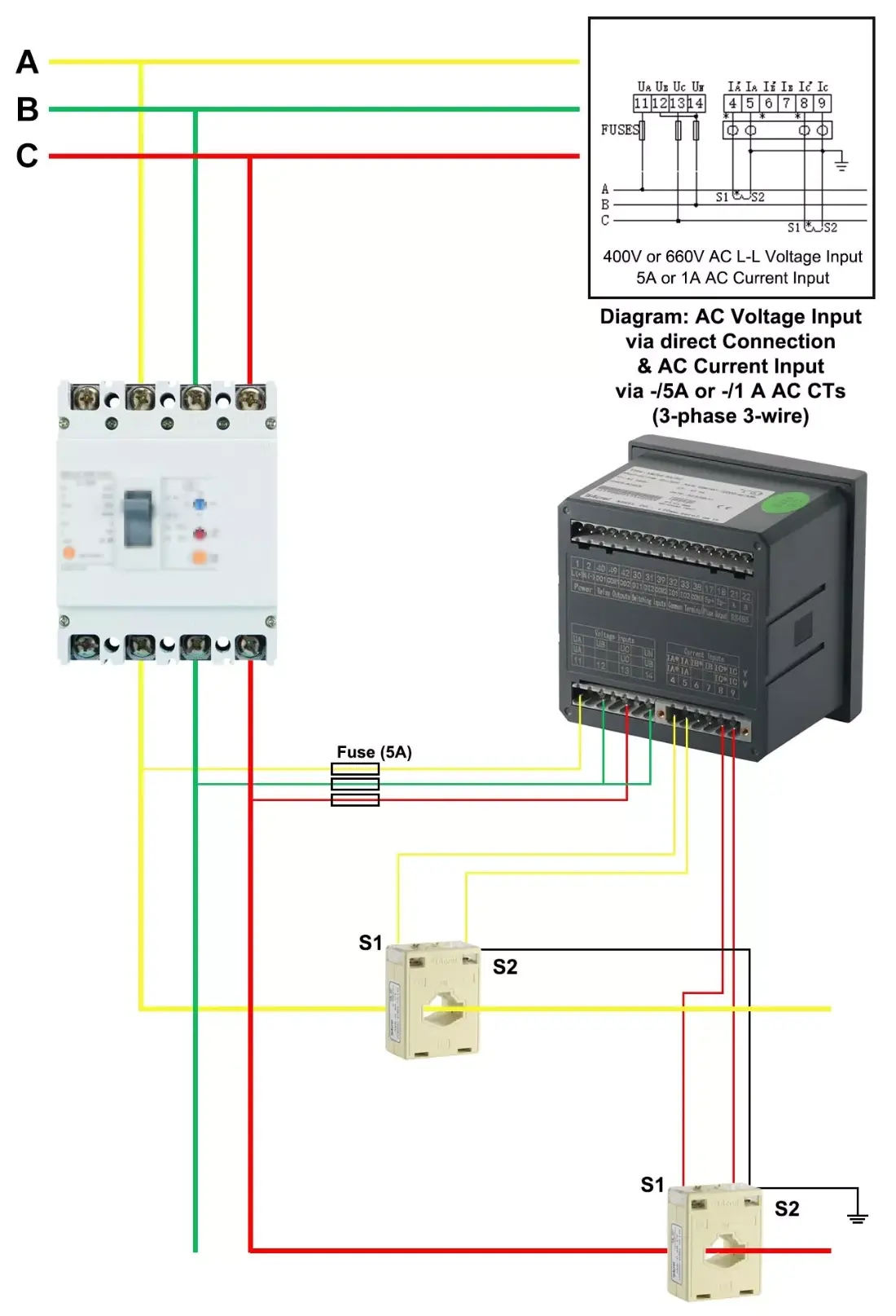

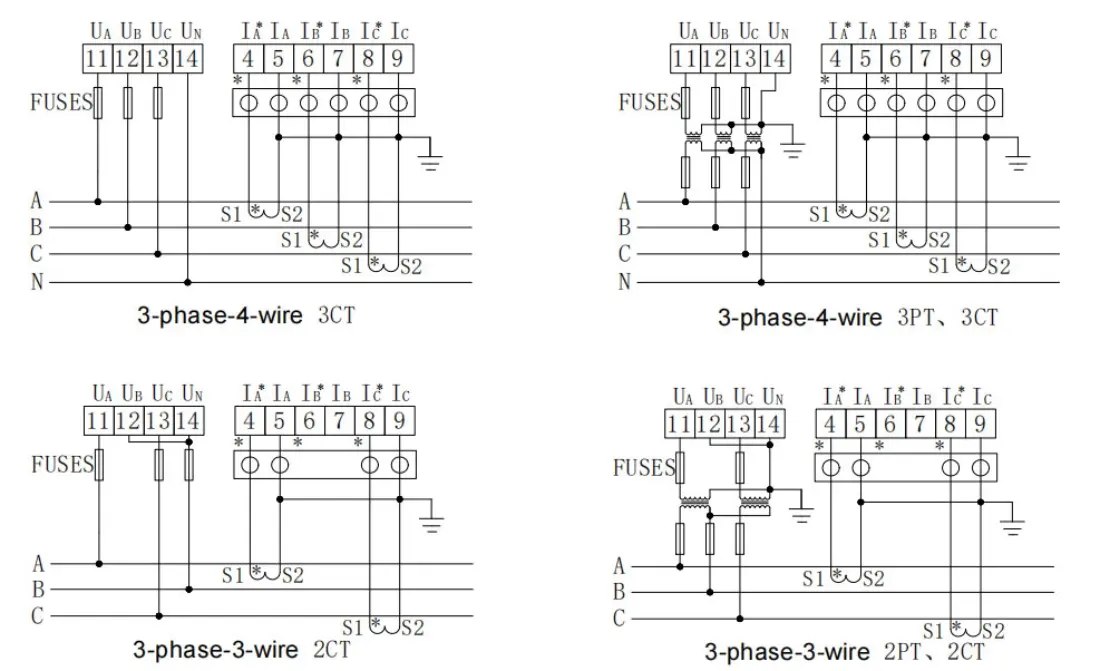

Input	Rated Voltage	AC Voltage Input: 400V or 660V AC L-L (via direct connetion); 100V AC L-L (via -/100V AC PTs)
	Rated Current	AC Current Input: 5A AC or 1A AC (via -/5A AC or -/1A AC CTs)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
	Frequency	45~65Hz
	Power Consumption	Power consumption of each current&voltage input circuit is less than 0.5VA
Measuring Accuracy	Voltage	0.2%
	Current	0.2%
	Active Power	0.5%
	Reactive Power	1.0%
	kWh	0.5%
	kVarh	1.0%
	Frequency	±0.05Hz
	Harmonic	±1%
Power Supply	Voltage Range	85-265V AC/DC; 24V or 48V DC (±20%)
Power Supply	Power Consumption	≤10VA
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;

Condition	Description&Value
Temperature	Operation: -25℃～+65℃; Storage: -40°C ~+80°C
Humidity	≤95%RH,no condensation,without corrosive gas
Altitude	≤ 2500m
