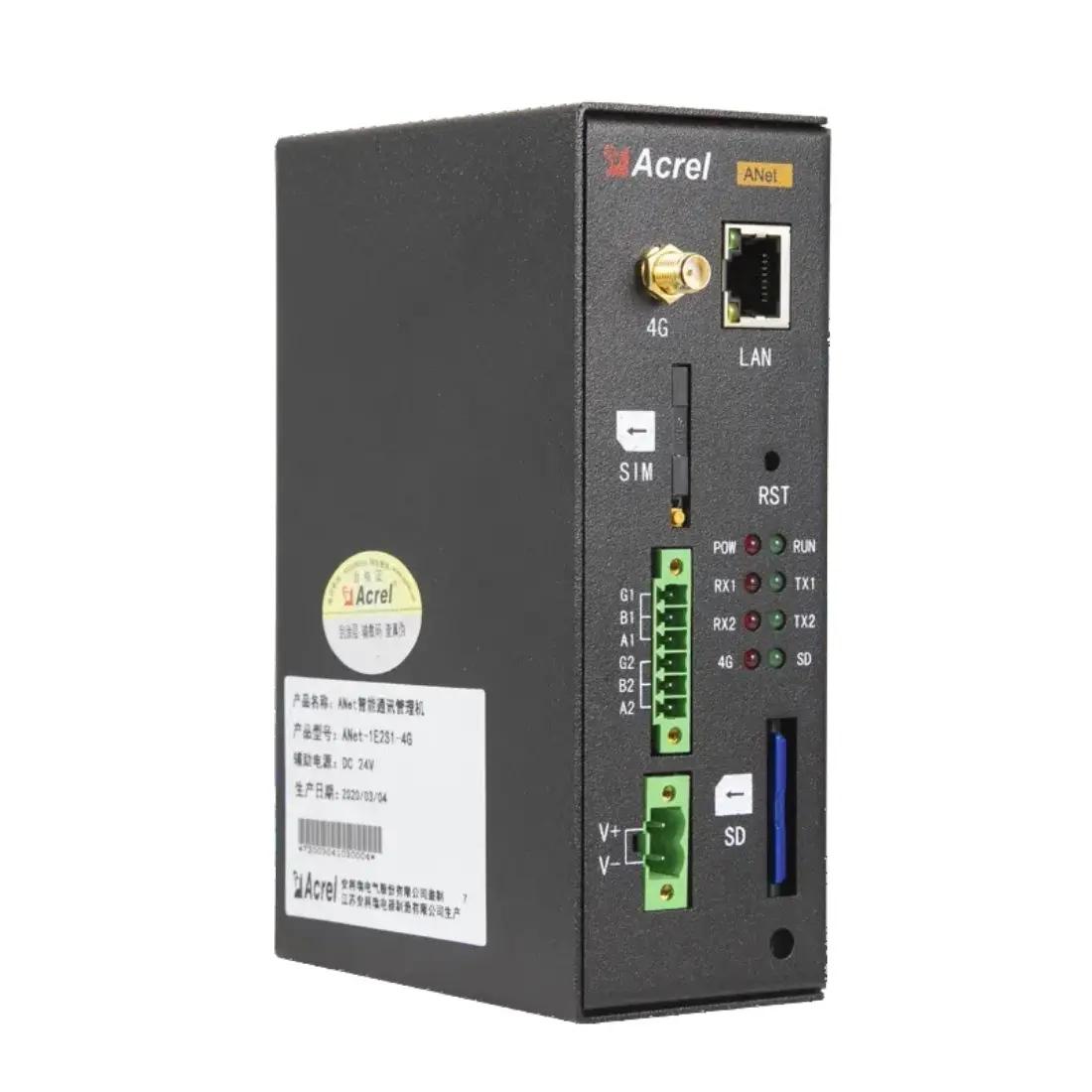

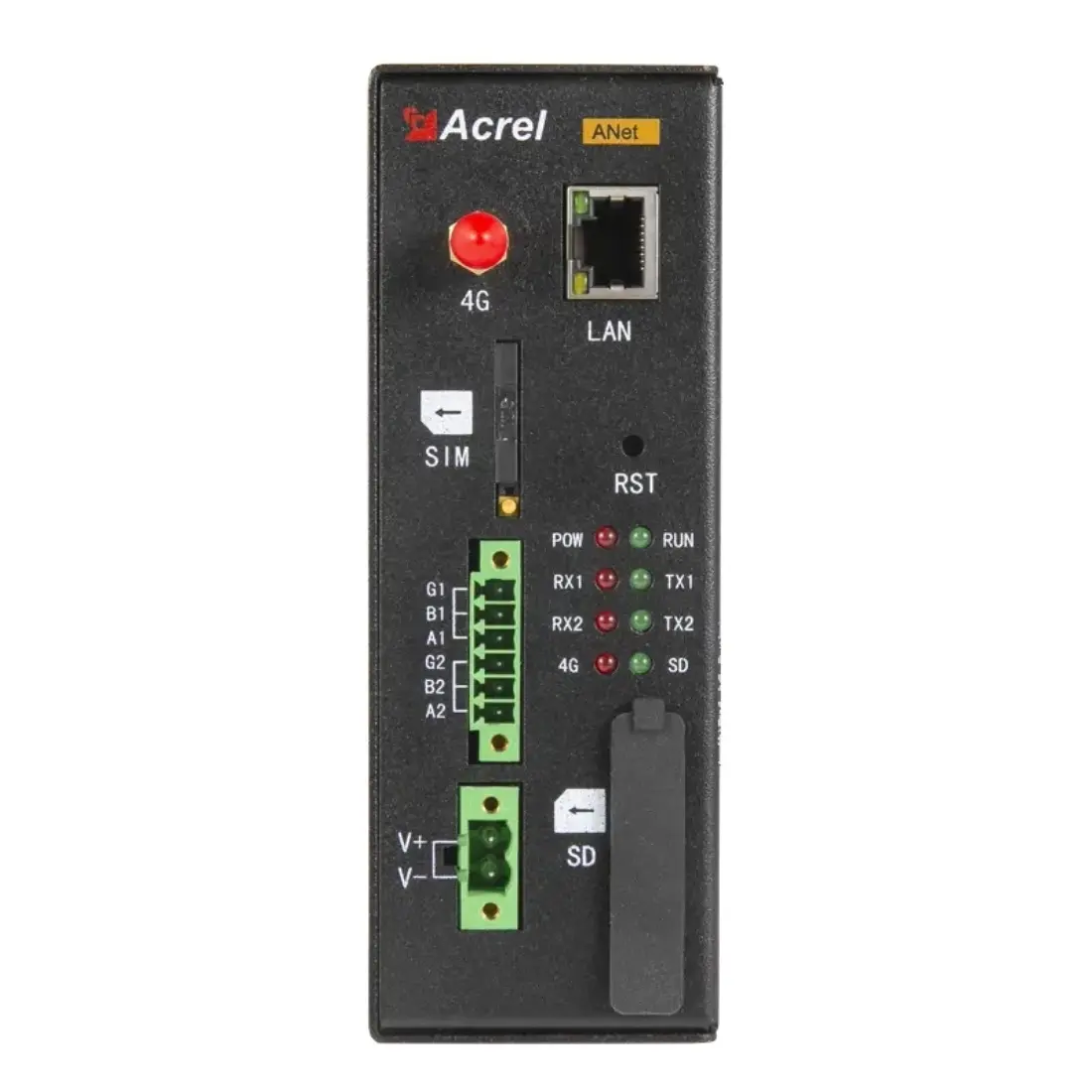

ANet-1E2S1-4G Smart Gateway

Product Description

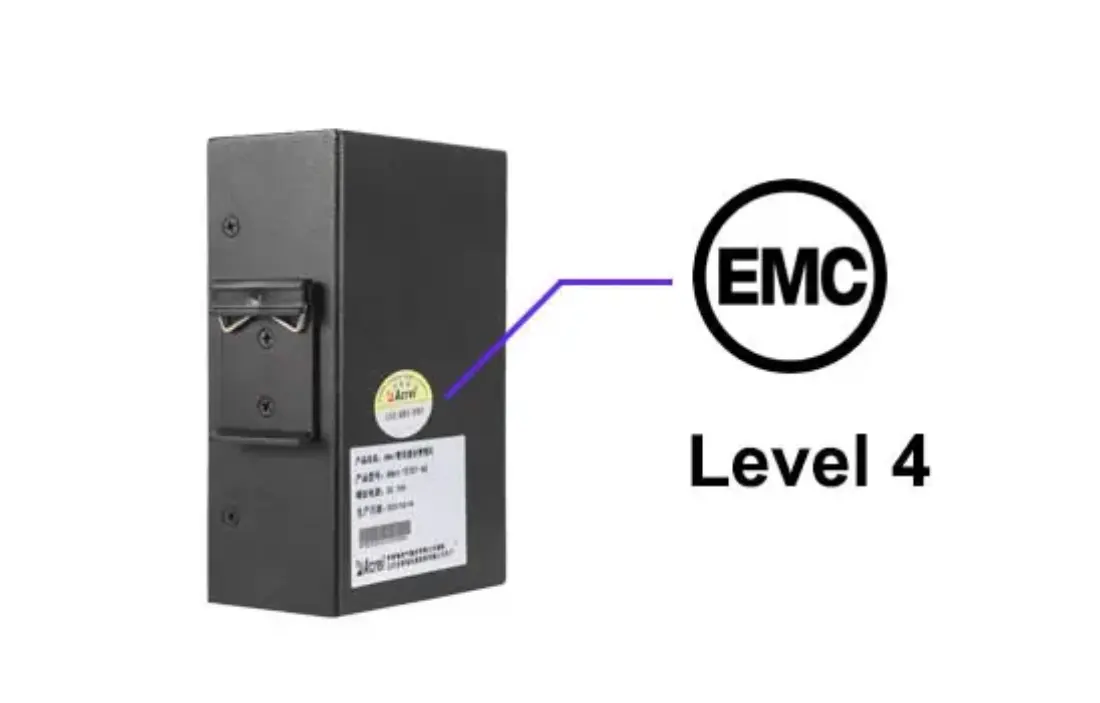

The whole machine through EMC test level 4 test.

All communication terminals 2kV power frequency withstand

voltage test.

Double wide voltage (DC / AC 85V ~ 265V) reverse connection

protection.

Built-in 8G SD card extensible plug-and-play electronic hard disk.

Hardware
Technical Data		Index
Power	Voltage	AC 85 V ～265 V
	Consumption	≤10W
Processing element		ARM32 digit Free scale ARM9 i.MX2xx 454MHz
Inner board memory		64MB DDR2 internal memory + 128MB NAND Flash + 8G SD Card Electronic hard disk

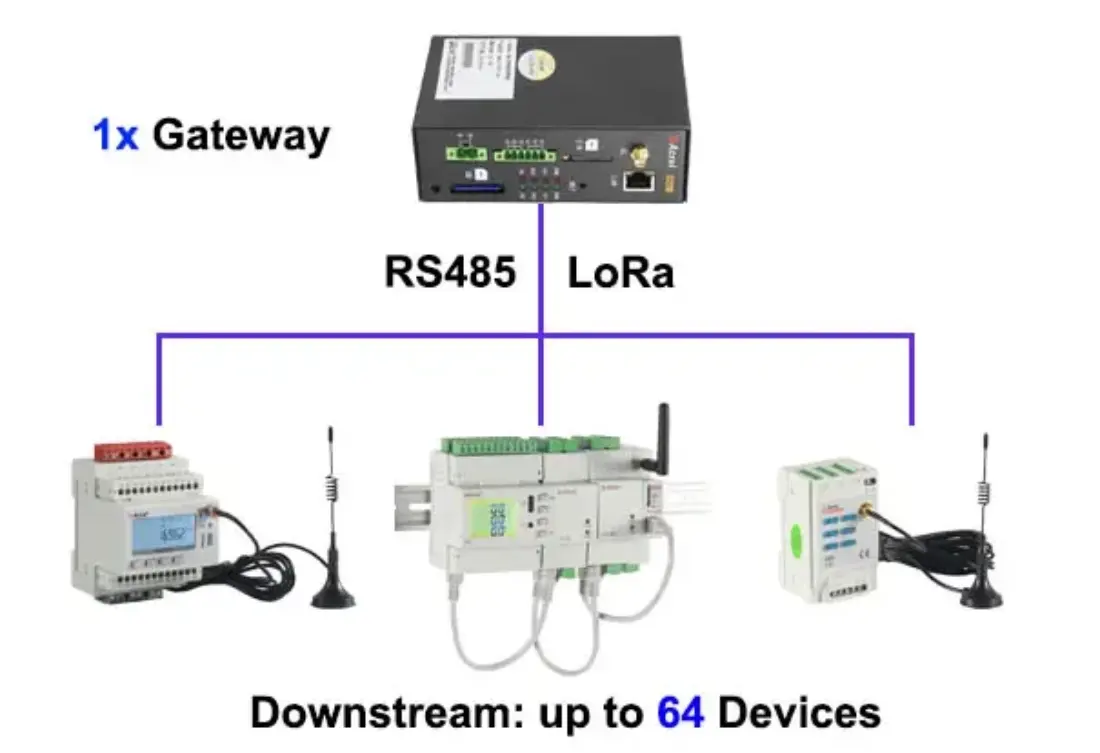

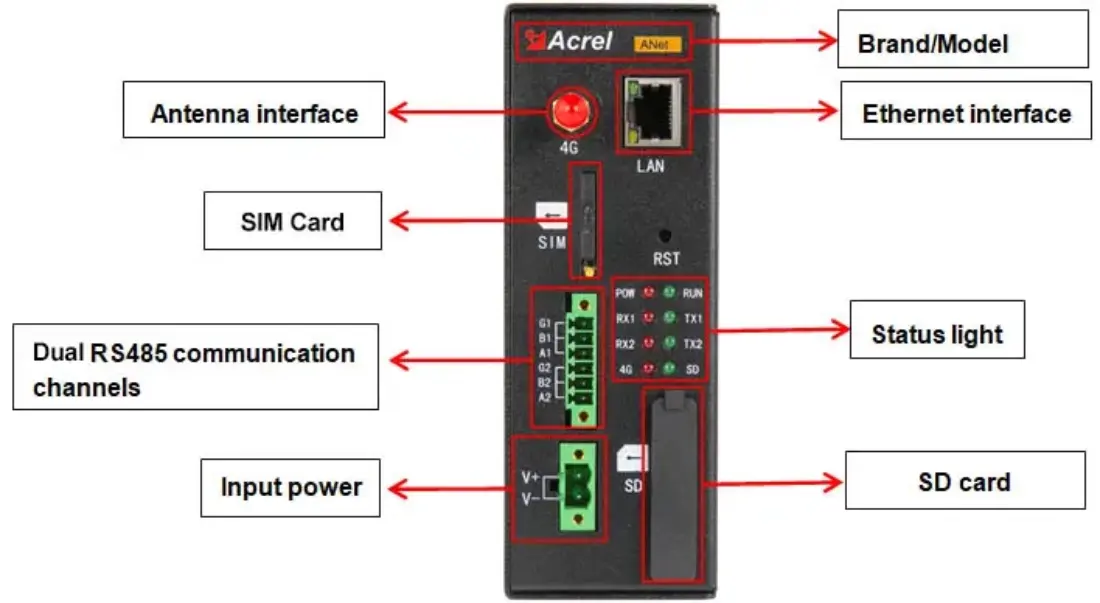

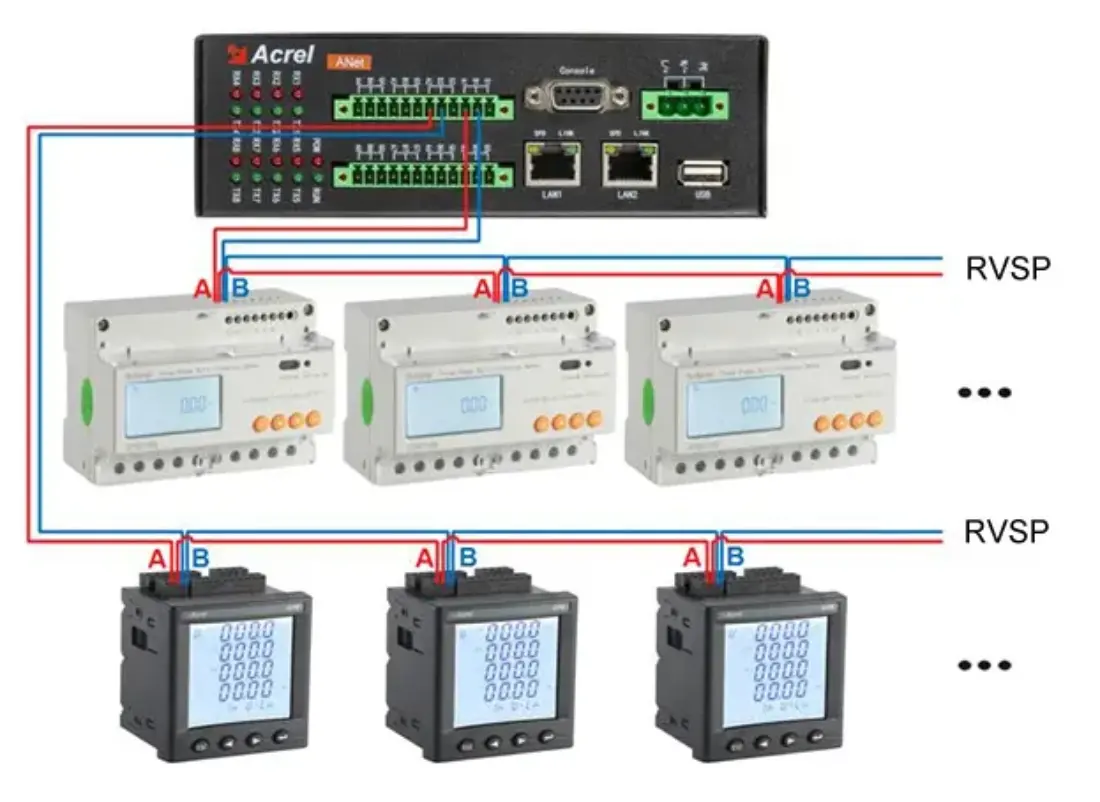

Serial interface		Two channels coupling isolation RS485
Ethernet interface		1 channel 10/100 self-adaption capacity
SD card interface		Supports SD/MMC memory cards of not less than 512 M, supports hot-plug and plug-and-play breakpoints to continue data storage
Safety		Power frequency withstand voltage: AC 2kV 1min between communication terminal and auxiliary power supply
		Insulation resistance: input, output to shape>100MΩ
Environment		Working Temperature：-20℃～+55℃
		Storage Transport Temperature：-25℃～+70℃
		Relative Humidity ：≤95%（+25℃）
		Altitude：≤2500m
EMC Testing		IEC61000-4-2 ESD immunity test Class 4
		IEC61000-4-4 Resistance test of electric fast transient pulse group Class 4
		IEC61000-4-5 Surge (shock) immunity test Class 4
		IEC61000-4-6 Conductive disturbance immunity of RF field induction Class 3

Software
configuration	C/S architecture ANetCM configuration management software, open template management, plain text or excel engineering information management
Fast update	ANetOS provides 1-3 seconds extreme speed configuration update 3-7 seconds firmware upgrade update.
	If the error configuration is updated, the loss-proof algorithm automatically returns the device to the pre-update configuration state within 3-5 seconds.
	If the upgrade has a problem firmware, the damage prevention algorithm automatically returns the device to the pre-upgrade state within 5-10 seconds.
Network communication mode	Socket mode, support XML format compression upload, provide AES encryption and MD5 identity authentication and other security requirements
Data acquisition cycle	Second level custom configuration
Automatic upload cycle	Second, minute custom configuration, depending on the upload protocol
Protocol	In addition to the general standard protocol, it can support the customized development of non-standard protocol on acquisition side and host computer
On time with upper PC	Keeping in sync with upper PC in real time
Break point continues	Real-time detection, upload failure to automatically save the data to be transmitted, including 8G SD Card, to support external storage media plug and play and space expansion, network recovery data to be automatically uploaded
Historical Inventory（Break point continues）	Storing the history library according to the automatic upload cycle, Can customize the history database data save days, due first in first out, Storage space automatic anti-overflow near-overflow first in first out

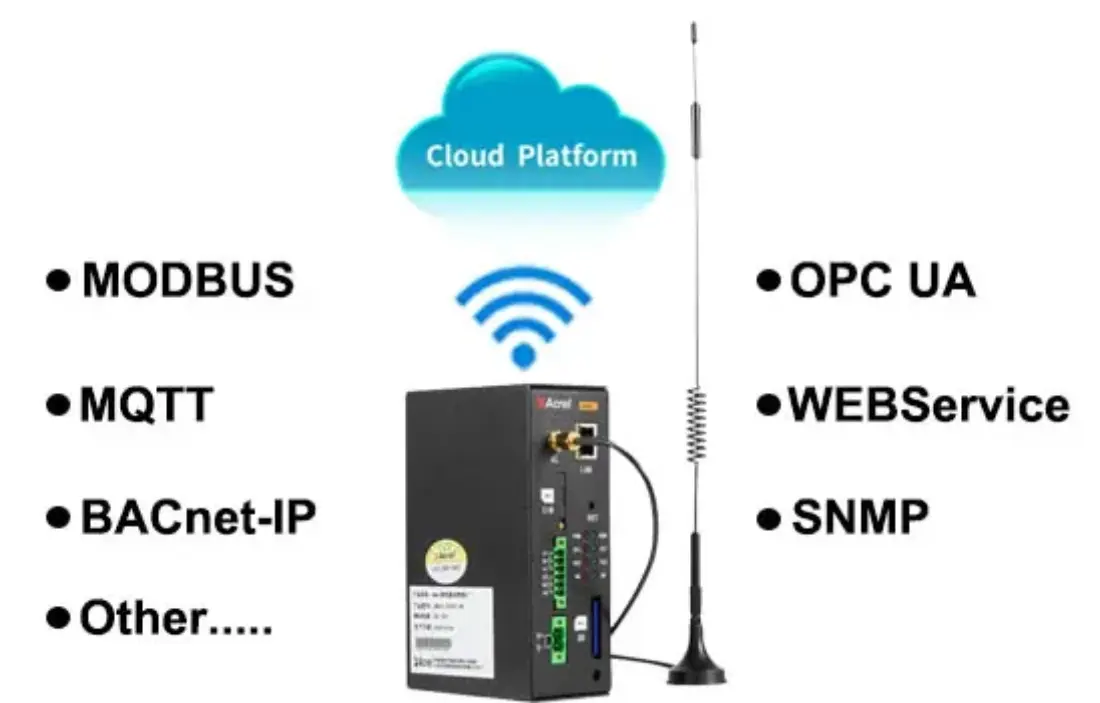

Protocol support	GBT19582-2008（Modbus、ModbusTCP）、DL/T645-1997、DL/T645-2007、
	CJT188-2004、IEC60870-5（101、103、104）、MQTT、
	Support HTTP(s) 、XML、Json forwarding format etc.
