▋ Common Applicaiton
 |  |  |  |
▋ Features
| Remotely Receive Temp. Data from up to 240 ATE Series Wireless ● Communication Distance: 1000m in open area (with ATC600-Z relay)● Communication Distance: 150m in open area (without ACT600-Z relay)● Receive Temperature Measuring Data from: up to 240 ATE Series Temp. Sensors |  |
| DO Function● 2 Passive Relay Output● Capacity: 5A/AC 250V, 5A/DC 30V |  |
| Extra RS485 Communication● Can be connected with ATP Temp. Display Device● Protocol: MODBUS-RTU● Communication Distance: 400m (in practical) |  |

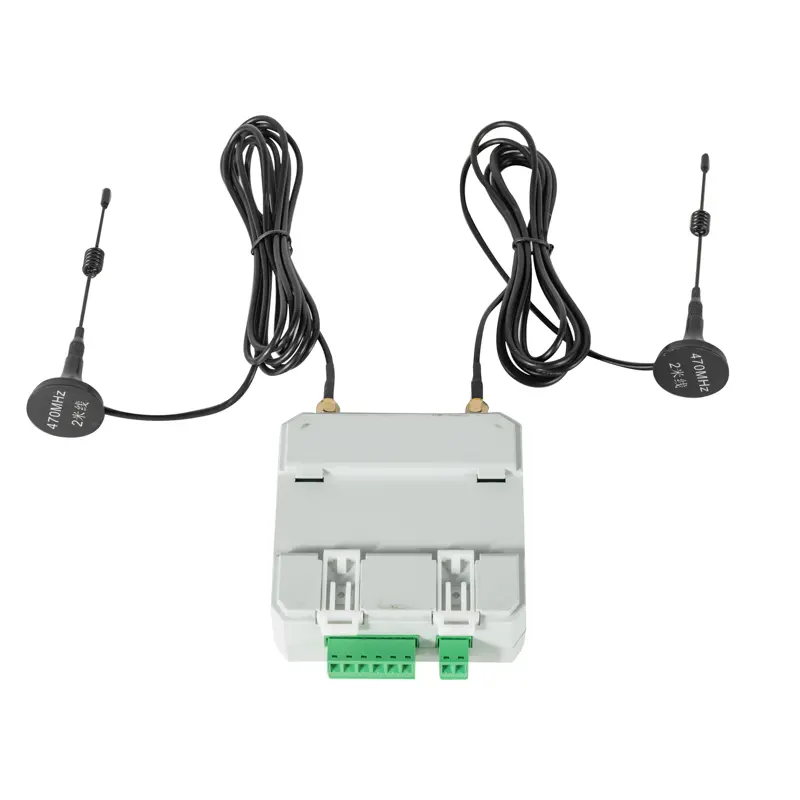

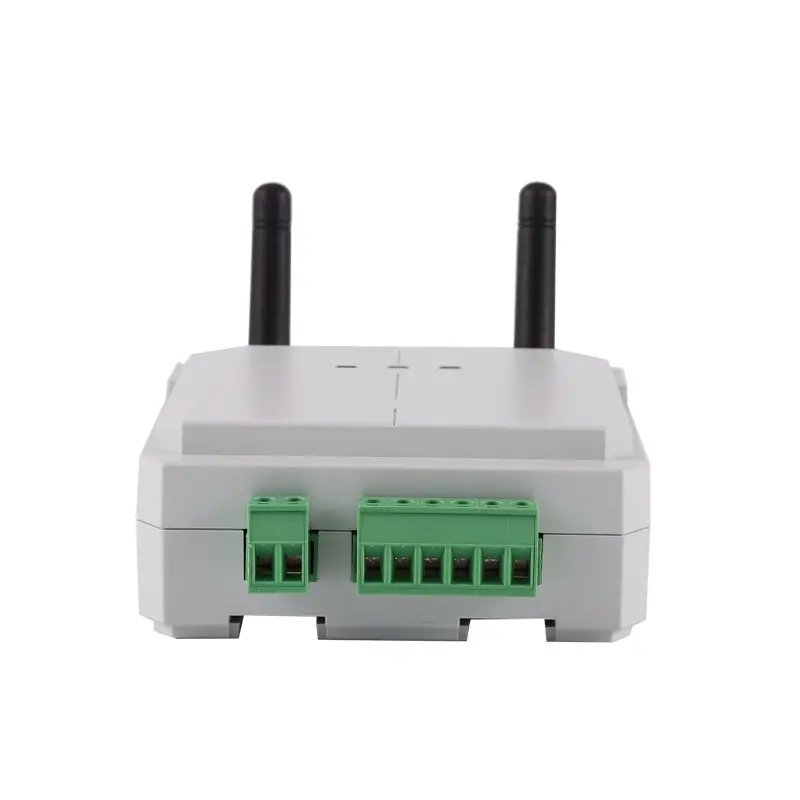

| Optional Antenna Shape● Chuck Antenna● Baton Antenna |  |
▋ Wiring Illustration
▋ Common Application Structure
 | Cloud Display Solution |  |
| | Local Display Solution | |
|
Items |
Features |
|
|
Transceiver ATC600 |
Power |
AC/DC100~265V ≤6VA ≤8VA |
|
Power consumption |
≤2W |
|
|
Points |
≤240 points |
|
|
Resolution |
0.1℃ |
|
|
Range of temperature |
-50℃~+125℃ |
|
|
Accuracy |
±1℃ |
|
|
Wireless frequency |
470M |
|
|
Distance |
Transceiver sensor 150 m( open), repeaters distance 1 km( open) |
|
|
Communication port |
RS485 |
|
|
Protocol |
MODBUS-RTU |
|
|
Baud(bps) |
2400、4800、9600、19200 |
|
|
Relay output |
2 passive exits ,5 A/AC250V,5A/DC30V capacity |
|
|
Working environment |
Temperature：-20 ℃～+55 ℃；Humidity≤95% |
|
