● Wireless transmit, 470MHz、433MHz
● Wireless transmission distance, 150 meters
● Fast sampling frequency, 15s
● CT powered, starting current ≥5A
● Widely temperature measuring range, -50℃~+125℃

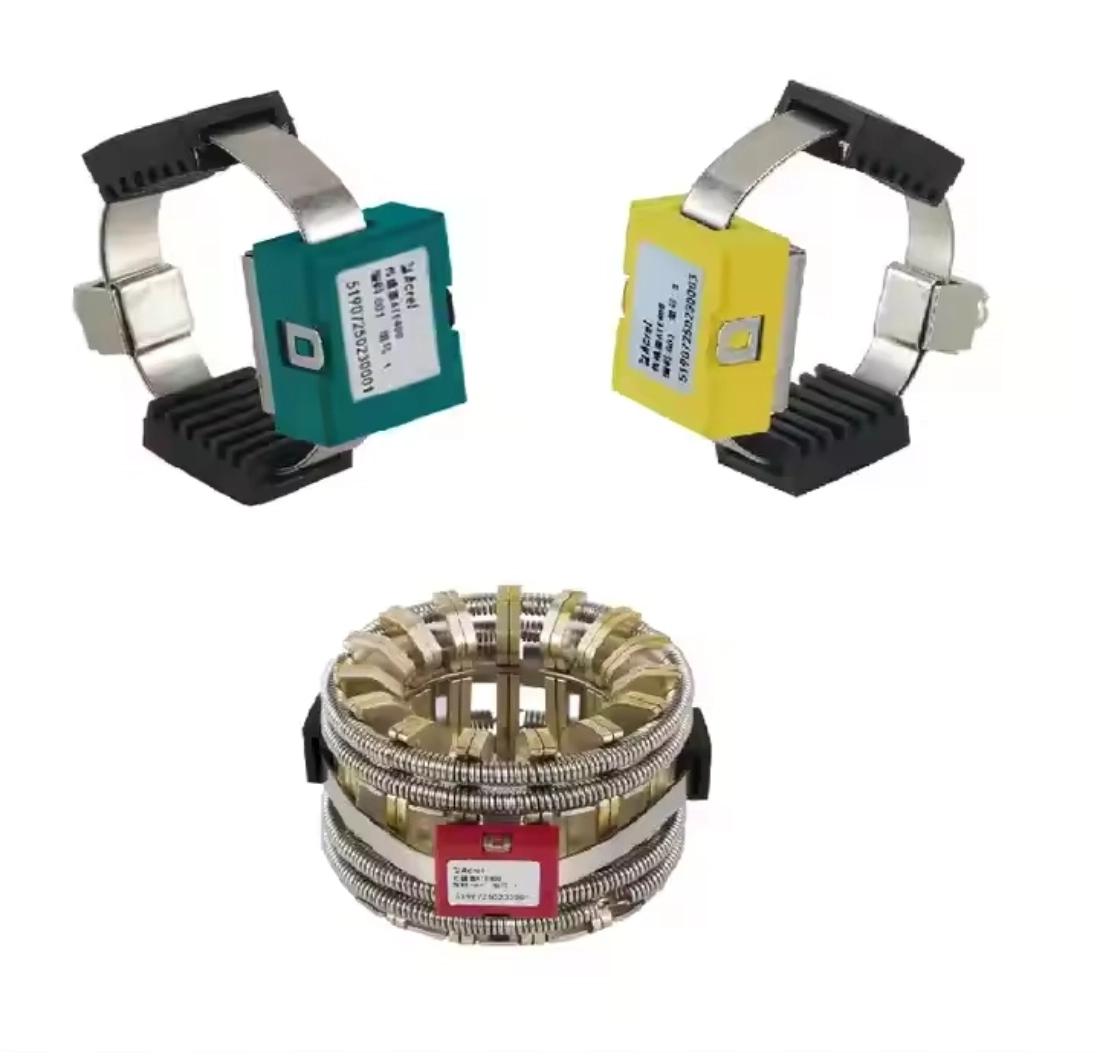

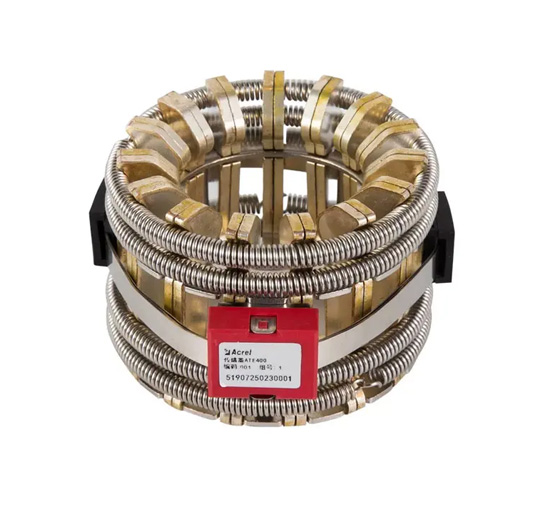

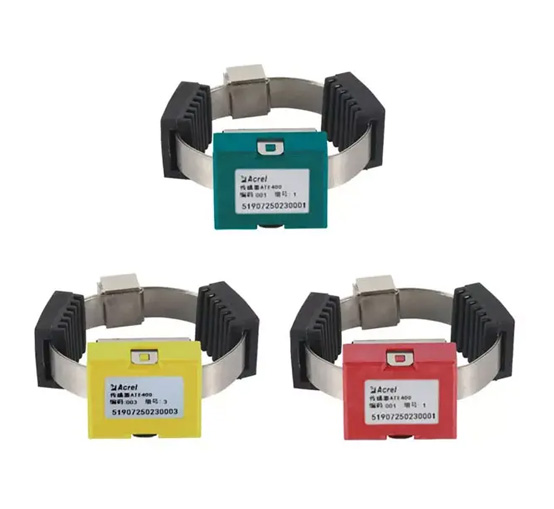

ATE400 Wireless Temperature Sensor
Product Description
-
Detailed description
-
Parameters
-
Certificate
-
Download
-
General
Acrel ATE400 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016.
It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.
It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
Specification
Wireless temperature sensor
ACREL Model ATE100 ATE100M ATE200 ATE400 Power supply powered by battery powered by CT sensing Transmission frequency 470Mhz or 434Mhz Sampling cycle 25s 15s Transmission cycle 5min 15s Measuring range -50℃~125℃ Accuracy ±1℃ Communication distance 150m in open space Operation Life >5years(battery life) >10years Installation Screw bolted installation Magnetic installation Belted installation fixed by compound metal Application circuit breaker contact,busbar,cable contact and other big current Transceiver

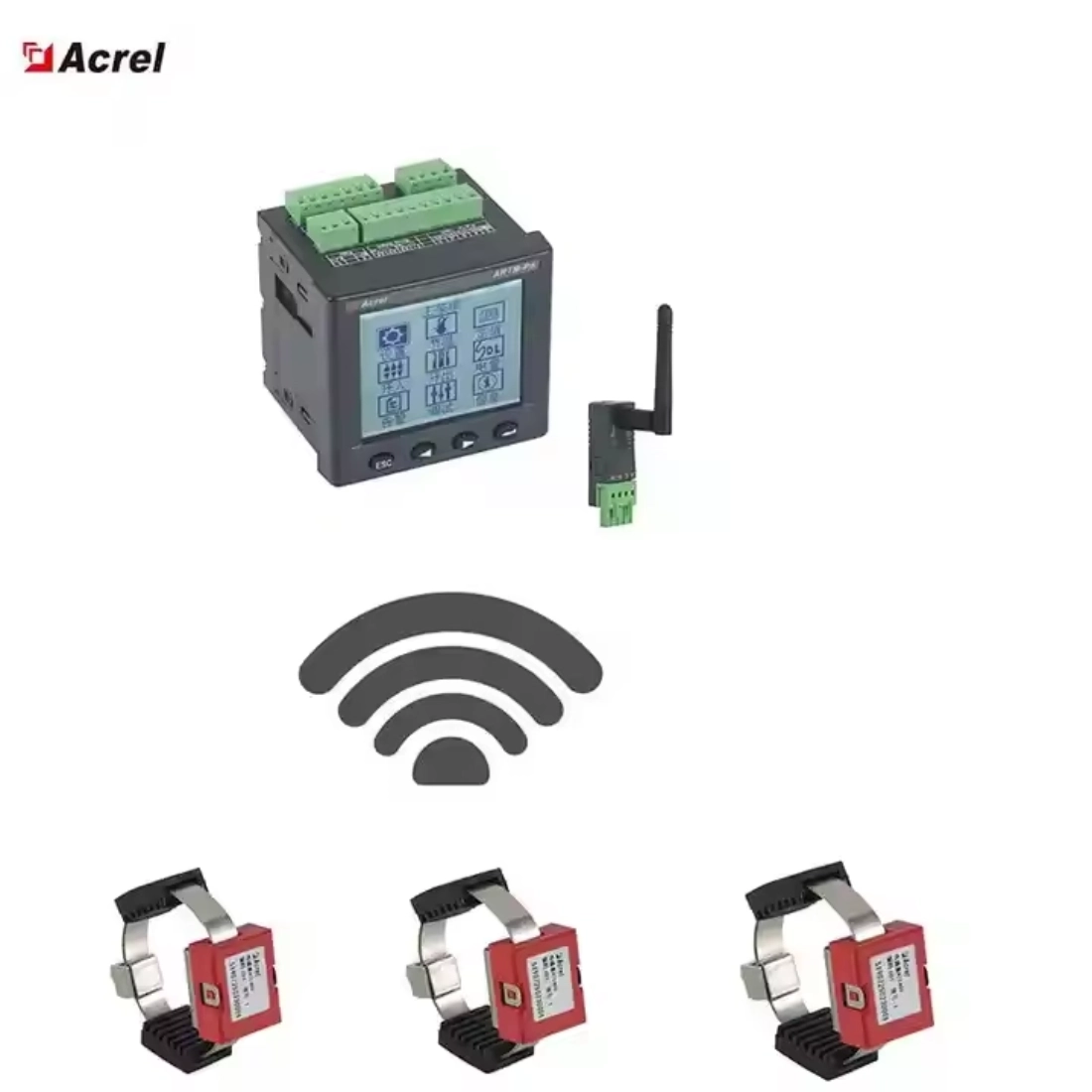

ACREL model ATC450-C ATC600 Power supply DC24V AC/DC 110V/220V Installation Din rail 35mm or screw fixed Din rail 35mm Communication Modbus RTU RS485 Modbus RTU RS485 Extra function No Alarm output 2DO Connection

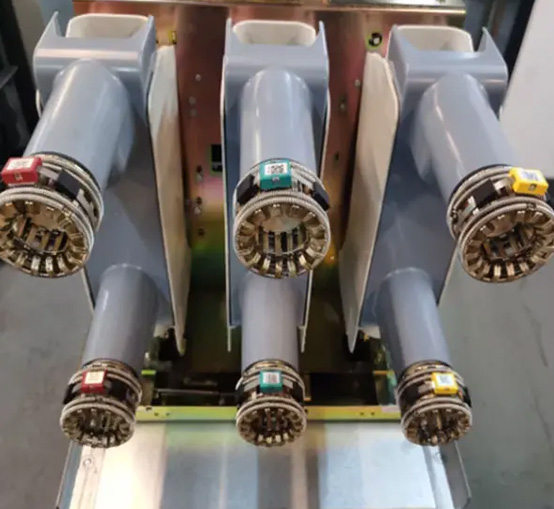

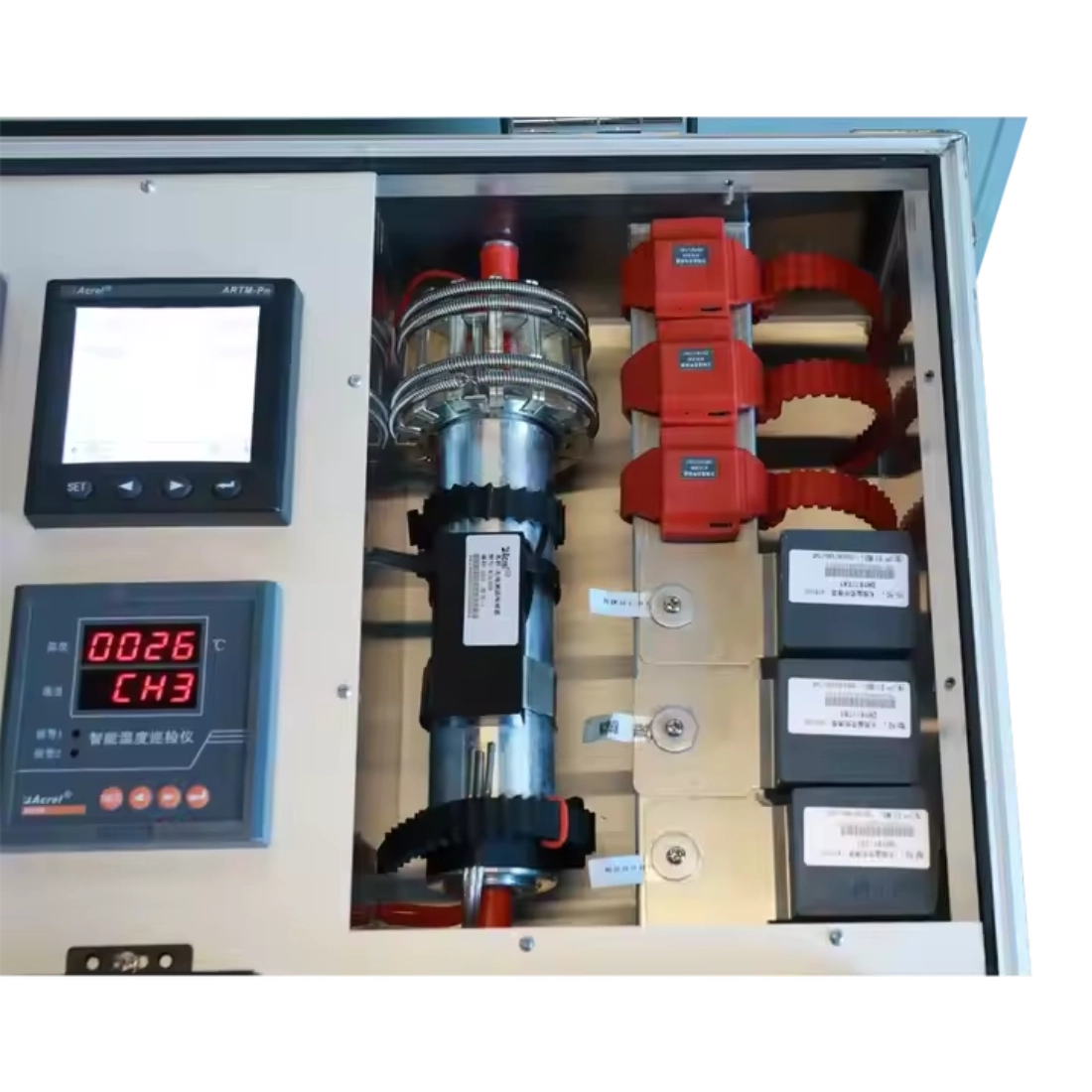

Photo on Site
-
ACREL Model ATE100 ATE100M ATE200 ATE400 Power supply powered by battery powered by CT sensing Transmission frequency 470Mhz or 434Mhz Sampling cycle 25s 15s Transmission cycle 5min 15s Measuring range -50℃~125℃ Accuracy ±1℃ Communication distance 150m in open space Operation Life >5years(battery life) >10years Installation Screw bolted installation Magnetic installation Belted installation fixed by compound metal Application circuit breaker contact,busbar,cable contact and other big current Transceiver
ACREL model ATC450-C ATC600 Power supply DC24V AC/DC 110V/220V Installation Din rail 35mm or screw fixed Din rail 35mm Communication Modbus RTU RS485 Modbus RTU RS485 Extra function No Alarm output 2DO -
-
Download
-
[ | ] Manual of ATE400
pdf (未知大小) -
[ | ] ate400-ce-certificate
pdf (614.06 KB) -
[ | ] Electrical Equipment Temperature Monitoring Solutions
pdf (2.60 MB)
-
