BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal.They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.

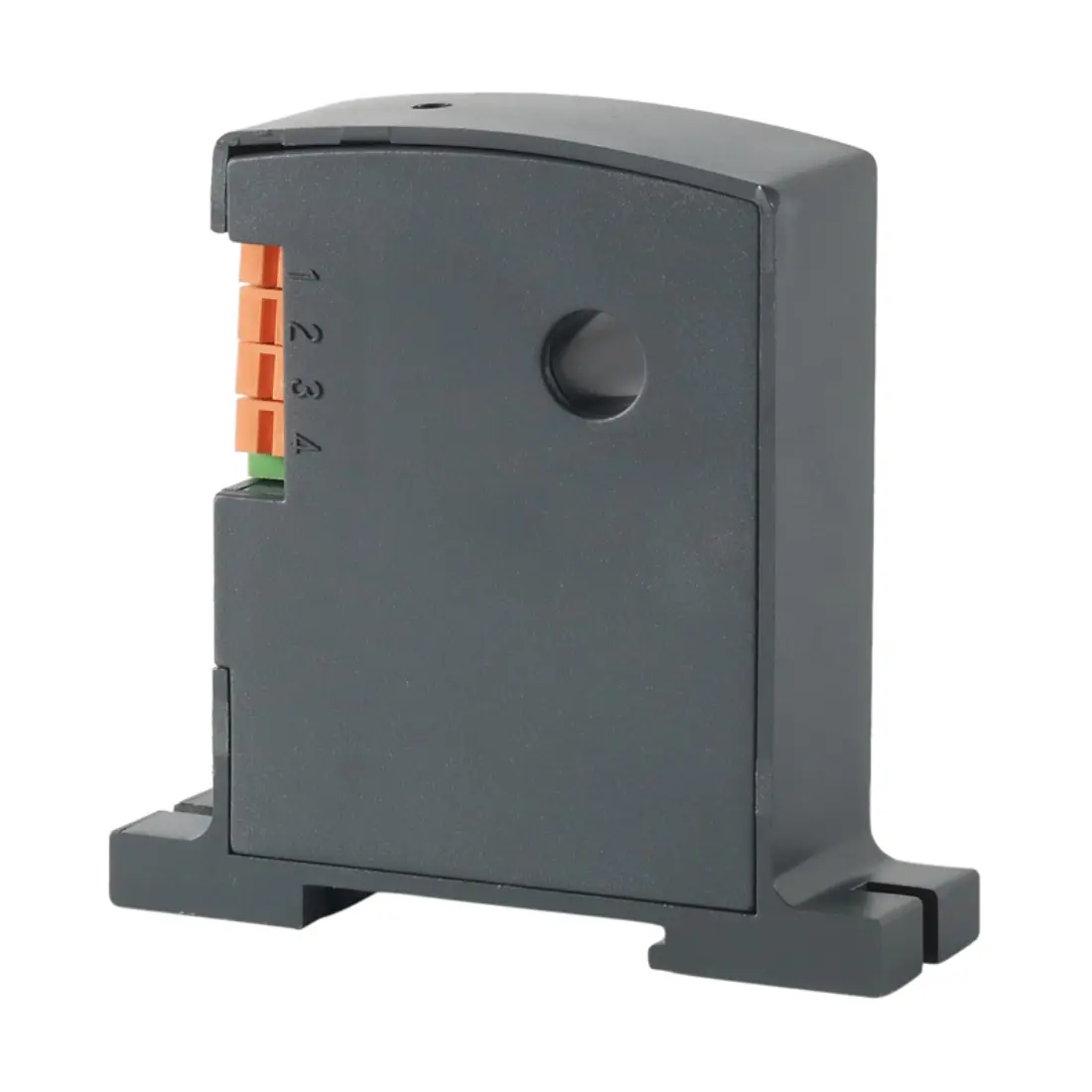

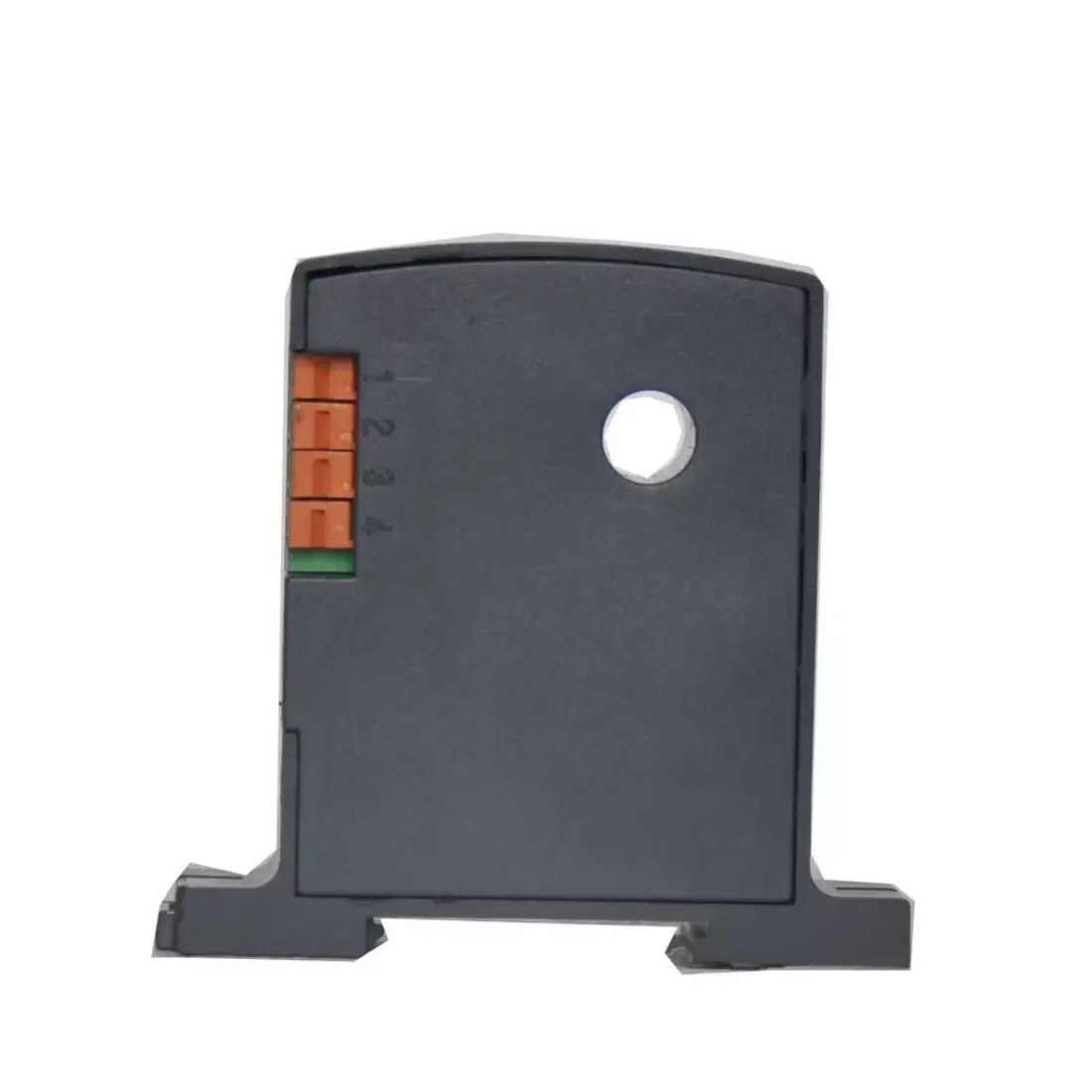

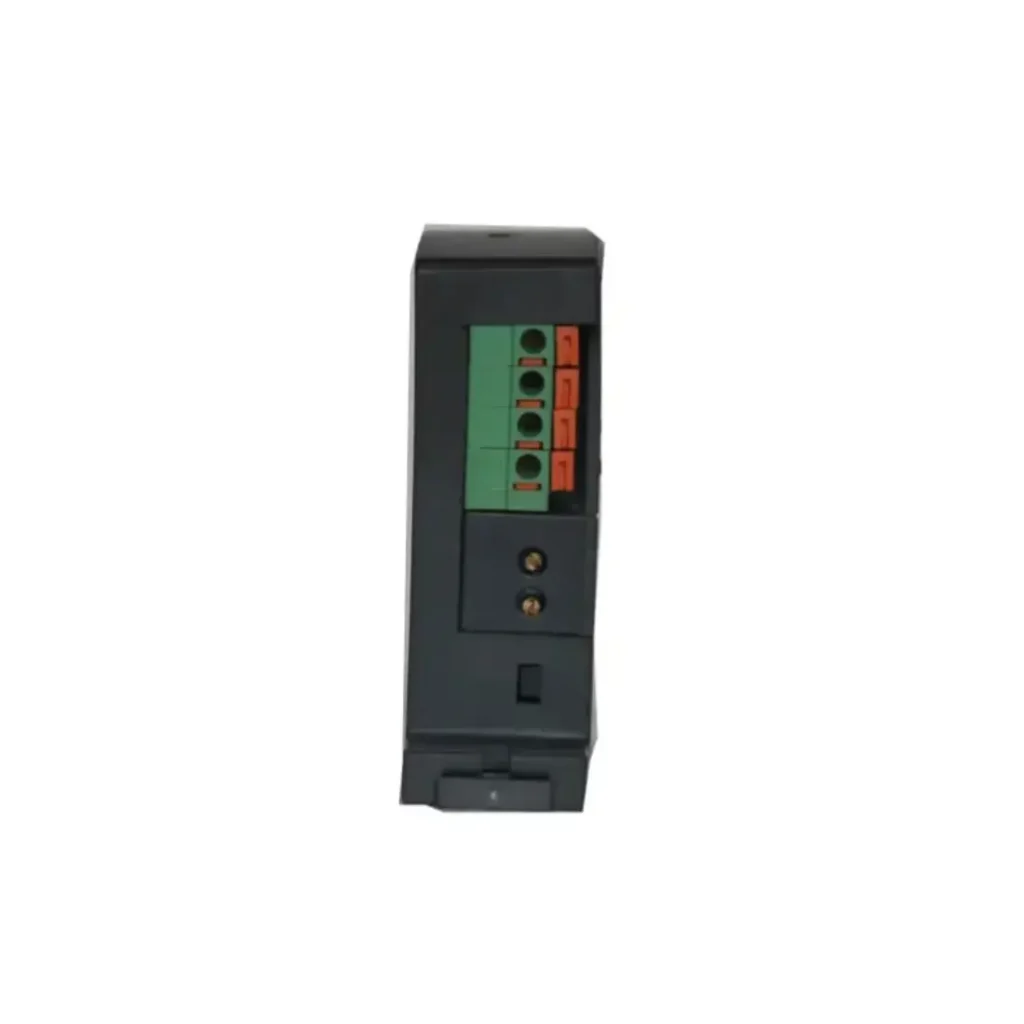

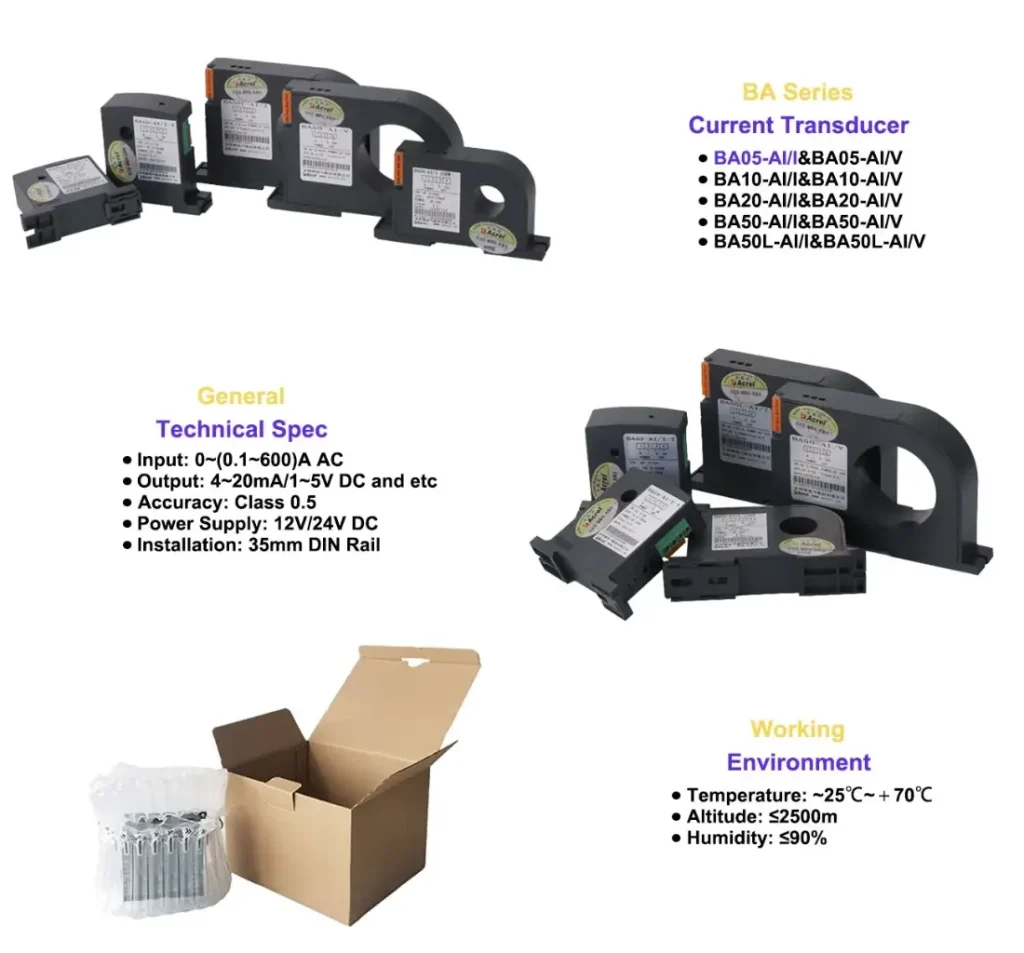

BA05-AII BA05-AIV AC 0-10A Current Transducer
Product Description
-
Detailed description
-
Parameters
-
Certificate
-
Download
-
- Aperture: 5mm
- Input: AC0-(0.5-10)A
- Analog Output: DC 0-5V/1-5V/0-20mA/4-20mA
- Overload: 1.2 times of rated value
- Power supply: DC12V/DC24V
- Response Time: ≤350ms
-
Model Name
Input
Output
Perforation Hole Size(mm)
AC Current
DC Current
DC Voltage
BA05-AI/I
0~(0.5~10)A
4~20mA/0~20mA
/
φ5
BA05-AI/V
0~(0.5~10)A
/
1~5V/0~5V
BA10-AI/I
0~(8~50)A
4~20mA/0~20mA
/
φ10
BA10-AI/V
0~(8~50)A
/
1~5V/0~5V
BA20-AI/I
0~(40~200)A
4~20mA/0~20mA
/
φ20
BA20-AI/V
0~(40~200)A
/
1~5V/0~5V
BA50-AI/I
0~(60~600)A
4~20mA/0~20mA
/
φ50
BA50-AI/V
0~(60~600)A
/
1~5V/0~5V
BA50L-AI/I
0~(0.1~1)A
4~20mA/0~20mA
/
BA50L-AI/V
0~(0.1~1)A
/
1~5V/0~5V
Shape
Type
Function
FOB Shanghai (USD)

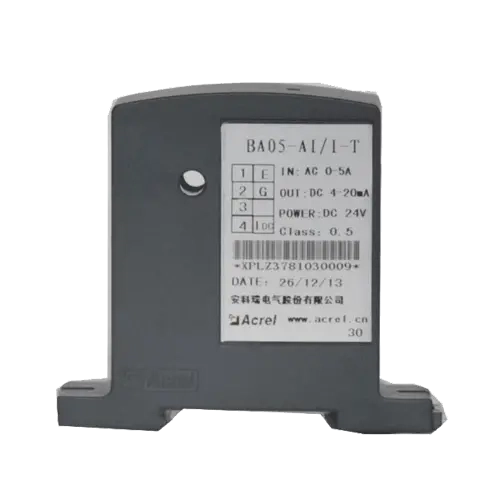

Current Transducer
BA05-AI/I(V)
BA05-AI/I(V)-T
Input: 0~(0.5~10) AC
Output: 4~20mA or 0~20mA DC/1~5V or 0~5V DC
Accuracy: Class 0.5
Perforation Size: φ5mm
31
47

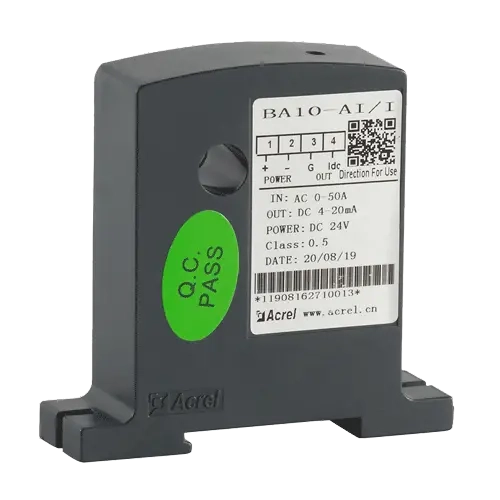

Current Transducer
BA10-AI/I(V)
BA10-AI/I(V)-T
Input: 0~(8~50) AC
Output: 4~20mA or 0~20mA DC/1~5V or 0~5V DC
Accuracy: Class 0.5
Perforation Size: φ10mm
35
50

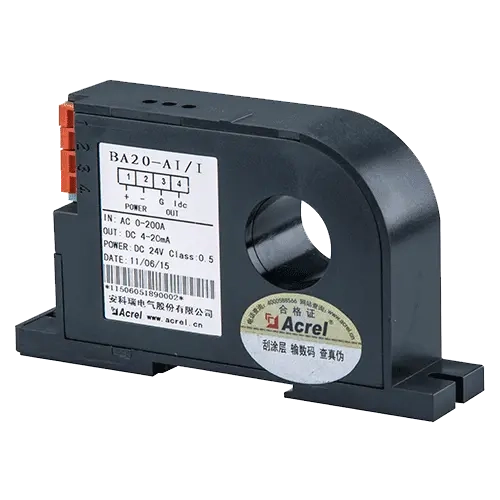

Current Transducer
BA20-AI/I(V)
BA20-AI/I(V)-T
Input: 0~(40~200) AC
Output: 4~20mA or 0~20mA DC/1~5V or 0~5V DC
Accuracy: Class 0.5
Perforation Size: φ20mm
40
55

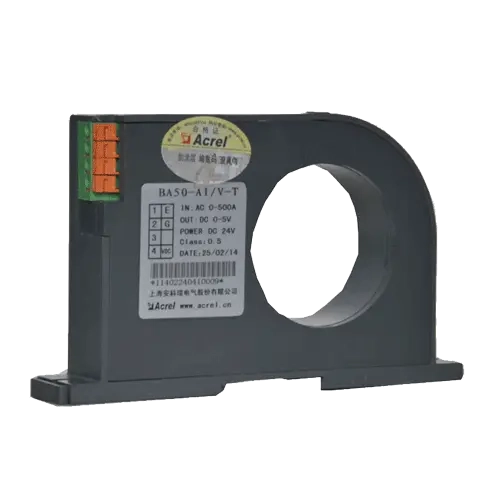

Current Transducer
BA50-AI/I(V)
BA50-AI/I(V)-T
Input: 0~(60~600) AC
Output: 4~20mA or 0~20mA DC/1~5V or 0~5V DC
Accuracy: Class 0.5
Perforation Size: φ50mm
44
59

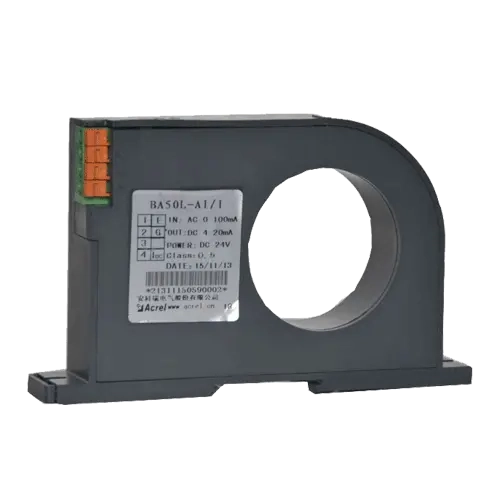

Active Residual Current Transducer
BA50L-AI/I
Input: 0~(0.1~1) AC
Output: 4~20mA or 0~20mA DC/1~5V or 0~5V DC
Accuracy: Class 0.5
Perforation Size: φ50mm
67

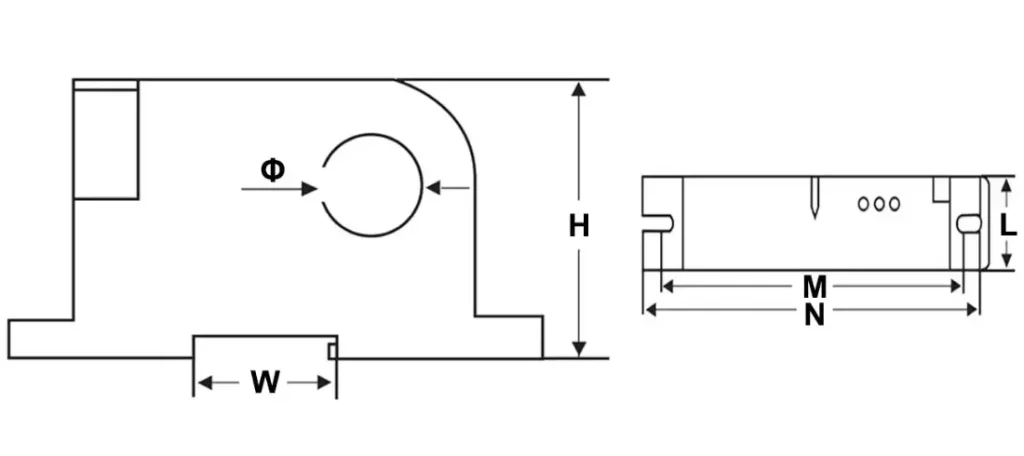

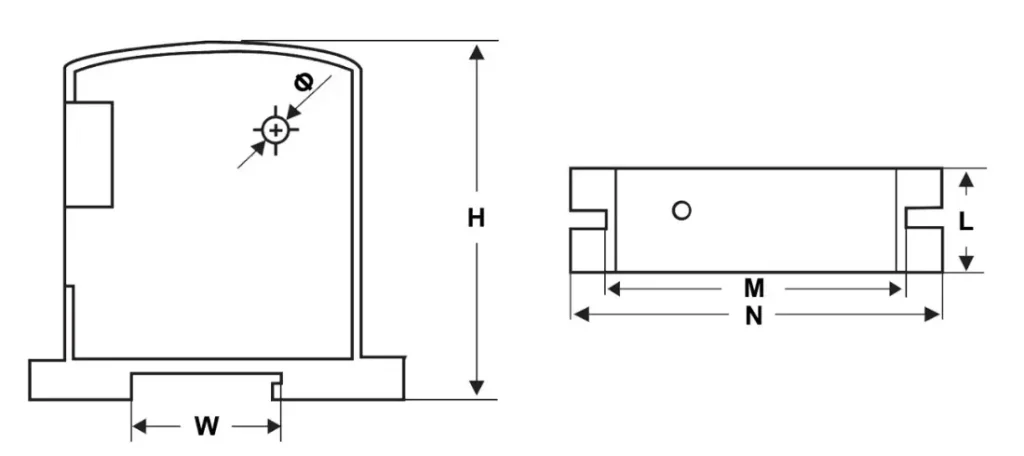

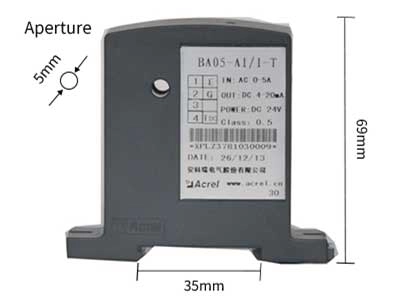

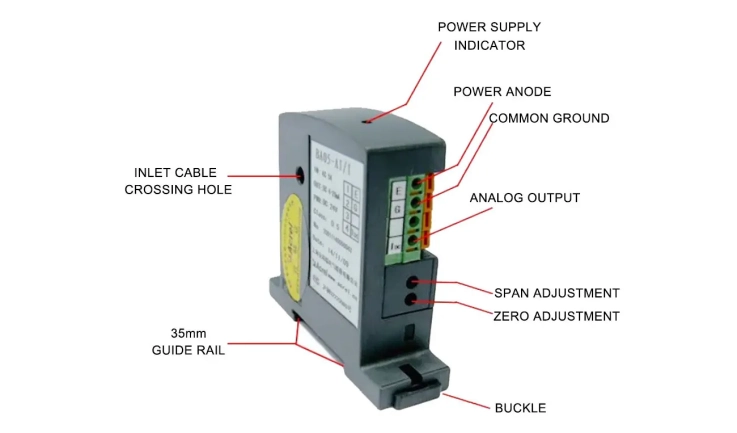

Dimension
Wiring

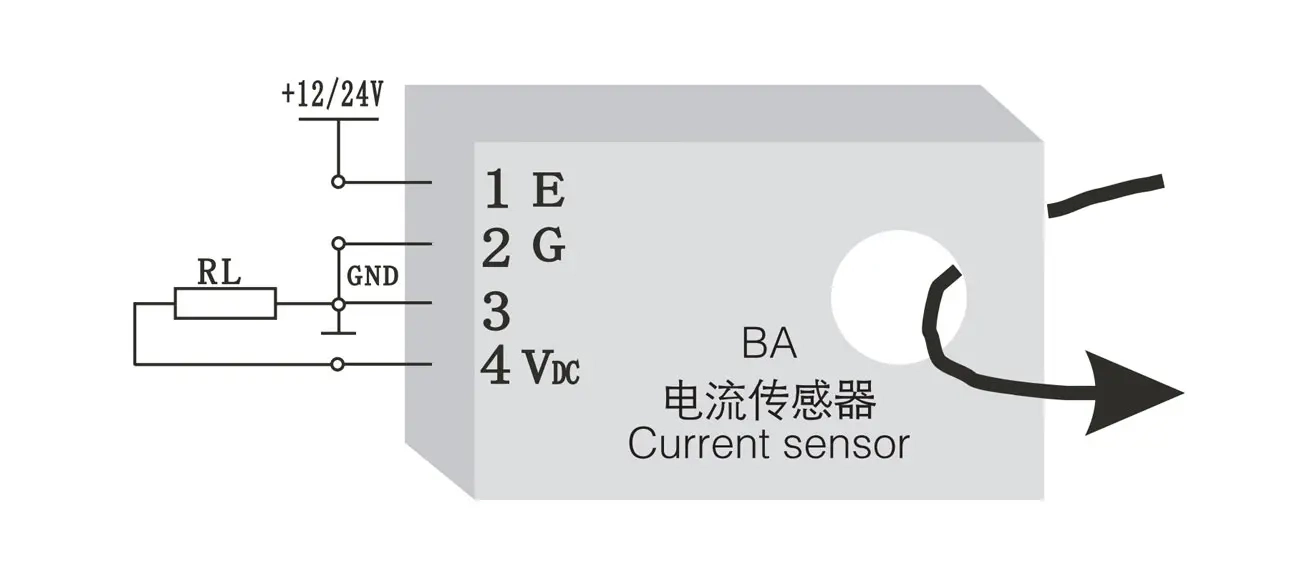

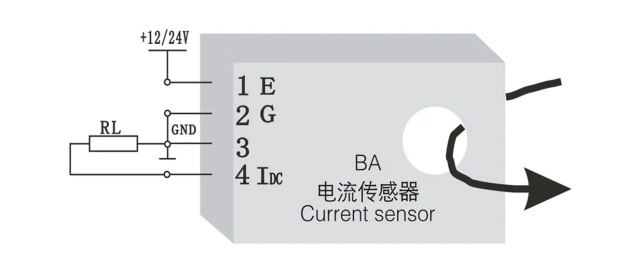

Cable Wiring of BA Series Current Transducer with DC Current Output
Cable Wiring of BA Series Current Transducer with DC Voltage Output

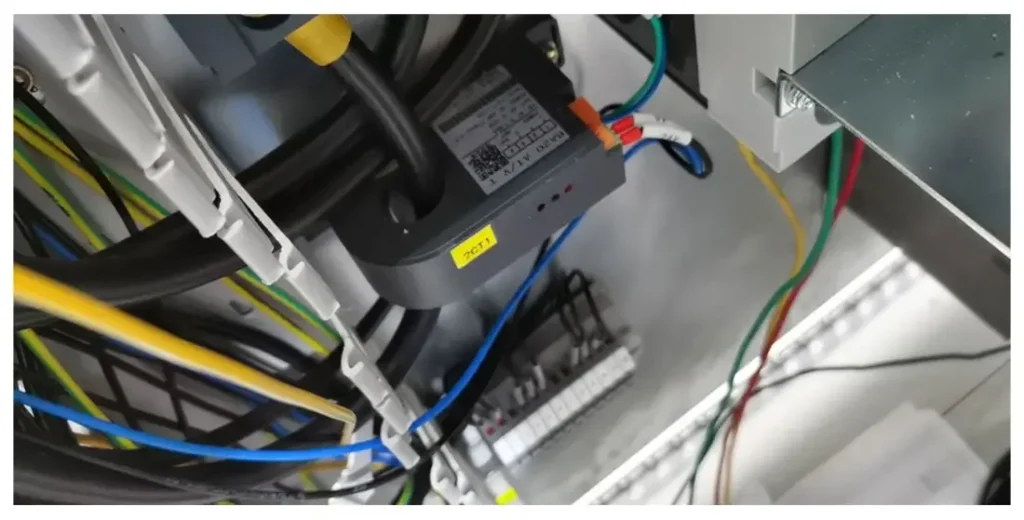

Installation

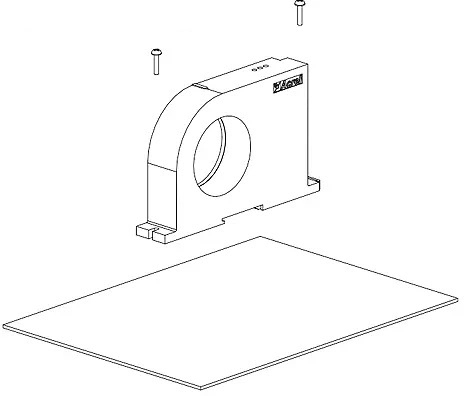

Screw fixed installation
On the bottom panel of the cabinet, choose a suitable place to open two threaded holes corresponding to the position of the fixed hole of the installed sensor; After placing the sensor, install the positioning screw

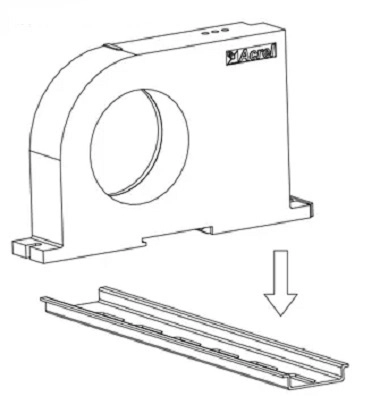

Din Rail installation
Choose a suitable place to install the standard DIN35mm rail,and install the BA sensor on the rail.
-
