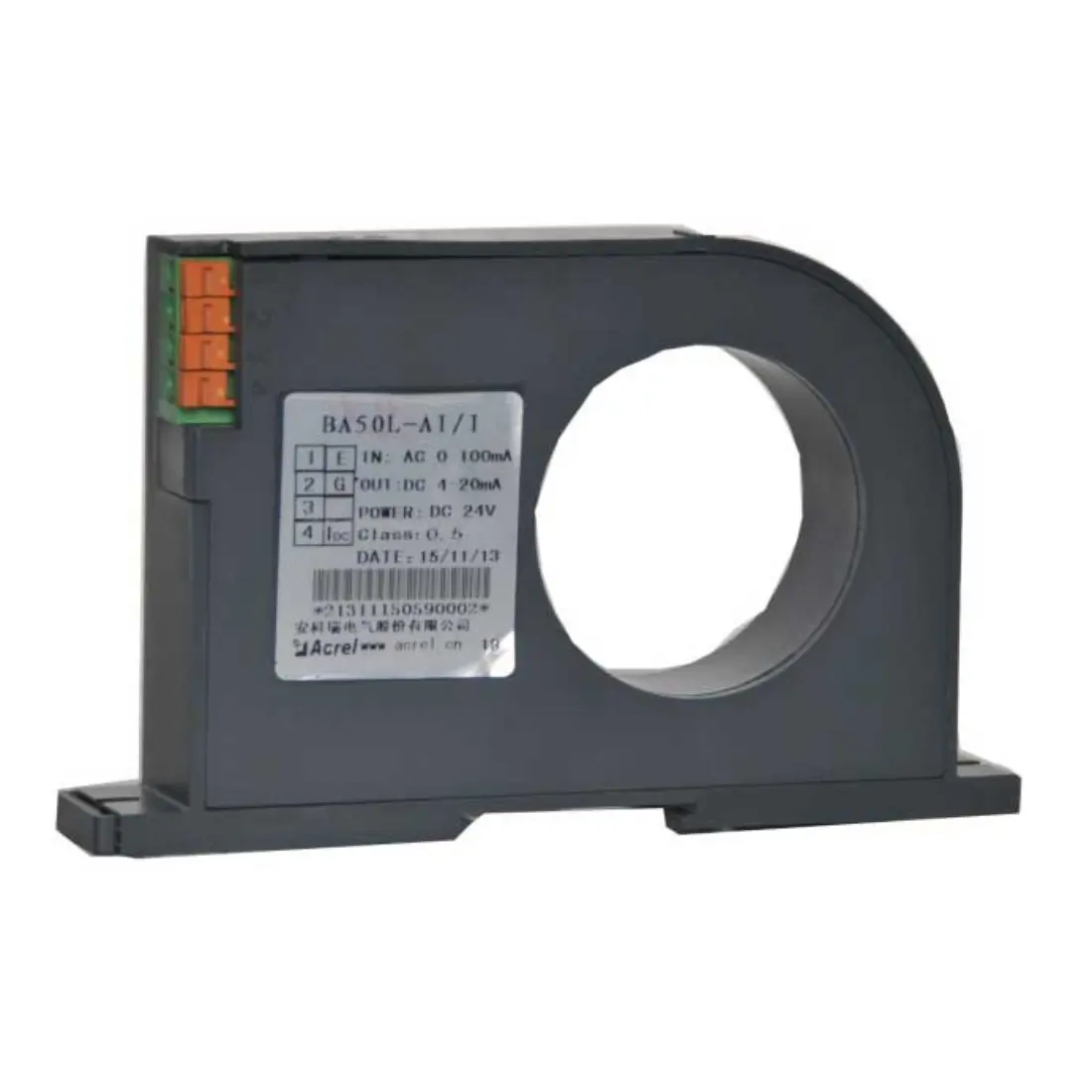

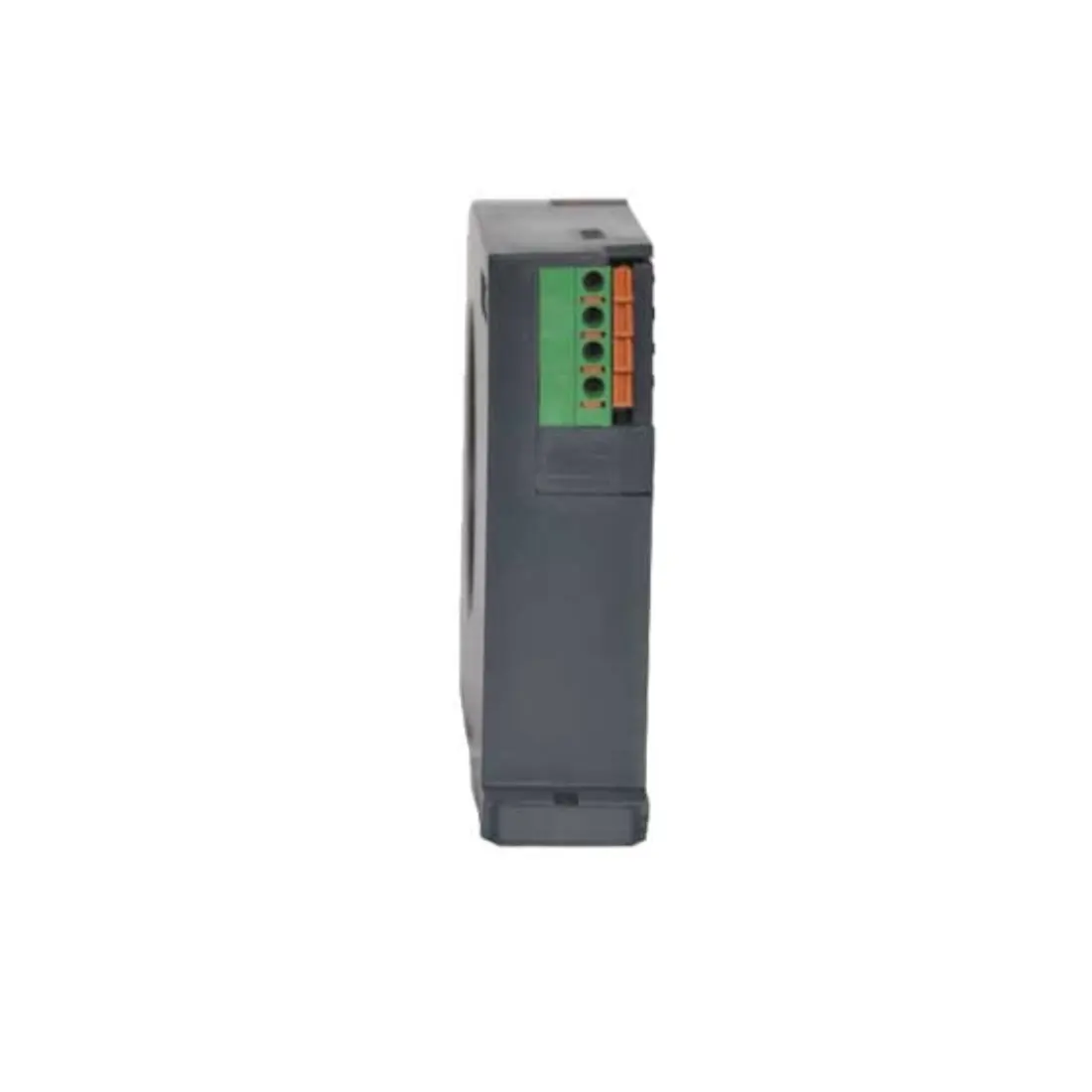

    BA50L-AII AC 0-1A Leakage Current Transducer

    Product Description

    ● Input: 0~(0.1~1)A AC
    ● Output: 4~20mAV/0~20mA DC
    ● Power Supply: 12V/24V DC
    ● Perforation Hole Size: φ50mm
    ● Applicaiton: Paired with PLC for Industrial Automation
    ● Accuracy: Class 0.5
    ● Response Time: ≤350ms
    ● Installation: 35mm DIN Rail/Screw fixed

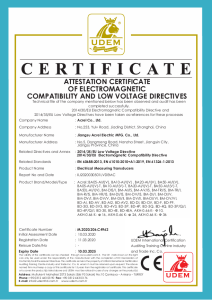

    ● Standard&Certificate: CE; TüV
    WhatsApp contact us

    • Detailed description

    • Parameters

    • Certificate

    • Download

    ▋ Series Overview

    AC Current Transducer BA Series Overview
    Model NameInputOutputPerforation Hole Size(mm)
    AC CurrentDC CurrentDC Voltage
    BA05-AI/I0~(0.5~10)A4~20mA/0~20mA /φ5

    BA05-AI/V0~(0.5~10)A/1~5V/0~5V
    BA10-AI/I0~(8~50)A4~20mA/0~20mA/φ10

    BA10-AI/V0~(8~50)A/1~5V/0~5V
    BA20-AI/I0~(40~200)A4~20mA/0~20mA/φ20

    BA20-AI/V0~(40~200)A/1~5V/0~5V
    BA50-AI/I0~(60~600)A4~20mA/0~20mA/
    φ50


    BA50-AI/V0~(60~600)A/1~5V/0~5V
    BA50L-AI/I0~(0.1~1)A4~20mA/0~20mA/
    BA50L-AI/V0~(0.1~1)A/1~5V/0~5V

    ▋ Dimension

    Dimension Illustration of BA05/BA10
    Model NameOutline Size (mm)
    WHΦMNL
    BA05-AI/I&BA05-AI/V3569562.57622.5
    BA10-AI/I&BA10-AI/V35749.562.57622.5
    Dimension Illustration of BA20/BA50/BA50L
    Model NameOutline Size (mm)
    WHΦMNL
    BA20-AI/I&BA20-AI/V3560219310224
    BA50-AI/I&BA50-AI/V35845012513524
    BA50L-AI/I&BA50L-AI/V35845012513524

    ▋ Wiring Illustration

    Wiring Terminals Overview of AC Current Transducer BA Series

    Wiring Terminals Overview of BA Series Current Transducer

    Cable Wiring of AC Current Transducer BA Series with DC Current Output

    Cable Wiring of BA Series Current Tranducer with DC Current Output

    Cable Wiring of AC Current Transducer BA Series with DC Voltage Output

    Cable Wiring of BA Series Current Tranducer with DC Voltage Output

    ▋ Installation Instruction

    AC Current Transducer BA Series installed on 35mm DIN RailAC Current Transducer BA Series fixed by Screw on Sheet Metal
    Installed on 35mm standard DIN RailFixed by Screw on Sheet Metal

    ▋ Work Site Application

    Work Site Application of AC Current Transducer BA Series

    Work Site Application of BA Series Current Transducer

    Model Name
    		 Input Output Perforation Hole Size(mm)
    AC  Current DC Current DC Voltage
    BA05-AI/I
    		 0~(0.5~10)A 4~20mA/0~20mA  / φ5

    BA05-AI/V
    		 0~(0.5~10)A / 1~5V/0~5V
    BA10-AI/I
    		 0~(8~50)A 4~20mA/0~20mA / φ10

    BA10-AI/V
    		 0~(8~50)A / 1~5V/0~5V
    BA20-AI/I
    		 0~(40~200)A 4~20mA/0~20mA / φ20

    BA20-AI/V
    		 0~(40~200)A / 1~5V/0~5V
    BA50-AI/I
    		 0~(60~600)A 4~20mA/0~20mA /
    φ50


    BA50-AI/V
    		 0~(60~600)A / 1~5V/0~5V
    BA50L-AI/I
    		 0~(0.1~1)A 4~20mA/0~20mA /
    BA50L-AI/V
    		 0~(0.1~1)A / 1~5V/0~5V

    ▋ General Technical Specification

    Item
    		 Description
    Auxiliary Power Supply DC 12V (range of 10~15V) or DC 24V (range of 18~30V)
    Accuracy Class
    		 0.5%
    Load Resistance (Output)
    		 Current Output: ≤500Ω; Voltage Output: ≤1000Ω
    Response Time
    		 ≤350ms
    Temperature
    		 Operation Temp.: -10℃~+55℃; Storage Temp.: -40℃~+80℃
    Temperature Coefiicient
    		 ≤200ppm/℃
    Humidity ≤90%
    Altitude
    		 ≤2500m
    Installation
    		 35mm DIN Rail or Screw fixed
    Standard CE/TüV
