Technical parameters		Value
Accuracy class		0.5、0.2
Input	Nominal value	Current:AC、DC 1A、5A； Voltage:AC、DC 100V、300V、500V and so on
	Overload	Continual 1.2 times, Instantaneous current 10 times/5s; Instantaneous voltage 2 times/30s;
	Consumption	Current input:≤0.3VA Voltage input: ≤0.3VA(When the voltage is 100V )； ≤0.6VA(When the voltage is 300V)； ≤1VA(When the voltage is 500V)
	Frequency	50±5Hz，60±5Hz
Output	Normal value	DC:4-20mA、0-20mA, 0-5V, 0-10V and so on
	Load resistance	Current output≤600Ω Voltage output≥1000Ω
	Ripple content	<0.5% peak value
Response time		≤400ms
Power supply	Voltage	AC85-265V、DC100-350V
Power supply	Consumption	AC current, voltage≤3VA Power≤4VA
Insulation resistance		≥100MΩ
Isolation voltage		Among input//output//power supply 2.0kV/1min, 50Hz
Temperature modulus		≤200ppm/℃
Environment	Temperature	Working：-10℃~+55℃ Storage: -25℃~+70℃
	Humanity	≤90%RH，No condensation, no corrosive gas place
	Altitude	≤2000m

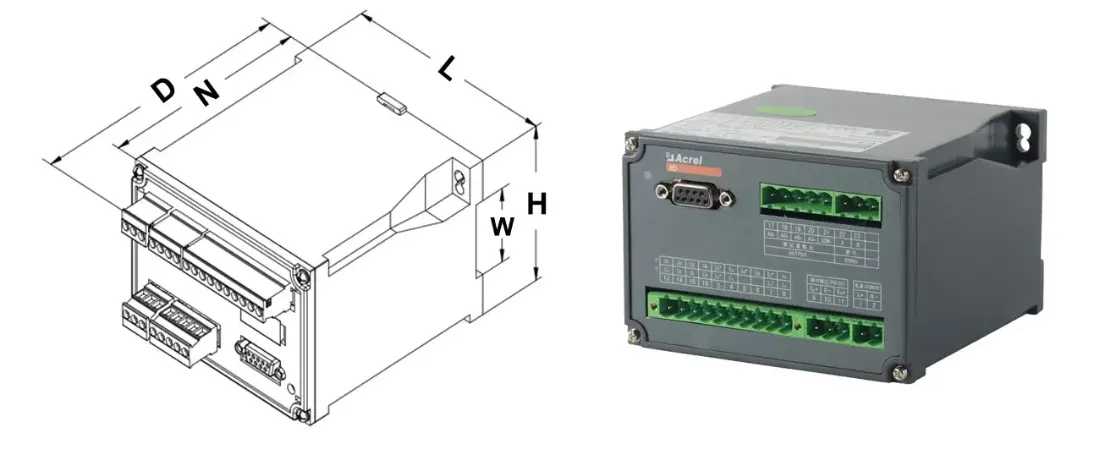

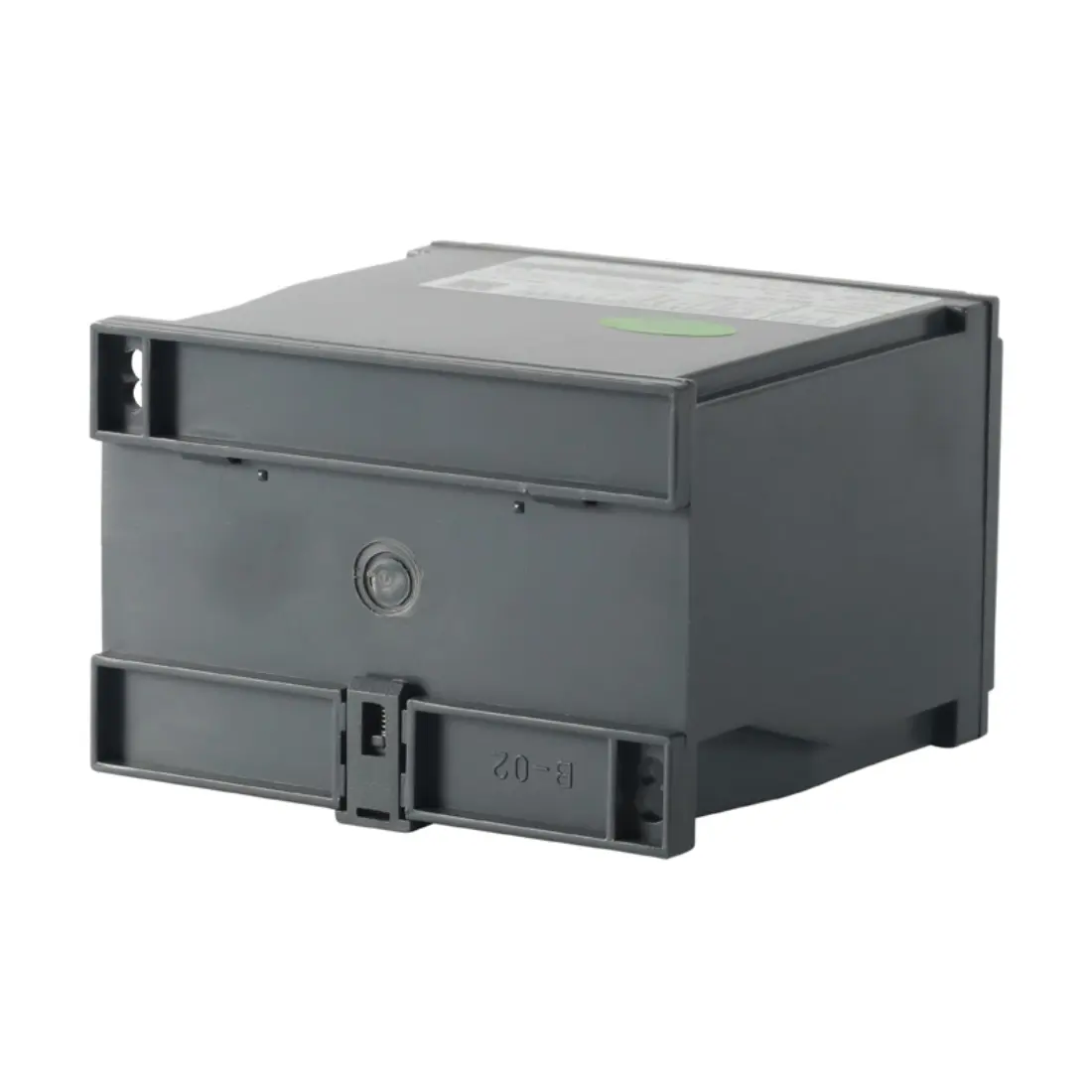

Fix mode		Rail, or fix to cubicle with bolt)

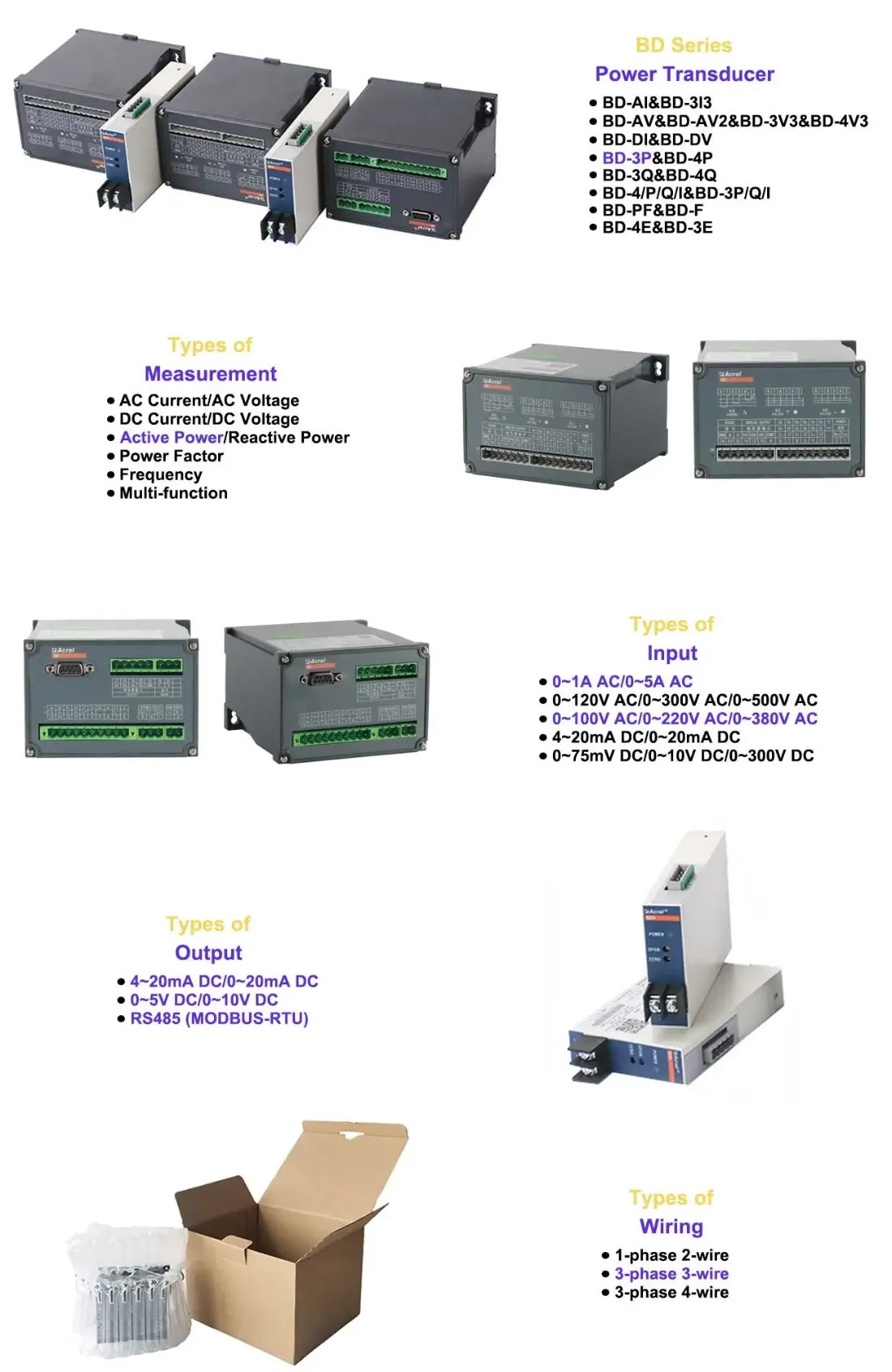

Shape	Model	Function	FOB Shanghai (USD)	Optional function and price (USD)
	BD-AI	Measure single phase AC current, isolate and transmit 4-20mA or 0-5V DC signal	53	/C:RS485-MODBUS +30 /T：True RMS +15
	BD-AI2	Measure single phase AC current, isolate and transmit 2 channels 4-20mA or 0-5V signal	106	/
	BD-3I3	Measure three phase AC current, isolate and transmit 3 channels 4-20mA or 0-5V signal	122	/C:RS485-MODBUS +30
	BD-DI	Measure DC current, isolate and transmit 4-20mA or 0-5V DC signal	83	/
	BD-AV	Measure single phase AC voltage, isolate and transmit 4-20mA or 0-5V signal	53	/C:RS485-MODBUS +30 /T：True RMS +15
	BD-AV2	Measure single phase AC voltage, isolate and transmit 2 channels 4-20mA or 0-5V signal	106	/
	BD-DV	Measure single phase DC voltage, isolate and transmit 4-20mA or 0-5V signal	83	/
	BD-DV2	Measure single phase DC voltage, isolate and transmit 2 channels 4-20mA or 0-5V signal	106	/
	BD-3(4)V3	Three phase voltage transmitter.Measure three phase AC voltage, isolated transmission output 4-20mA or 0-5V DC signal	122	/C:RS485-MODBUS +30
	BD-3E	3P3L multi-power transmitter；measure three phase current, voltage, active power, reactive power, frequency, power factor and other digital quantities； 1 channel isolated transmission output；2 channels power pulse output； RS485-MODBUS communication	216	/2M：2 channels analog output +30 /3M：3 channels analog output +60 /4M：4 channels analog output +90
	BD-4E	3P4L multi-power transmitter； measure three phase current, voltage, active power, reactive power, frequency, power factor and other digital quantities； 1 channel isolated transmission output；2 channels power pulse output； RS485-MODBUS communication	216
	BD-4EA	3P4L multi-power transmitter； measure and display three phase current, voltage, active power, reactive power, frequency, power factor and other digital quantities； 1 channel isolated transmission output；2 channels power pulse output； RS485-MODBUS communication	250
	BD-3P	3P3L；measure active power；1 channel isolated transmission output	137	/2M：2 channels analog output +30 /3M：3 channels analog output +60 /4M：4 channels analog output +90 /C：RS485-MODBUS +30
	BD-4P	3P4L；measure active power；1 channel isolated transmission output	137
	BD-3Q	3P3L；measure reactive power；1 channel isolated transmission output	137
	BD-4Q	3P4L；measure reactive power；1 channel isolated transmission output	137
	BD-3P/Q	3P3L；measure active power and reactive power；2 channels isolated transmission output	152	/C：RS485-MODBUS +30
	BD-4P/Q	3P4L；measure active power and reactive power；2 channels isolated transmission output	152
	BD-3P/Q/I	3P3L；measure current,active power and reactive power；3 channels isolated transmission output	162
	BD-4P/Q/I	3P4L；measure current,active power and reactive power；3 channels isolated transmission output	162

Current Language

Change Language

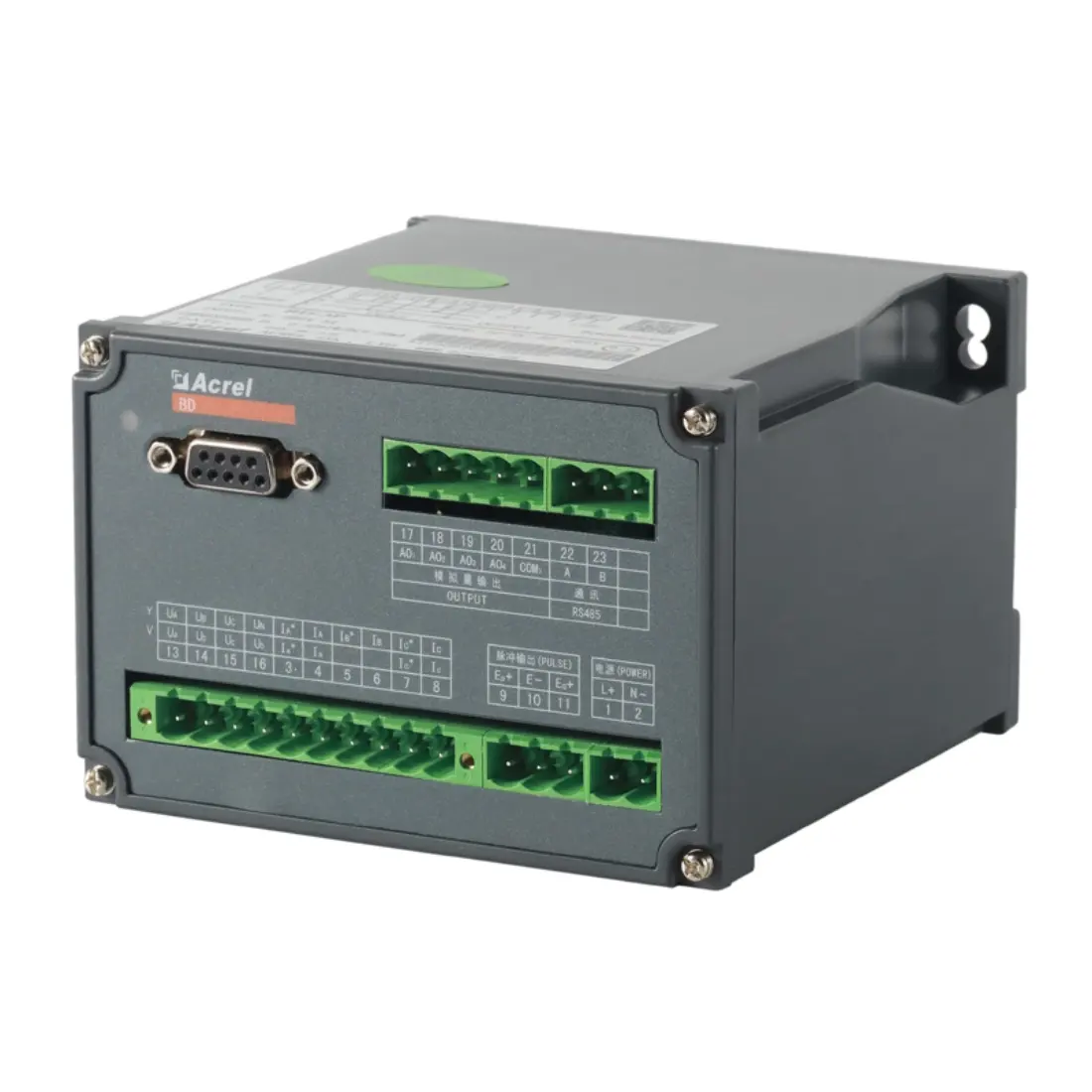

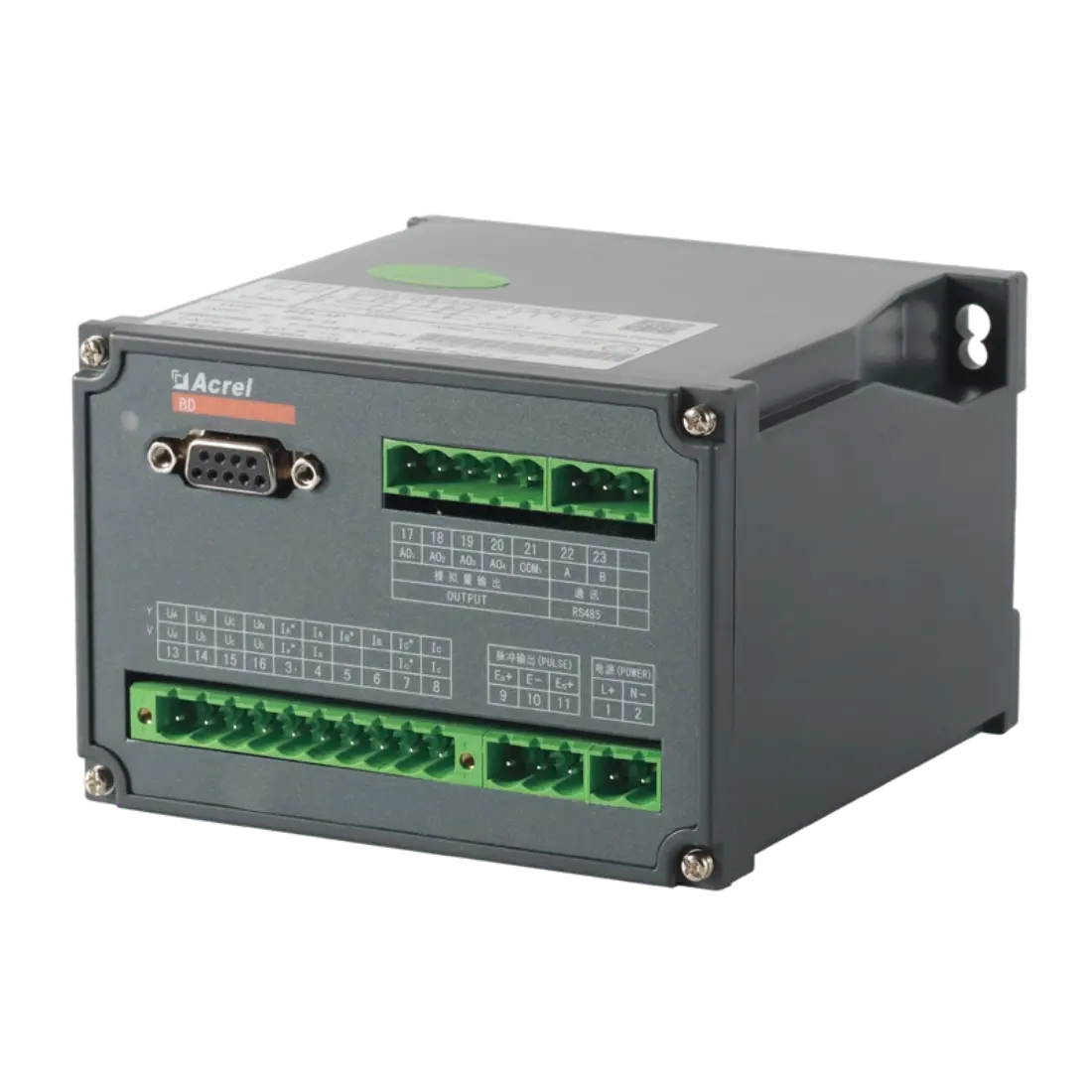

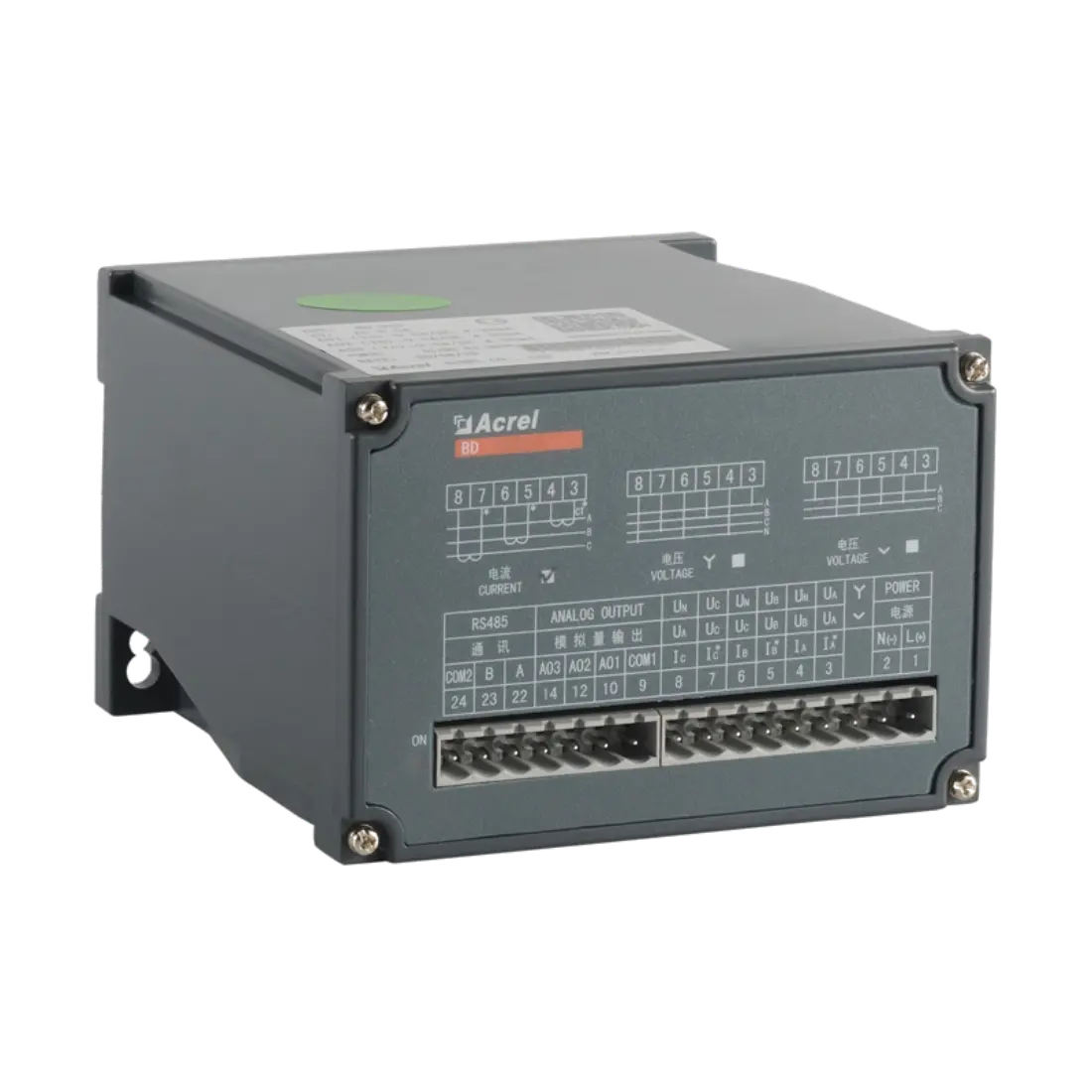

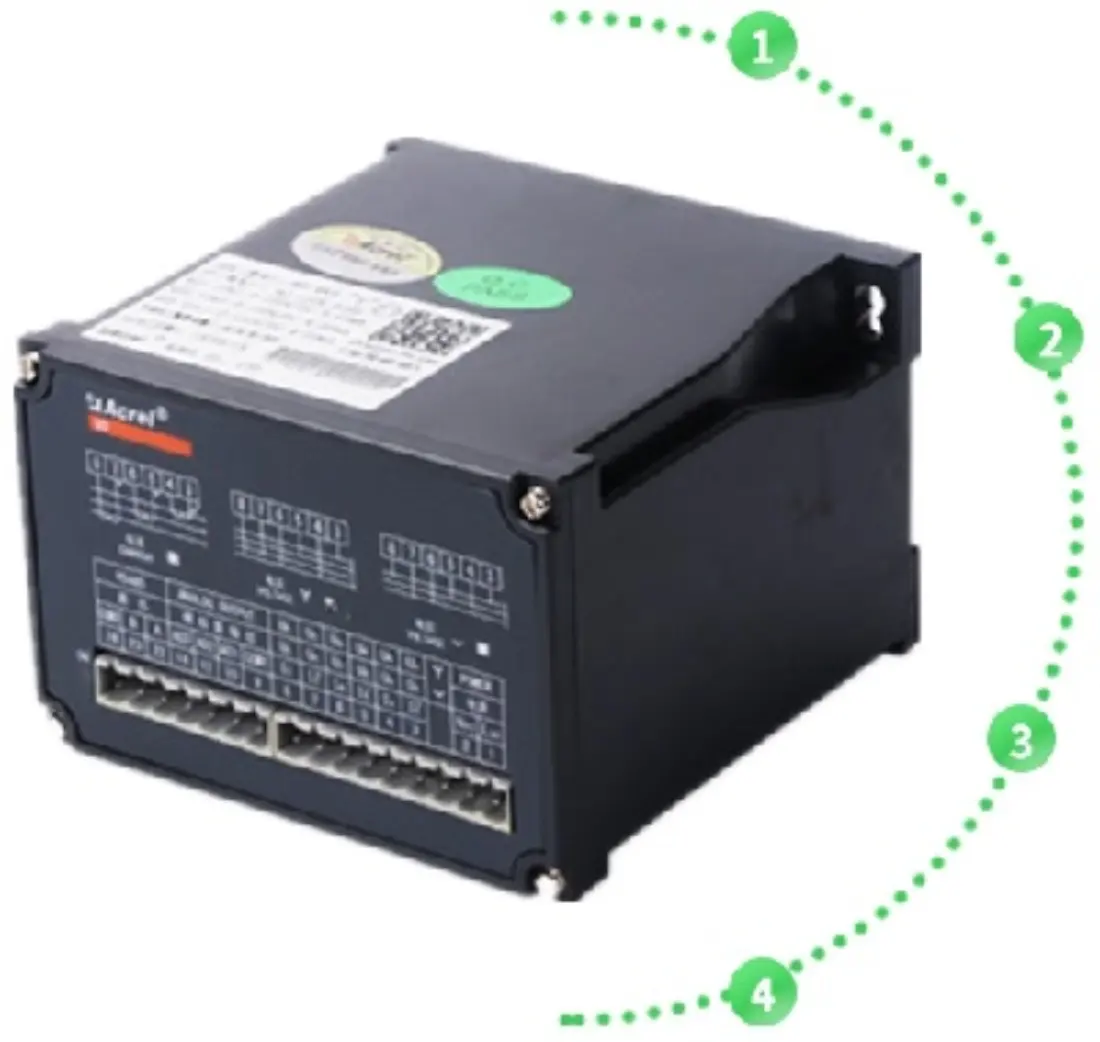

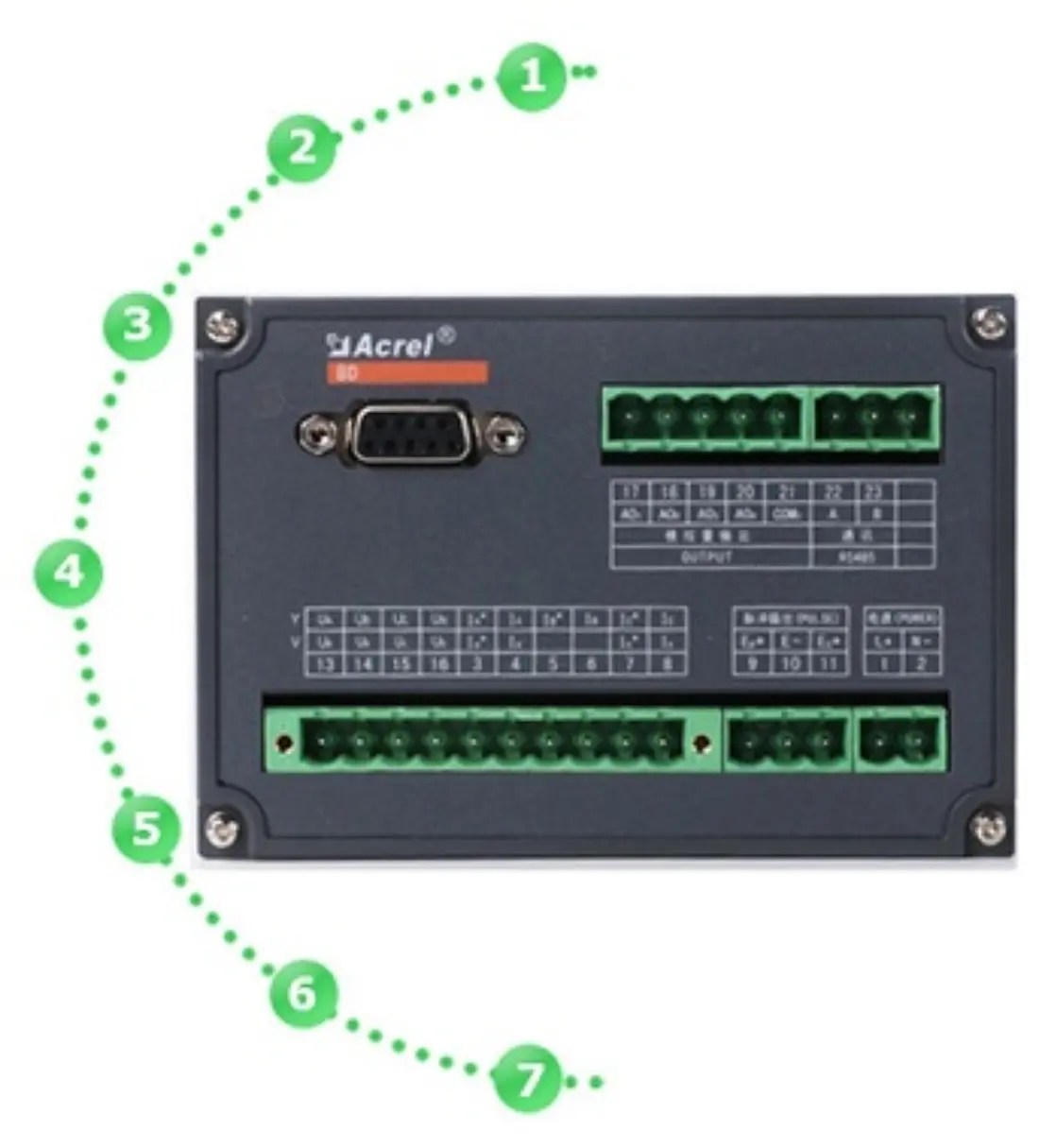

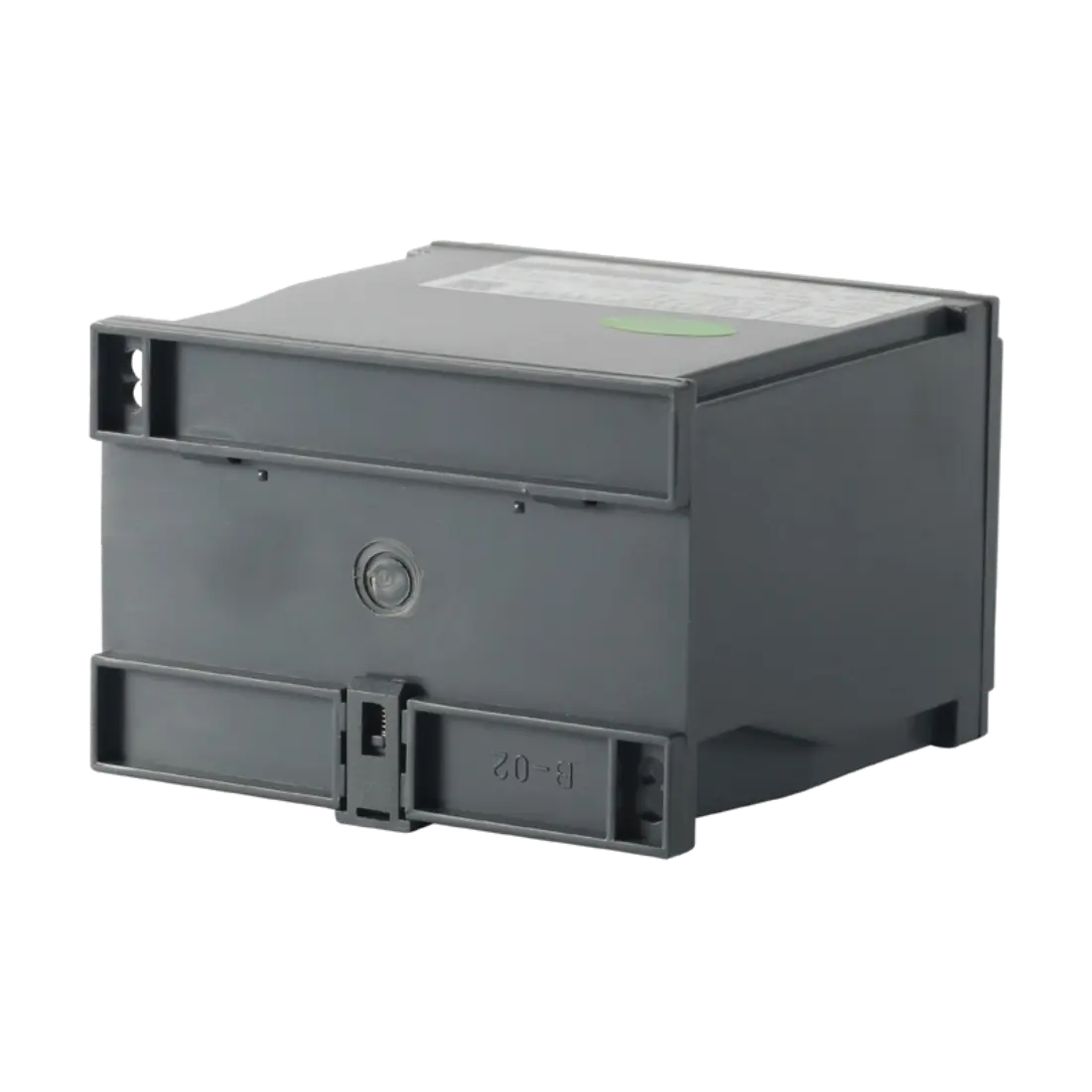

BD-3P Three Phase Power Transducer 3P4L
