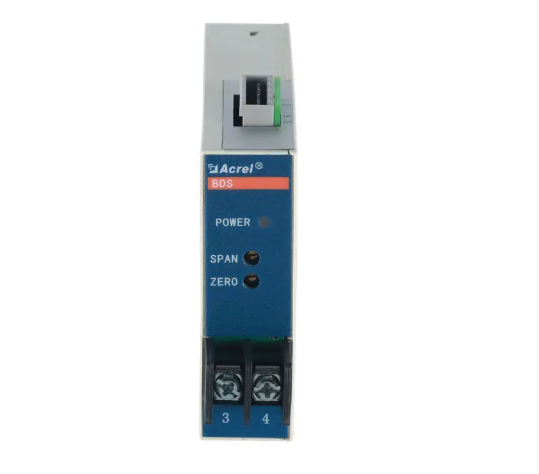

AC Voltage Transducer BD-AV (1-phase 2-wire)BD-AV

Product Description

● Measurement: 1-phase AC Voltage

● Accuracy: Class 0.5

● Input: 0~120V/0~300V/0~500V AC

● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485(MODBUS-RTU)

● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V DC

● Wiring: 1-phase 2-wire

● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering

● Response Time: ≤400ms

● Installation: 35mm DIN Rail/Screw fixed

● Standard&Certificate: CE

WhatsApp contact us

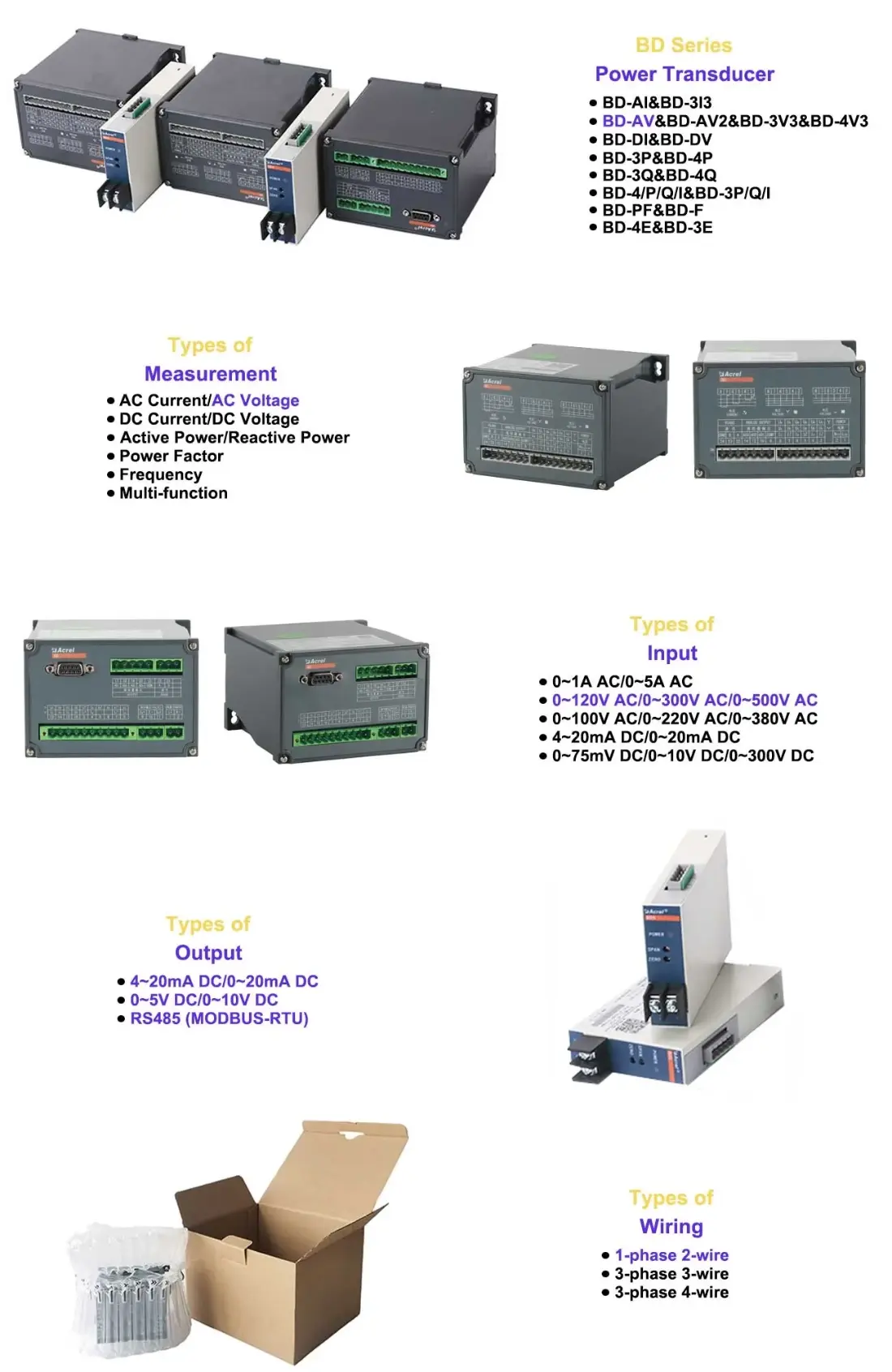

Detailed description
Parameters

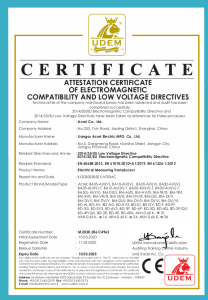

Certificate
Download

Model Name Measurement Input Output Wiring
BA-AI 1-phaseAC Current 0~1A AC/0~5A AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 1-phase 2-wire
BA-3I3 3-phaseAC Current 0~1A AC/0~5A AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DC 3-phase 3-wire
BA-AV 1-phaseAC Voltage 0~120/300/500V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 1-phase 2-wire
BA-3V3 3-phaseAC Voltage 0~120/300/500V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DC 3-phase 3-wire
BA-4V3 3-phaseAC Voltage 0~120/300/500V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DC 3-phase 4-wire
BD-DI 1-phaseDC Current 4~20mA DC/0~20mA DC 4~20mA DC/0~20mA DC0~5V DC/0~10V DC 1-phase 2-wire
BD-DV 1-phaseDC Voltage 0~75mV DC/0~10V DC/0~300V DC 4~20mA DC/0~20mA DC0~5V DC/0~10V DC 1-phase 2-wire
BD-3P 3-phaseActive Power 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wire
BD-4P 3-phaseActive Power 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wire
BD-3Q 3-phaseReactive Power 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wire
BD-4Q 3-phaseReactive Power 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wire
BD-3/P/Q/I 3-phaseActive&ReactivePower 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wire
BD-4/P/Q/I 3-phaseActive&ReactivePower 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wire
BD-PF 3-phasePower-Factor 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wire
BD-F 3-phaseFrequency 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wire
BD-3E 3-phaseMulti-Parameters 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wire
BD-4E 3-phaseMulti-Parameters 0~1A AC/0~5A AC
and0~100/220/380V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wire

▋ Dimension

Model Name Outline Size (mm)
L H D W M
BD-AI 138 76 24 35 120
BD-AV 138 76 24 35 120
BD-DI 138 76 24 35 120
BD-DV 138 76 24 35 120

Model Name Outline Size (mm)
L H D W N
BD-3I3 110 75.4 128 35 111.7
BD-3V3 110 75.4 128 35 111.7
BD-4V3 110 75.4 128 35 111.7

Model Name Outline Size (mm)
L H D W N
BD-3P 110 75.4 128 35 111.7
BD-4P 110 75.4 128 35 111.7
BD-3Q 110 75.4 128 35 111.7
BD-4Q 110 75.4 128 35 111.7
BD-3P/Q/I 110 75.4 128 35 111.7
BD-4P/Q/I 110 75.4 128 35 111.7
BD-PF 110 75.4 128 35 111.7
BD-F 110 75.4 128 35 111.7
BD-3E 110 75.4 128 35 111.7
BD-4E 110 75.4 128 35 111.7
▋ Differential Technical Specification

Model Name
Measurement Input Output Power Supply

BA-AI
1-phase

AC Current

0~1A AC/0~5A AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
1-phase 2-wire

BA-3I3
3-phase

AC Current

0~1A AC/0~5A AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC
3-phase 3-wire

BA-AV
1-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
1-phase 2-wire

BA-3V3
3-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC
3-phase 3-wire

BA-4V3
3-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC
3-phase 4-wire

BD-DI
1-phase

DC Current

4~20mA DC/0~20mA DC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC
1-phase 2-wire

BD-DV
1-phase

DC Voltage

0~75mV DC/0~10V DC

/0~300V DC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC
1-phase 2-wire

BD-3P
3-phase

Active Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 3-wire

BD-4P
3-phase

Active Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 4-wire

BD-3Q
3-phase

Reactive Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 3-wire

BD-4Q
3-phase

Reactive Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 4-wire

BD-3/P/Q/I
3-phase

Active&Reactive

Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 3-wire

BD-4/P/Q/I
3-phase

Active&Reactive

Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 4-wire

BD-PF
3-phase

Power-Factor

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 4-wire

BD-F
3-phase

Frequency

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 4-wire

BD-3E
3-phase

Multi-Parameters

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 3-wire

BD-4E
3-phase

Multi-Parameters

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)
3-phase 4-wire

▋ General Technical Specification

Item
Description

Auxiliary Power Supply 85V~265V AC or 100V~350V DC or 24V/48V DC (for certain models)

Accuracy Class
0.5%

Load Resistance (Output)
Current Output: ≤600Ω; Voltage Output: ≤1000Ω

Response Time
≤400ms

Temperature
Operation Temp.: -10℃~+55℃; Storage Temp.: -25℃~+70℃

Temperature Coefiicient
≤200ppm/℃

Humidity ≤90%

Altitude
≤2500m

Installation
35mm DIN Rail or Screw fixed

Standard CE

Download [ | ] Manual of BD Series Power Transducer pdf (1.93 MB) [ | ] Acrel Power Sensors Catalogue pdf (7.86 MB) [ | ] CE certificate pdf (43.80 KB)
