● Measurement: Alternating Current (AC)
● Installtion: Clamp-on easy installation
● Primary Current Input: Max 10000A AC
● Secondary Current Output: 200mV/333mV
● Secondary Current Output: 200mV/333mV
● Perforation Size: 90/150/200/300 mm

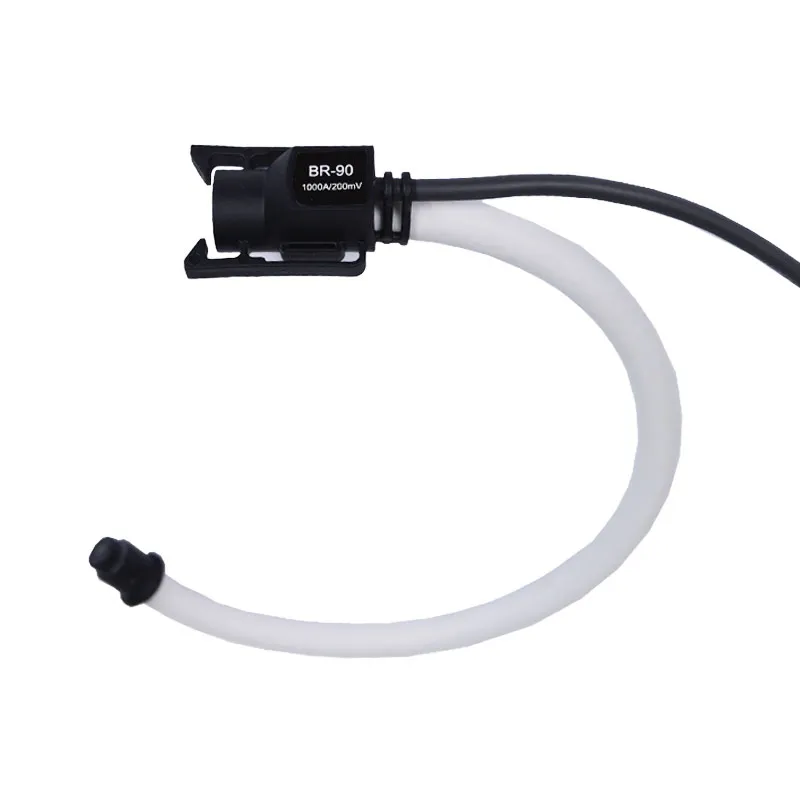

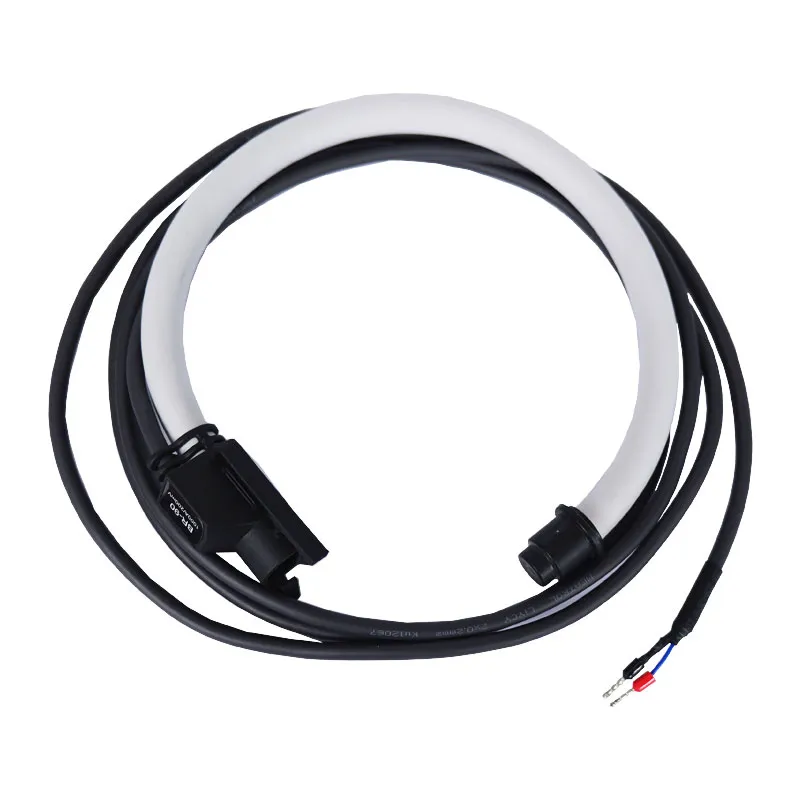

BR Series Rogowski Coil Current Transformer
Product Description
-
Detailed description
-
Parameters
-
Certificate
-
Download
-
▋ Series Overview
Model Name Primary Input [AC] Secondary Output Perforation Hole Size (mm) BR-90 1000A 200/333mV 90 BR-150 2000~5000A 200mV 150 BR-200 4000~8000A 200mV 200 BR-300 5000~10000A 200mV 300 ▋ Dimension
Model Name Inner Diameter Sector Diameter Circumference BR-90 90mm 12mm 300mm BR-150 150mm 12mm 500mm BR-200 200mm 12mm 650mm BR-300 300mm 12mm 1000mm Noted: The secondary signal output line is 2×0.2mm² cable with length of 2m ± 10cm.
▋ Installation Instruction
Noted: Before installing the Rogowski CT on monitoring circuits, first you need to wire the Rogowski CT with paired energy meter.
Noted: The clamping up installation direction of CT must be according to the actual forward current direction. [Normally consider the direction from source to loads as forward current direction]
-
1. Series Overview
Model Name Primary Input [AC] Secondary Output Perforation Hole Size (mm) BR-90 1000A 200/333mV 90 BR-150 2000~5000A 200mV 150 BR-200
4000~8000A 200mV 200 BR-300 5000~10000A 200mV 300 2. General Technical Specs
● Position Error: ±1%● OA Output (Zero Drift): ≤1mV● Phase Angle Error: ≤0.5°
● Linearity: ±0.2%● Bandwidth: 1Hz~10kHz● Operating Temperature: -40℃ ~ +80℃● Storage Temperature: -50℃ ~ +90℃● Flame Retardant: Thermoplastic rubber for wires and cables● Shielding: 100% for coil, 100% for signal cable
● Insulation Voltage: Coil: 3000V; Signal cable: 300V -
Download
-
[ | ] BR Series Rogowski Coil Current Transformer Datasheet
pdf (306.89 KB)
-
