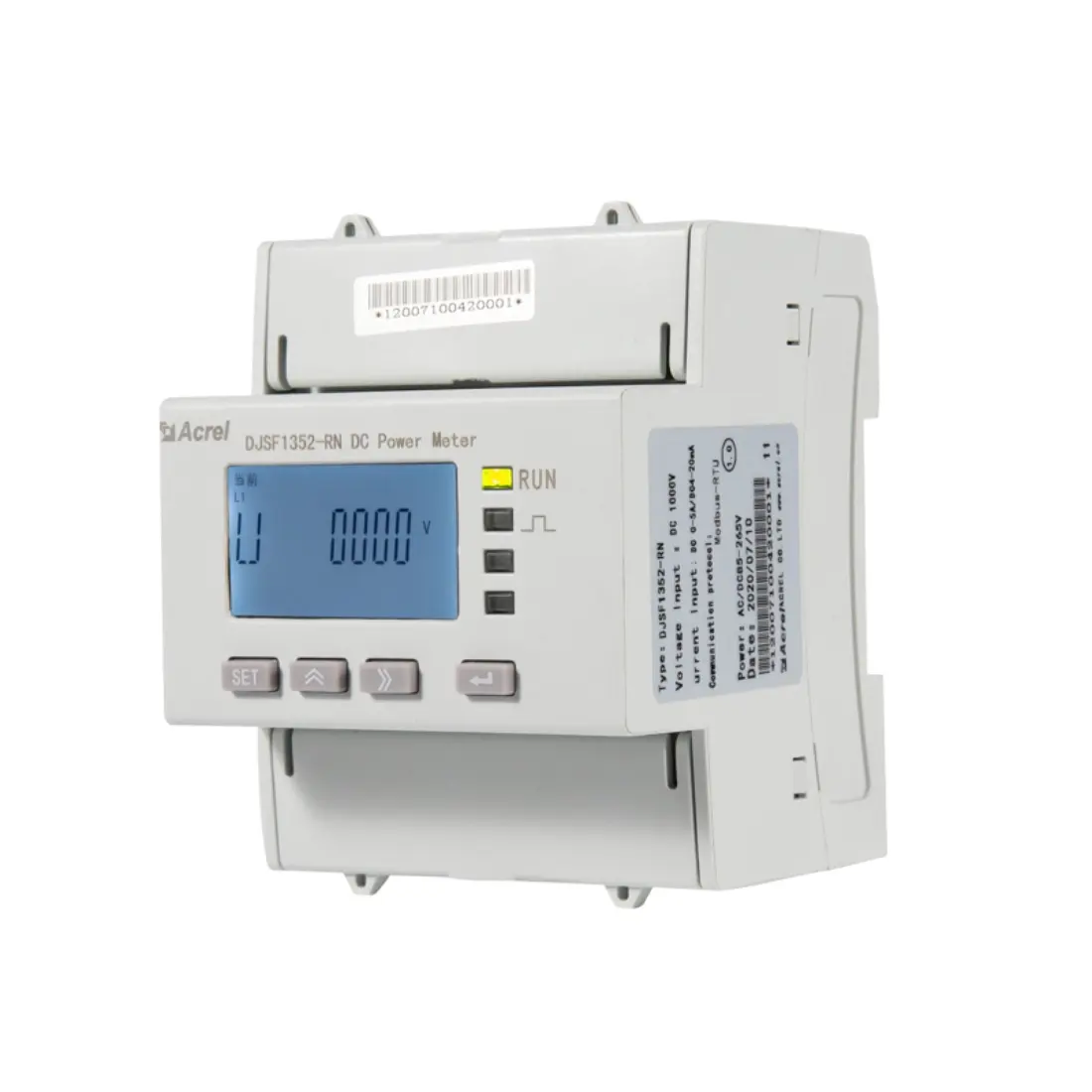

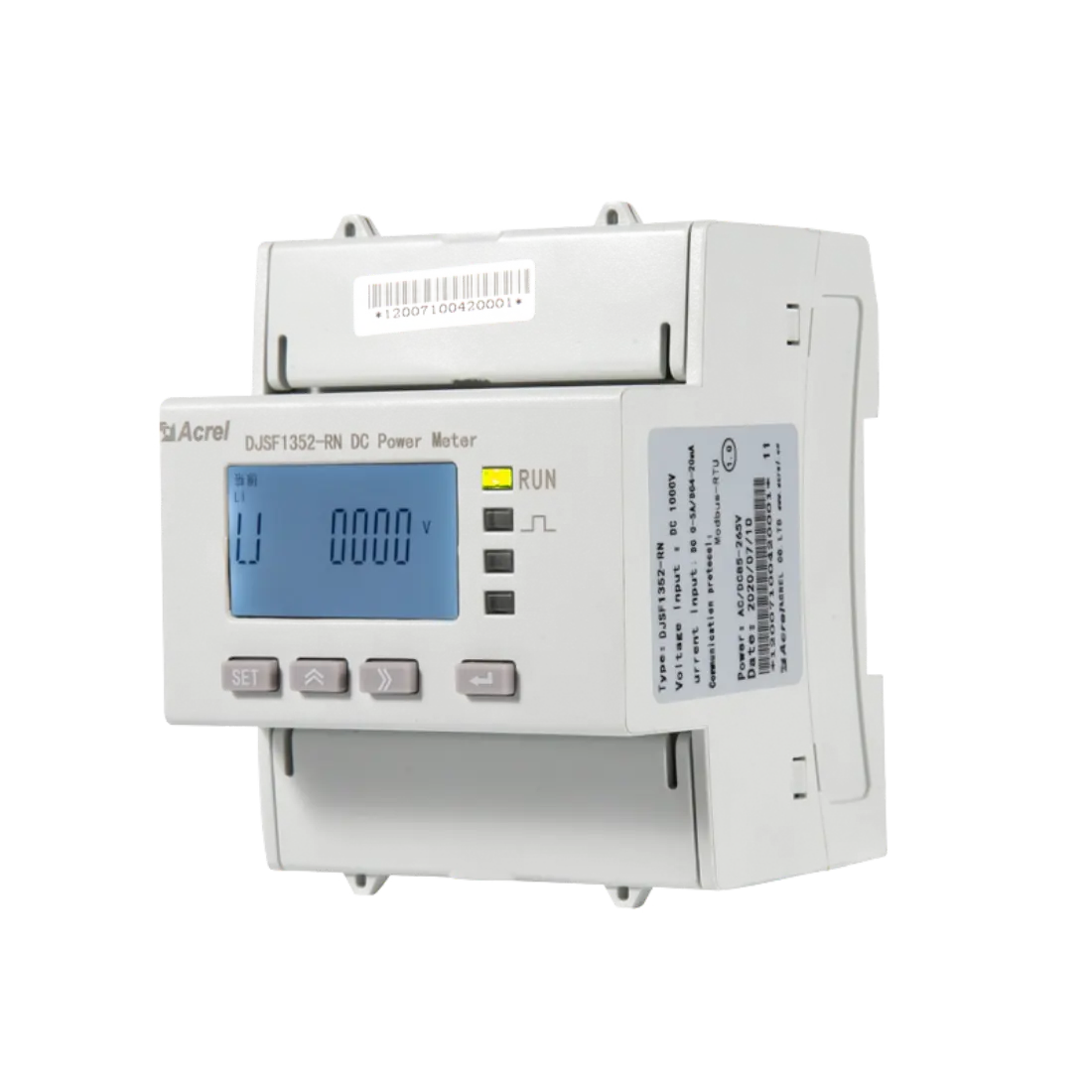

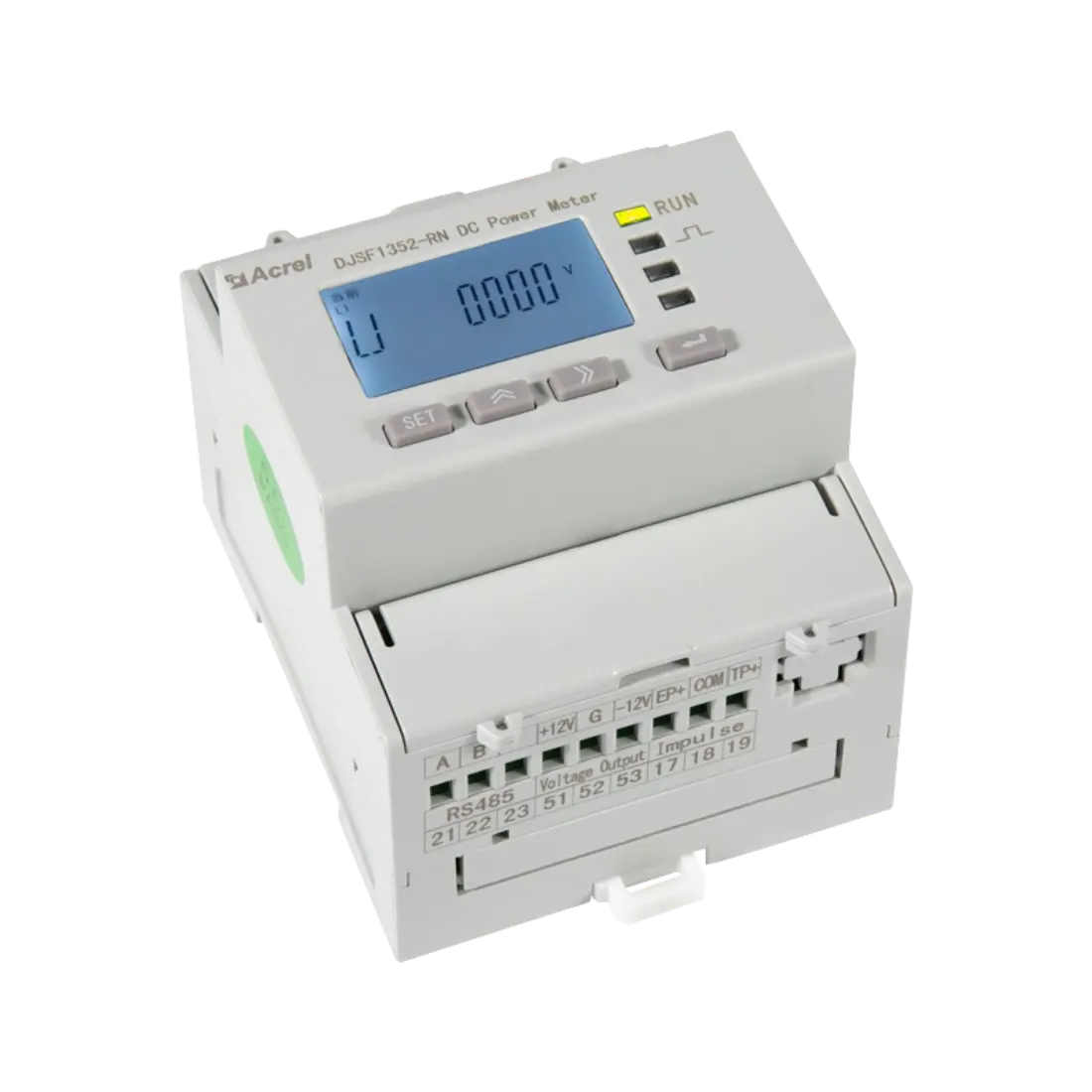

DJSF1352-RN UL DC Din Rail Power Meter

Product Description

● Measurement: kWh, kVarh, Power, Current, Voltage and etc

● Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)

● Voltage Rating: 0~1000V DC

● Application: DC Battery; Charging Pile; Solar PV and etc

● Communication: RS485 (MODBUS-RTU)

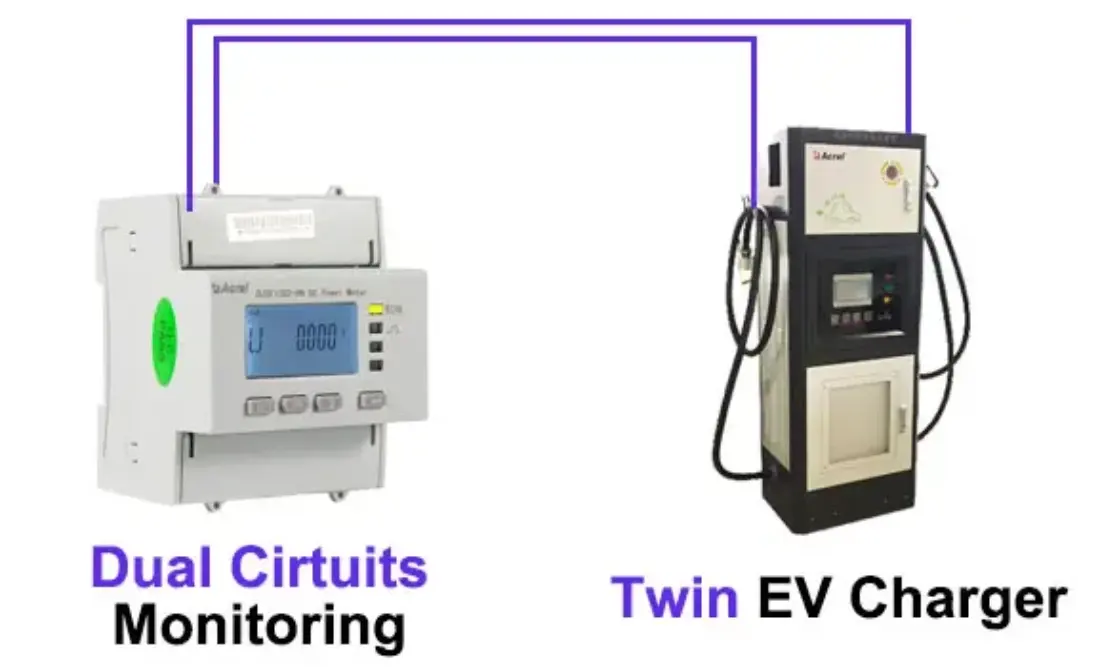

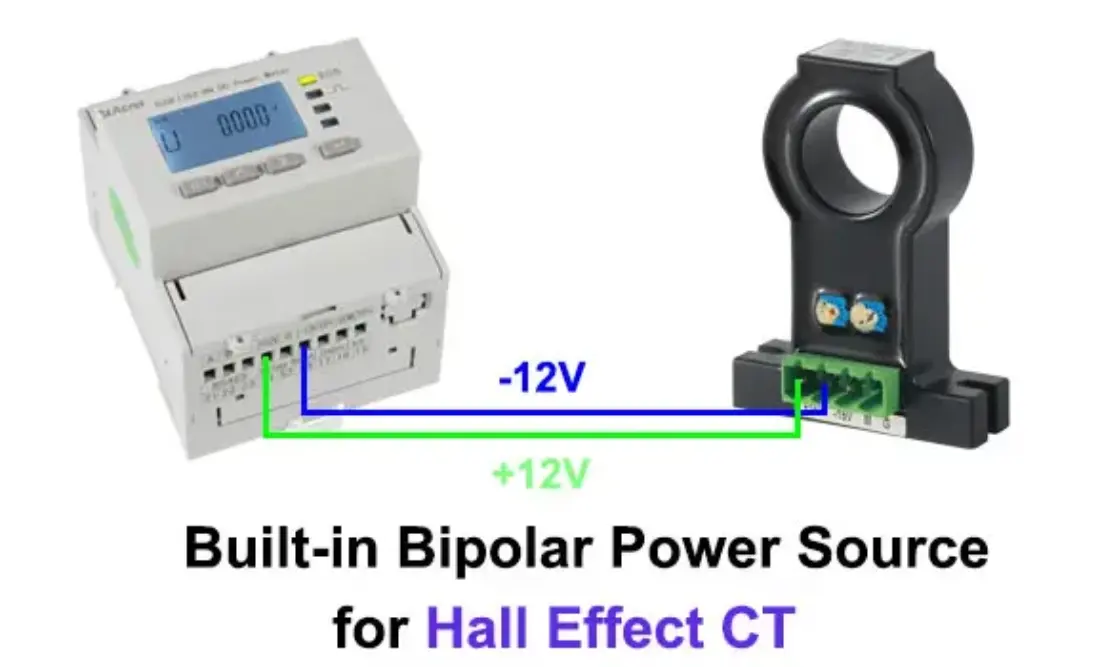

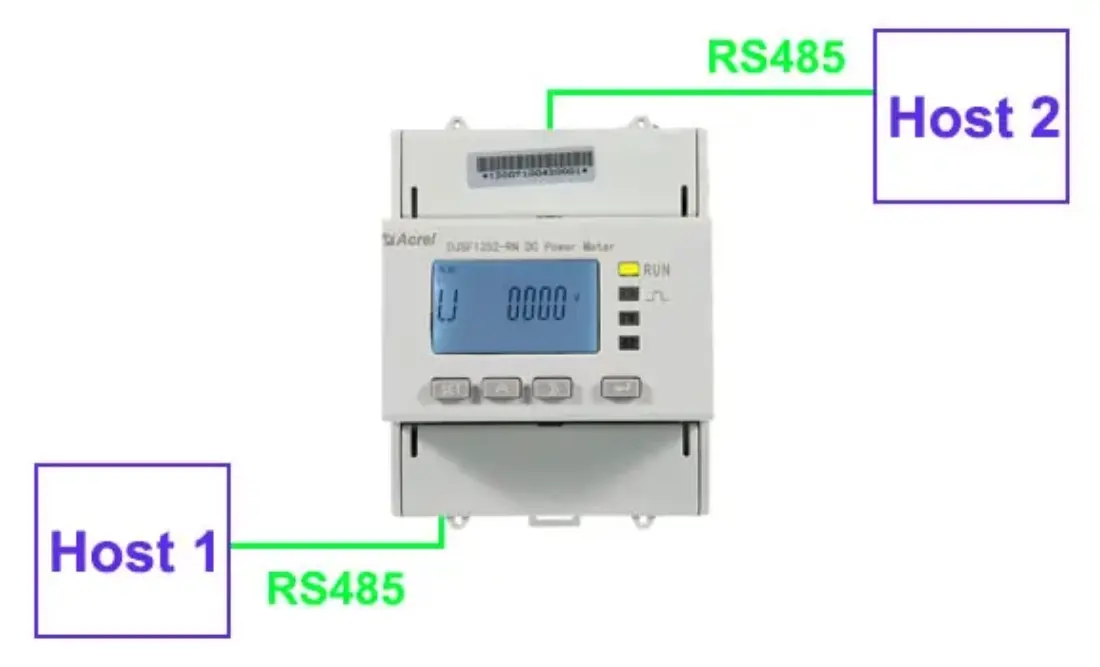

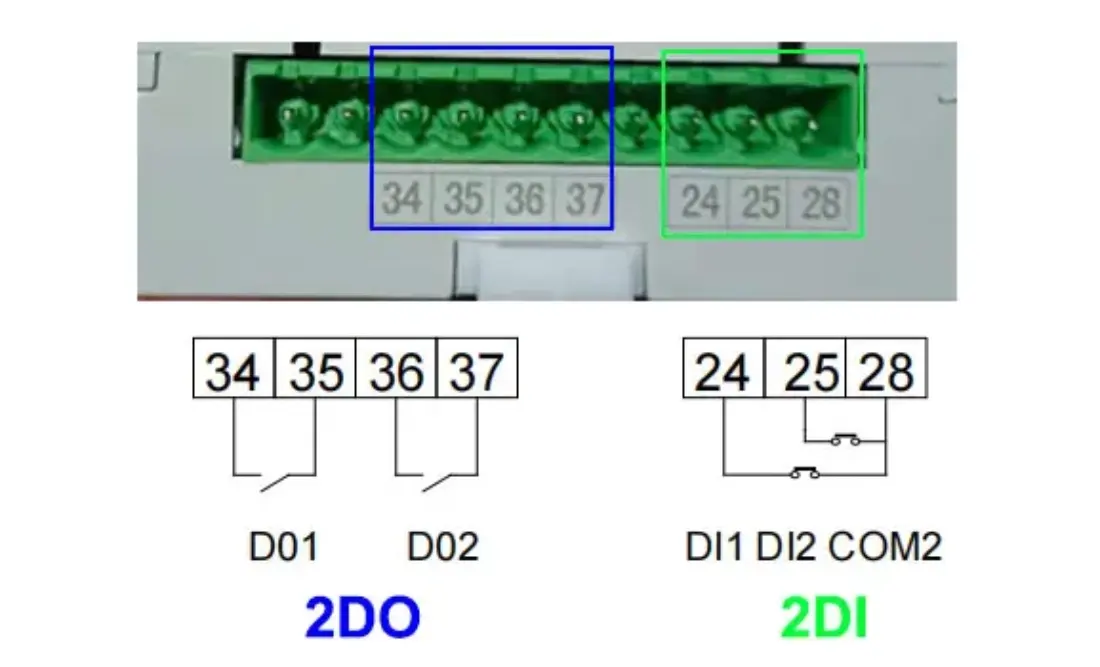

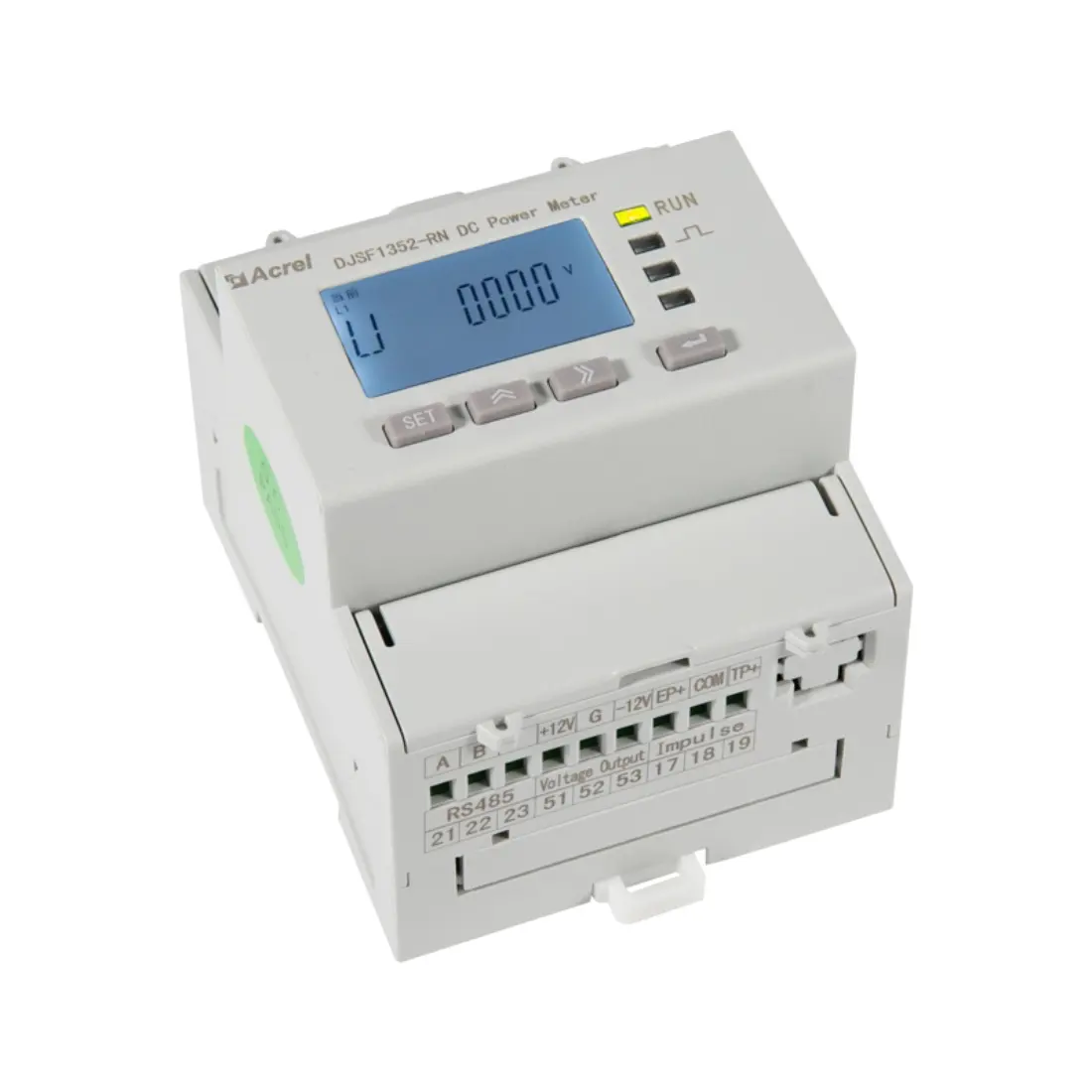

● Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU); Built-in Bipolar Power Source (for Hall Sensors); DO/DI Function

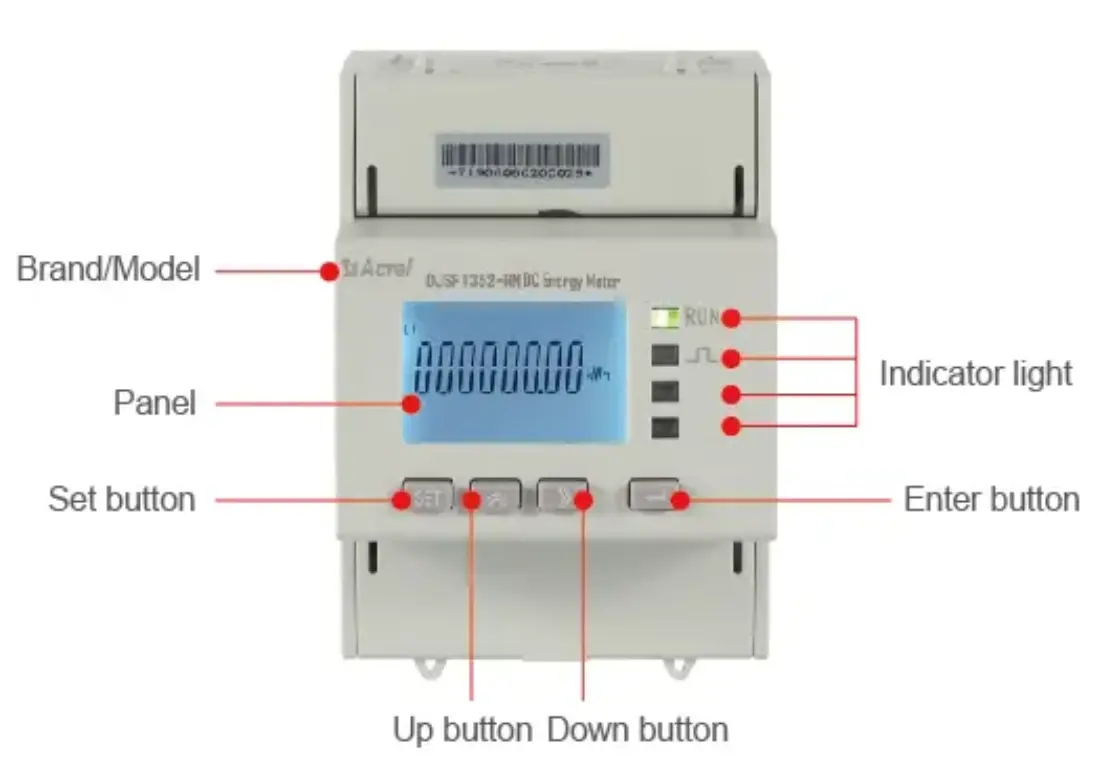

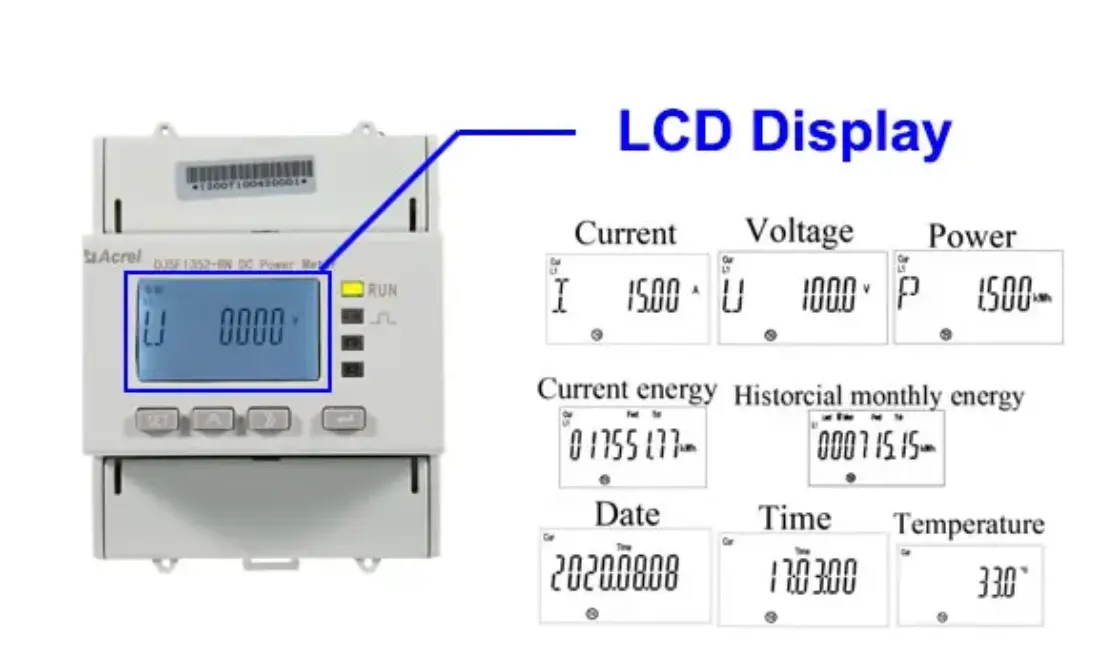

● Display: LCD Display

● Dimension: 72*71*87.8mm (L*W*H)

● Installation: 35mm DIN Rail

● Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC

● Standard&Certificate: CE

WhatsApp contact us

Detailed description
Parameters
Certificate
Download

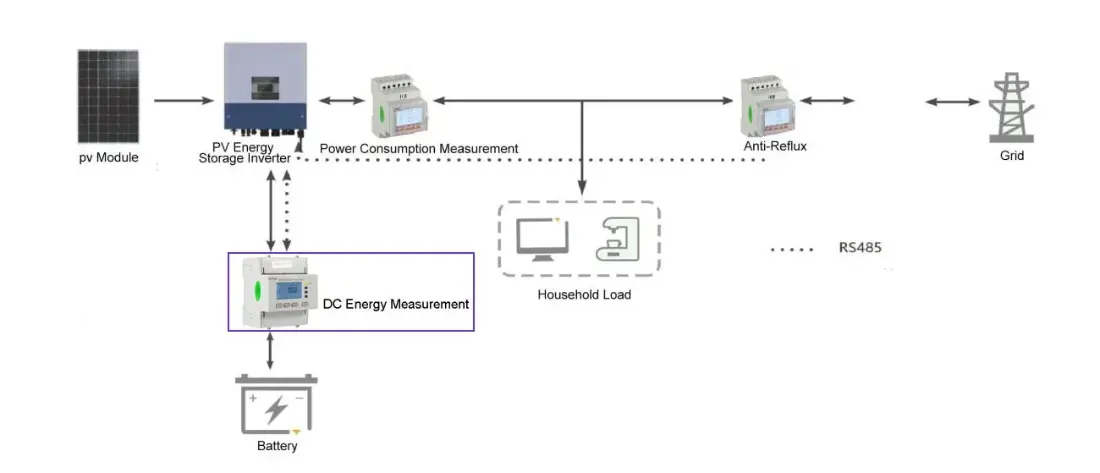

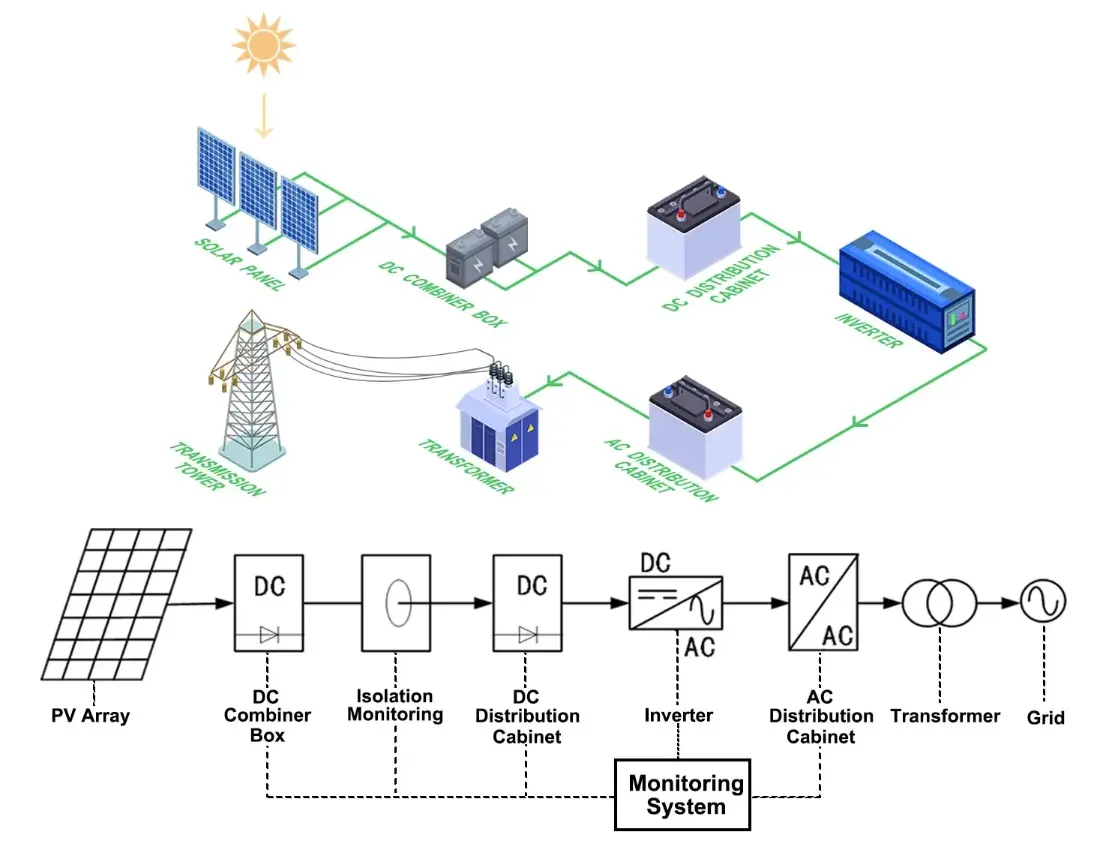

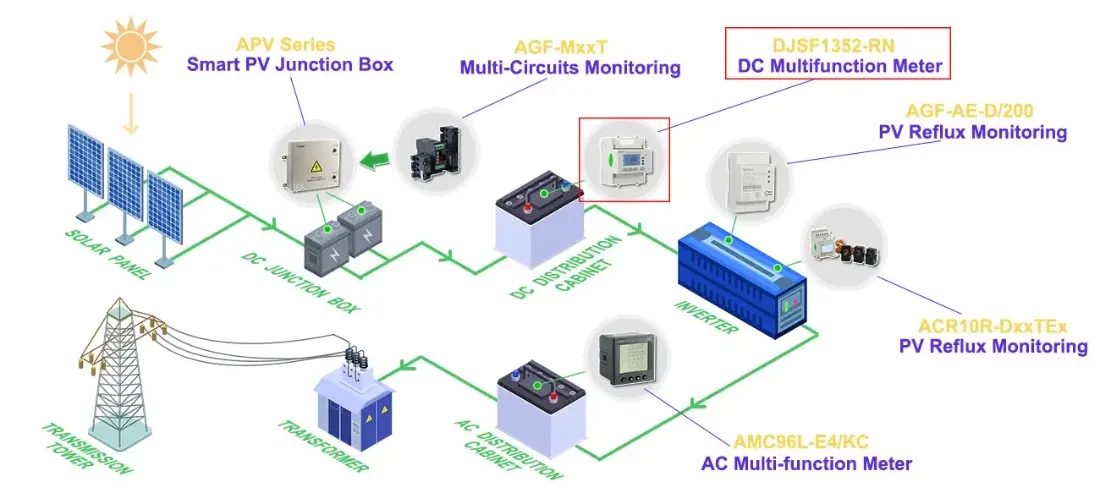

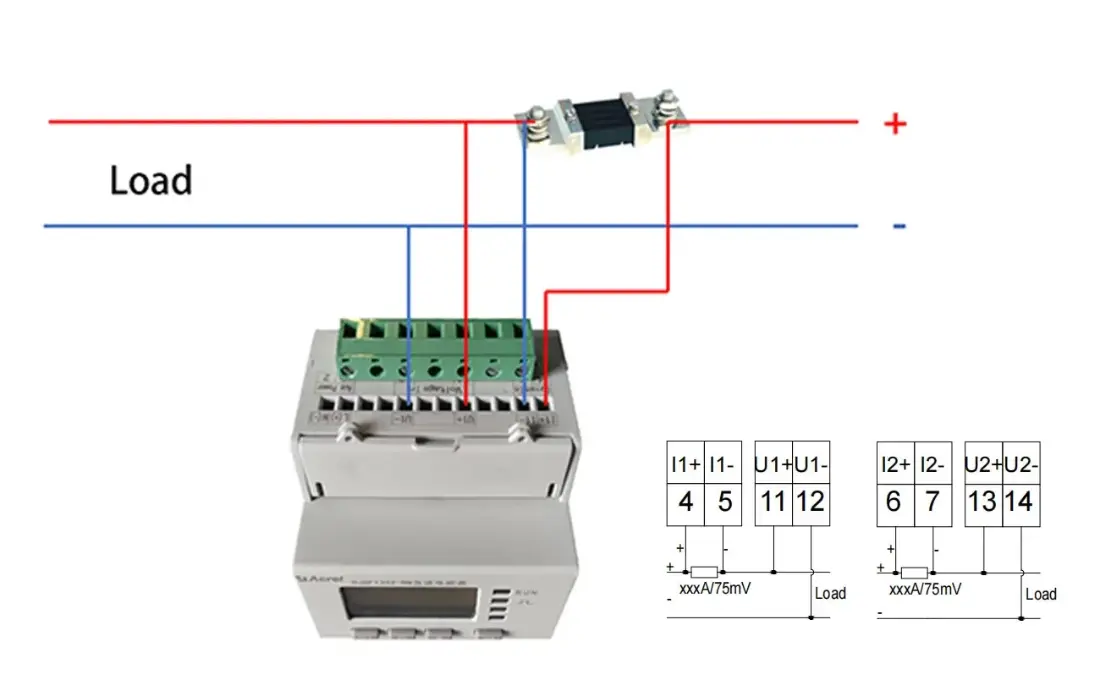

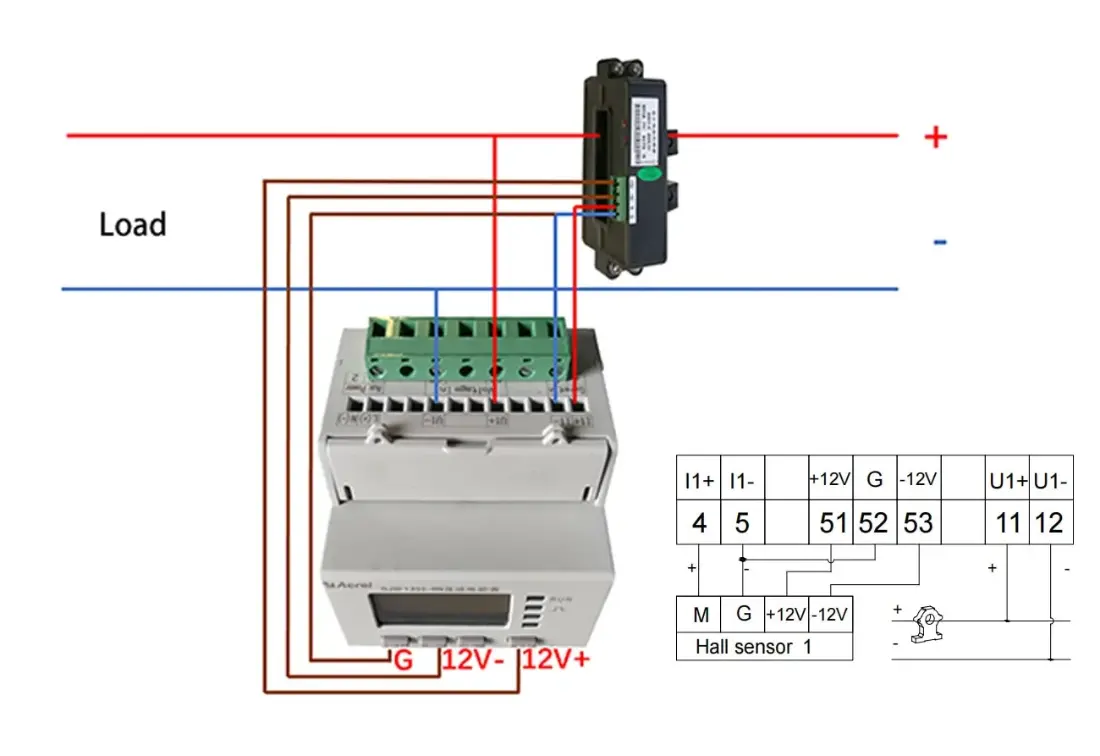

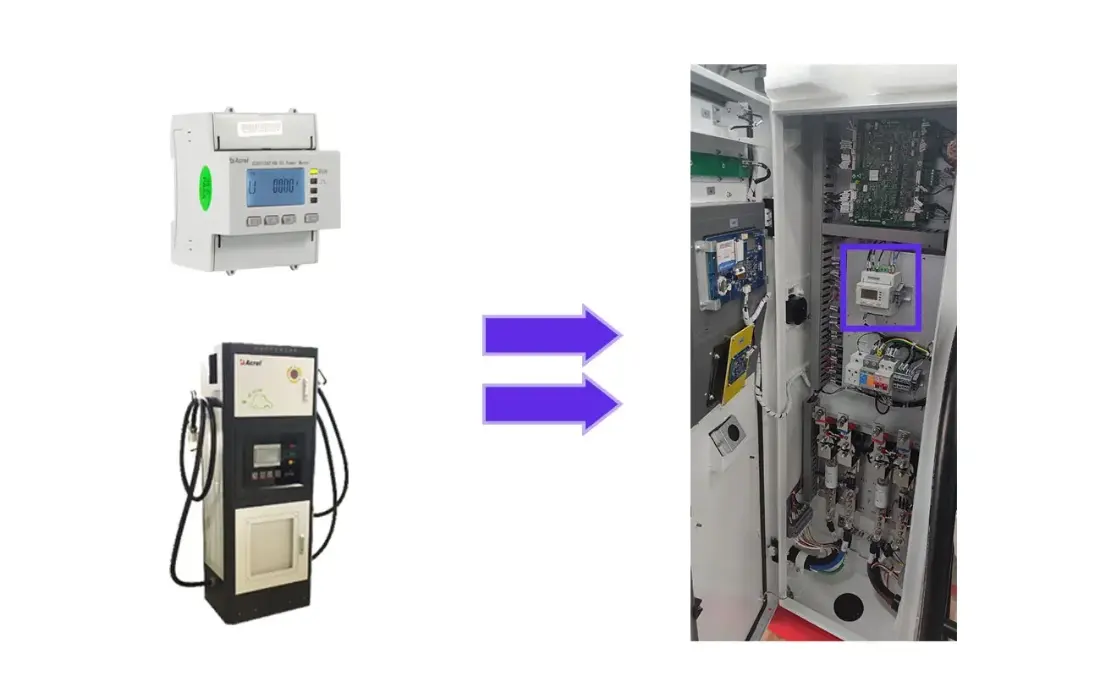

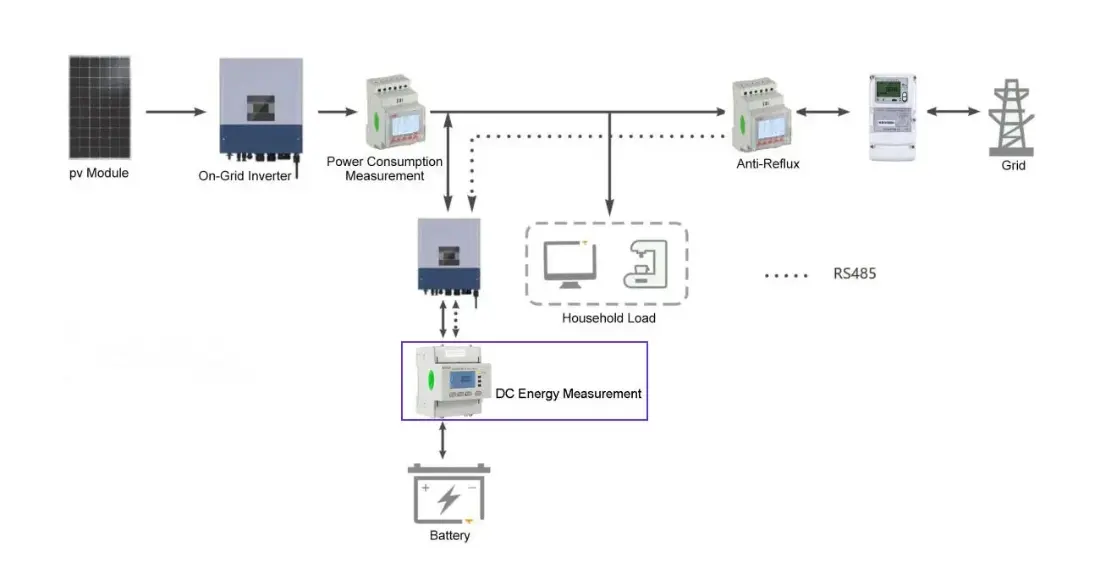

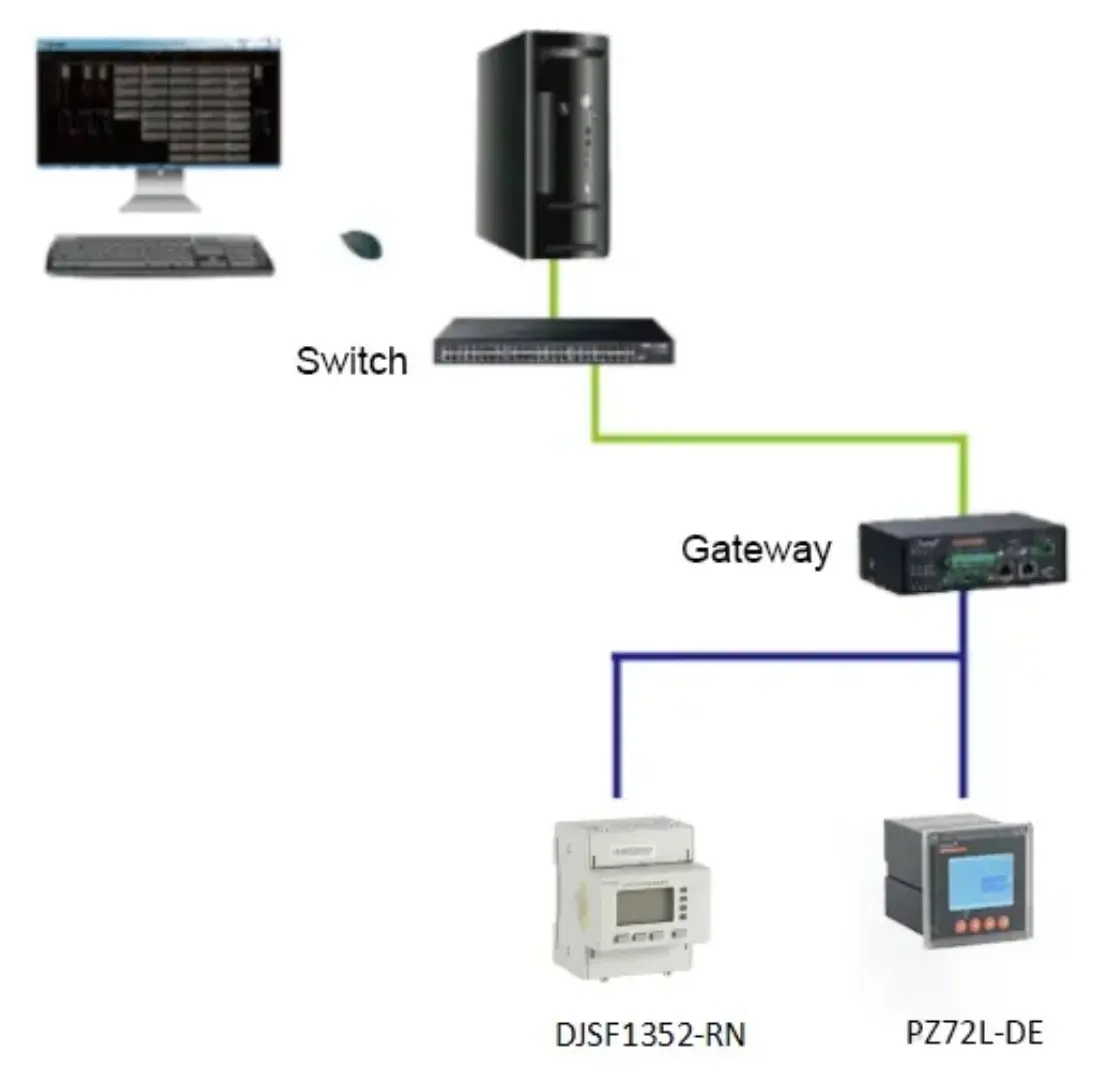

Application for solar pv system Suitable for DC EV charging pile measurement RS485 communication interface Supports Modbus-RTU protocol Relay alarm output and digital input function Set the ratio, alarm, and communication parameters through button Event recording of switch, programming, maximum and minimum value record Technical parameters Indicators Input Nominal value Voltage input range Current input DC 0-1000VSee the physical wiring diagram Shunt：0-75mV；Hall sensor：0-20mA、4-20mA、0-5V，0-10V and so on Overload 1.2 times rated (continuous); 2 times rated/1 second; Power consumption Voltage: ≤0.2VA, current ≤0.1VA Accuracy class Class 1 Function Display 8-bit segment LCD screen (LCD) Communication Interface RS485, infraredRS485, infrared Communication protocol Modbus-RTU，DL/T 645-2007 Switch Switch output 2 Relay outputs, 2A/30VDC or 2A/250VA Switch input 2 dry contact inputs Pulse output A second pulse output, a energy pulse output See the SYS->PLUS display in the meter menu settingFor example: The meter displays 100, which is 100imp/kWH Power Supply Voltage range AC/DC 85-265V or DC24V(±10%) or DC48V(±10%) Power consumption ≤ 3W Power frequency withstand voltage Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min Insulation resistance ≥ 40M Ω Average barrier-free working hours ≥50000h Environment Temperature Normal operating temperature: -25 °C ~ +65 °C;Limit working temperature: -40 °C ~ +70 °C;Storage temperature: -40℃～+80℃ Humidity ≤93%RH, no condensation, no corrosive gas Altitude ≤2500m
Technical parameters Indicators Input Nominal value Voltage input range Current input DC 0-1000V See the physical wiring diagram Shunt：0-75mV； Hall sensor：0-20mA、4-20mA、0-5V，0-10V and so on Overload 1.2 times rated (continuous); 2 times rated/1 second; Power consumption Voltage: ≤0.2VA, current ≤0.1VA Accuracy class Class 1 Function Display 8-bit segment LCD screen (LCD) Communication Interface RS485, infraredRS485, infrared Communication protocol Modbus-RTU，DL/T 645-2007 Switch Switch output 2 Relay outputs, 2A/30VDC or 2A/250VA Switch input 2 dry contact inputs Pulse output A second pulse output, a energy pulse output See the SYS->PLUS display in the meter menu setting For example: The meter displays 100, which is 100imp/kWH Power Supply Voltage range AC/DC 85-265V or DC24V(±10%) or DC48V(±10%) Power consumption ≤ 3W Power frequency withstand voltage Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min Insulation resistance ≥ 40M Ω Average barrier-free working hours ≥50000h Environment Temperature Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃～+80℃ Humidity ≤93%RH, no condensation, no corrosive gas Altitude ≤2500m

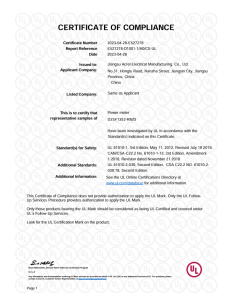

Download [ | ] CE certificate pdf (232.66 KB) [ | ] Manual pdf (未知大小)

Current Language

Change Language

DJSF1352-RN UL DC Din Rail Power Meter

Get in touch with us

RelatedProducts

Frequently asked questions

Technical parameters		Indicators
Input	Nominal value	Voltage input range	Current input

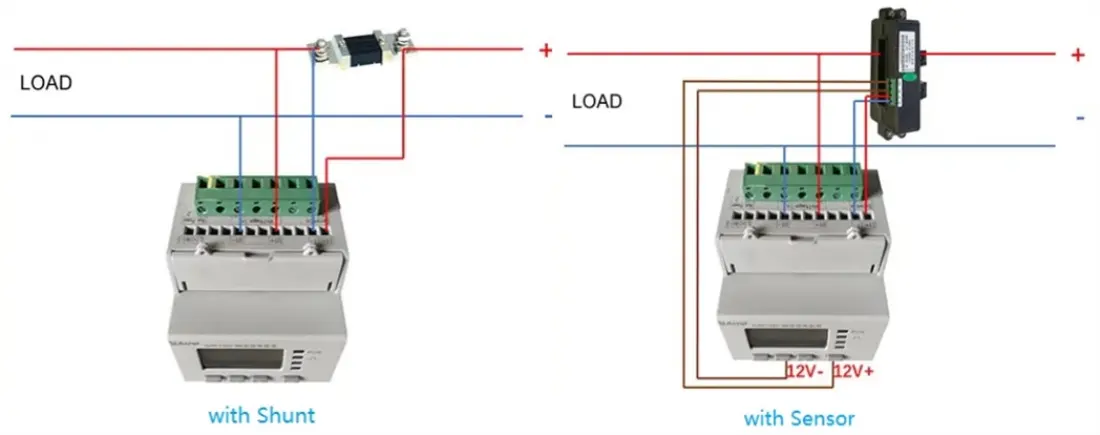

		DC 0-1000VSee the physical wiring diagram	Shunt：0-75mV；Hall sensor：0-20mA、4-20mA、0-5V，0-10V and so on
	Overload	1.2 times rated (continuous); 2 times rated/1 second;
	Power consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class		Class 1
Function	Display	8-bit segment LCD screen (LCD)
	Communication Interface	RS485, infraredRS485, infrared
	Communication protocol	Modbus-RTU，DL/T 645-2007
	Switch	Switch output	2 Relay outputs, 2A/30VDC or 2A/250VA
		Switch input	2 dry contact inputs
	Pulse output	A second pulse output, a energy pulse output
		See the SYS->PLUS display in the meter menu settingFor example: The meter displays 100, which is 100imp/kWH
Power Supply	Voltage range	AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
	Power consumption	≤ 3W
Power frequency withstand voltage		Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min
Insulation resistance		≥ 40M Ω
Average barrier-free working hours		≥50000h
Environment	Temperature	Normal operating temperature: -25 °C ~ +65 °C;Limit working temperature: -40 °C ~ +70 °C;Storage temperature: -40℃～+80℃
	Humidity	≤93%RH, no condensation, no corrosive gas
	Altitude	≤2500m
