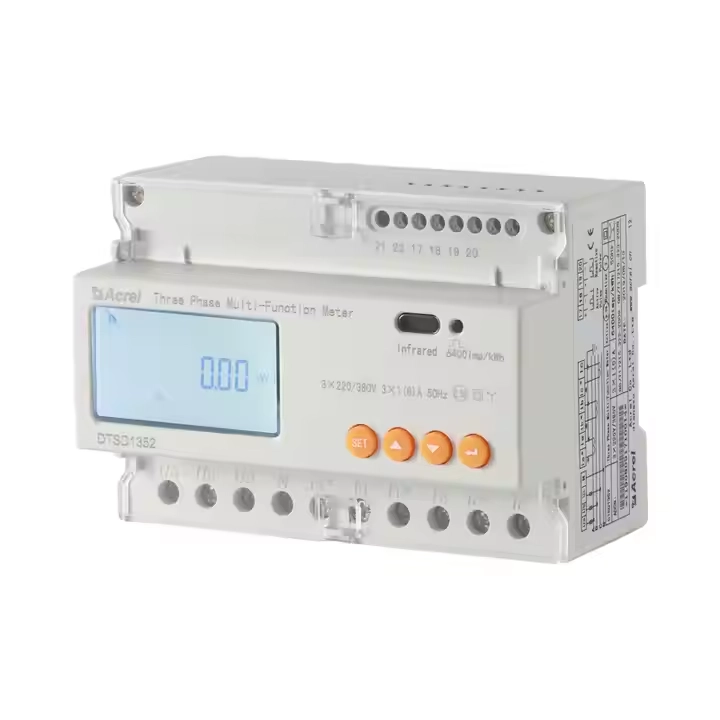

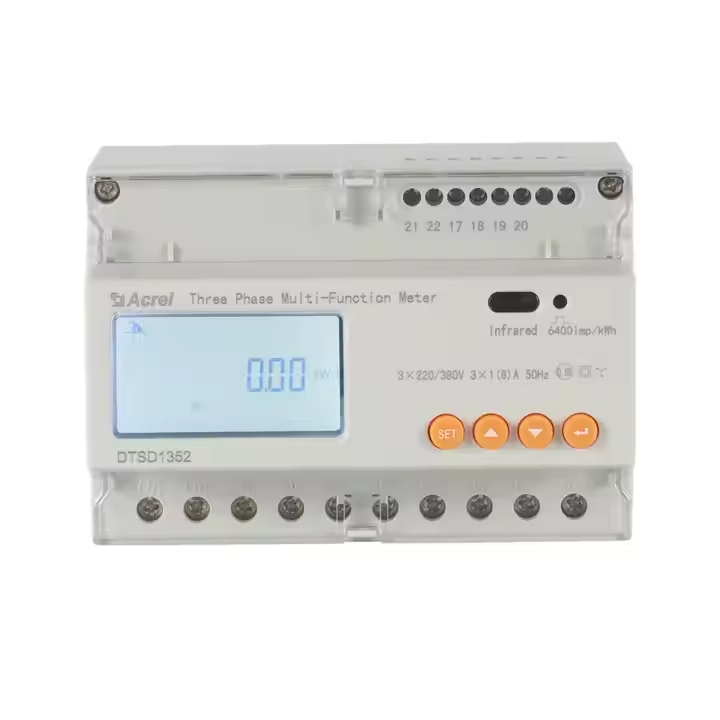

    DTSD1352-C Three-phase Smart Meter Compatible with Inverters

    Product Description

    ● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
    ● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    ● Current Rating: 3x10(80)A; 3x1(6)A
    ● Frequency: 45~65Hz
    ● Commnunication: RS485 (MODBUS-RTU) and Infrared
    ● Multi-rate: Spike, Peak, Valley and Flat kWh
    ● Extra Function: Cable Temperature Measurement and DO/DI
    ● Display: LCD (8 digits)

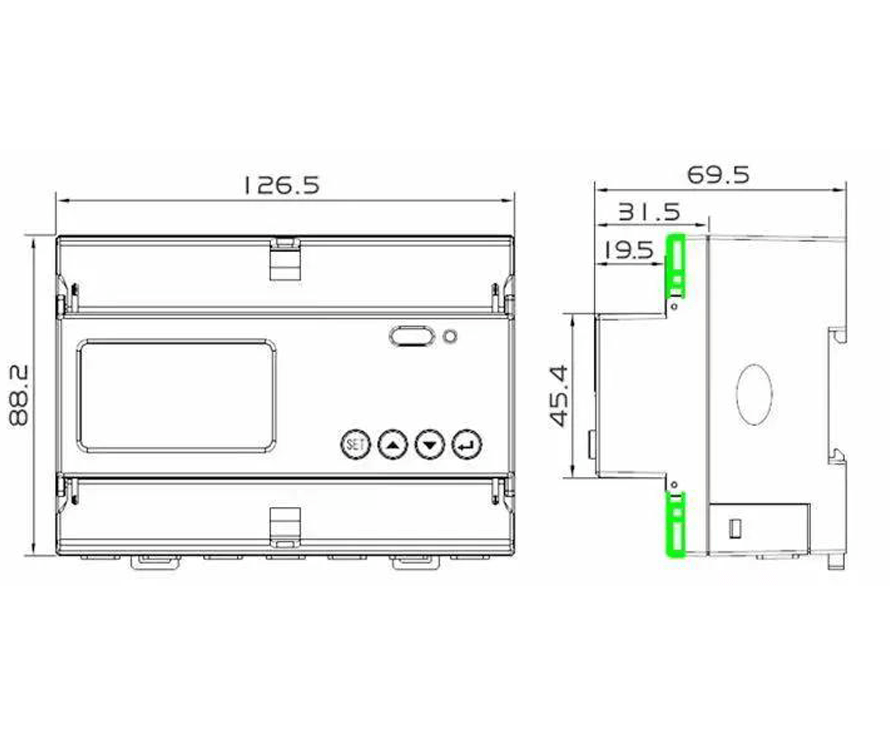

    ● Dimension: 127*88*70mm (L*W*H)

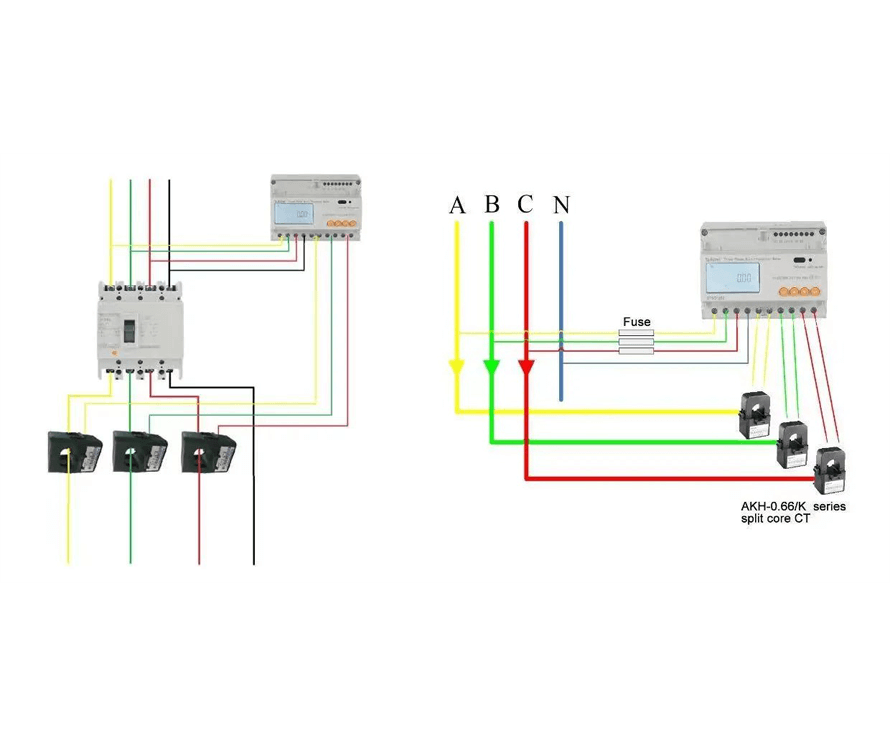

    ● Wiring: 3-phase 4wire; 3-phase 3-wire

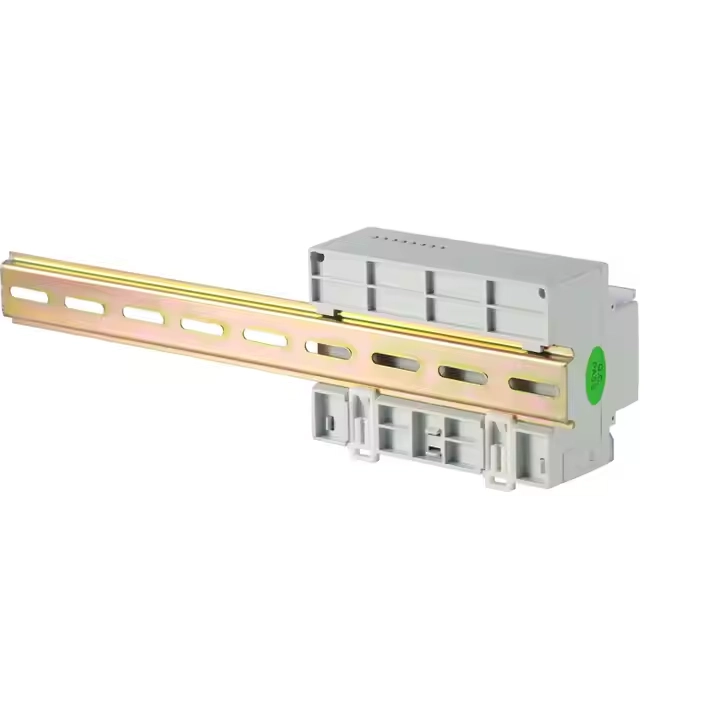

    ● Installation: 35mm DIN Rail
    ● Standard&Certificate: UL; IEC; CE
    WhatsApp contact us

    • Detailed description

    • Parameters

    • Certificate

    • Download

    DTSD1352-C Solar inverter smart meter is a three phase smart meter designed for PV solar system, which already have configued with several inverter like sungrow, solis etc. Acrel DTSD1352-C Solar inverter smart meter can be directly used together with these inverter through rs485 power meter, realize the measure and monitor function.

    Other attributes

    • Place of Origin: Shanghai, China
    • Brand Name: ACREL
    • Model Number: DTSD1352-C/1(6)A
    • Display Type: Digital Only
    • Accuracy Class: Class 0.5 (Active)
    • Operating Temperature: -25 to 55 °C
    • Dimensions: 126 * 91 * 74 mm
    • Nominal voltage: 230 Vac / 400 Vac
    • Input voltage range: 57.7 / 100 Vac – 268 / 464 Vac
    • Power Supply(self supply): 154 – 264Vac
    • Max. operating current: 1 (6) A (via CTs)
    • Grid frequency: 50 Hz / 60 Hz
    • Interface and communication: RS485

    Packaging and delivery

    • Packaging Details: carton + Wooden case
    • Selling Units: Single item
    • Single package size: 15X15X13 cm
    • Single gross weight: 0.700 kg
    Type DTSD1352-C/1 (6)A
    Input voltage 230 Vac / 400 Vac

    Input current

    3×1 (6) A (via CTs) , 3×10(80) A

    Accuracy(active)

    Class 0.5S

    Clock accuracy

    Error≤0.5s/d
    Communication

    RS485 MODBUS-RTU

    Baud rate

    1200bps~19200bps
    LCD Display

    8 bits section LCD display, background light
    Pulse output

    Active pulse output
    Additional function

    /F:multi-tariff energies

    /K: 1DI/1DO

    /T: three channels temperature measurement(NTC)

    /H: 2-31st harmonic

    /2C: the second RS485

    Net weight

    0.35kg
    Dimension 126 * 91 * 74mm
    Installation 35 mm DIN-rail
