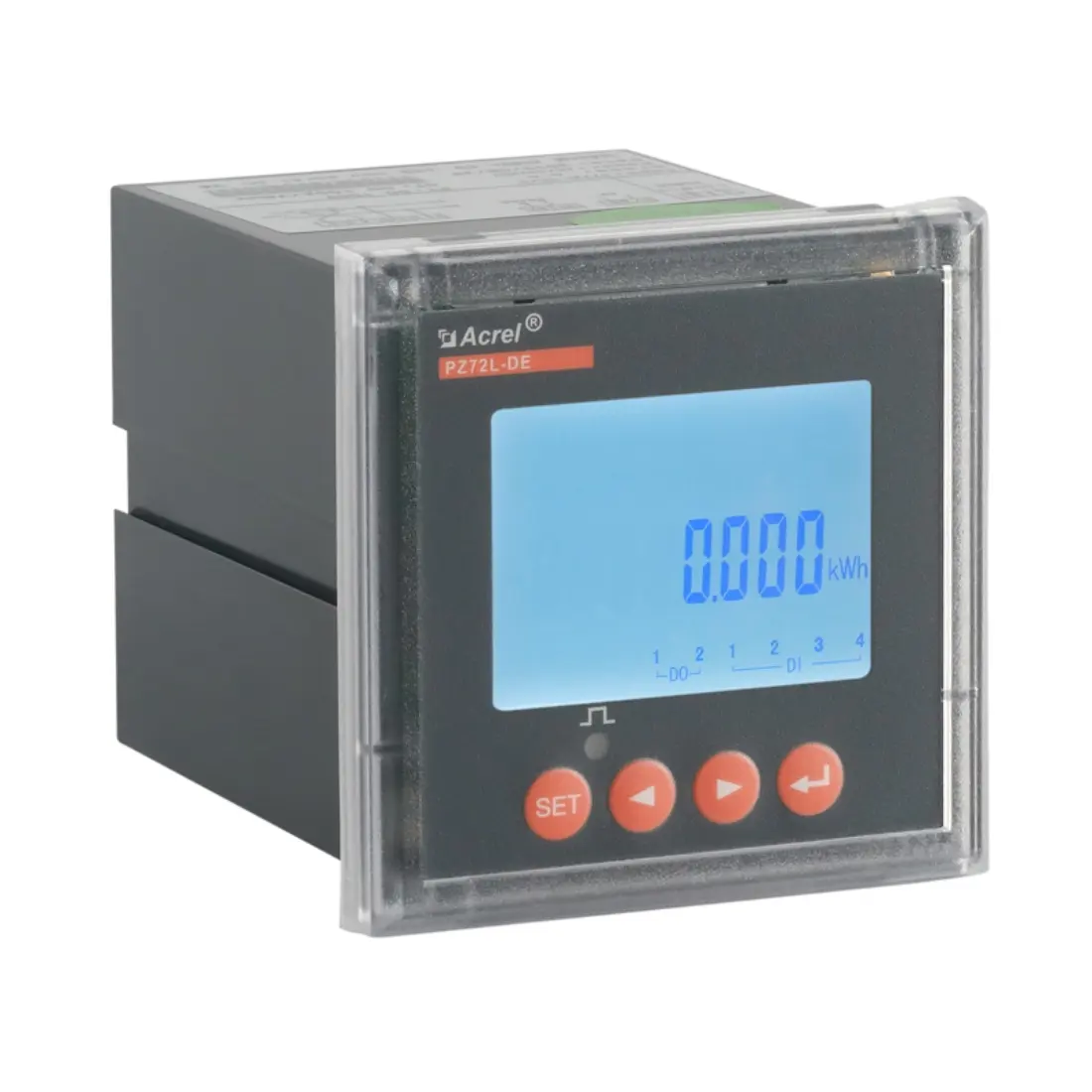

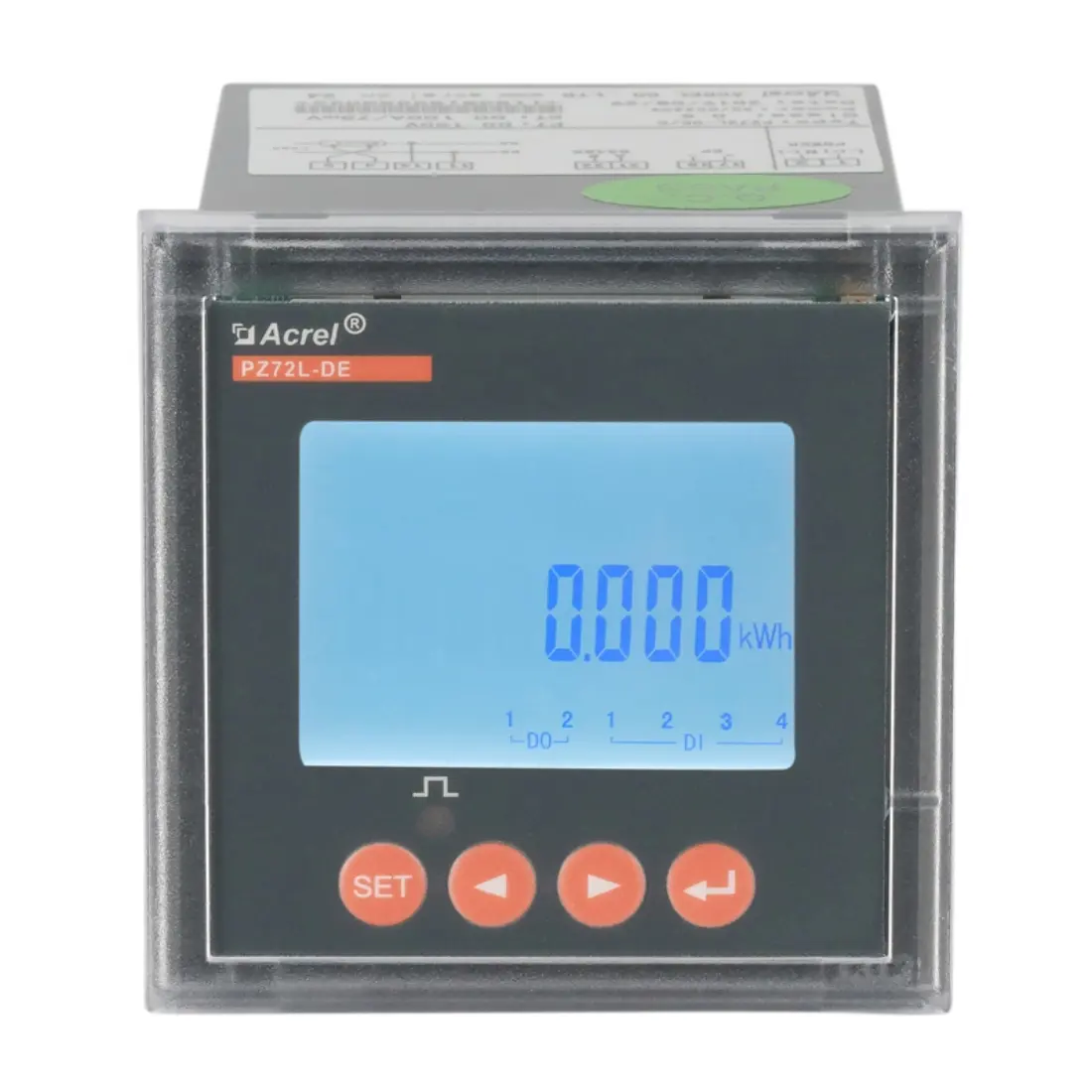

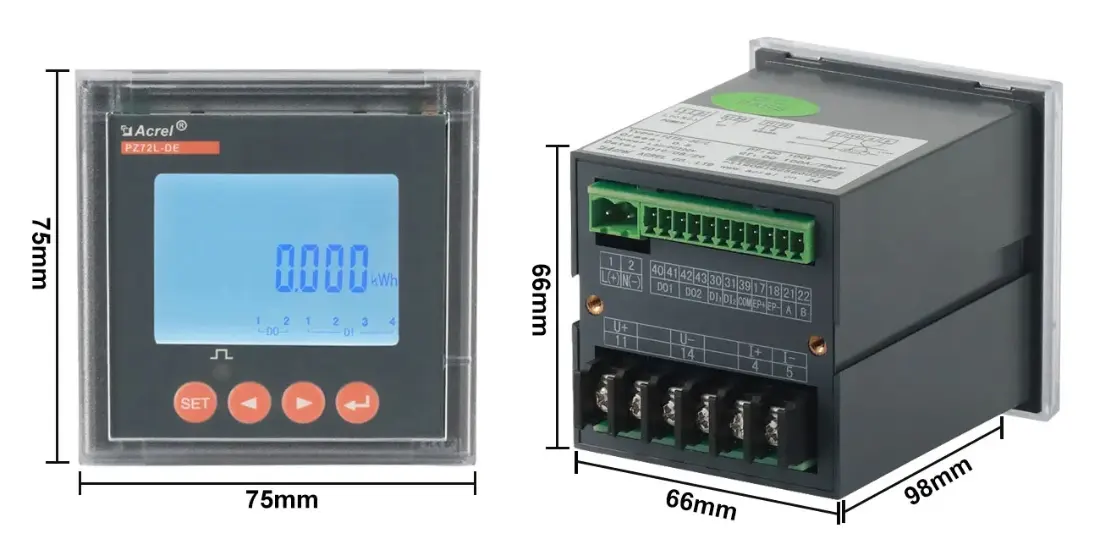

PZ72L-DE DC Energy Meter

Product Description

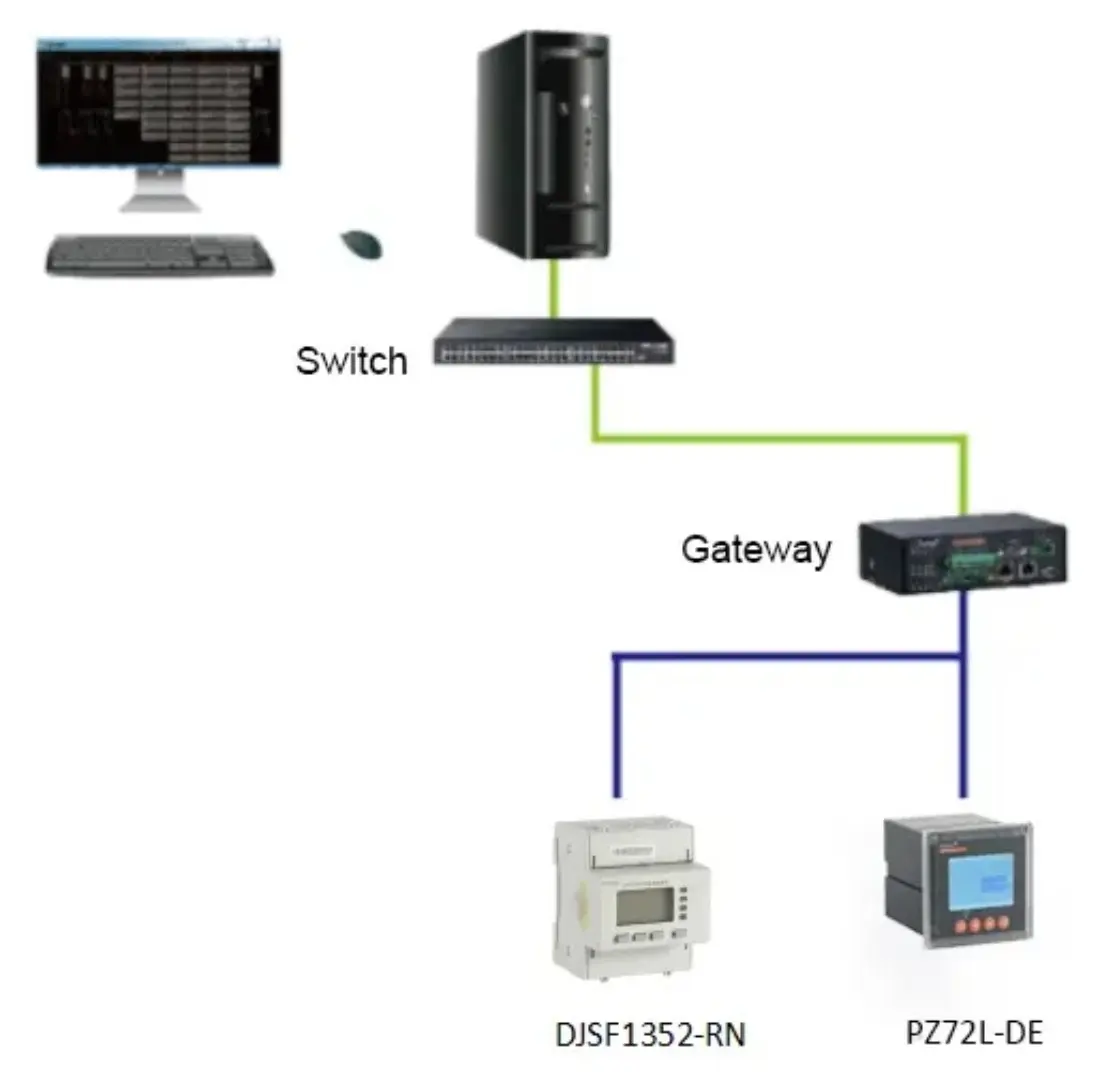

PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging ports. This series of instruments can measure voltage, current, power, forward and reverse power in the DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output. According to different requirements, through the instrument panel keys, you can set the ratio, communication parameters.

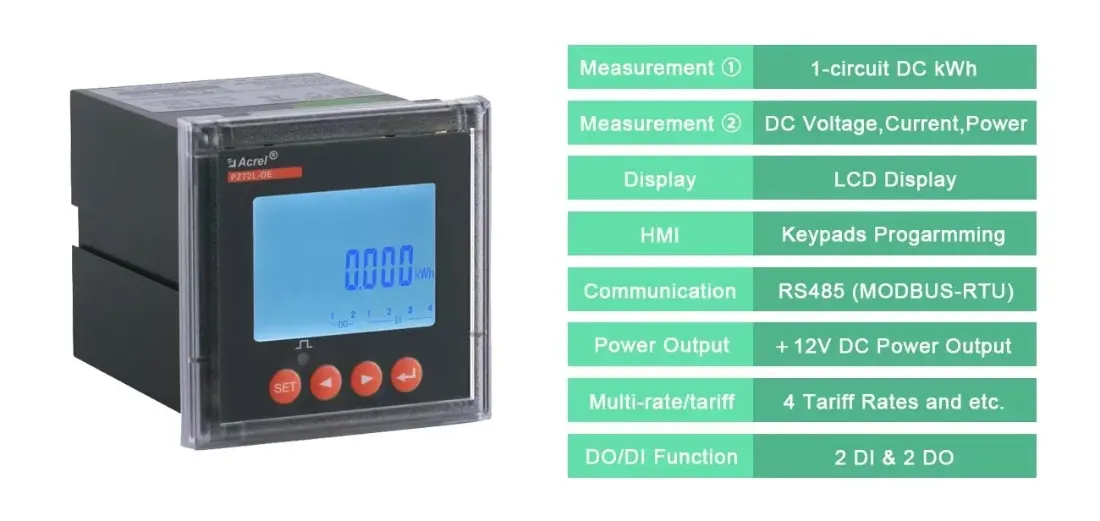

Function	Description&Value
Measurement	1-circuits DC Voltage, Current, Power, kWh
Display	LCD display
Communication(Optional)	RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity)
Communication(Optional)	Baud Rate 1200~38400 bps etc.
DI/DO Switching(Optional)	DI (Digital input): 2-channel digital input,dry contact, built-in power supply
DI/DO Switching(Optional)	DO (Digital output): 2-channel digital output (relay output) with NO Contact, Capacity: 2A/30V DC or 2A/250V AC
±12V Power Output(Optional)	Serve as the power supply for 1 Hall Sensors with ±12V DC
Multi-rate/tariff(Optional)	2 Time Schedules; 4 Time Zone for a year; 12 time periods by days set for 1 time schedule; 4 Tariff Rates (Spike, Peak, Flat, Valley); Min. Time Interval=15 min.
Multi-rate/tariff(Optional)	DO (Digital output): 2-channel digital output with NO relay contact. Capacity: 3A/30V DC,3A/250V AC

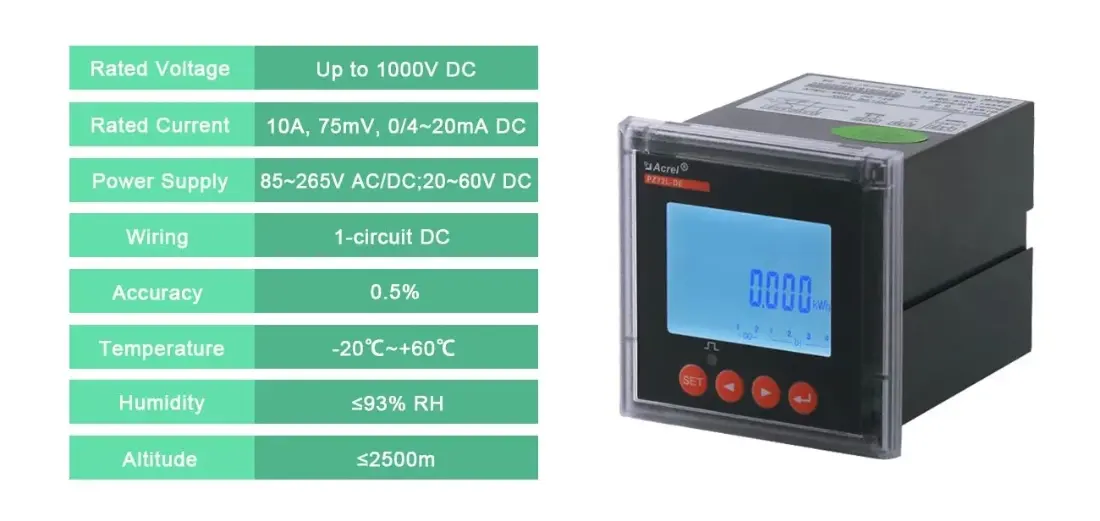

Parameter	Description&Value
Input	Rated Voltage	DC Voltage Input: 0~1000V DC (via direct connetion); Input Resistance: ≥ 6kΩ/V

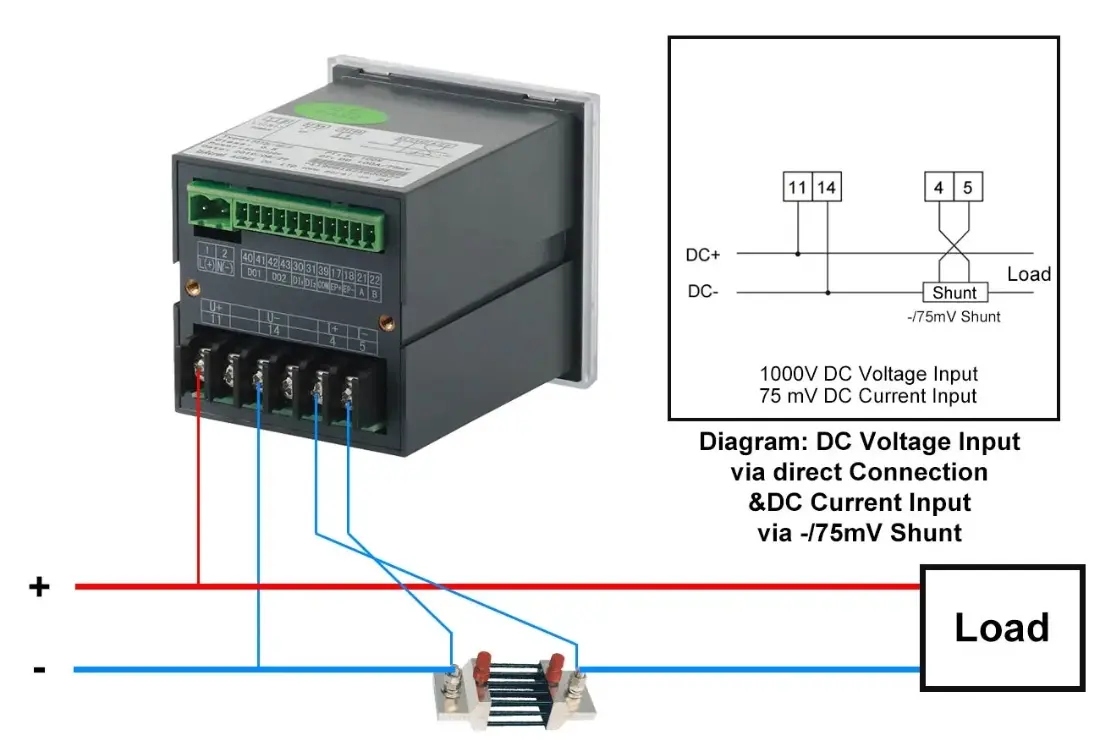

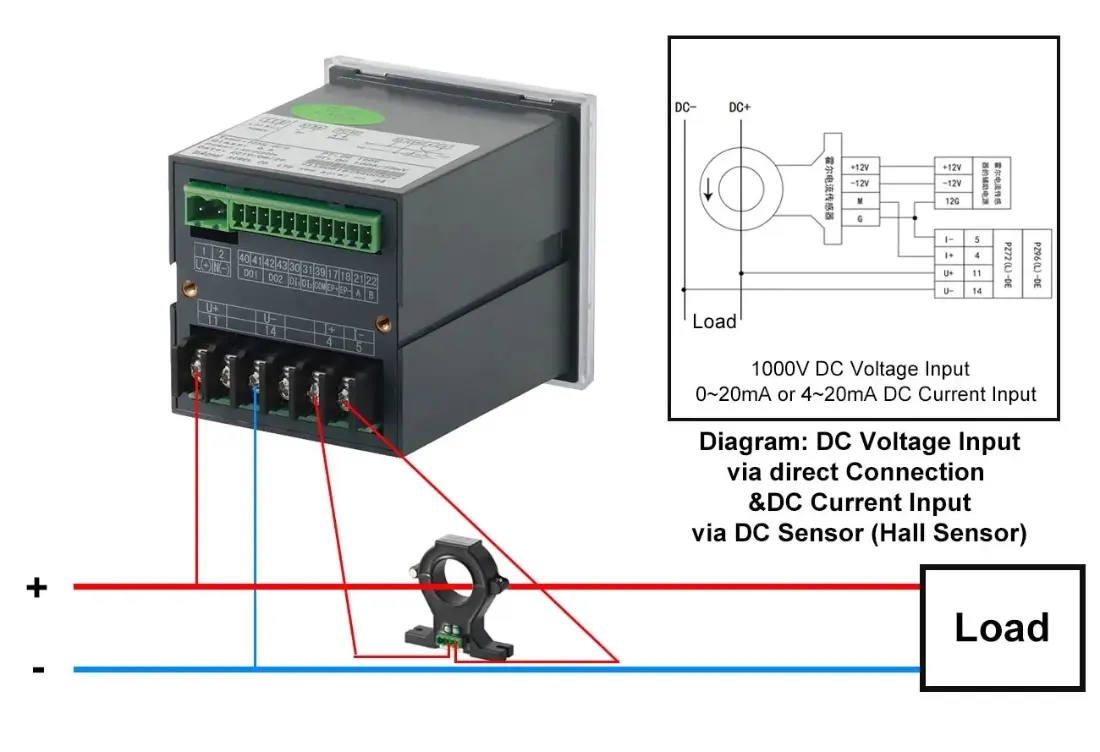

	Rated Current	DC Current Input: 10A DC (via direct Connection); 0~20mA or 4~20mA (via Hall Sensors); 75mV (via Shunts)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
	Power Consumption	Power consumption of each current input circuit is less than 1mW
Measuring Accuracy	Class	0.50%
Power Supply	Voltage Range	85-265V AC/DC; 20~60V DC (±20%)
Power Supply	Power Consumption	≤ 2W
Pulse Constant		Voltage and current specifications：750V、300A，Default pulse constant：100imp/kWh
Pulse Constant		Voltage and current specifications：1000V、300A，Default pulse constant：100imp/kWh
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min;
		Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min;
		Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;
Environment	Temperature	Operation: -25℃～+65℃; Storage: -40°C ~+80°C
	Humidity	≤95%RH,no condensation,without corrosive gas
	Altitude	≤ 2500m
Parameter	Description&Value
Input	Rated Voltage	DC Voltage Input: 0~1000V DC (via direct connetion); Input Resistance: ≥ 6kΩ/V
	Rated Current	DC Current Input: 10A DC (via direct Connection); 0~20mA or 4~20mA (via Hall Sensors); 75mV (via Shunts)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
	Power Consumption	Power consumption of each current input circuit is less than 1mW
Measuring Accuracy	Class	0.50%
Power Supply	Voltage Range	85-265V AC/DC; 20~60V DC (±20%)
Power Supply	Power Consumption	≤ 2W
Pulse Constant		Voltage and current specifications：750V、300A，Default pulse constant：100imp/kWh
Pulse Constant		Voltage and current specifications：1000V、300A，Default pulse constant：100imp/kWh
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min;
